Description
Model: Street Series Turbocharger 46-60050
Features
- In house testing produced a max gain of +10 horsepower and +28 lbs. x ft. of torque, verified by our in house dyno
- Stock Replacement with no core charge
- A direct bolt-on replacement; all connections to the vehicle are compatible with the OE geometry
- Additional fueling is not required
- Wastegate actuator is included, comes preset to factory specifications
- 2-Year Warranty
Specifications:
Compressor Inducer – 60 mm /Trim: 48
Compressor Exducer – 87 mm
Turbine Inducer – 68 mm
Turbine Exducer – 58 mm
Turbine Housing: 12 CM2
Direct Replacement:
This turbo can be installed on 2003-2007 model years as a direct, bolt-on replacement. All connections to the vehicle are compatible with the OE geometry, resulting in a quick and reliable connection.
Compressor:
The housing utilizes OE inlet and outlet. A wastegate actuator is mounted to the integrated cast bracket and comes preset to factory setting.
Note: This device is not CARB exempt at this time and is not legal for sale in California or use on vehicles registered with the California Department of Motor Vehicles.

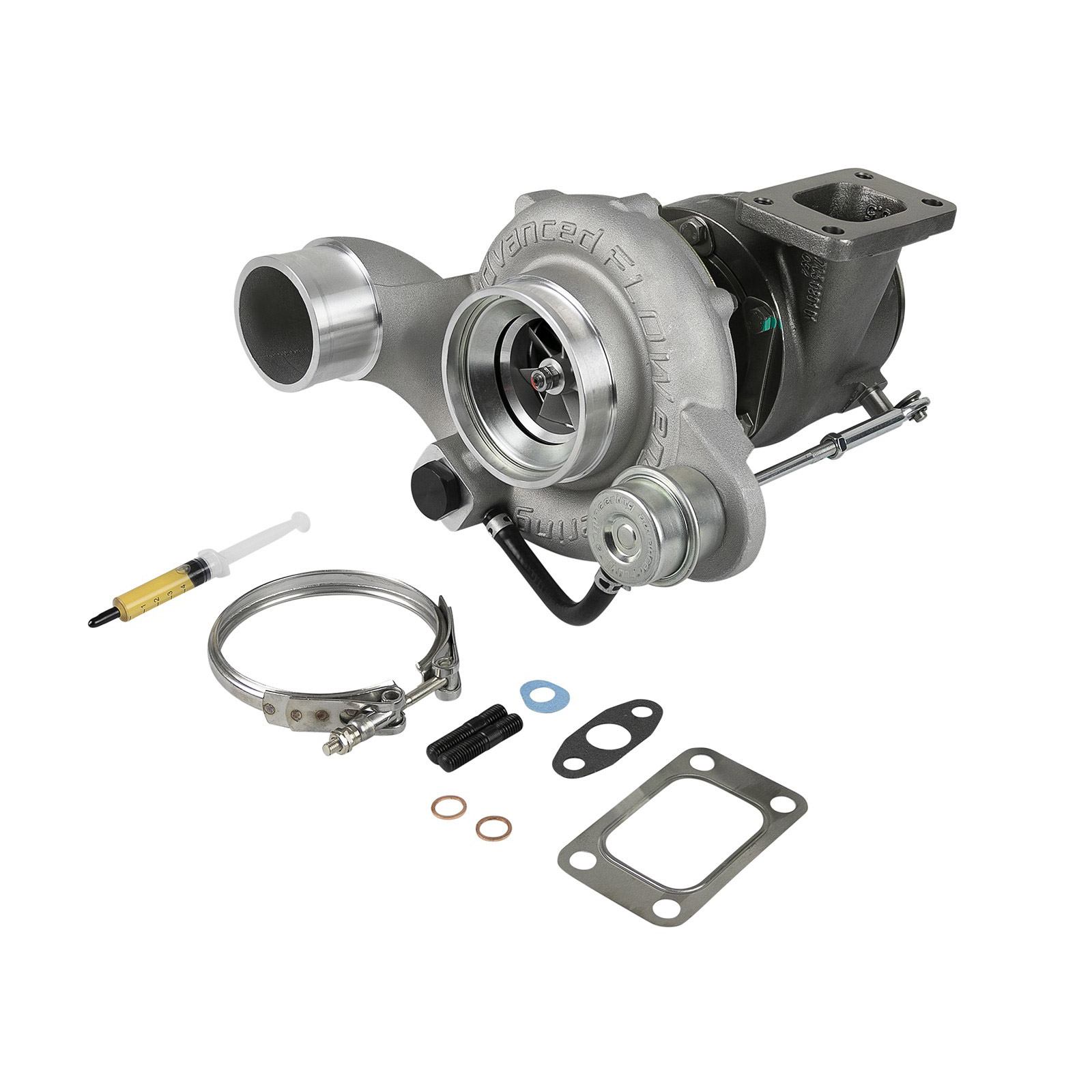

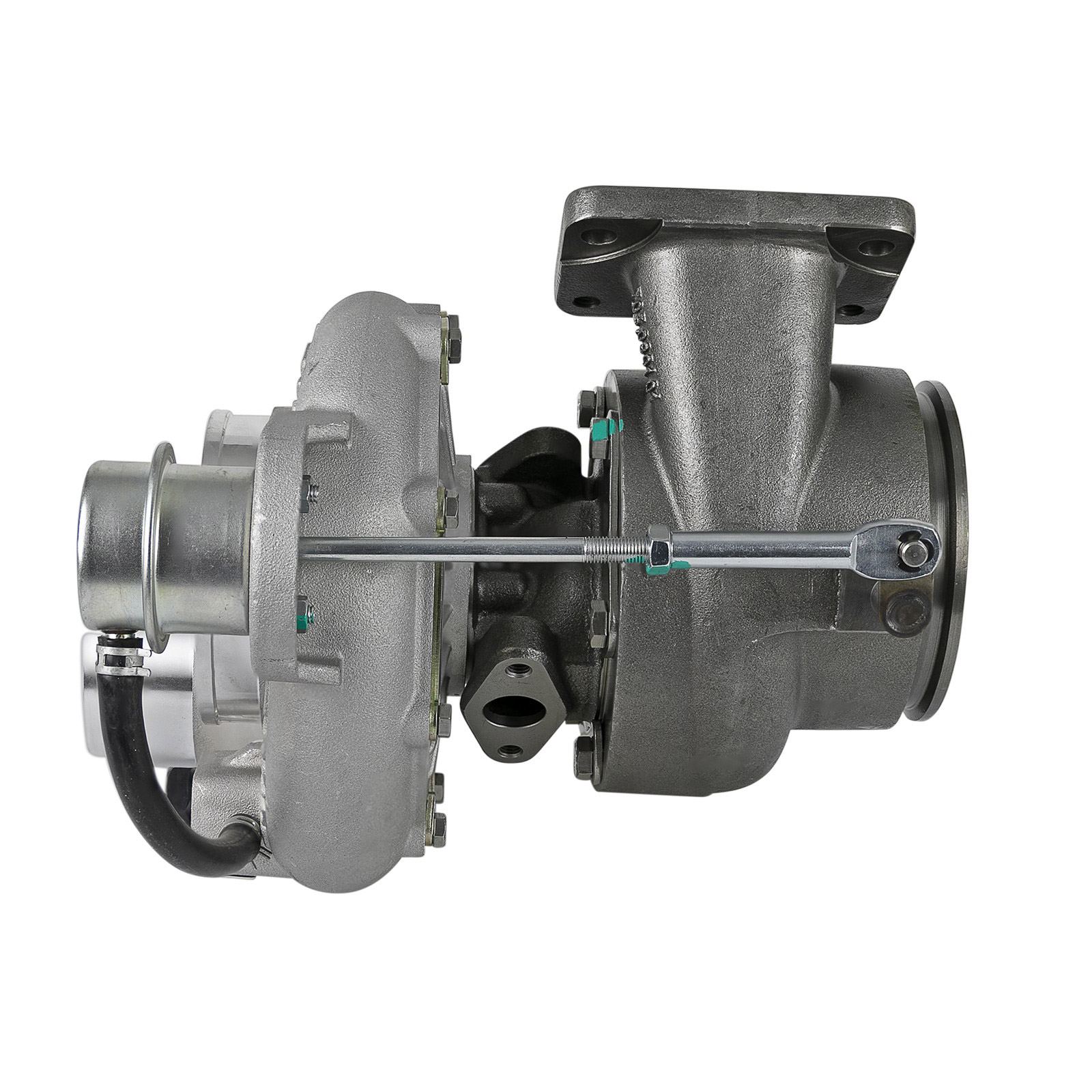

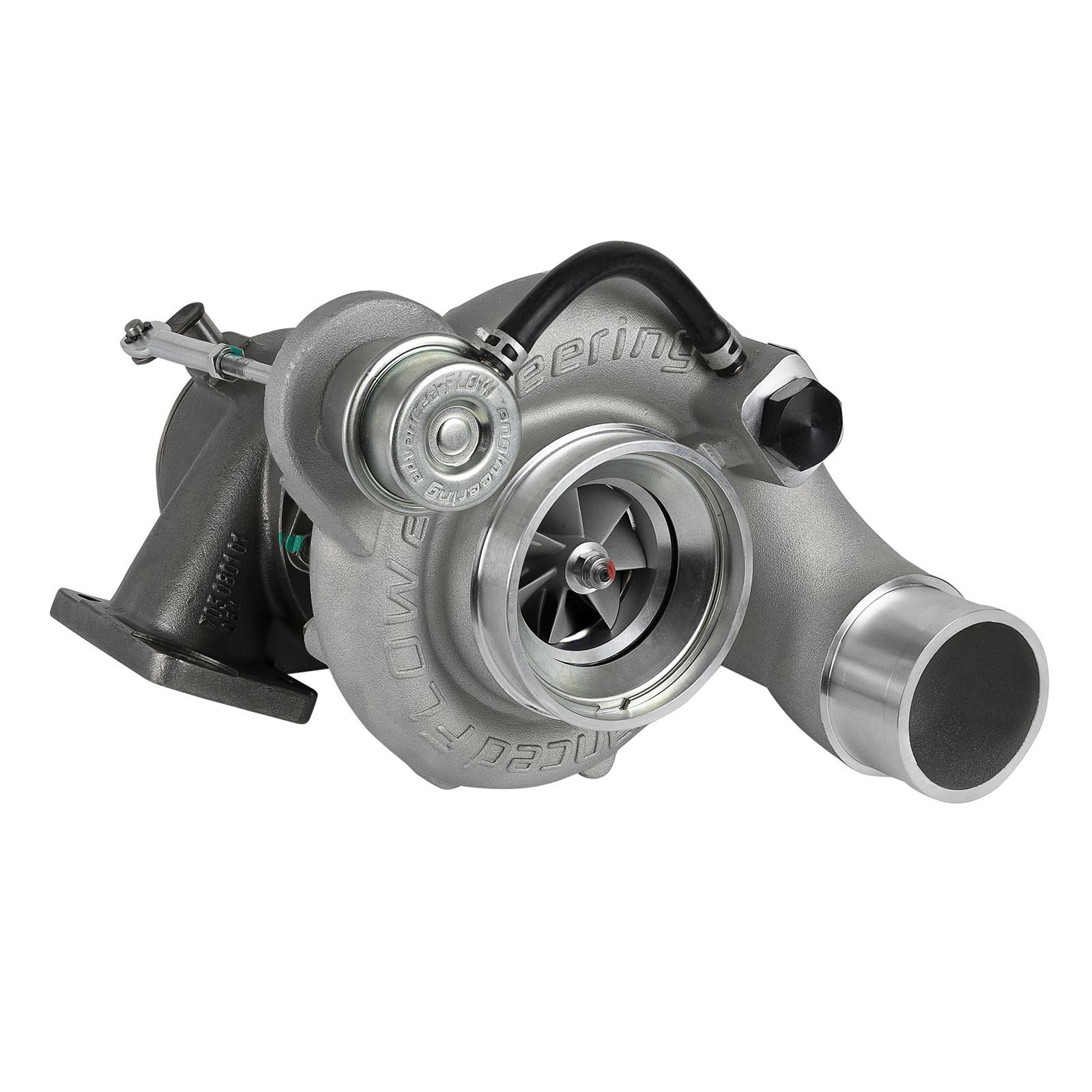

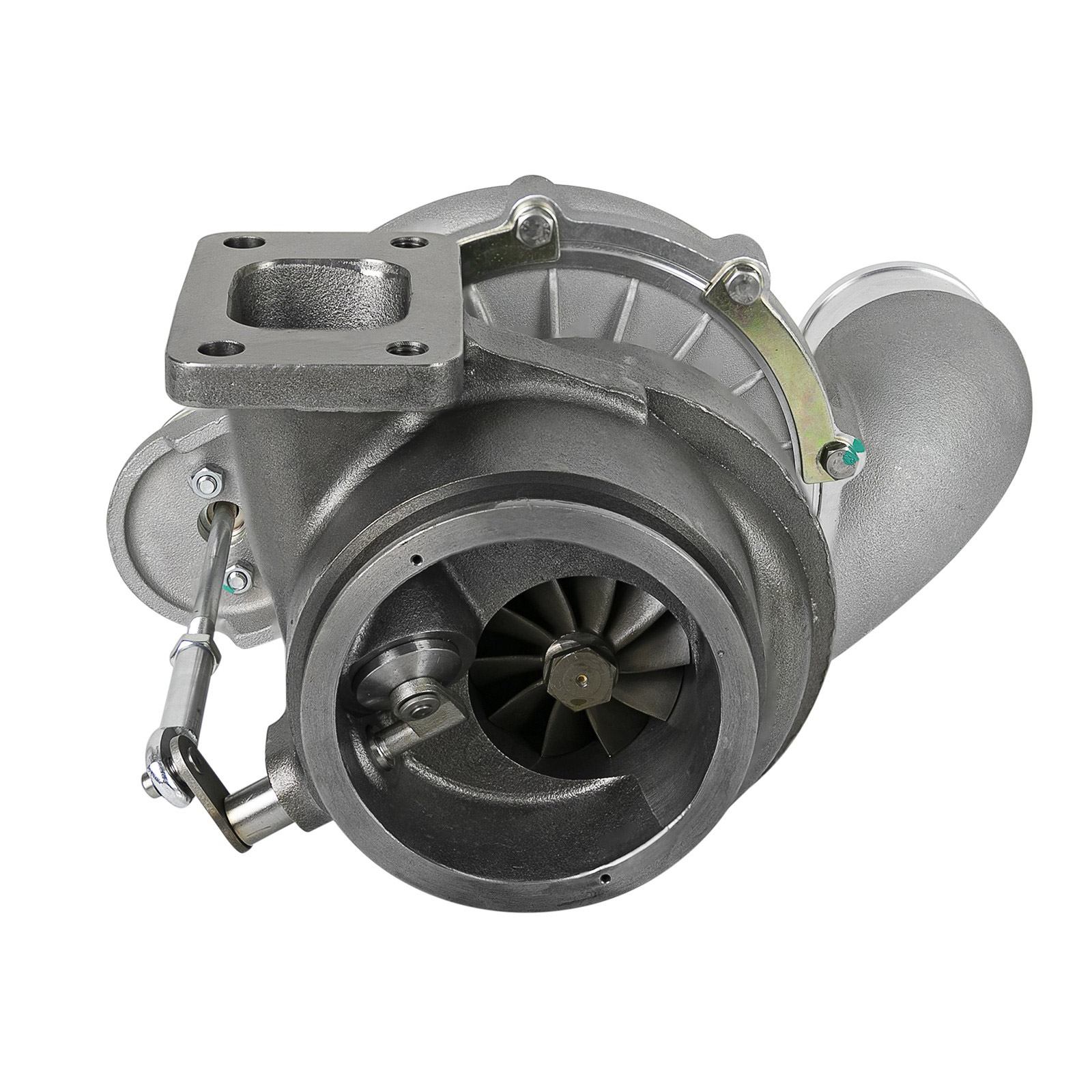

Model: GT Series Turbocharger 46-60052-1
Features
- +51 HP and +124 lbs. x ft. Torque max gains, verified by our in house dyno*
- Stock replacement with no core charge
- A direct bolt-on replacement; all connections to the vehicle are compatible with the OE geometry
- Additional fueling is not required
- Billet adjustable wastegate actuator included, comes preset to 40 PSI
- 2-Year Warranty
Specifications:
Compressor Inducer – 60 mm/Trim: 45
Compressor Exducer – 89.7 mm
Turbine Inducer – 65 mm
Turbine Exducer – 58 mm
Turbo Housing: 12 CM2

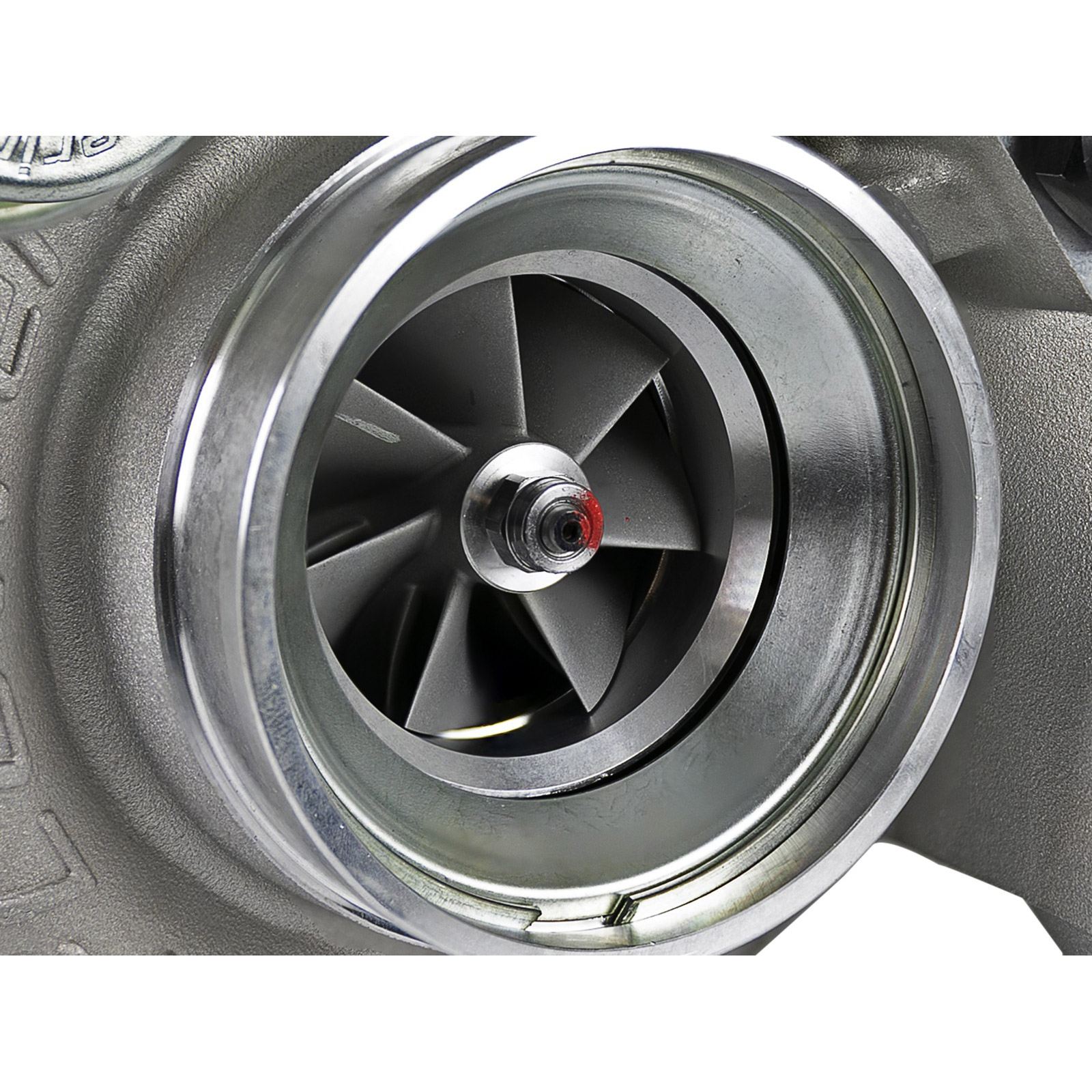

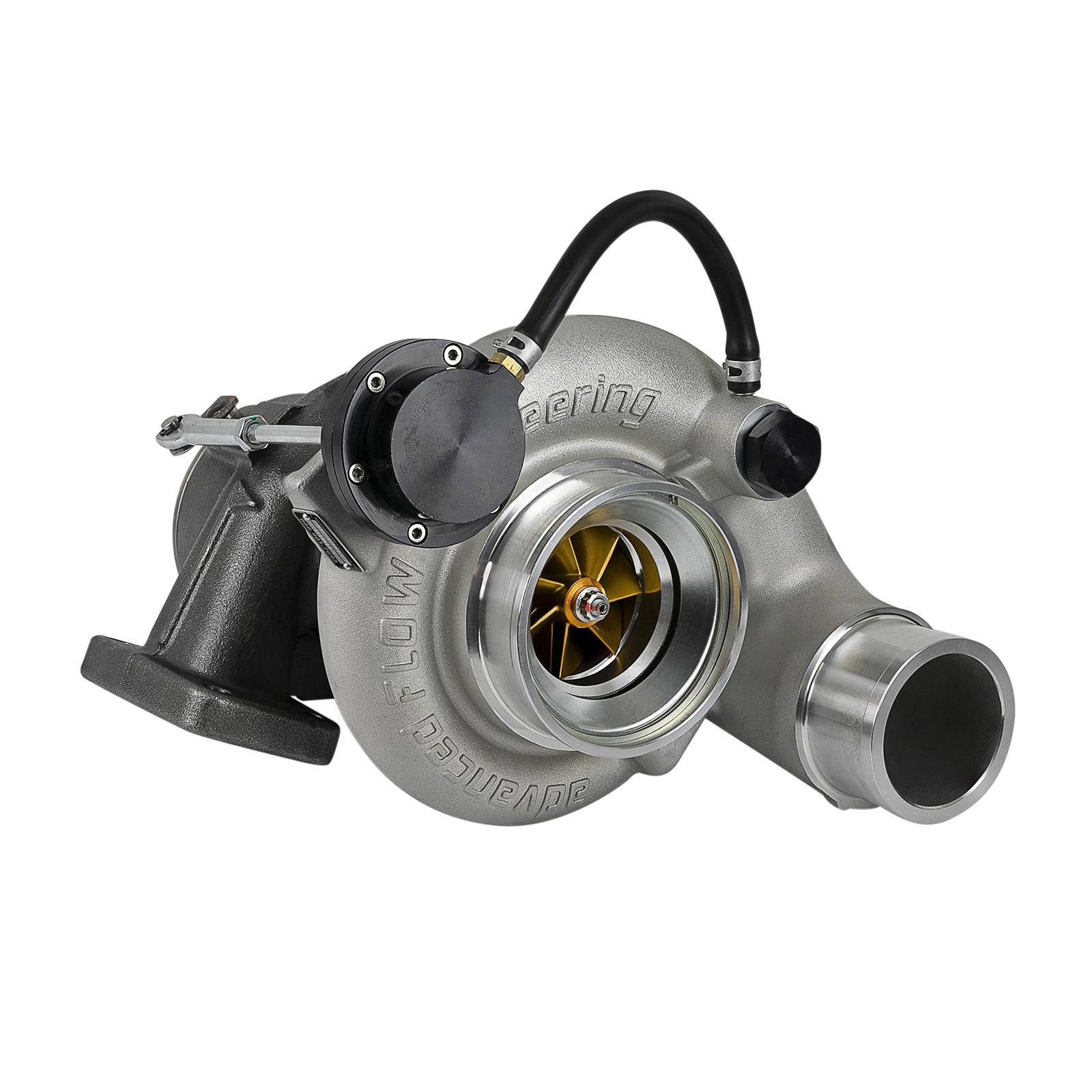

Billet Wheel:
The compressor features a gold anodized 7/14 bladed billet aluminum compressor wheel that is lighter and stronger than the stock cast wheel to help provide quicker “spool-up” and higher air flow than the stock turbo.
Compressor:
The compressor features a light-weight billet aluminum compressor wheel with a 60mm inducer and 89.7mm exducer to improve turbo spool-up, handle high wheel speeds, and boost pressures. Also included is a CNC-machined, black anodized billet adjustable aluminum wastegate actuator.

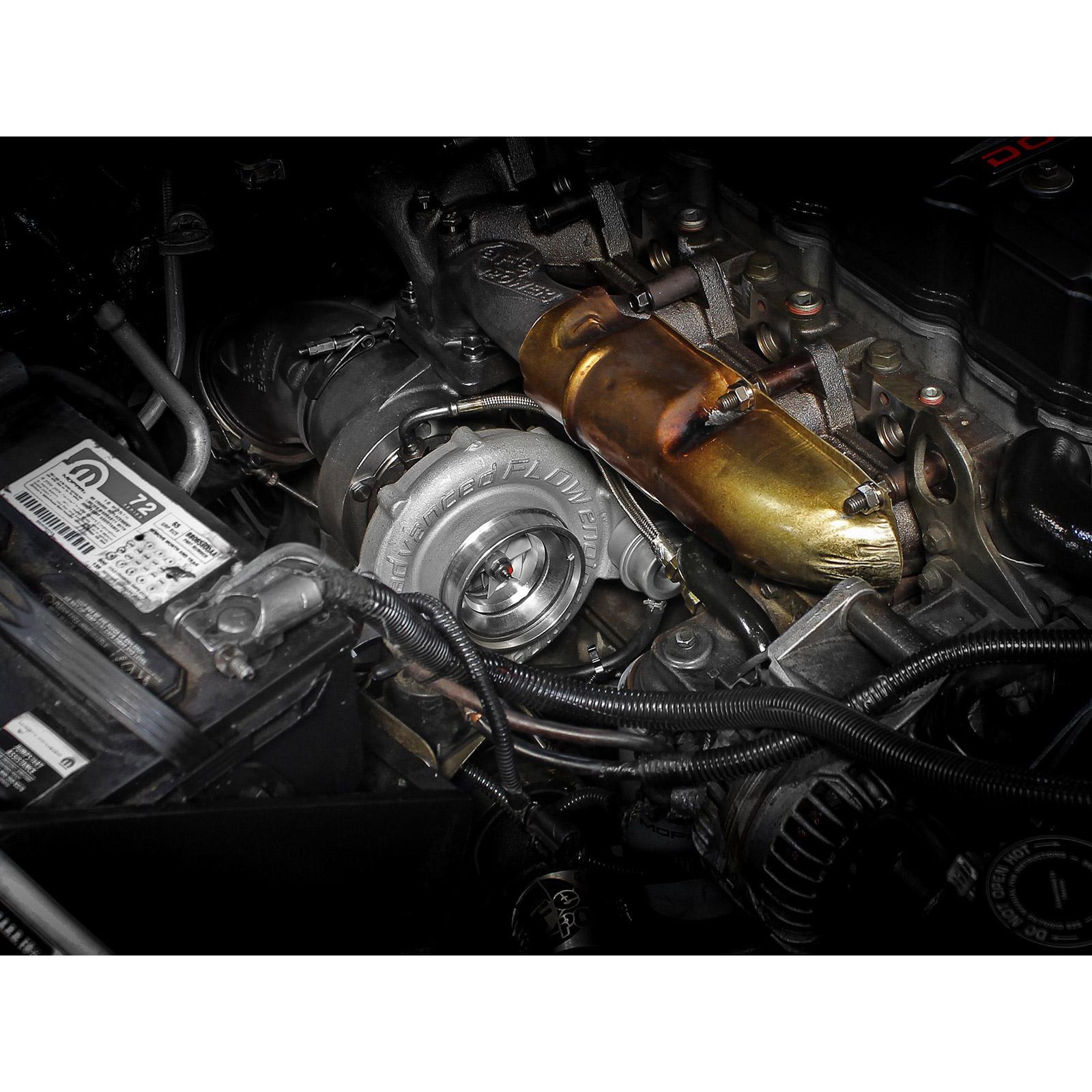

Direct Replacement:
This turbo can be installed on 2003-2007 model years as a direct bolt-on replacement. All connections to the vehicle are compatible with the OE geometry, resulting in a quick and reliable connection. Maximum gains are achieved from fuel system upgrades, either electronic or mechanical.

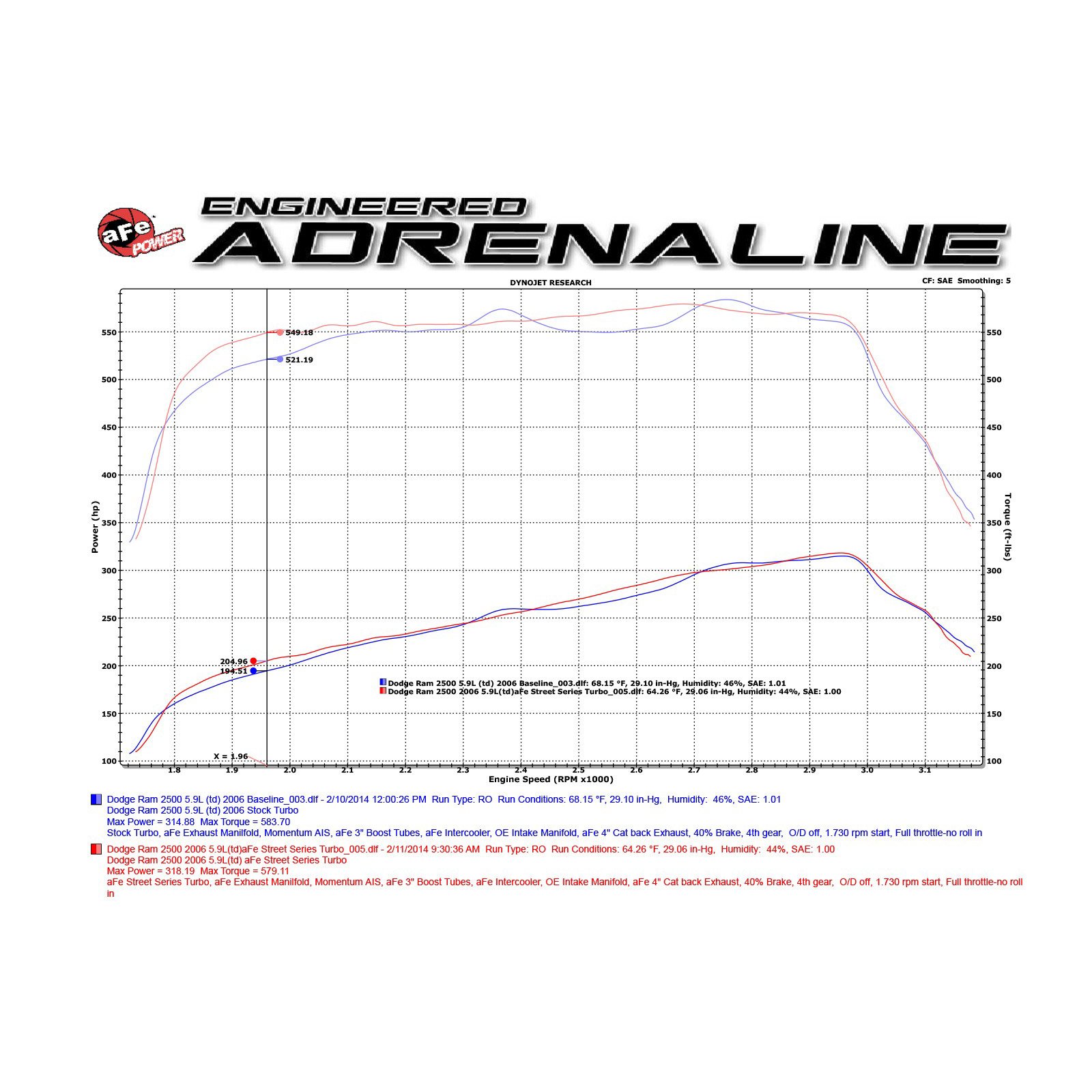

*Before/After Dyno results with aftermarket tuner set on performance.
Emissions Disclaimer:
This product is not currently CARB exempt and is not available for purchase in California or for use on any vehicle registered with the California Department of Motor Vehicles.
