Description
Overview

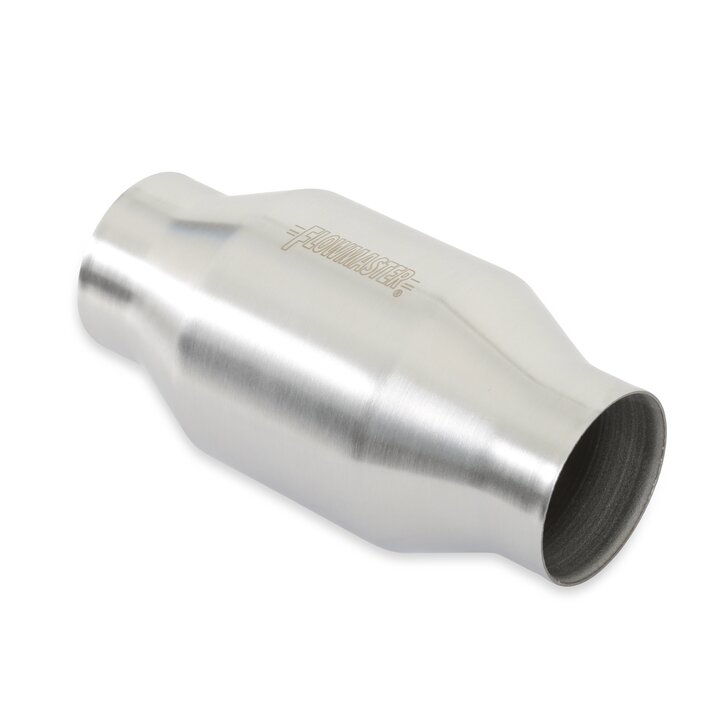

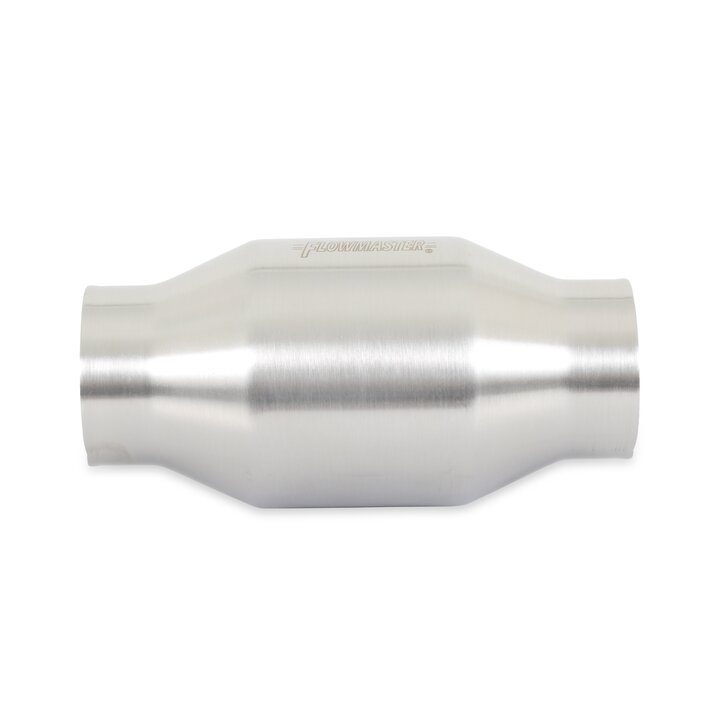

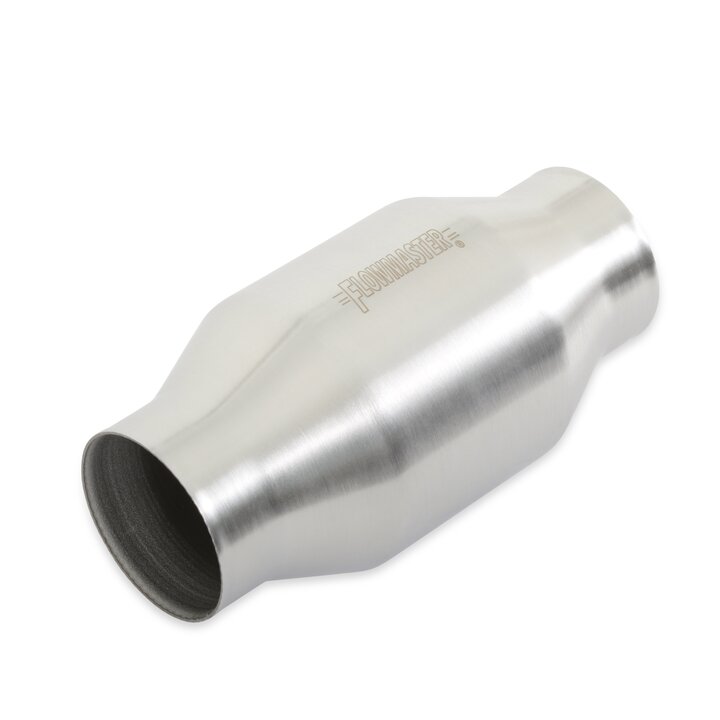

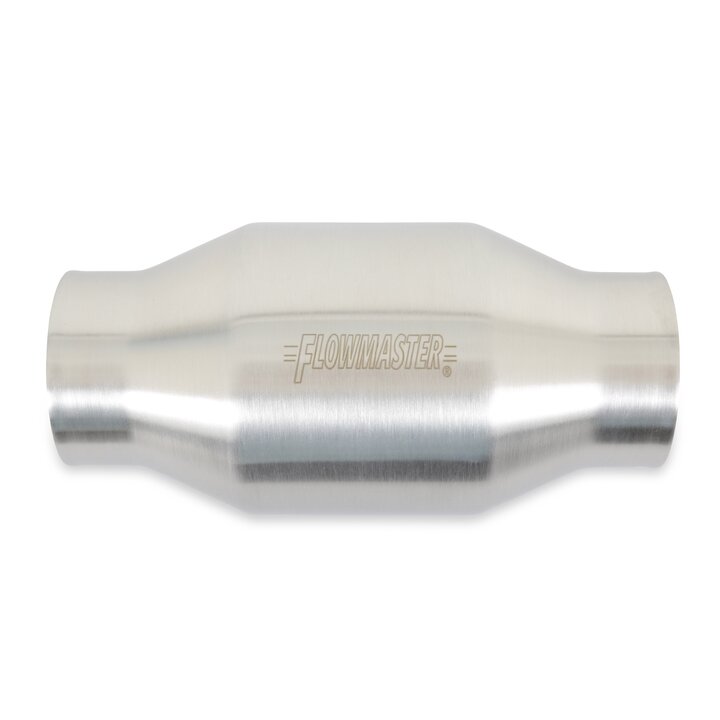

The Flowmaster Catalytic Converter-Universal-200 Series is a compact, high-flow emissions component engineered for custom exhaust builds where space is tight and heat is high. Built with a spun stainless steel outer casing measuring just 4.00 inches in diameter and 8.00 inches long, this universal-fit converter slips into demanding installs where full-size units simply won’t clear. If you’ve been researching what a catalytic converter does, the answer is straightforward: it uses a coated substrate to convert harmful exhaust gases into less harmful compounds as they pass through the exhaust stream. This 3-Way design targets that conversion in a rugged, weld-on-ready package.
Built for Severe-Duty Performance
At the heart of this catalytic converter is a High Flow 200 Cell Metallic Substrate. Unlike ceramic cores, the metallic substrate material is designed to withstand severe-duty, high-temperature applications, making it a smart choice for hard-working builds. The round core shape and standard-grade construction keep exhaust flowing freely while maintaining the emissions function that gives it its purpose. With 2.50-inch inlet and 2.50-inch outlet connections, it integrates cleanly into a wide variety of universal exhaust layouts.
Intended Applications
This converter is intended for customized Pre-OBDII racing applications and as a “green” solution for vintage hot rods or vehicles that did not originally come equipped with catalytic converters from the factory. It meets all EPA 49-state requirements, making it a practical answer when weighing catalytic converter replacement cost against the cost to change catalytic converter setups on older and custom rigs. Whether you’re planning a catalytic converter replacement or a fresh custom exhaust build, this unit delivers Flowmaster quality in a compact footprint. It is rated for a maximum engine size of 5.7L and a gross vehicle weight up to 6000 lbs.
- High Flow 200 Cell Metallic Substrate for severe-duty, high-temperature use
- Compact 4.00 in. diameter x 8.00 in. long spun stainless steel casing for tight-space fitment
- 2.50 in. inlet and 2.50 in. outlet with slip-fit, weld-on connections
- Meets all EPA 49-state requirements
- 3-Way round core, standard grade, no oxygen sensor port
- Rated up to 5.7L engines and 6000 lb GVW
Important Fitment & Compliance Notes
This is a universal, Pre-OBDII format converter with no O2 sensor port and no heat shield included. It uses new hangers (not included) and is not air tube kit adaptable. Please note it is Not CARB compliant and Not Legal for Sale or Use in California, and may not be legal in states that follow CARB regulations. It is not intended to meet on-highway compliance programs. A California Proposition 65 warning applies. Confirm your inlet/outlet sizing and application before ordering to ensure a proper install.
