Description

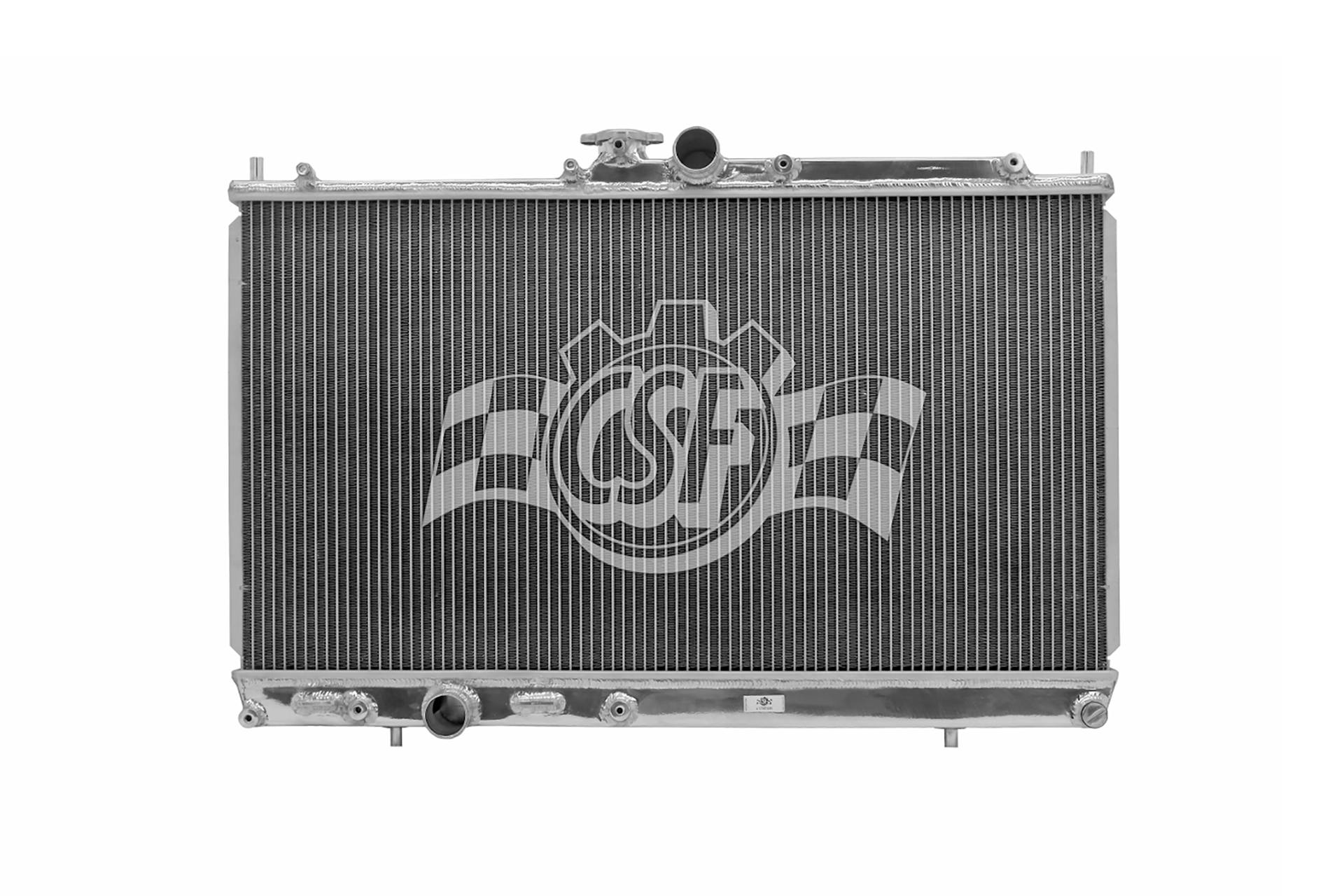

The CSF 3163 High-Performance All-Aluminum Radiator is engineered to deliver exceptional cooling performance for high horsepower builds and race vehicles. With over five decades of experience, CSF has designed this radiator to excel in both street and track environments, ensuring your engine remains cool under pressure.

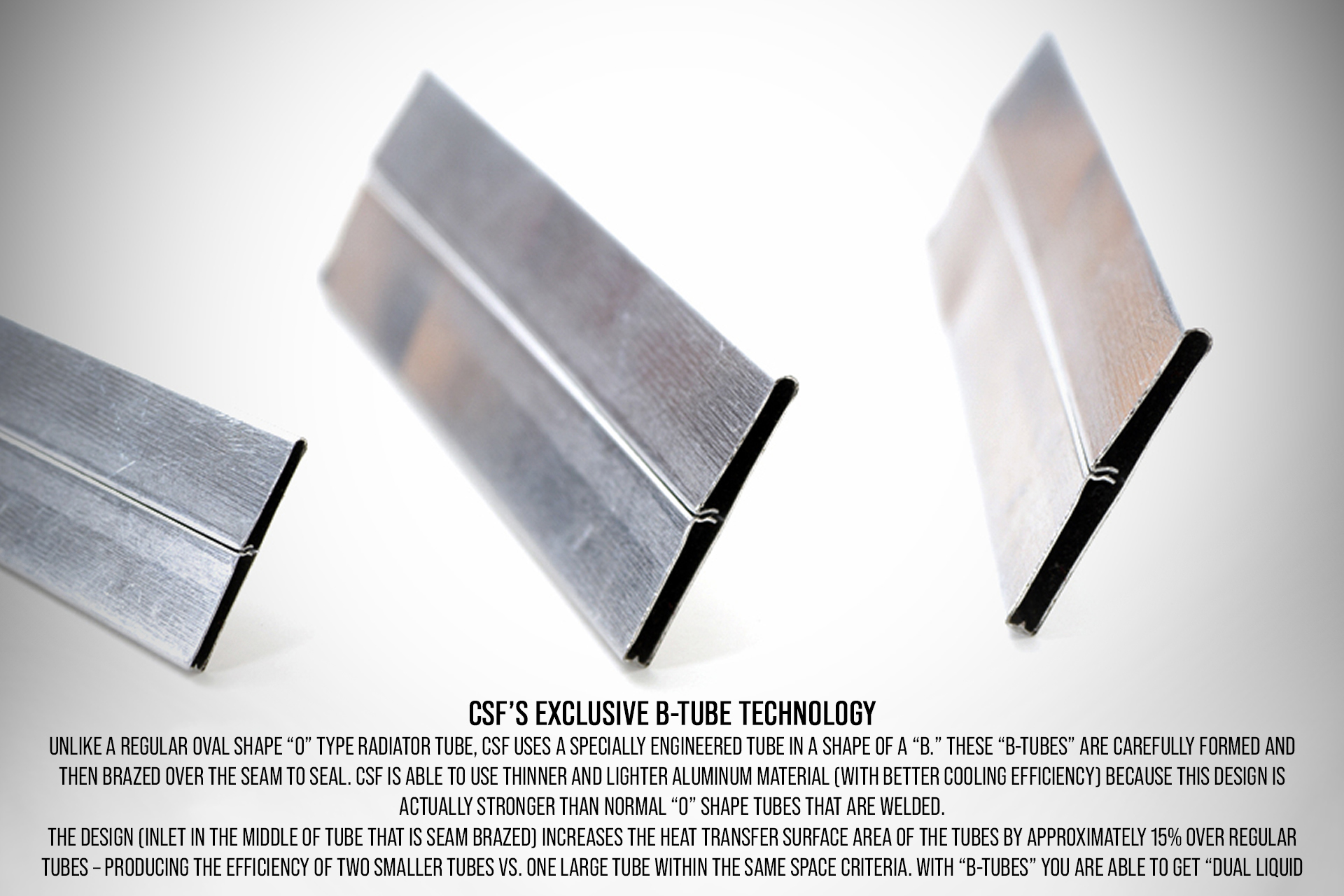

This radiator features a unique 2-Row core utilizing CSF’s exclusive B-Tube Technology. Unlike traditional oval shape “O” type radiator tubes, the specially engineered “B-tubes” are stronger and allow for thinner and lighter aluminum material, enhancing cooling efficiency. The design increases the heat transfer surface area of the tubes by approximately 15% compared to regular tubes, effectively producing the efficiency of two smaller tubes within the same space. This innovative structure enables dual liquid laminar flow, maximizing heat dissipation.

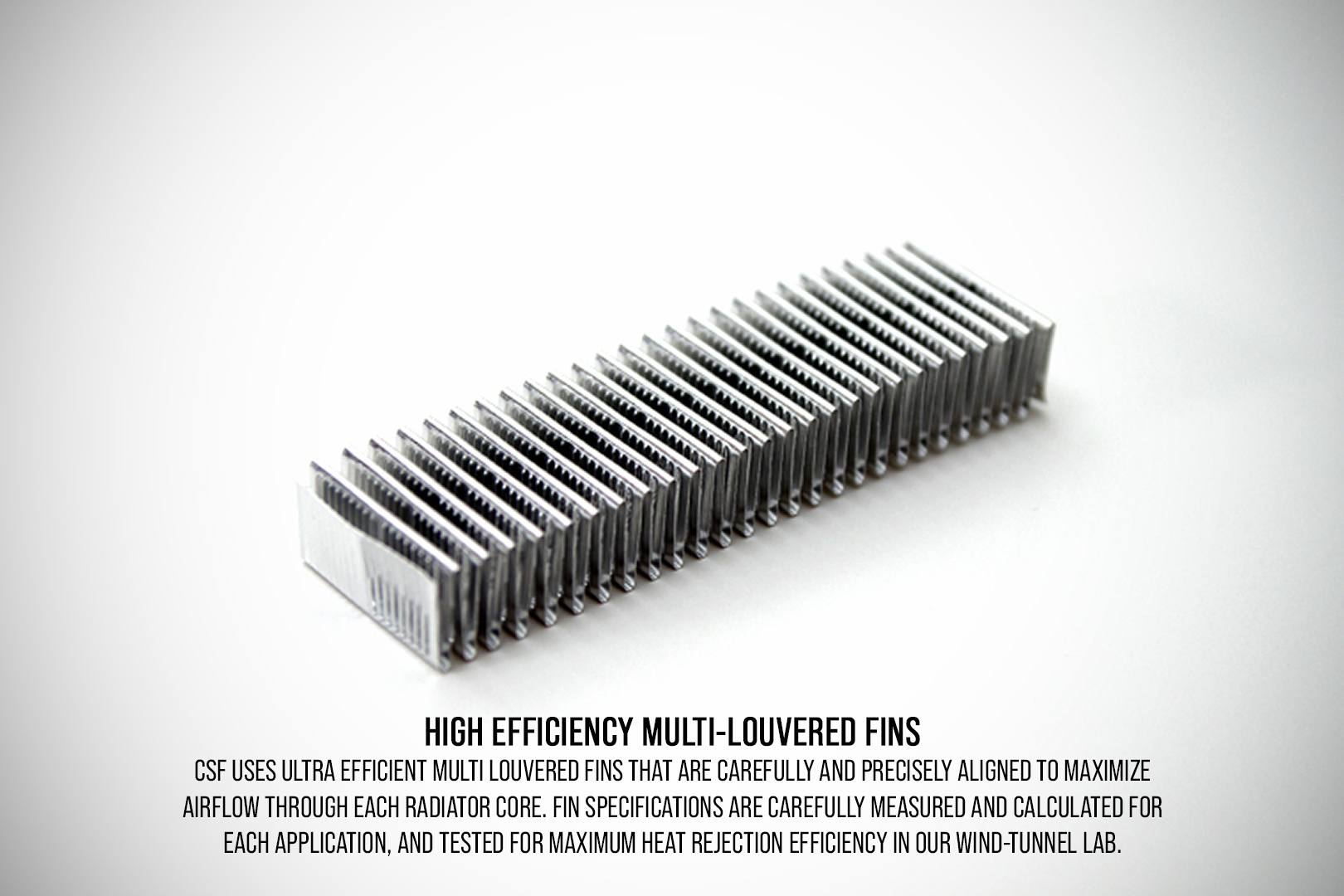

In addition to the advanced tube design, the CSF 3163 radiator incorporates ultra-efficient multi-louvered fins that are precisely aligned to optimize airflow through the radiator core. Each fin specification is meticulously measured and tested for maximum heat rejection efficiency in a wind-tunnel lab, ensuring that this radiator meets the demands of high-performance applications.
Features
- High-Performance All-Aluminum Radiator
- 2-Row core with exclusive B-Tube Technology
- Increased heat transfer surface area by approximately 15%
- Thinner and lighter aluminum material for better cooling efficiency
- Dual liquid laminar flow design
- Ultra-efficient multi-louvered fins for optimized airflow
- Carefully measured fin specifications for maximum heat rejection
Frequently Asked Questions
What is the core material of the CSF 3163 radiator?
The core material is aluminum.
Does the CSF 3163 radiator include mounting hardware?
Yes, mounting hardware is included.
What type of installation is required for the CSF 3163 radiator?
The installation type is not specified.
