Description

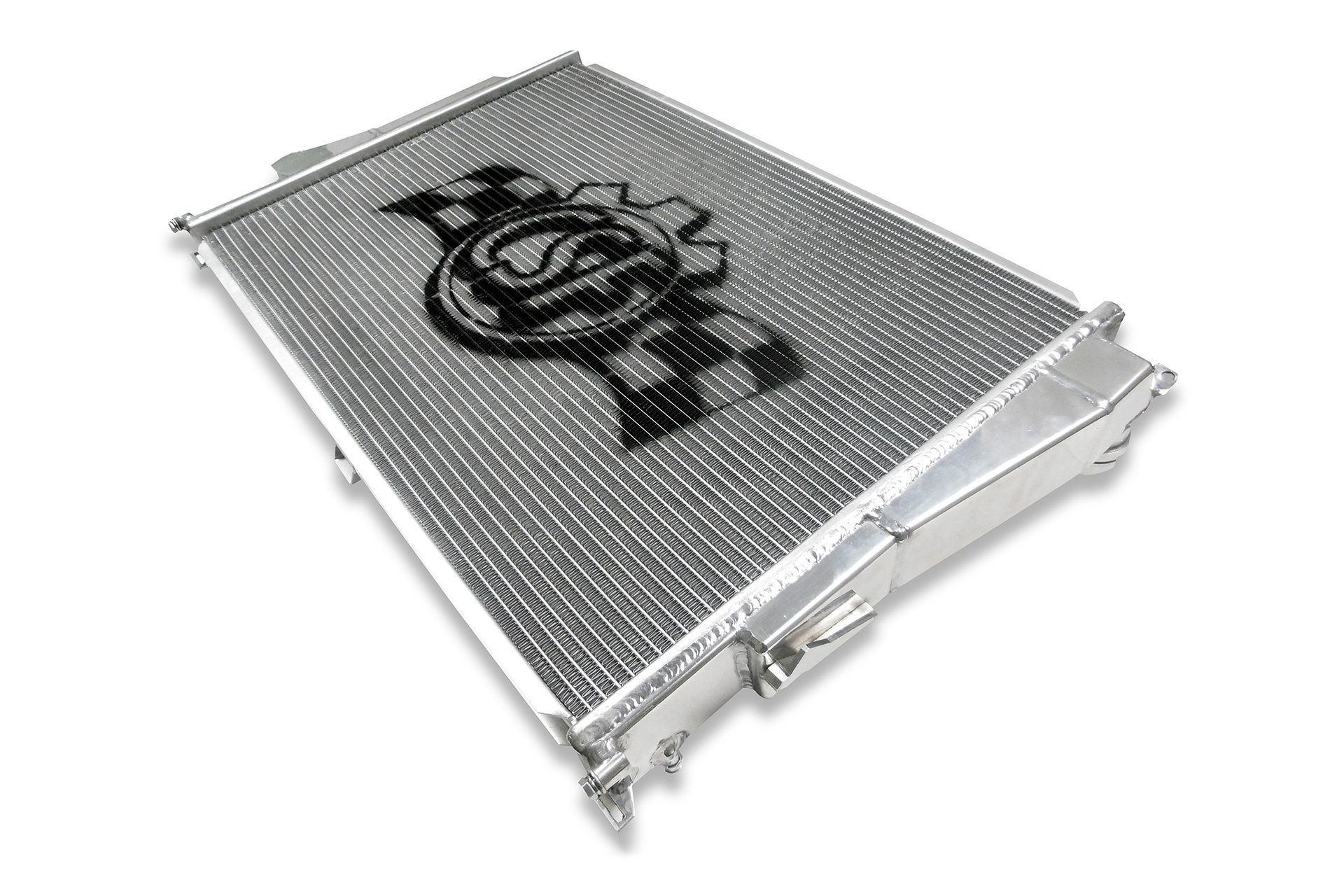

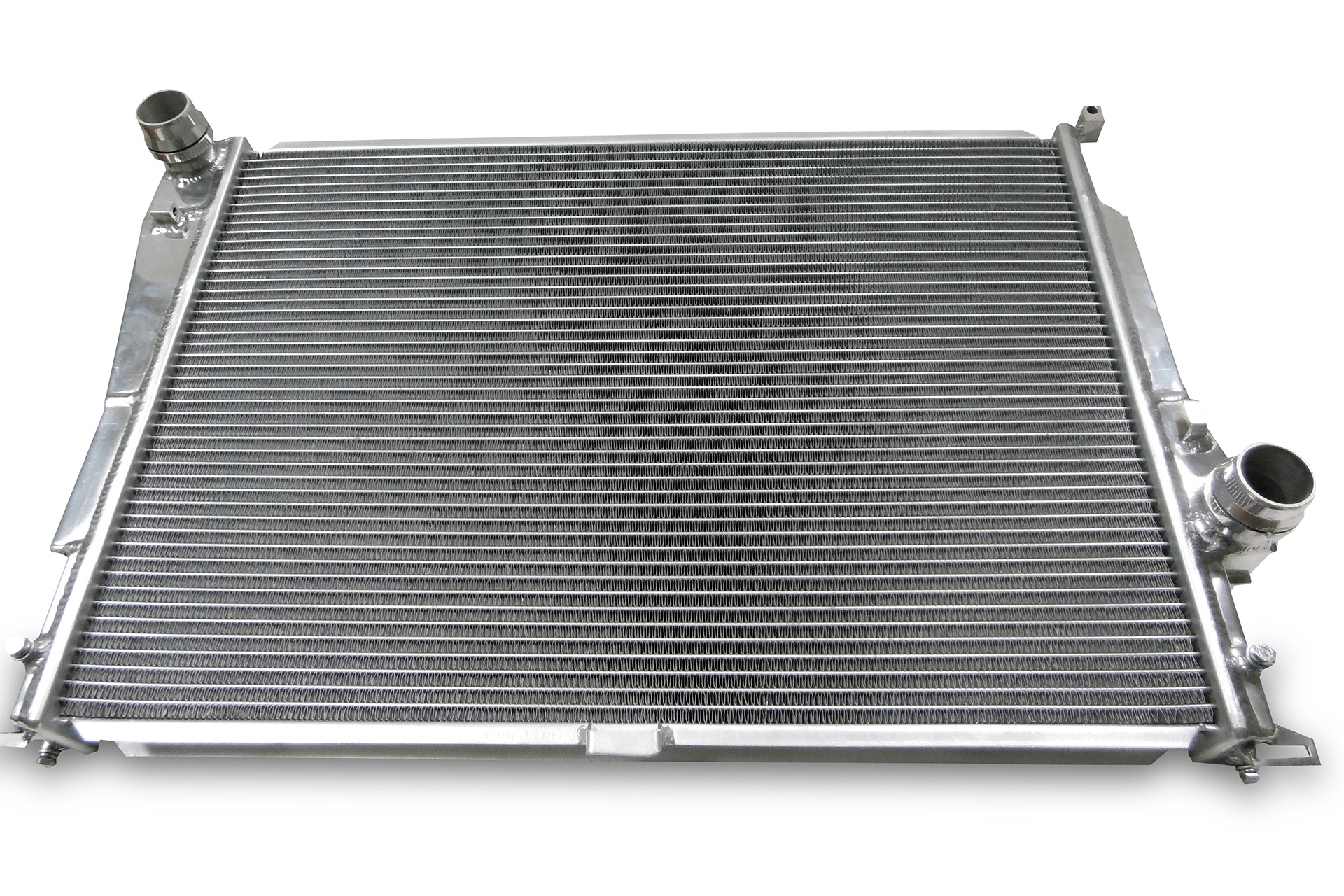

The CSF 7058 High-Performance All-Aluminum Radiator is engineered for superior cooling efficiency, making it an essential component for high-performance applications. With a design that caters to both street and track conditions, this radiator ensures your engine remains at optimal temperatures during demanding situations.

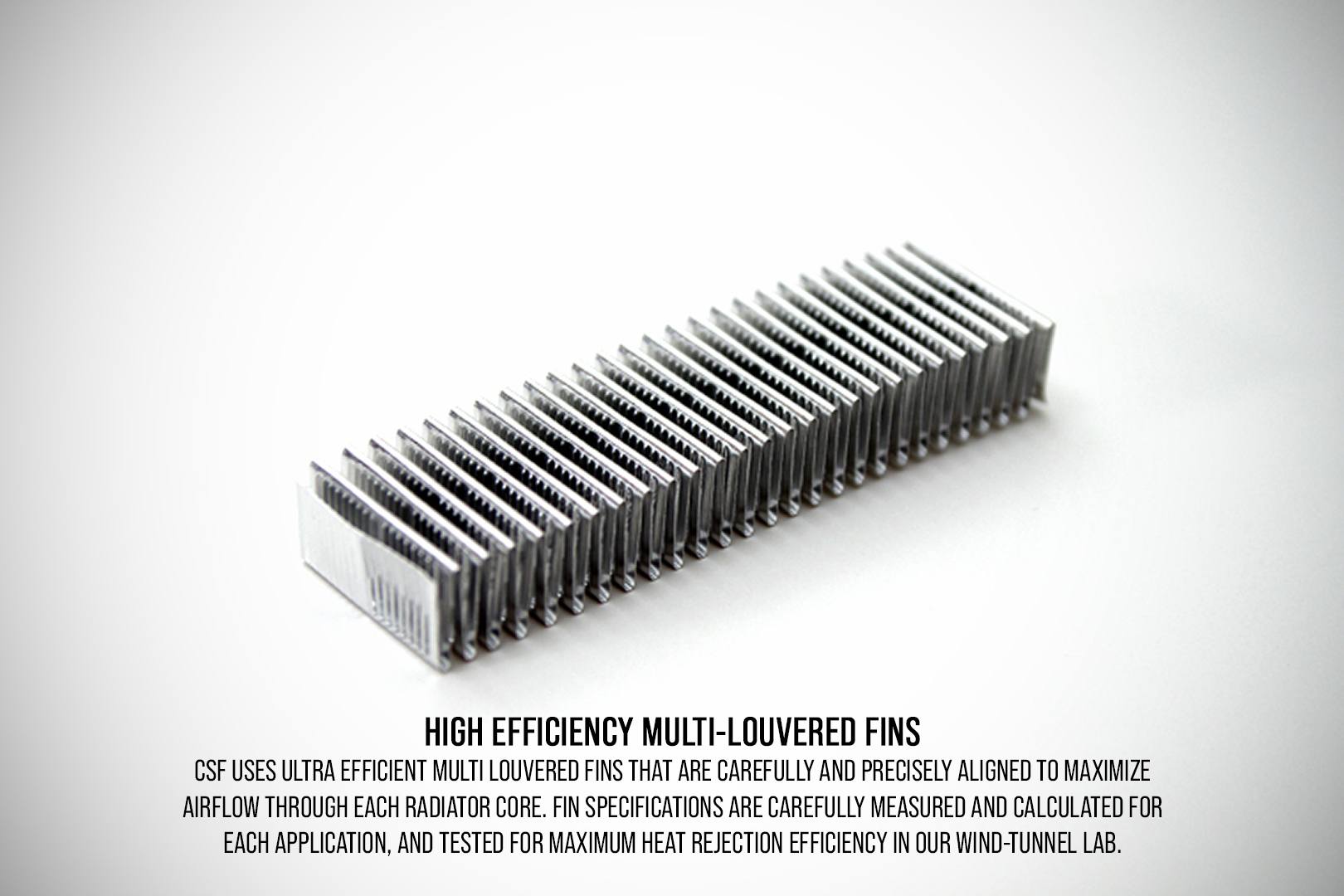

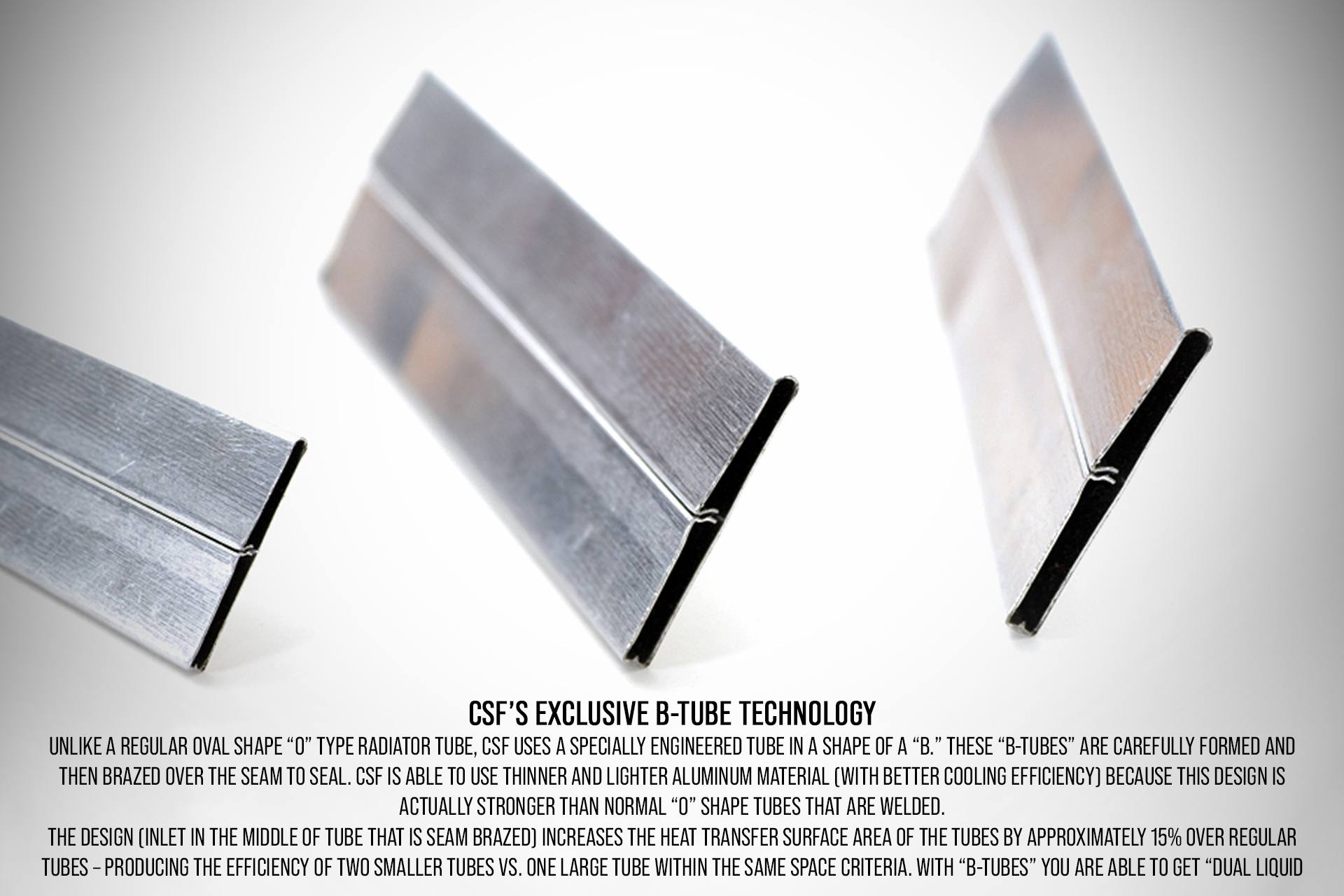

This radiator incorporates a Triple-Pass Flow Structure, allowing coolant to traverse the core three times before exiting, which results in the lowest outlet temperatures achievable. The 2-Row core is enhanced by CSF’s exclusive B-Tube Technology. Unlike standard oval-shaped tubes, the ‘B’ shaped tubes are designed to provide increased strength and better heat transfer, boasting a heat transfer surface area that is approximately 15% greater than conventional tubes. This innovative design allows for dual liquid laminar flow, enhancing cooling performance significantly. Additionally, the ultra-efficient multi louvered fins are meticulously aligned to maximize airflow through the radiator core, ensuring optimal heat rejection efficiency.
Features
- High-Performance All-Aluminum construction
- Triple-Pass Flow Structure for efficient cooling
- 2-Row core with exclusive B-Tube Technology
- Increased heat transfer surface area by approximately 15%
- Dual liquid laminar flow for enhanced cooling
- Multi louvered fins for maximum airflow
Frequently Asked Questions
What is the core material of the CSF 7058 radiator?
The core material is aluminum.
What type of mounting does the CSF 7058 radiator use?
The radiator features a down flow or cross flow type mounting.
Is a radiator cap included with the CSF 7058 radiator?
Yes, a radiator cap is included.
