Description

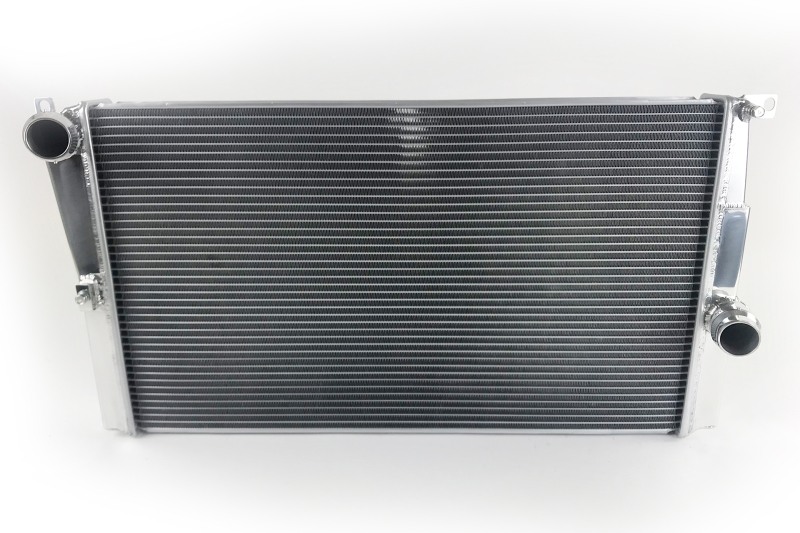

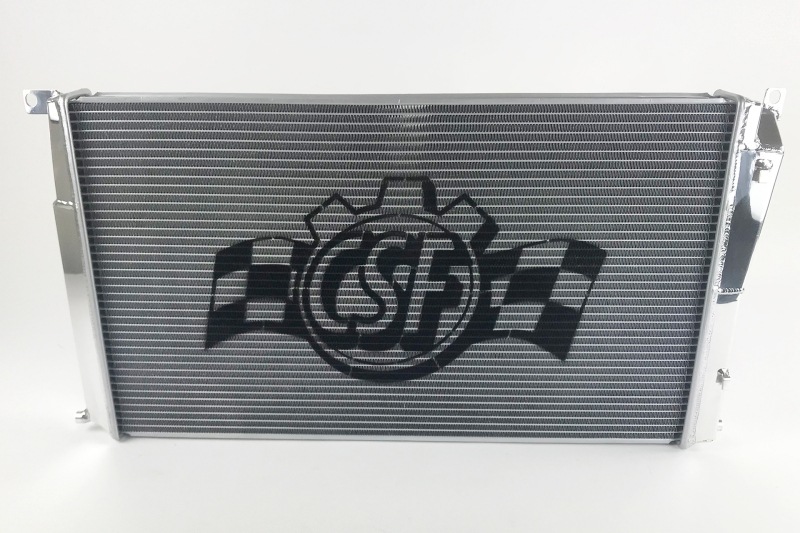

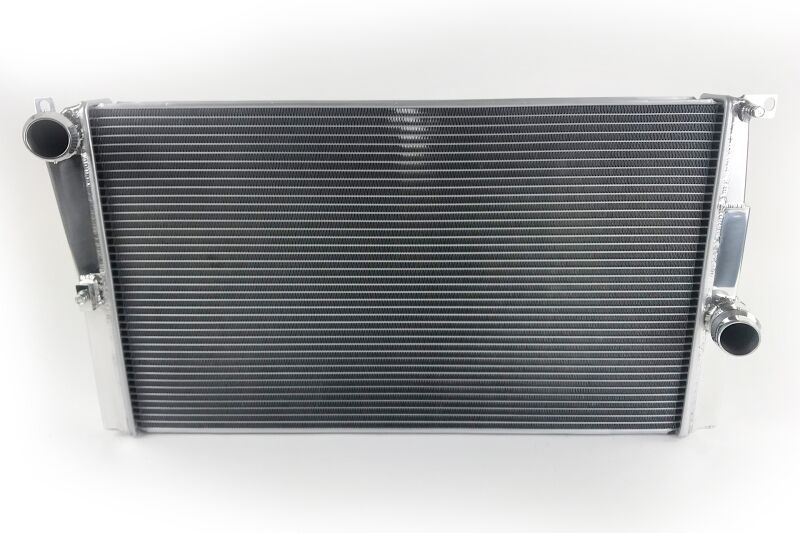

The CSF 7080 High-Performance All-Aluminum Radiator is engineered for those who demand exceptional cooling performance from their vehicles. With a focus on both street and track applications, this radiator is a vital component for maintaining optimal engine temperatures, especially in high horsepower builds and race vehicles.

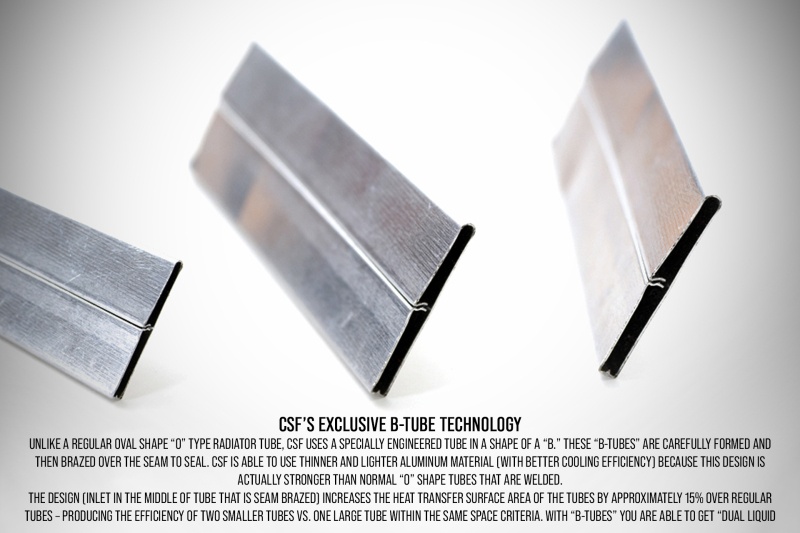

This radiator features a 2-Row core equipped with CSF’s exclusive B-Tube Technology. Unlike traditional oval-shaped “O” type radiator tubes, the specially designed “B-tubes” enhance the structural integrity while allowing for thinner and lighter aluminum material. This innovative design increases the heat transfer surface area of the tubes by approximately 15% compared to standard tubes. As a result, it produces the efficiency of two smaller tubes versus one large tube within the same space criteria, facilitating dual liquid laminar flow. Additionally, the ultra-efficient multi louvered fins are meticulously aligned to maximize airflow through each radiator core, ensuring effective heat rejection. Each fin specification is carefully measured and tested in a wind-tunnel lab for maximum efficiency.
Features
- High-Performance All-Aluminum Radiator
- 2-Row core with B-Tube Technology
- Increased heat transfer surface area by approximately 15%
- Dual liquid laminar flow design
- Ultra-efficient multi louvered fins for maximum airflow
- Carefully measured and tested fin specifications
Frequently Asked Questions
What is the core material of the CSF 7080 radiator?
The core material is aluminum.
Does the CSF 7080 radiator include mounting hardware?
Yes, mounting hardware is included.
What type of installation is required for the CSF 7080 radiator?
The installation type is down flow.
