Description

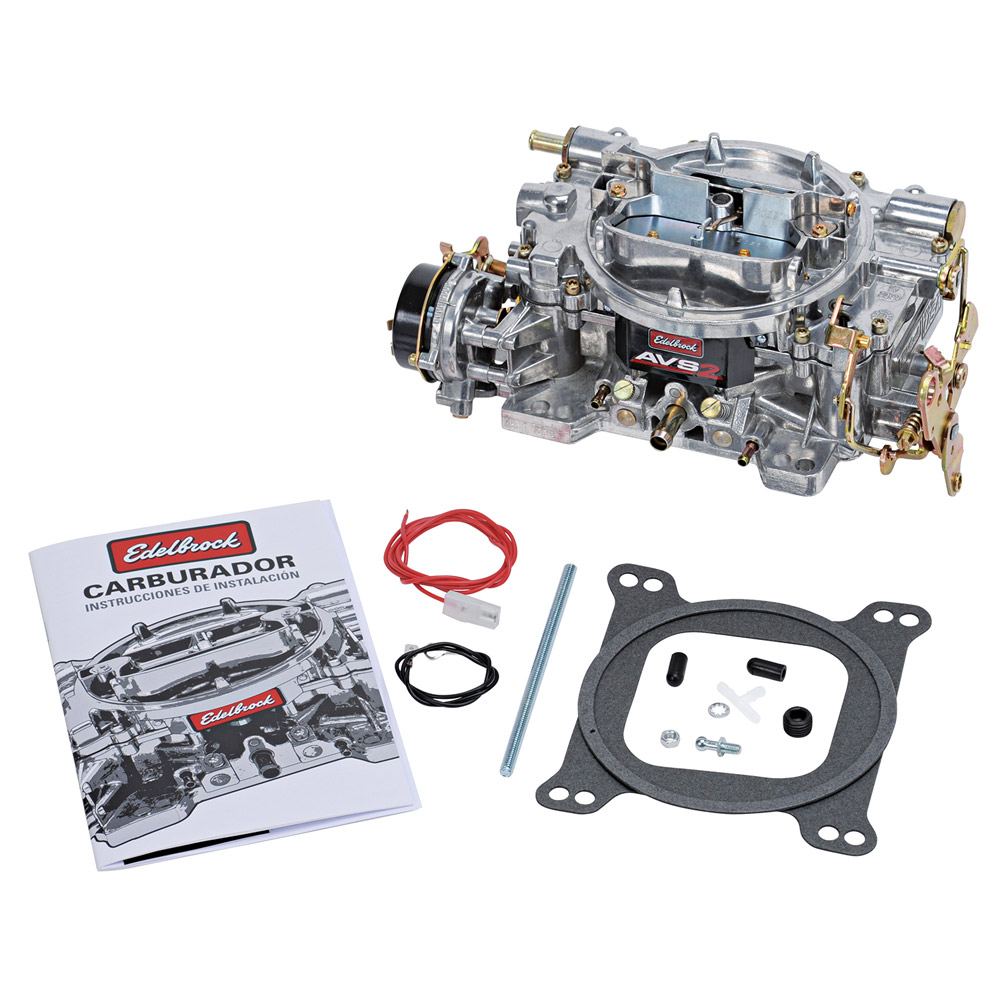

Model: 1906-Satin
.070 x .037 metering rods orange (5″ Hg) step-up spring. Use our Carburetor Stud Kits #8008 or #8024 if needed. Match with a variety of manifolds that include Edelbrock Performer, Performer EPS, RPM Air-Gap, Performer RPM, Torker II or other brands of similar design. For a black-finished AVS2 with electric choke, order part #19063. The Edelbrock AVS2 Series #1906 is a satin-finished four-barrel carburetor with electric choke that is designed and calibrated for optimum street performance in engines that require an air-fuel flow of 650 CFM.
The AVS2 is a perfect replacement or upgrade that features annular flow primary boosters with a new calibration for improved off-idle and cruising performance. The annular flow booster design delivers improved fuel atomization to eliminate flat spots that may be encountered as the carburetor transitions from idle to full throttle. Each annular flow booster features eight equally spaced orifices to improve fuel metering from idle to the main circuit. The improved flow metering makes this carburetor ideal for use with a wide variety of small- and big-block engines with either dual- or single-plane intake manifolds. The Edelbrock AVS2 #1906 includes both timed and full vacuum ports for ignition advance. It comes with: .101 primary and.098 secondary metering jets
Model: 19063-Black Powder Coat
.070 x .037 metering rods orange (5″ Hg) step-up spring. Use our Carburetor Stud Kits #8008 or #8024 if needed. Match with a variety of manifolds that include Edelbrock Performer, Performer EPS, RPM Air-Gap, Performer RPM, Torker II or other brands of similar design. For a satin-finished AVS2 with electric choke, order part #1906. The Edelbrock AVS2 Series #19063 is a black-finished carburetor with electric choke that is designed and calibrated for optimum street performance in engines that require 650 CFM of air-fuel flow.
The AVS2 is a perfect replacement or upgrade that features annular flow primary boosters with a new calibration for improved off-idle and cruising performance. The annular flow booster design delivers improved fuel atomization to eliminate flat spots that may be encountered as the carburetor transitions from idle to full throttle. Each annular flow booster features eight equally spaced orifices to improve fuel metering from idle to the main circuit. The improved flow metering makes this carburetor ideal for use with a wide variety of small- and big-block engines with either dual- or single-plane intake manifolds. The Edelbrock AVS2 #19063 includes both timed and full vacuum ports for ignition advance. It comes with: .101 primary and.098 secondary metering jets
Model: 19064-EnduraShine
Metering Rods: .070 x .037 Step-Up Spring: Orange (5″ Hg). Use our Carburetor Stud Kits #8008 or #8024 if needed. Match with a variety of manifolds that include Edelbrock Performer, Performer EPS, RPM Air-Gap, Performer RPM, Torker II or other brands of similar design. The Edelbrock #19064 AVS2 Series EnduraShine 650 cfm carburetor is the next generation in Edelbrock carburetors. Designed and calibrated for optimum street performance in small-block and some big-block engines.
The AVS2 features annular flow primary boosters with a new calibration for improved off idle and cruising performance. The annular flow booster design delivers improved fuel atomization to eliminate flat spots that may be encountered when the carburetor transitions from idle to full throttle. Each annular flow booster features eight, equally spaced orifices to improve fuel metering from idle to the main circuit. The improved flow metering makes this carburetor ideal for use with a wide variety of small-block and big-block engines with either dual or single plane intake manifolds. The Edelbrock #19064 AVS2 includes both timed and full vacuum ports for ignition advance. It comes with Metering Jets: Primary .101, Secondary .098
Model: 1906-CP-Chrome plasma
Edelbrock’s AVS2 #1906-CP with Electric Choke is a special Chrome Plasma finished 650 CFM street carb with Annular Flow Booster technology for near-EFI-like drivability that you can feel as soon as you step on the gas. The AVS2 1906-CP features an annular ring with eight evenly spaced orifices that replaces the standard single brass tube (down-leg) fuel feed. The AVS2 booster ring distributes fuel into the airflow stream with an even spray that eliminates flat spots and greatly improves throttle response in the low-to mid-RPM range without sacrificing top-end power. The Chrome Plasma finish is applied is a 7 stage process to ensure the most durable and brilliant finish possible.
