Edelbrock Flathead Cylinder Head High Lift/ Large Chamber 1938-48 – EDB-11283

-

$873.50

Available on backorder
SKU EDB-11283
UPC 85347112838
Add to wishlist Add to compare

Description

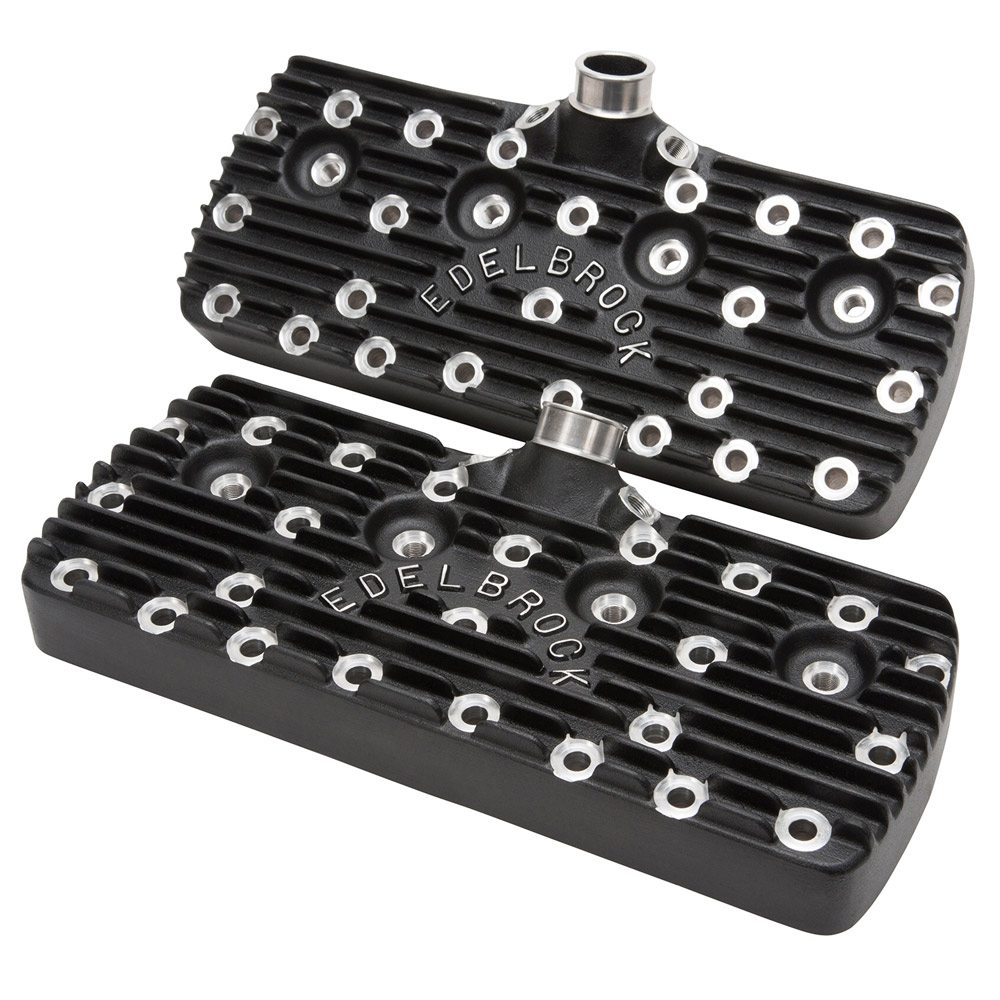

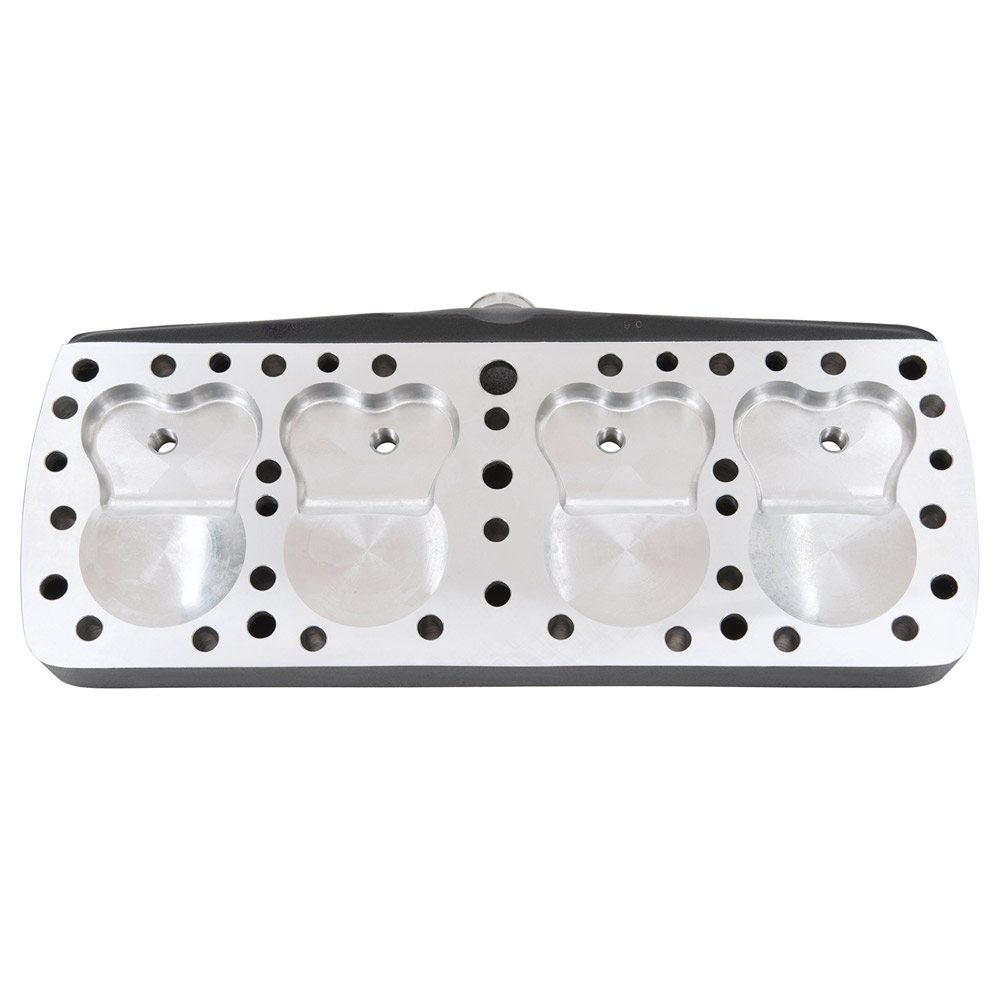

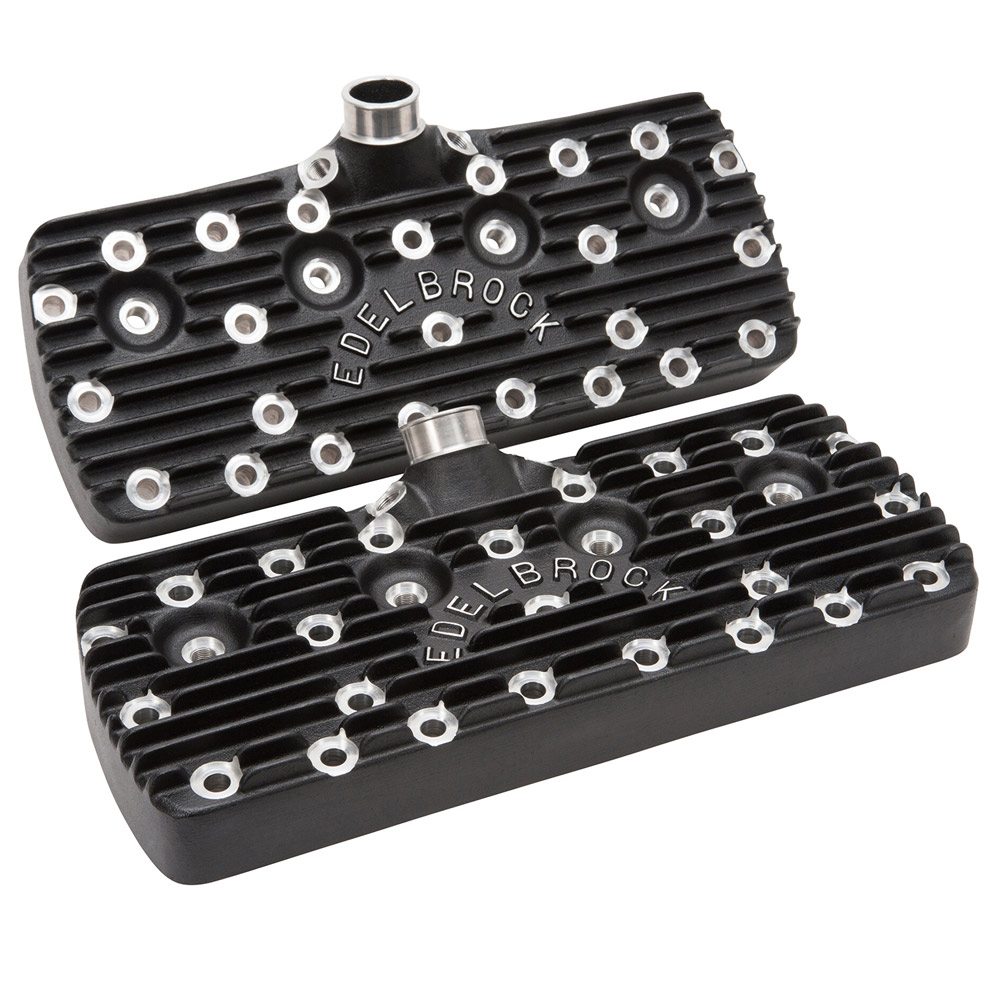

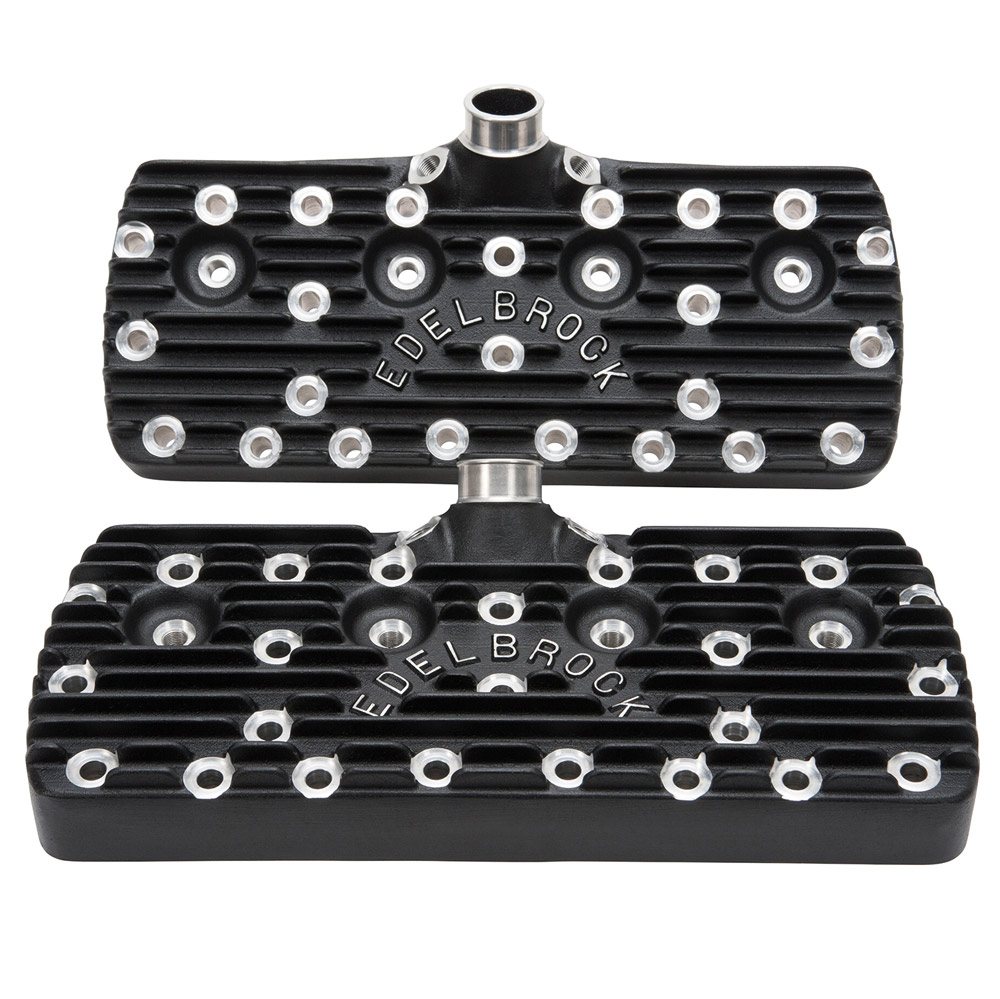

The Edelbrock #11283 Ford Flatheads feature the original Edelbrock script logo design for Fords and Mercurys, and are casted at the Edelbrock Foundry in the USA of T-6 tempered A356 aluminum. The Edelbrock #11283 heads are rugged, ribbed internally and externally, with a large water capacity and excellent breathing characteristics. The Edelbrock #11283 Ford Flatheads High Lift/Large Chamber version feature a new “raised roof” combustion chamber design that is CNC machined for high lift cams and is perfect for reducing compression in supercharger applications or on low octane fuel. High Lift heads have increased valve clearance and increased flow capacity.

Specification

Weight 30.55 lbs
Dimensions 23.1 × 18.1 × 8.3 in
Brand

UPC

85347112838

MPN

11283

Family

Flathead

Finish

Black Powder Coated

Grade Type

Performance

series

Flathead

Material

Aluminum

CNC Ported

Yes

EGR Port

No

Combustion Chamber Volume

74

Construction Type

Flathead

Deck Thickness

0.375

Guide Plates Included

No

Quantity

Set of 2

WARNING Message

CALIFORNIA WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

WARNING CA Proposition 65

Yes
