Edelbrock Glidden Victor SC1 Small-Block Ford Cylinder Head – EDB-770769

-

$2,317.50

Available on backorder
SKU EDB-770769
UPC 85347994304
Add to wishlist Add to compare

Description

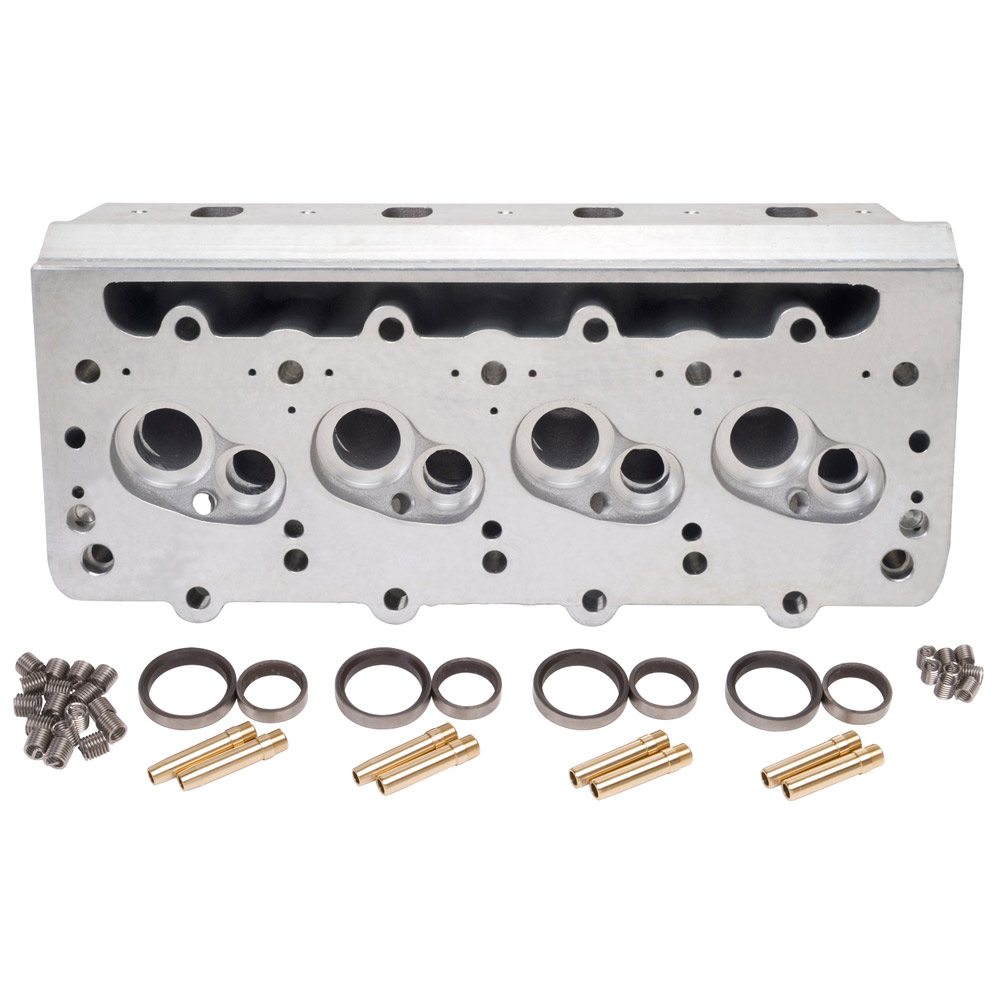

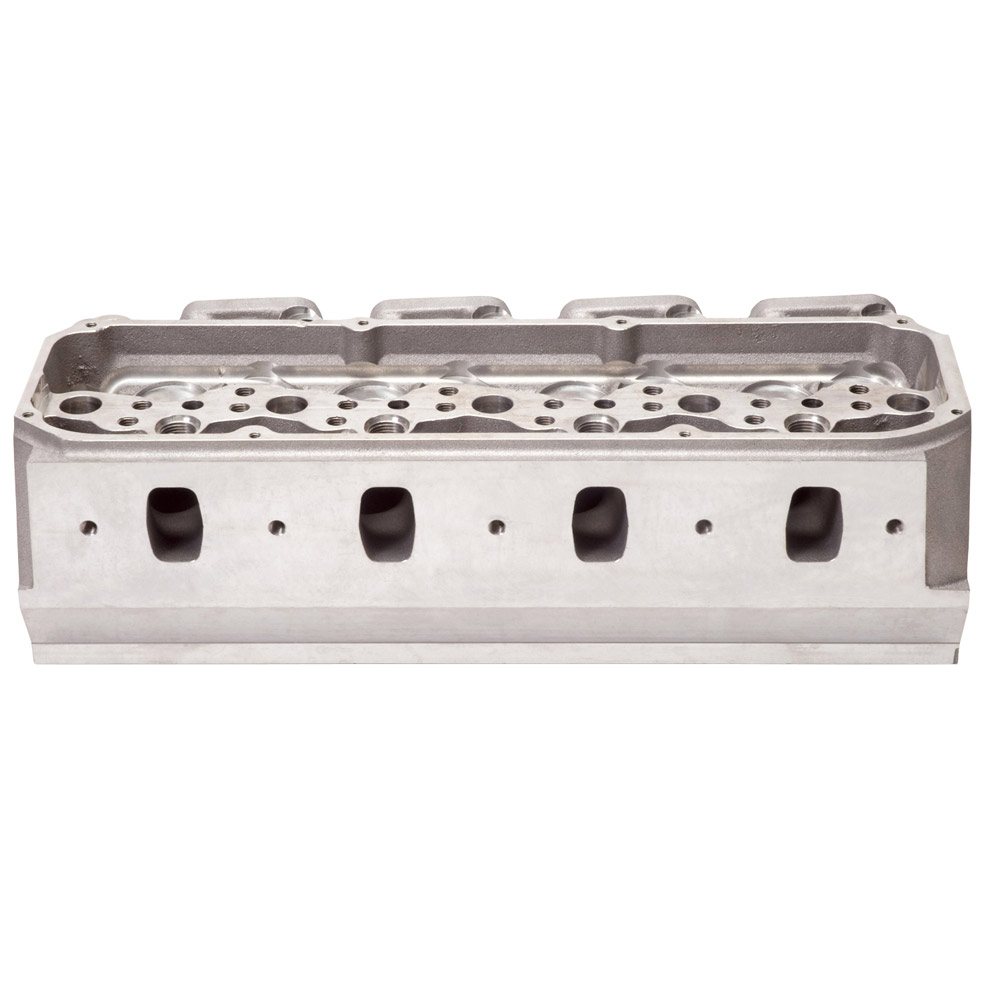

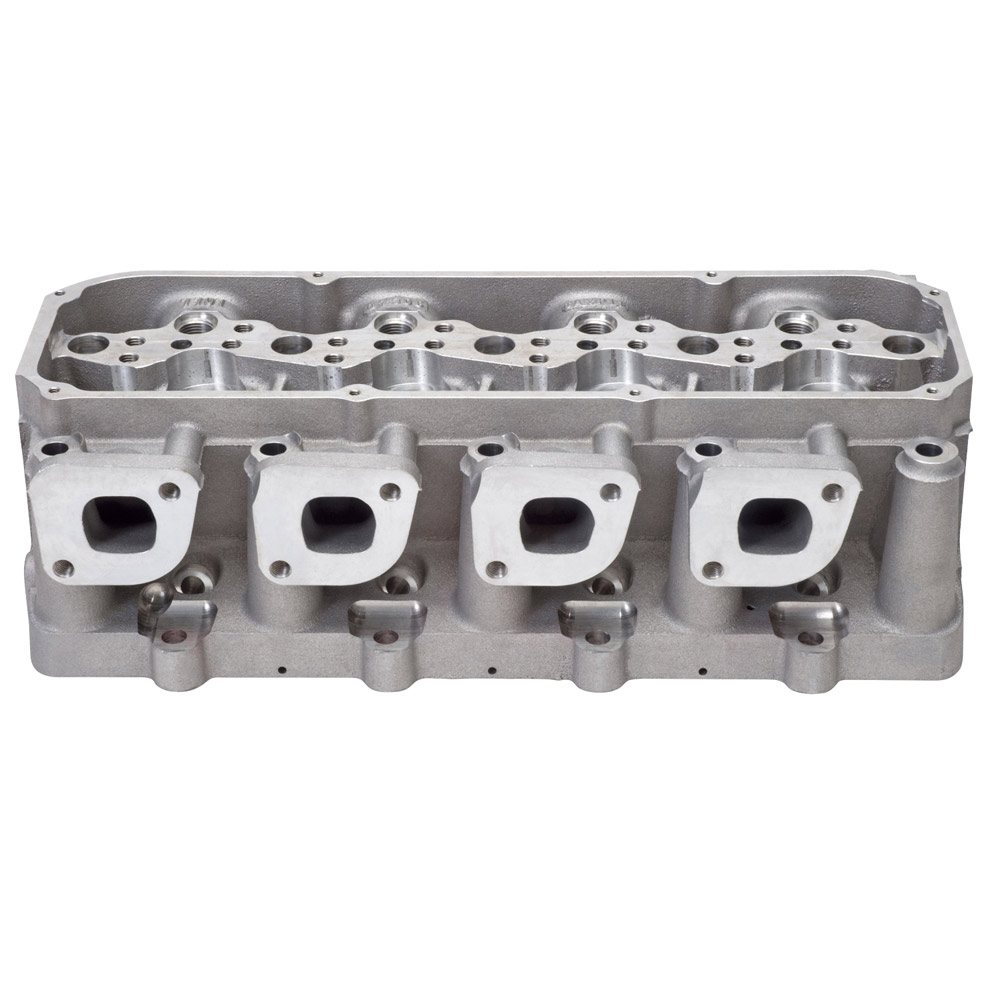

The Edelbrock 770769 Small Block Ford SC1 Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. Like the other Edelbrock Cylinder head, The Pro-Port cylinder head is also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed. Please note: This head can not be used without professional head preparation. Pro-Port RAW Features Include: – Unported versions of Edelbrock race-winning Victor Series CNC head for the professional cylinder head porter and engine builder – The Pro-Port cylinder head is cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting – The only head designed specifically to accommodate almost any CNC port shape, size or location – Offers enough wall thickness for CNC machining to various port dimensions – In most cases seats and manganese-bronze valve guides are included – Some of the Edelbrock Pro-Port Raw Head Feature Our Special Hot Isostatic Pressing or HIP Process.

Specification

Weight 49.7 lbs
Dimensions 22.1875 × 10.125 × 7.1875 in
Brand

UPC

85347994304

MPN

770769

Family

Victor

Grade Type

Performance

series

Pro-Port

Material

Aluminum

CNC Ported

No

EGR Port

No

Combustion Chamber Volume

Possible 20

Construction Type

Pro-Port Raw

Guide Plates Included

No

Quantity

Sold Individually

Head Casting Number

N/A

Seat Angle

Exhaust 45 deg/Intake 45

Valve Angle

Exhaust 6.88 x 0.55 deg/Intake 7.3 x 0.3
