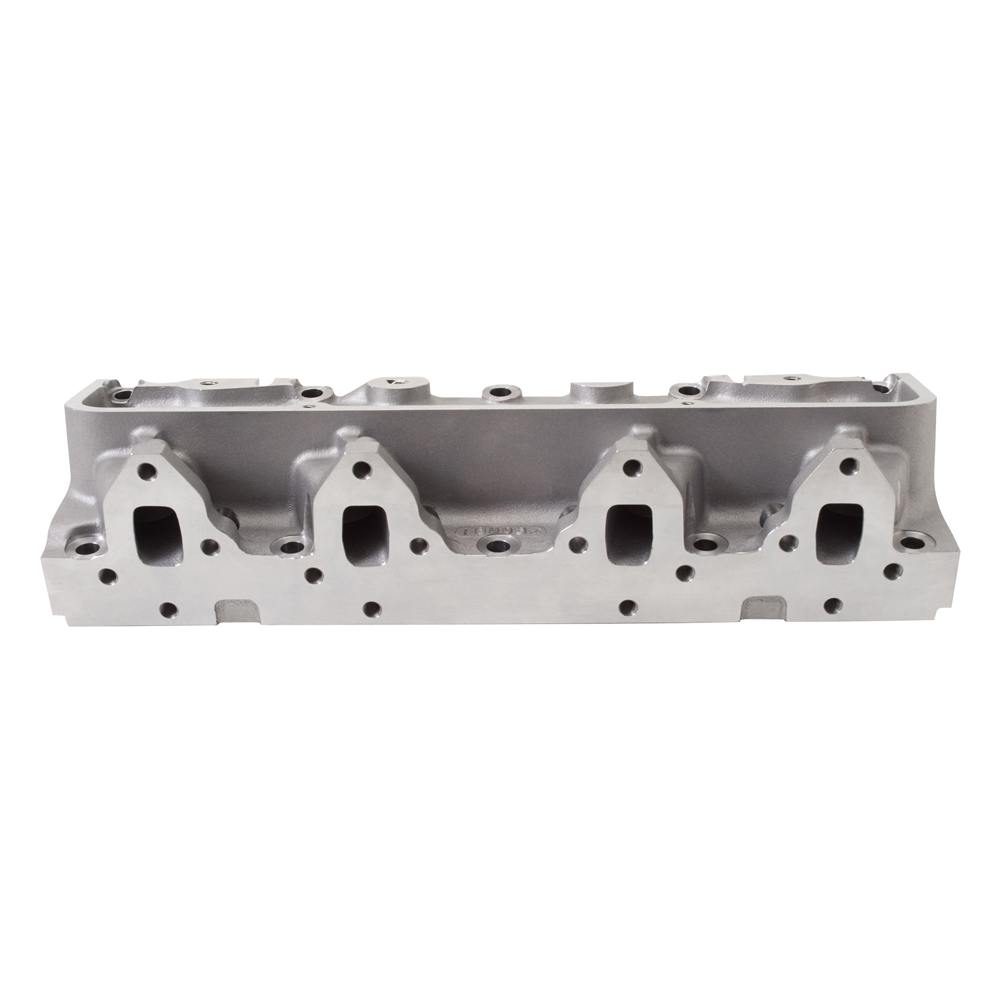

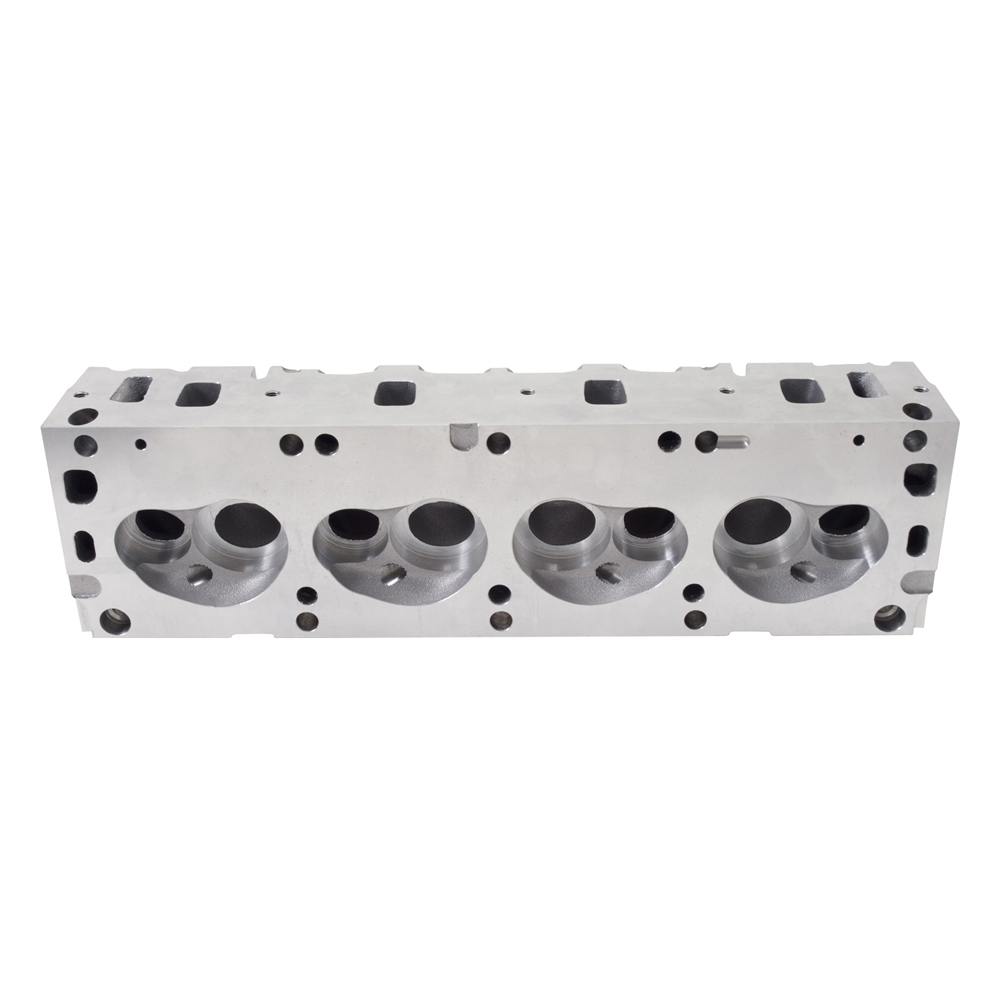

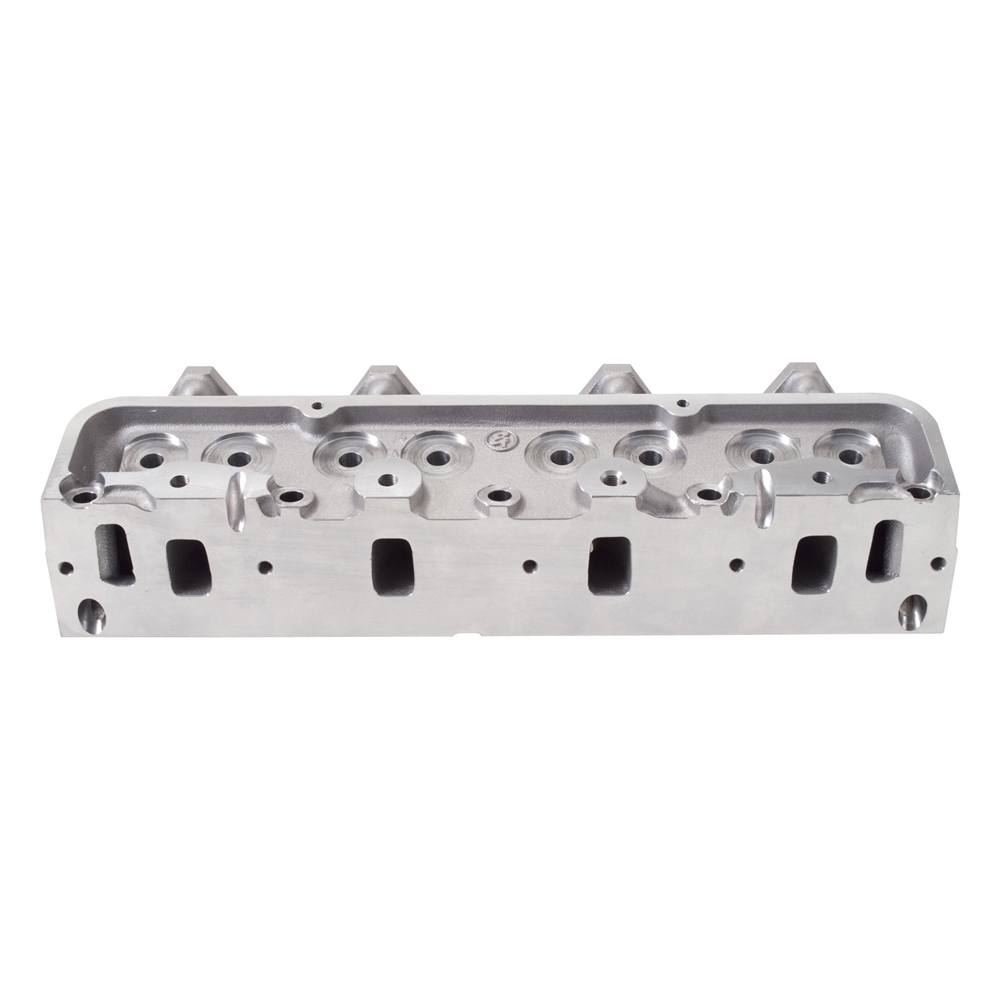

Edelbrock NHRA Ford FE Cylinder Head Bare – EDB-61857

-

$782.50

Available on backorder
SKU EDB-61857
UPC 85347618576
Add to wishlist Add to compare

Description

The Edelbrock 61857 Ford FE NHRA Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. Like the other Edelbrock Cylinder head, The Pro-Port cylinder head is also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed. Please note: This head can not be used without professional head preparation. Pro-Port RAW Features Include: – Unported versions of Edelbrock race-winning Victor Series CNC head for the professional cylinder head porter and engine builder – The Pro-Port cylinder head is cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting – The only head designed specifically to accommodate almost any CNC port shape, size or location – Offers enough wall thickness for CNC machining to various port dimensions – In most cases seats and manganese-bronze valve guides are included – Some of the Edelbrock Pro-Port Raw Head Feature Our Special Hot Isostatic Pressing or HIP Process.

Specification

Weight 29.45 lbs
Dimensions 26 × 11 × 8.75 in
Brand

UPC

85347618576

MPN

61857

Family

Performer RPM

Grade Type

Performance

series

Pro-Port

Material

Aluminum

CNC Ported

No

EGR Port

No

Combustion Chamber Volume

Possible 45

Construction Type

Pro-Port Raw

Deck Thickness

0.625

Guide Plates Included

No

Quantity

Sold Individually

Head Casting Number

N/A

Seat Angle

Exhaust 45 deg/Intake 60

Valve Angle

13
