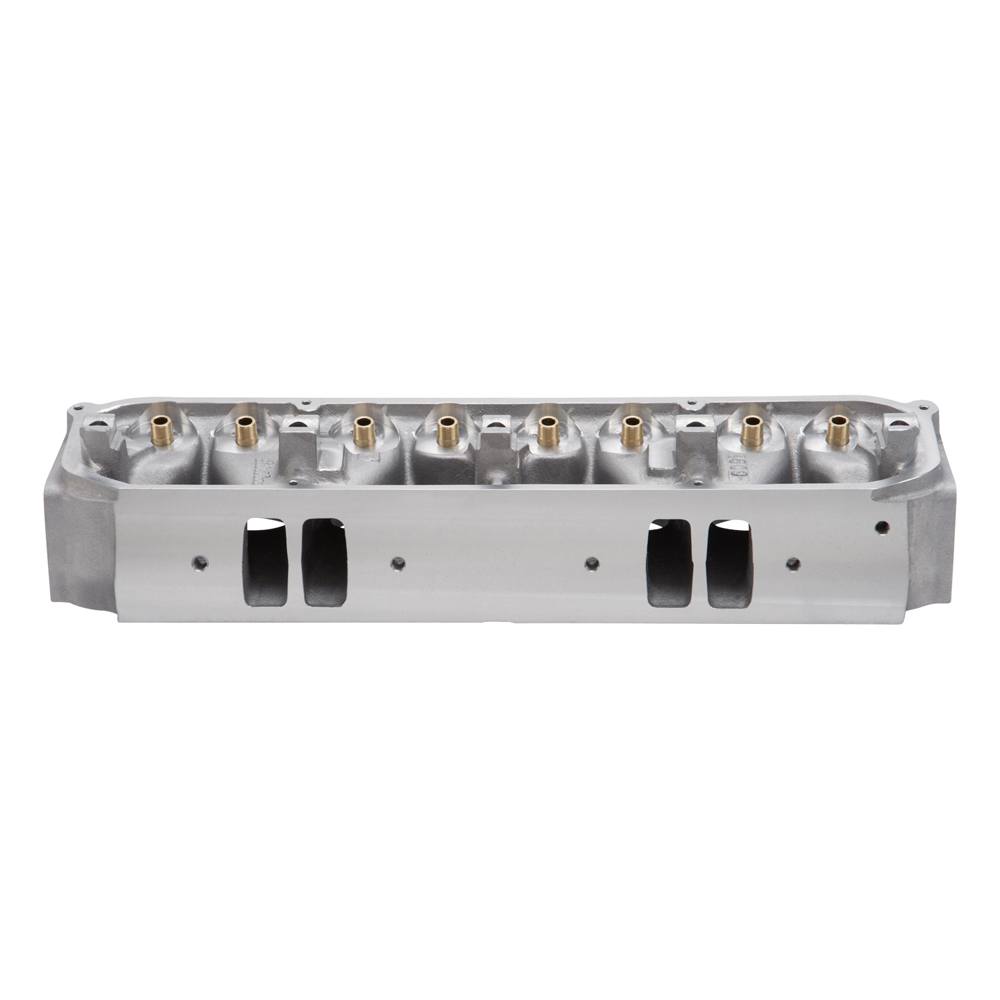

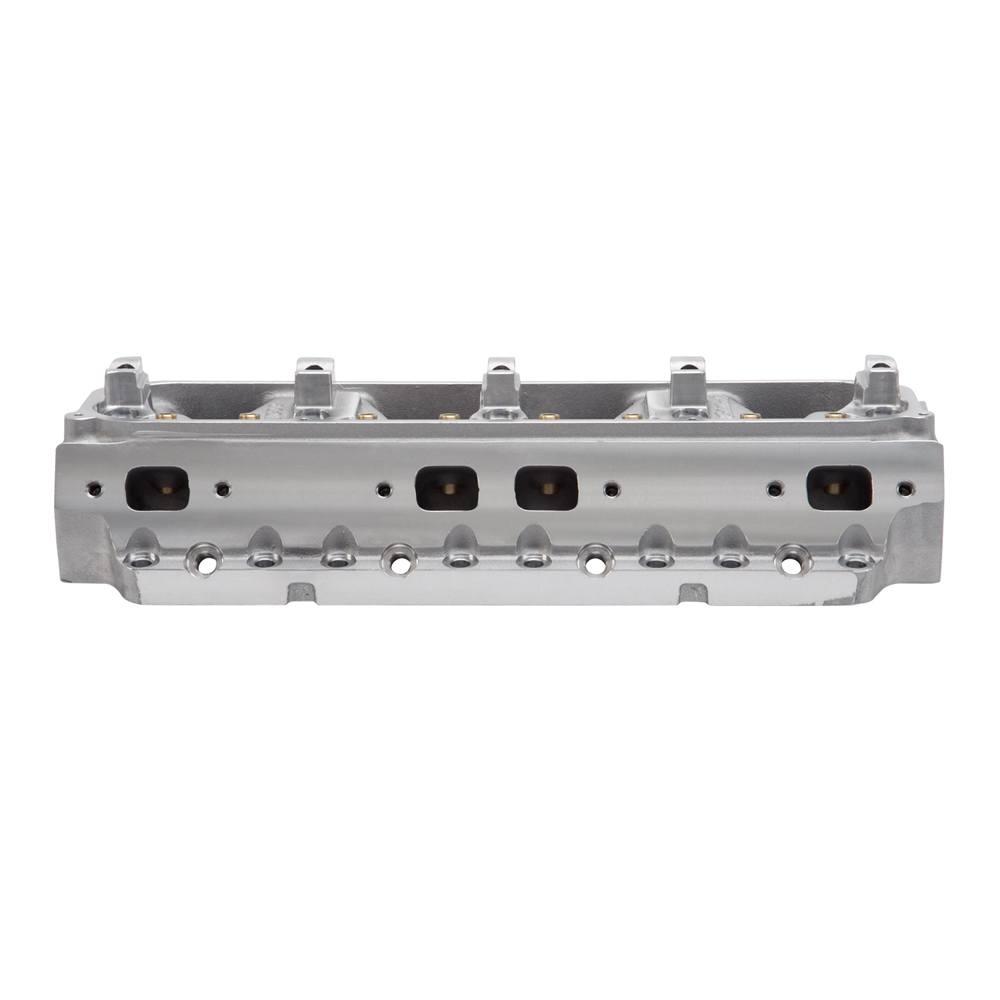

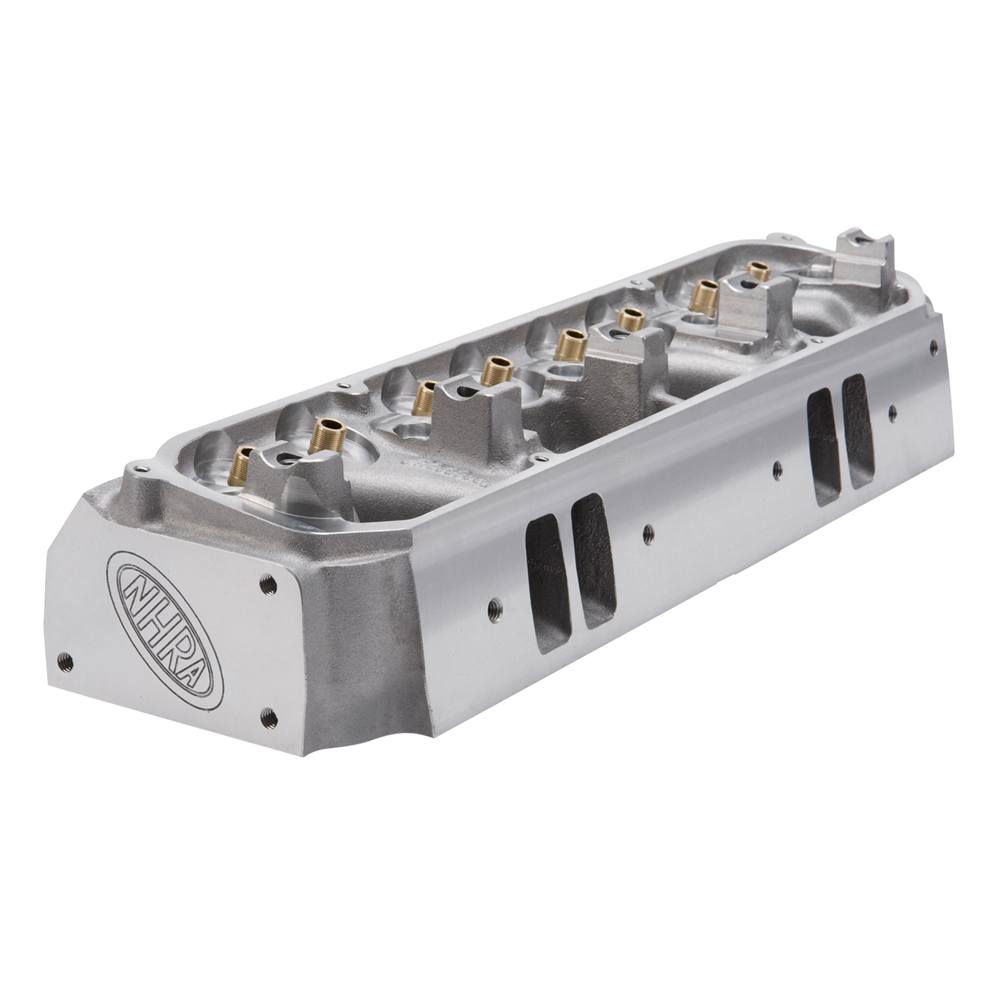

Edelbrock NHRA RB/ B Big-Block Chrysler Cylinder Head – EDB-60917

-

$1,041.50

Available on backorder
SKU EDB-60917
UPC 85347609178
Add to wishlist Add to compare

Description

The Edelbrock #60919 Performer RPM NHRA Stock/Super Stock Bare cylinder head is designed for 1961-79 Chrysler 361-440 c.i.d. Wedge engine applications. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. Cast and heat treated at the Edelbrock Foundry and machined at Edelbrock’s manufacturing facility in the USA, the Edelbrock head is the best in quality and performance. All Edelbrock cylinder head is designed from scratch using the latest in computer technology by our own highly skilled engineer’s. Using highly efficient ports and state-of-the-art combustion chamber shapes, Edelbrock cylinder head offers improved performance throughout the rpm range for great throttle response and top-end horsepower. Top-quality features include threaded inserts in rocker stud and exhaust bolt holes for superior strength and durability, and manganese-bronze valve guides with ductile iron valve seats. These are features that some other companies don’t include!

Specification

Weight 27.2 lbs
Dimensions 26 × 11 × 8.5 in
Brand

UPC

85347609178

MPN

60917

Family

Performer RPM

Grade Type

Performance

series

Performer RPM

Material

Aluminum

CNC Ported

No

EGR Port

No

Combustion Chamber Volume

82-84

Construction Type

Bare

Deck Thickness

0.625

Guide Plates Included

No

Quantity

Sold Individually

Head Casting Number

N/A

Intake Runner Volume

210

Seat Angle

Exhaust 45 deg/Intake 45

Valve Angle

15
