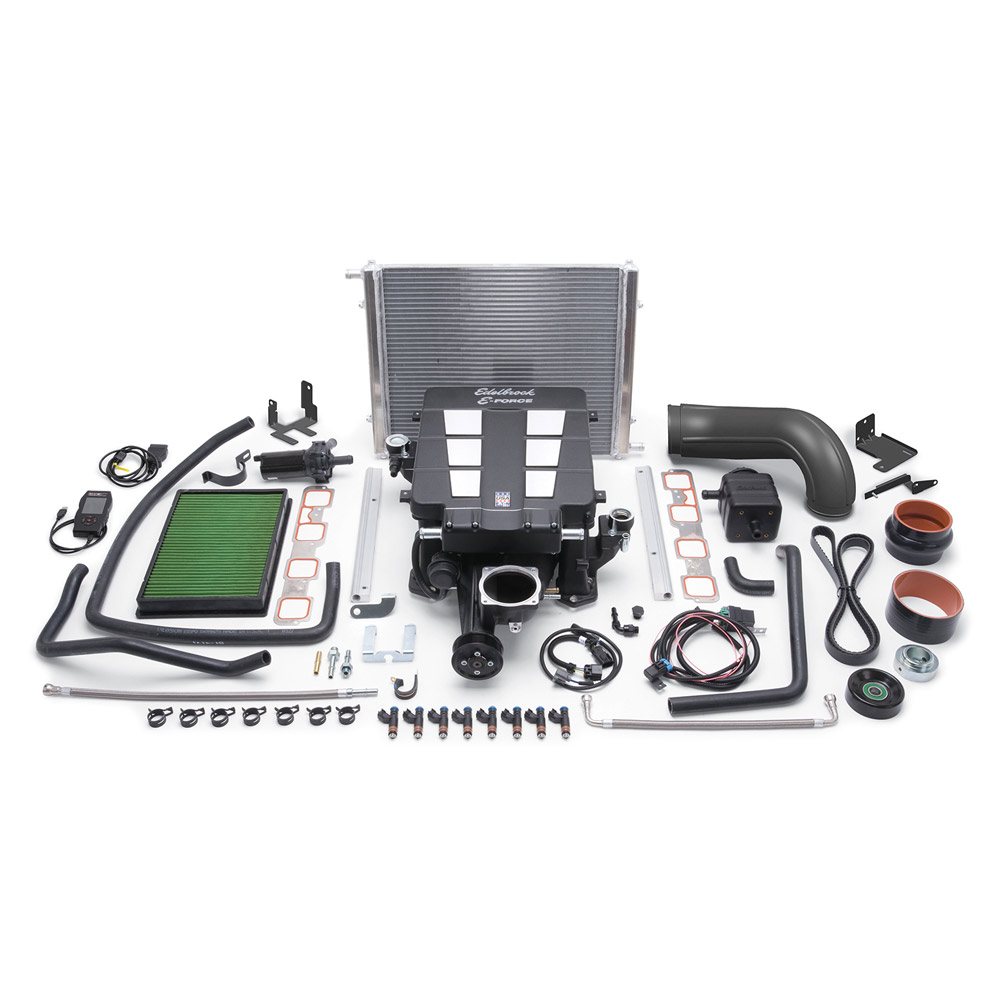

Edelbrock Stage 1 Supercharger #15175 For 2015-18 Dodge Ram 1500 57L W/ Tune – EDB-15175

-

$9,096.95

Available on backorder
SKU EDB-15175
UPC 85347151752
Add to wishlist Add to compare

Description

The Edelbrock Supercharger System part #15175 for 2015-18 Dodge RAM trucks equipped with a 5.7 HEMI V8 engine delivers 439 RWHP and 444 RWTQ. Featuring a unique design with minimal components makes it possible to fit an Edelbrock supercharger under the stock hood. The core of each system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. ALL 2015-Later Chrysler/Dodge Supercharger Systems will require the ECM to be sent in for modification.. HANDHELD PROGRAMMER NOT INCLUDED. This is an 8-10 day process/waiting period from the time they are received! Every step of the process is handled with next day shipping. Supercharger systems without tuners are not eligible for supplemental warranty. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program.

Specification

Weight 137 lbs
Dimensions 35.6 × 26.1 × 19.8 in
Brand

UPC

85347151752

MPN

15175

Finish

Black Powder Coated

Housing Material

Cast Aluminum

Gasket Or Seal Included

Yes

Vehicle Model

Ram Truck

Quantity

Kit

Mounting Hardware Included

Yes

Universal Or Specific Fit

Specific

Air Filter Included

Yes

Calibration

Yes

Center Housing Cooling Type

Intercooler

Fuel Injector Type

46

Hose Included

Yes

Internal Step Up

Yes

Maximum Boost Pressure

14

Maximum Horsepower

439RW

Maximum Pressure Reading

14

Maximum Torque

444RW

Mounting Bracket Included

Yes

Oil Capacity

150

Outside Pulley Diameter

3.25

Pulley Belt Width

6-Rib

Rotor Type

Eaton TVS 2300

System Type

Stage 1 – Street System

Harmonic Balancer Diameter

Stock
