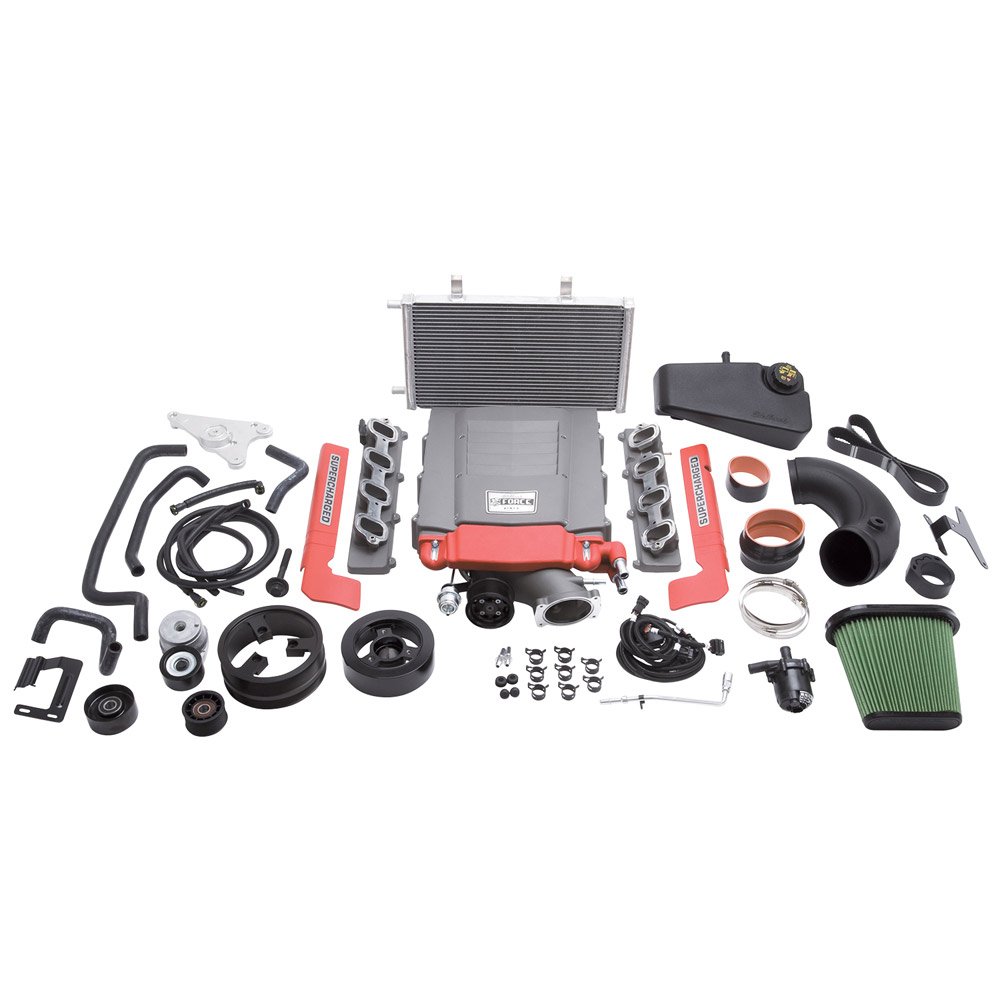

Edelbrock Stage 1 Supercharger #15710 For 14-19 Corvette Stingray LT1 W/O Tune – EDB-15710

-

$7,069.87

Available on backorder
SKU EDB-15710
UPC 85347998050
Add to wishlist Add to compare

Description

The Edelbrock supercharger Stage 1 Street System part #15710 for 2014-19 Corvette Stingray increases the performance of your LT1 engine to 624 horsepower and 600 ft-lbs of torque to the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program.

Specification

Weight 164 lbs
Dimensions 41.3125 × 32.5625 × 18.125 in
Brand

UPC

85347998050

MPN

15710

Finish

Black Powder Coated

Housing Material

Cast Aluminum

Gasket Or Seal Included

Yes

Vehicle Model

Corvette

Quantity

Kit

Mounting Hardware Included

Yes

Universal Or Specific Fit

Specific

Tensioner Included

Yes

Air Filter Included

Yes

Calibration

No

Center Housing Cooling Type

Intercooler

Hose Included

Yes

Internal Step Up

Yes

Mounting Bracket Included

Yes

Oil Capacity

150

Outside Pulley Diameter

3.5

Pulley Belt Width

10-Rib

Rotor Type

Eaton TVS 2300

System Type

Stage 1 – Street System

Harmonic Balancer Diameter

Stock
