Edelbrock Stage 1 Supercharger Kit #1582 For 2010 Mustang GT 46L 3V W/ Tune – EDB-1582

-

$8,069.95

Available on backorder
SKU EDB-1582
UPC 85347015825
Add to wishlist Add to compare

Description

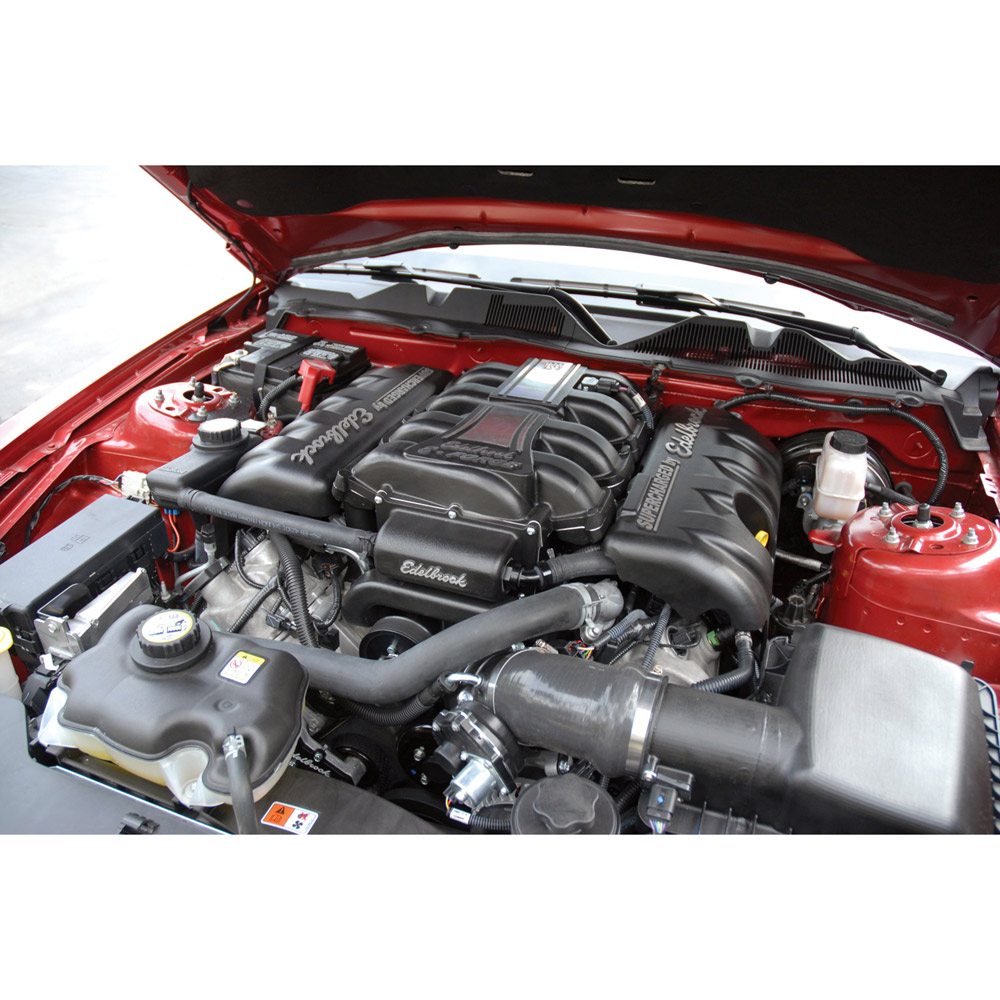

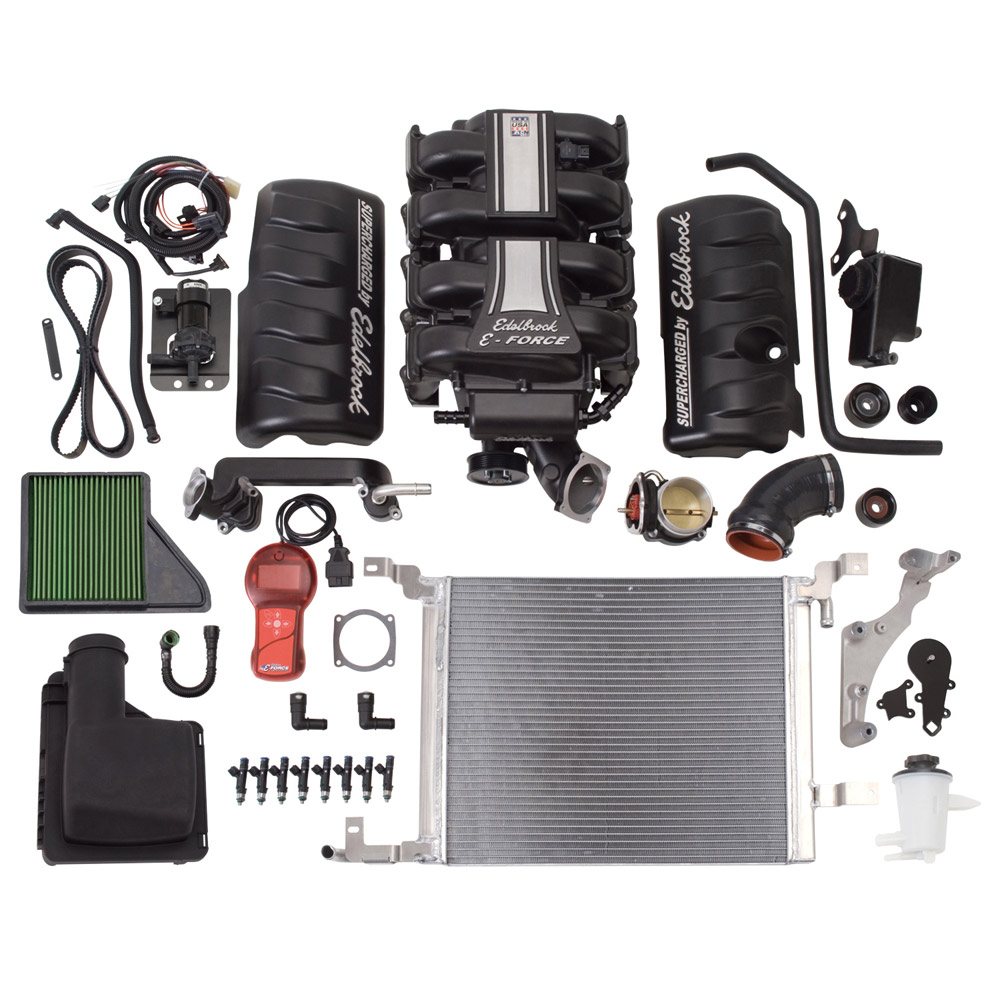

The Edelbrock supercharger Stage 1 Street system part #1582 for 2010 Mustangs increases the performance of your 4.6L 3V engine to 466 horsepower and 439 ft-lbs of torque at the crank. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1582 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.

Specification

Weight 202 lbs
Dimensions 50 × 40 × 26 in
Brand

UPC

85347015825

MPN

1582

Finish

Black Powder Coated

Housing Material

Cast Aluminum

Gasket Or Seal Included

Yes

Vehicle Model

F-150

Quantity

Kit

Mounting Hardware Included

Yes

Universal Or Specific Fit

Specific

Tensioner Included

Yes

Air Filter Included

Yes

Calibration

Yes

Center Housing Cooling Type

Intercooler

Fuel Injector Type

41

Hose Included

Yes

Internal Step Up

Yes

Maximum Boost Pressure

4.75

Maximum Horsepower

466

Maximum Pressure Reading

4.75

Maximum Torque

439

Mounting Bracket Included

Yes

Oil Capacity

150

Outside Pulley Diameter

3.875

Pulley Belt Width

6-Rib

Rotor Type

Eaton TVS 2300

System Type

Stage 1 – Street System

Harmonic Balancer Diameter

6.67
