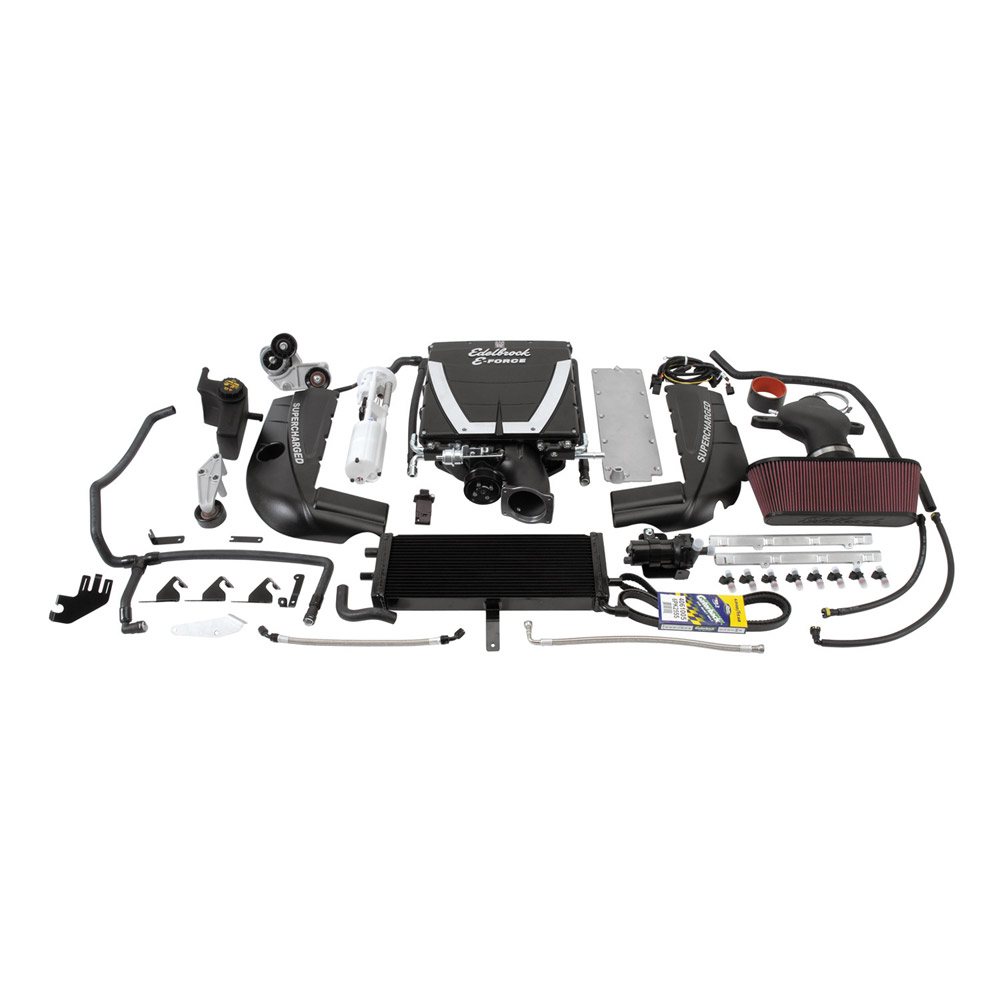

Edelbrock Stage 2 Supercharger Kit #15940 For 2005-07 Corvette LS2 W/O Tune – EDB-15940

-

$7,059.87

Available on backorder
SKU EDB-15940
UPC 85347159406
Add to wishlist Add to compare

Description

The Edelbrock supercharger stage 2 street/strip system part #15940 for 2005-07 Chevy Corvette increases the performance of your LS2 engine to 599 horsepower and 547 ft-lbs of torque at the crank when used with Edelbrock tune (kit supplied without a programmer). The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program.

Specification

Weight 186 lbs
Dimensions 42 × 33.5 × 18 in
Brand

UPC

85347159406

MPN

15940

Finish

Black Powder Coated

Housing Material

Cast Aluminum

Gasket Or Seal Included

Yes

Vehicle Model

Corvette

Quantity

Kit

Mounting Hardware Included

Yes

Universal Or Specific Fit

Specific

Tensioner Included

Yes

Air Filter Included

Yes

Calibration

No

Center Housing Cooling Type

Intercooler

Fuel Injector Type

52

Hose Included

Yes

Internal Step Up

Yes

Mounting Bracket Included

Yes

Oil Capacity

150

Outside Pulley Diameter

3.5

Pulley Belt Width

6-Rib

Rotor Type

Eaton TVS 2300

System Type

Stage 2 – Street/Strip System

Harmonic Balancer Diameter

7.5

WARNING Message

CALIFORNIA WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

WARNING CA Proposition 65

Yes
