Edelbrock Stg 1 Supercharger #15770 03-07 Silverado/Sierra 1500 48L/53L/60L – EDB-15770

-

$8,191.95

Available on backorder
SKU EDB-15770
UPC 85347157709
Add to wishlist Add to compare

Description

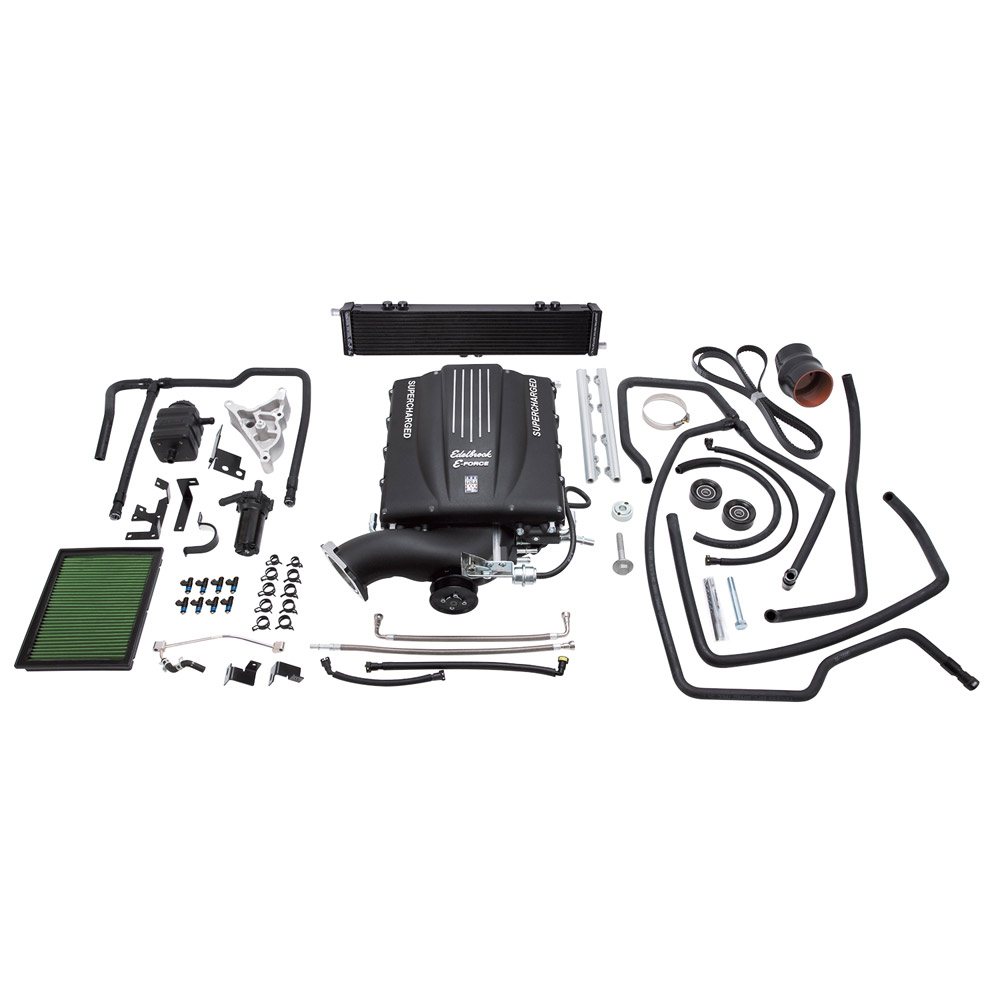

The Edelbrock supercharger Stage 1 Street system part #15770 for 2003-06 Silverado and Sierra 1500 and 2007 Sierra Classic increases the performance of your 6.0L Gen III engine to 364 horsepower and 397 ft-lbs of torque at the rear wheels, when used with Edelbrock tune (kit supplied without a programmer). The Edelbrock #15770 Supercharger also works with the 4.8L & 5.3L Gen III engines, HP & Torque numbers will vary. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program. The #15770 system increases the performance of your 4.8L Gen III engine to 339 horsepower and 359 ft-lbs of torque and for the 5.3L Gen III engine increases to 339 horsepower and 359 ft-lbs of torque at the rear wheels, when used with Edelbrock tune (kit supplied without a programmer).

Specification

Weight 177 lbs
Dimensions 41.75 × 33.25 × 25.75 in
Brand

UPC

85347157709

MPN

15770

Finish

Black Powder Coated

Housing Material

Cast Aluminum

Gasket Or Seal Included

Yes

Vehicle Model

Silverado

Quantity

Kit

Mounting Hardware Included

Yes

Universal Or Specific Fit

Specific

Air Filter Included

Yes

Calibration

No

Center Housing Cooling Type

Intercooler

Fuel Injector Type

42

Hose Included

Yes

Internal Step Up

Yes

Mounting Bracket Included

Yes

Oil Capacity

150

Outside Pulley Diameter

4.125

Pulley Belt Width

6-Rib

Rotor Type

Eaton TVS 2300

System Type

Stage 1 – Street System

Harmonic Balancer Diameter

7.5

WARNING Message

CALIFORNIA WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

WARNING CA Proposition 65

Yes
