Edelbrock Stg 1 Supercharger #15980, 10-13 Camaro SS LS3 Manual Trans W/O Tune – EDB-15980

-

$8,342.95

Available on backorder
SKU EDB-15980
UPC 85347159802
Add to wishlist Add to compare

Description

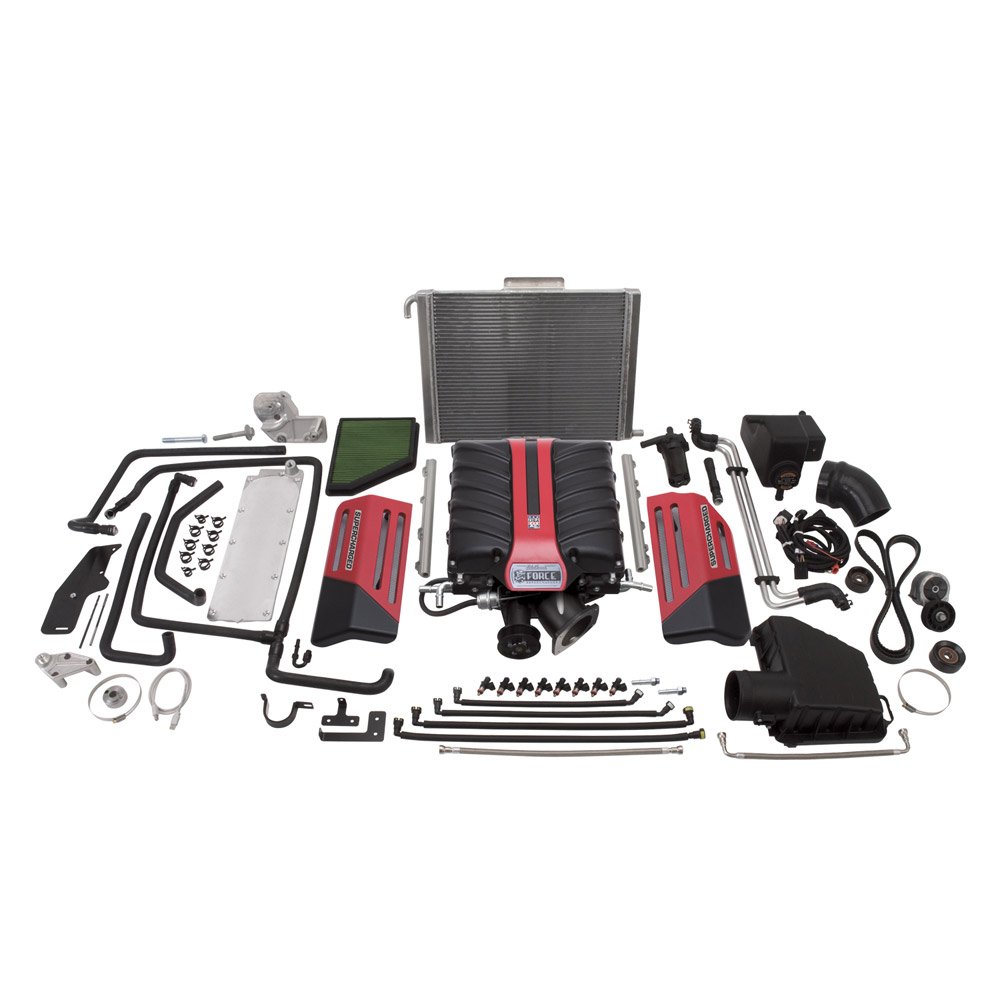

The Edelbrock supercharger Stage 1 Street system part #15980 for 2010-2013, Manual Trans, LS3 Camaro SS increases the performance of your LS3 engine to 599 horsepower and 547 ft-lbs of torque at the crank when used with the Edelbrock Tune (not supplied in this kit). The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. HANDHELD PROGRAMMER NOT INCLUDED. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program. 2010-15 convertible installations will require the use of Edelbrock Convertible Brace #15956 (sold separately).

Specification

Weight 176 lbs
Dimensions 41.75 × 33.25 × 25.75 in
Brand

UPC

85347159802

MPN

15980

Finish

Black Powder Coated

Housing Material

Cast Aluminum

Gasket Or Seal Included

Yes

Vehicle Model

Camaro

Quantity

Kit

Mounting Hardware Included

Yes

Universal Or Specific Fit

Specific

Tensioner Included

Yes

Air Filter Included

Yes

Calibration

No

Center Housing Cooling Type

Intercooler

Fuel Injector Type

52

Hose Included

Yes

Internal Step Up

Yes

Mounting Bracket Included

Yes

Oil Capacity

150

Outside Pulley Diameter

3.5

Pulley Belt Width

6-Rib

Rotor Type

Eaton TVS 2300

System Type

Stage 1 – Street System

Harmonic Balancer Diameter

7.5

WARNING Message

CALIFORNIA WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

WARNING CA Proposition 65

Yes
