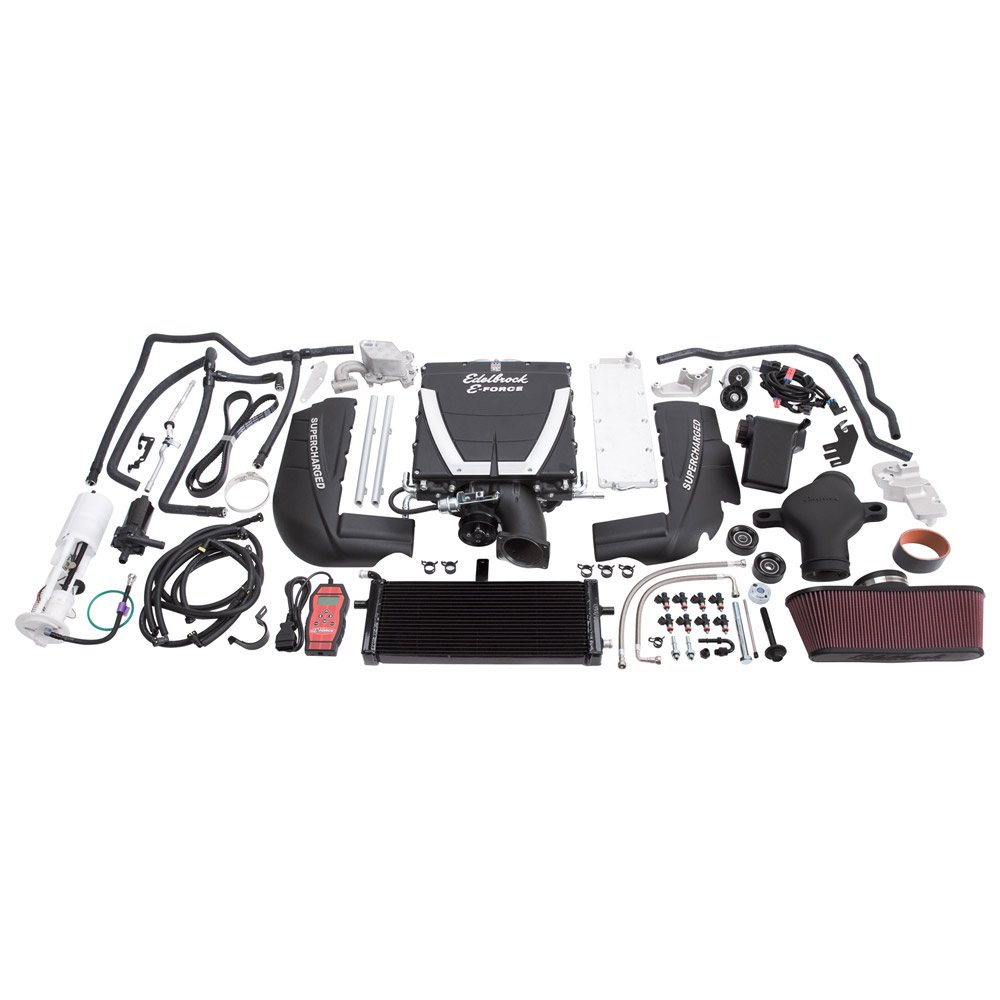

Edelbrock Stg 2 SC #1575 For 10-13 Corvette Grand Sport LS3-Dry Sump W/ Tune – EDB-1575

-

$11,501.95

Available on backorder
SKU EDB-1575
UPC 85347015757
Add to wishlist Add to compare

Description

The Edelbrock supercharger stage 2 street/strip system part #1575 is for use with 2010-13 Chevy Corvette Grand Sports with Dry Sump increases the performance of your LS3 engine to 599 horsepower and 547 ft-lbs of torque at the flywheel. The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. The Edelbrock #1575 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.

Specification

Weight 186 lbs
Dimensions 40 × 50 × 26 in
Brand

UPC

85347015757

MPN

1575

Finish

Black Powder Coated

Housing Material

Cast Aluminum

Gasket Or Seal Included

Yes

Vehicle Model

Corvette

Quantity

Kit

Mounting Hardware Included

Yes

Universal Or Specific Fit

Specific

Tensioner Included

Yes

Air Filter Included

Yes

Calibration

Yes

Center Housing Cooling Type

Intercooler

Fuel Injector Type

52

Hose Included

Yes

Internal Step Up

Yes

Maximum Boost Pressure

7.5

Maximum Horsepower

599

Maximum Pressure Reading

7.5

Maximum Torque

547

Mounting Bracket Included

Yes

Oil Capacity

150

Outside Pulley Diameter

3.5

Pulley Belt Width

6-Rib

Rotor Type

Eaton TVS 2300

System Type

Stage 2 – Street/Strip System

Harmonic Balancer Diameter

7.5
