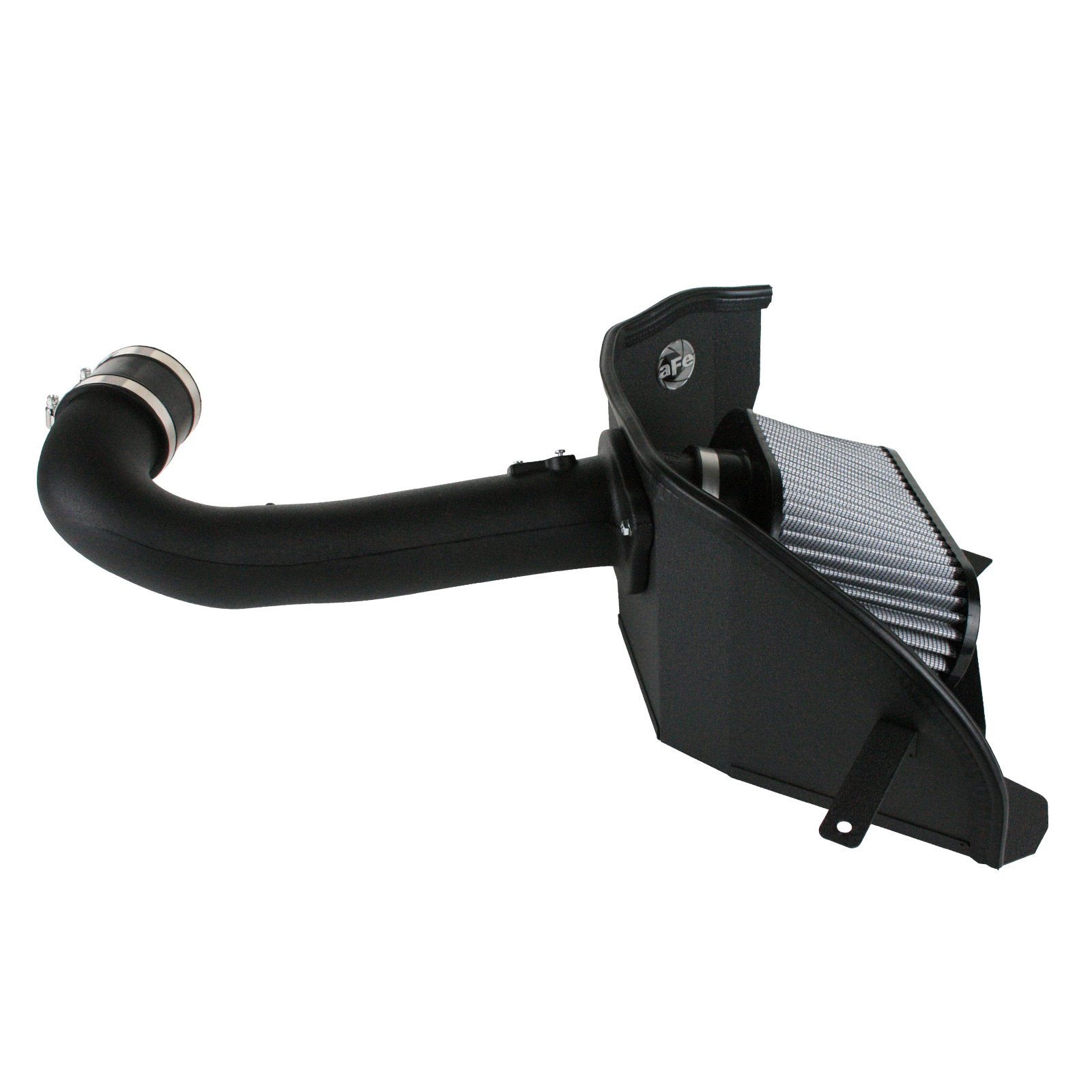

Magnum FORCE AFE-54-11312-p Stage-2 Cold Air Intake System Ford Mustang 05-09 V6-4.0L

  • Uses Pro 5R Filter For Maximum Air Flow
  • Rotomolded Plastic Tube For Maximum Air Flow
  • 100% cfm Flow Gain
  • Improved Throttle Response
  • Repl. Factory Intake For Improved HP/Torque/Styling
  • 2 Year Limited Warranty

-

Price range: $365.00 through $376.00

Out of stock
SKU AFE-54-11312-p
UPC AFE-51-11312 : 00802959511275 | AFE-54-11312 : 00802959502419
Carb Exempt ID D-550-31
Add to wishlist Add to compare

Description

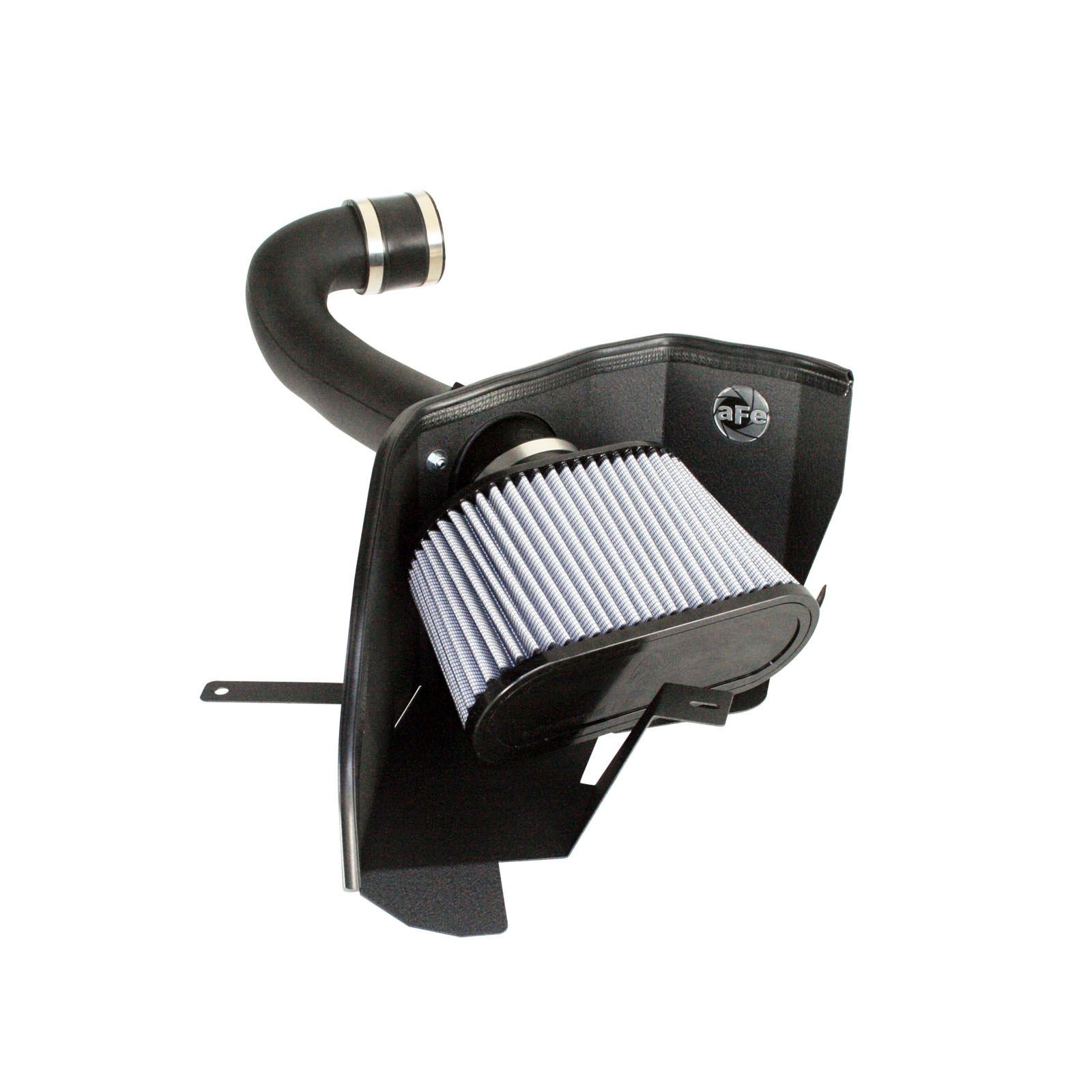

Model: Pro DRY S Filter 51-11312

Features

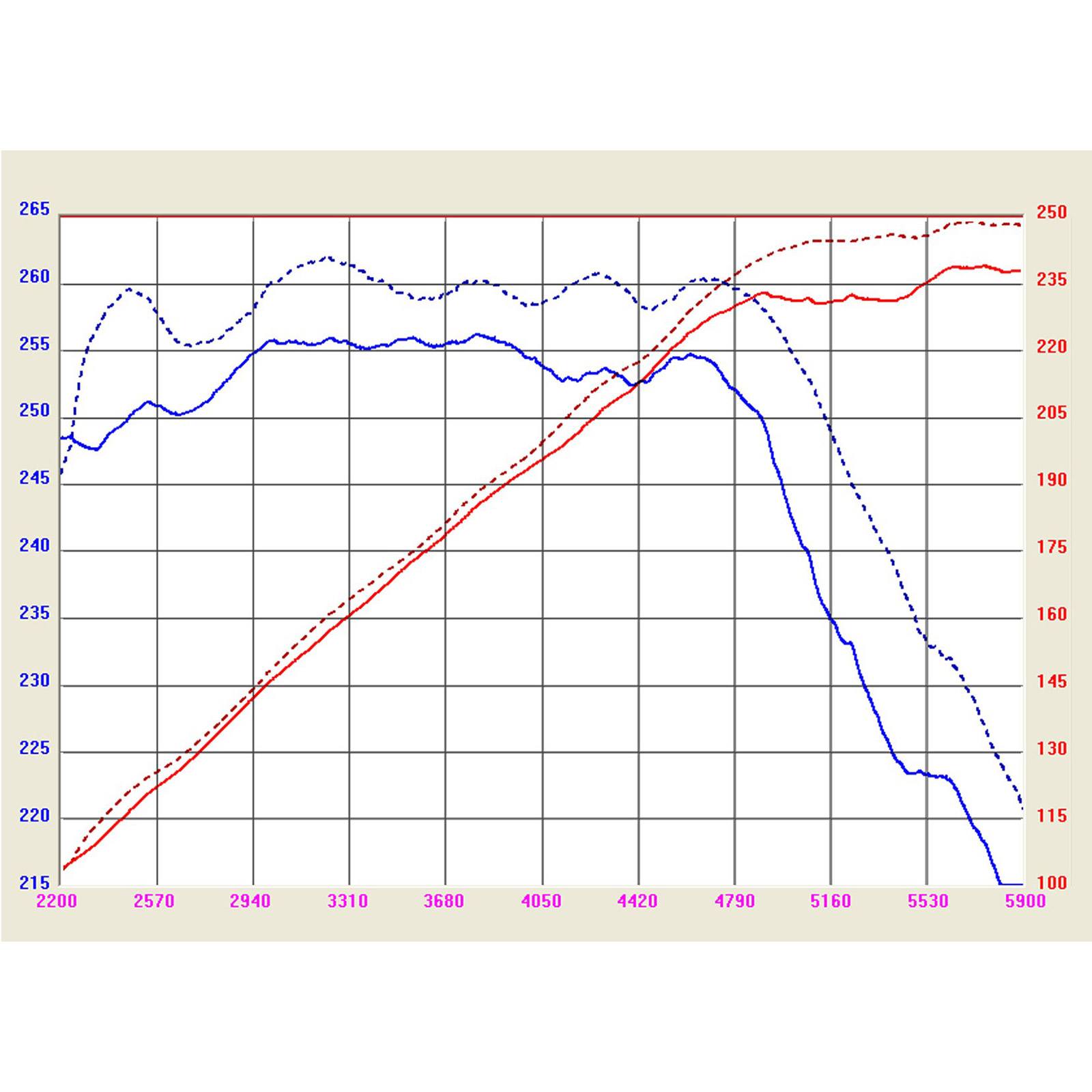

  • Dyno-Proven Gains up to +13 HP & +11 Lbs. x Ft. TQ
  • Outflows Factory Intake by 100%
  • Measured Flow: 216 CFM @ 1.5″ CFM
  • Durable 16-Gauge Powder-Coated Heat Shield
  • Washable and Reusable Pro DRY S Air Filter for Maximum Convenience
  • Heat-Resistant Roto-Molded Intake Tube

This Stage 2 cold air intake system produced up to 13 HP and 11lbs. x ft. torque and outflowed the factory intake by 100%. Enclosed in a durable 16 gauge, powder-coated heat shield; this air intake system features a washable/reusable conical air filter that improves airflow for increased horsepower and torque. This intake system also features a heat-insulating molded plastic tube that replaces the stock intake tract and directs increased air flow with improved volumetric efficiency for maximum performance. One-piece heat shield requires little or no assembly and the filter is constructed with 100% polyurethane for long life and multiple cleaning cycles.

3-3/4″ Conical Pro Dry S Air Filter:
This intake utilizes a 3-3/4″ conical Pro Dry S performance dry air filter. This 3-layer progressive, synthetic material air filter requires no oil and cleans with soap and water for maximum convenience.

One-Piece Filter Housing:
The air filter is housed in a one-piece, black powder coated 16-gauge heat shield that keeps warm engine air out for maximum performance. This one-piece heat shield uses factory mounting locations and comes with all brackets and hardware for a hassle-free installation.

Dyno Tested Intake Tube:
The intake tube is designed to maximize air velocity and is dyno tested and flowed using the latest engineering tools for maximum performance, mileage and throttle response.

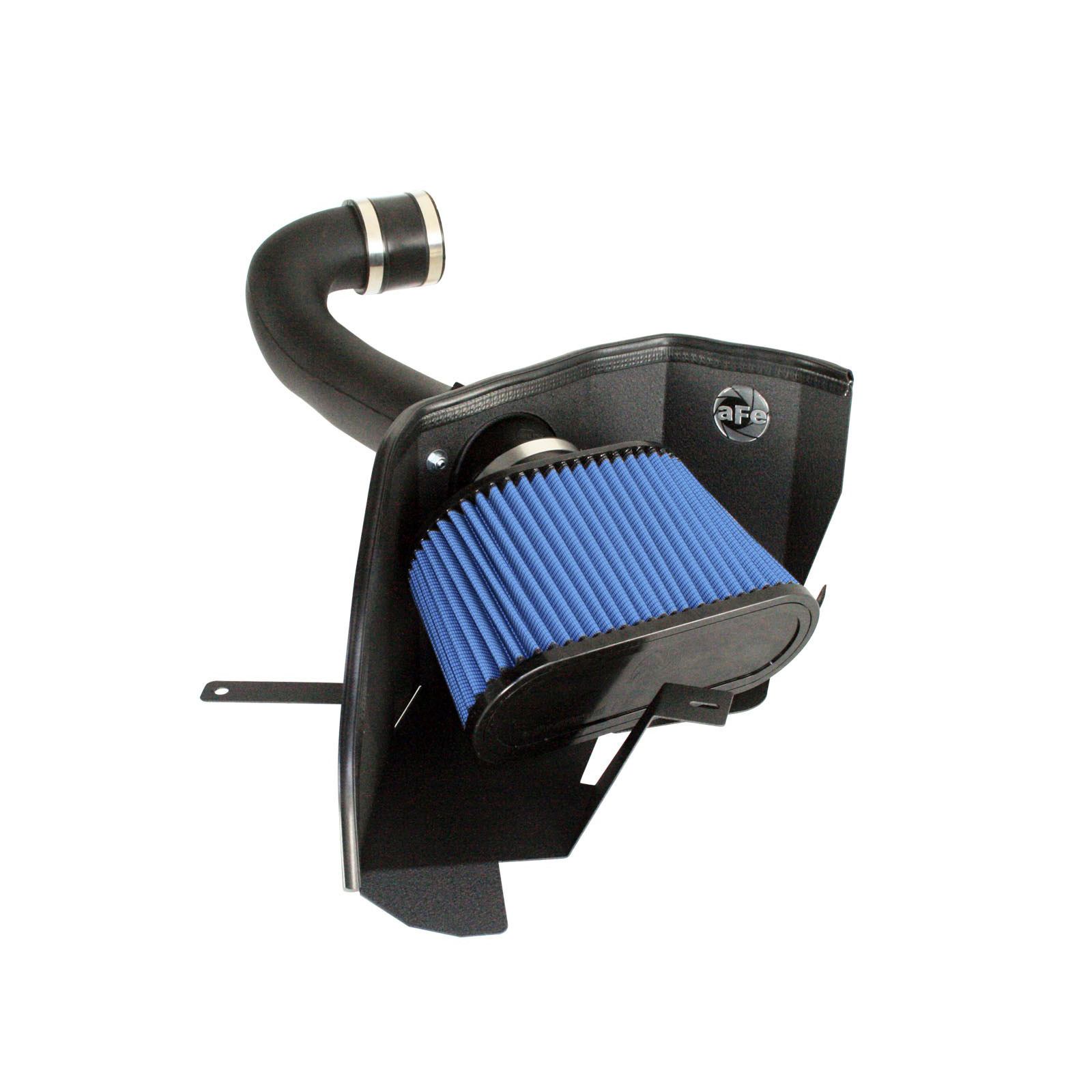

Model: Pro 5R Filter 54-11312

Features

  • Dyno-Proven Gains up to +13 HP & +11 Lbs. x Ft. TQ
  • Outflows Factory Intake by 100%
  • Measured Flow: 216 CFM @ 1.5″ CFM
  • Durable 16-Gauge Powder-Coated Heat Shield
  • Washable and Reusable Pro 5R Air Filter for Maximum Performance
  • Heat-Resistant Roto-Molded Intake Tube

This Stage 2 cold air intake system produces up to 13HP and 11lbs. x ft. torque and outflowed the factory intake by 100%. Enclosed in a durable 16 gauge, powder-coated heat shield; this air intake system features a washable/reusable conical air filter that improves airflow for increased horsepower and torque. This intake system also features a heat-insulating molded plastic tube that replaces the stock intake tract and directs increased air flow with improved volumetric efficiency for maximum performance. One-piece heat shield requires little or no assembly and the filter is constructed with 100% polyurethane for long life and multiple cleaning cycles.

3-3/4″ Conical Pro 5R Air Filter:
This intake utilizes a 3-3/4 IN conical Pro 5R performance air filter for maximum flow. This 5-layer progressive, oiled cotton gauze air filter provides maximum flow for increased horsepower, torque and improved throttle response.

One-Piece Filter Housing:
The air filter is housed in a one-piece, black powder coated 16-gauge heat shield that keeps warm engine air out for maximum performance. This one-piece heat shield uses factory mounting locations and comes with all brackets and hardware for a hassle-free installation.

Dyno Tested Intake Tube:
The intake tube is designed to maximize air velocity and is dyno tested and flowed using the latest engineering tools for maximum performance, mileage and throttle response.

Specification

Model

Pro 5R Filter, Pro DRY S Filter

Brand

Carb Exempt ID

D-550-31

Compatibility

, , , ,

Air Filter Flange Inside Diameter

3.75

Air Intake Tube Color

Black

Air Intake Tube Material

Cross-linked Polyethylene

Coupler Color

Black

Coupler Included

Yes

Filter Included

Yes

Housing Color

Black

Housing Material

Steel

Modifications Required

No

Mounting Hardware Included

Yes

System Type

Open Element Intake

Tuning Required

No

WARNING CA Proposition 65

Yes

WARNING Message

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

UPC

AFE-51-11312 : 00802959511275 | AFE-54-11312 : 00802959502419

MPN

51-11312 | 54-11312

Oiled or Dry Media

Dry, Oiled

Air Filter Color

Blue, Gray
