Magnum FORCE AFE-54-13046D-p Stage-2 Cold Air Intake System RAM Diesel Trucks 19-22 L6-6.7L (td)

  • +18lbs. x ft. TQ & +7 HP
  • Outflows Factory Intake by 15%
  • Measured Flow: 490 CFM @ 7″ H20
  • Seals to hood when closed to reduce intake air temperature
  • Innovative Filter-to-Housing Interface for Easy Installation

-

Price range: $387.00 through $399.00

Out of stock
SKU AFE-54-13046D-p
UPC AFE-54-13046D : 00802959545775 | AFE-54-13046R : 00802959545782
Add to wishlist Add to compare

Description

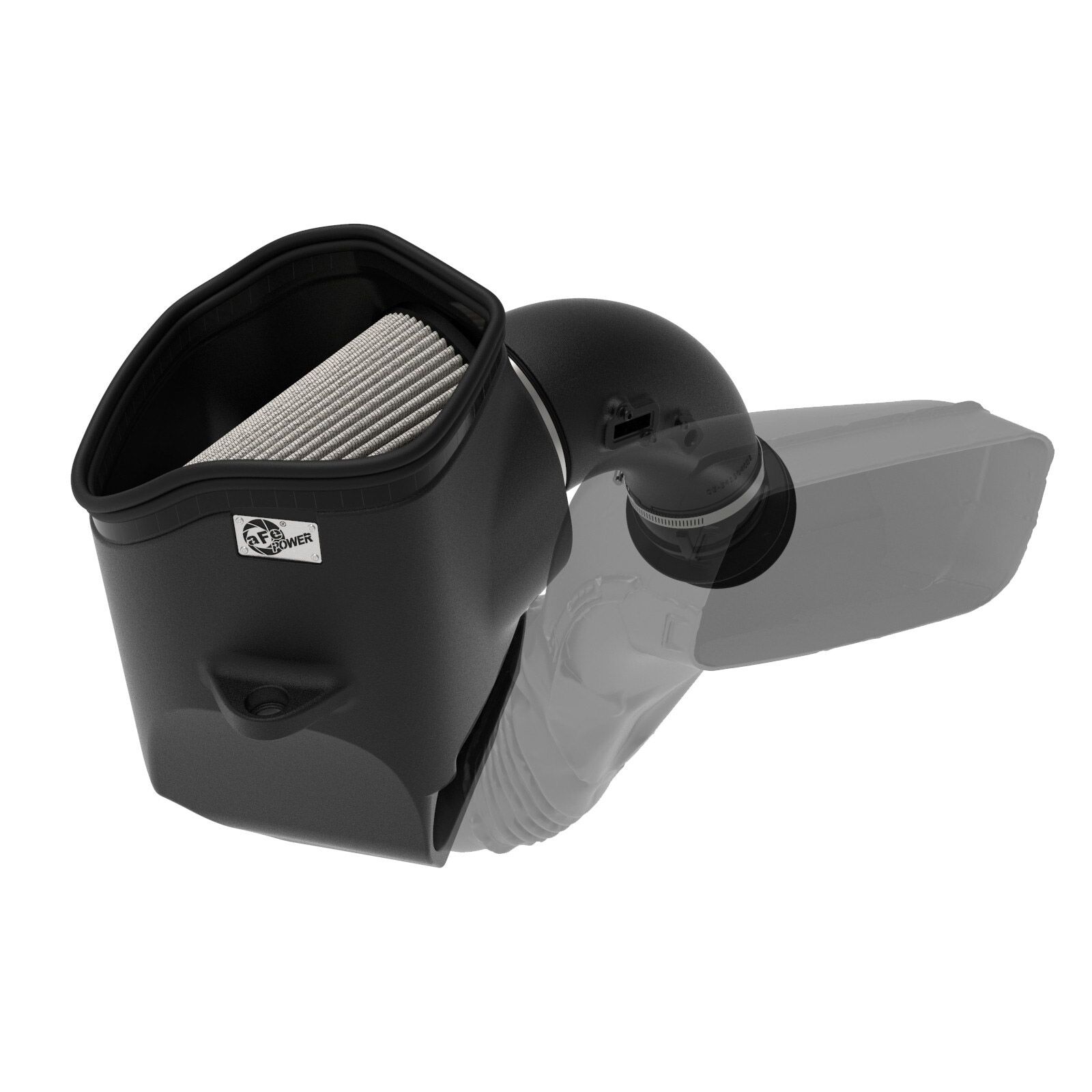

Model: Pro DRY S Filter 54-13046D

Features

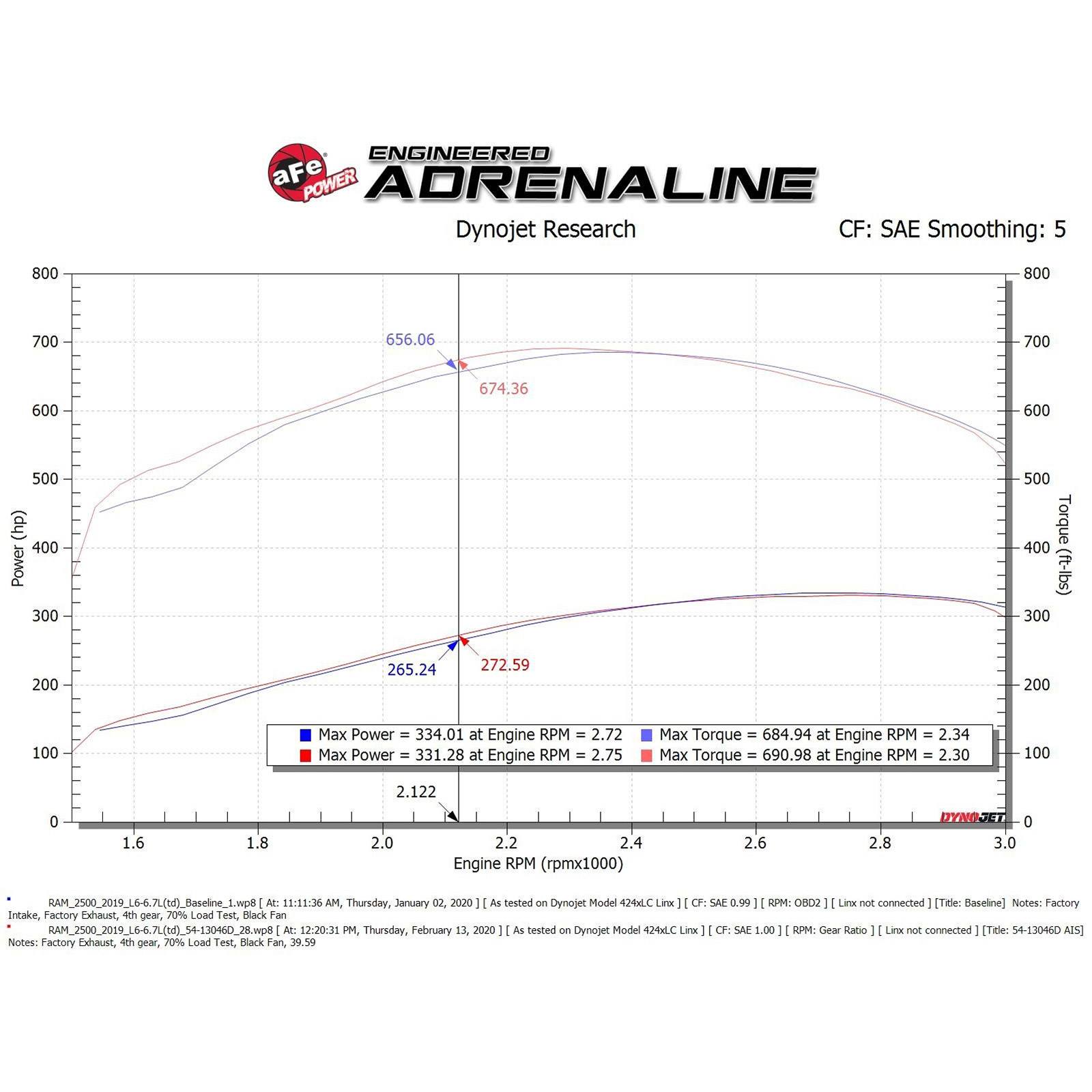

  • Dyno-Proven Gains up to +7 HP and +18 Lbs. x Ft. TQ
  • Outflows Factory Intake by 28%

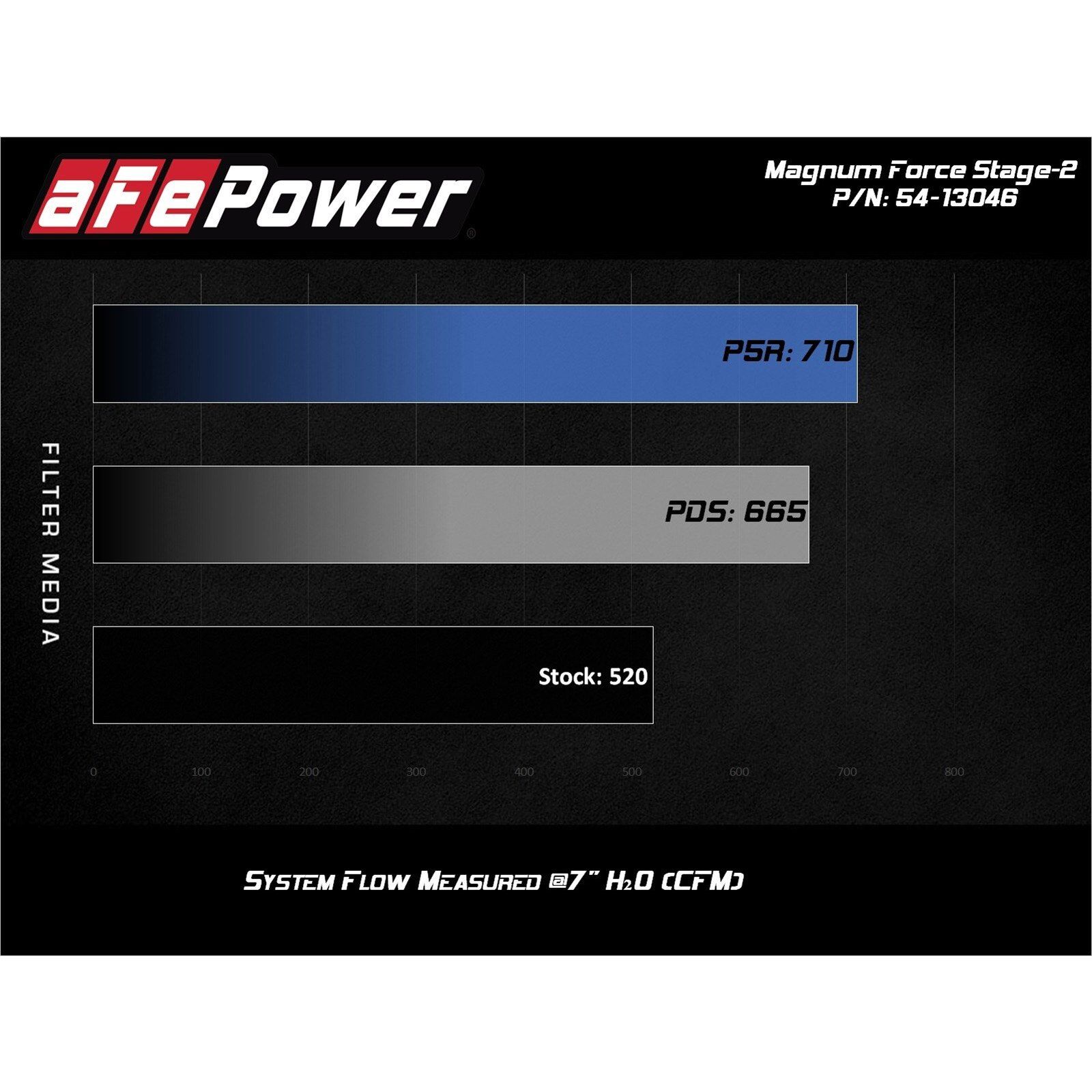

  • Measured Flow: 665 CFM @ 7″ H20
  • Open-Element Design Showcases the Air Filter and Delivers an Aggressive Air Intake Sound
  • Incorporates Factory Air Scoop with No Hardware
  • Washable and Reusable Pro DRY S Air Filter for Maximum Convenience
  • Flexible Bellows Coupling Mates Directly to Turbo and Absorbs Engine Movement
  • Innovative Filter-to-Housing Interface for Easy Installation (Roughly 30 Minutes)

Large Three Layer Performance Air Filter:
This 9″ tall 360-degree radial flow air filter features a 5″ flange and our oil-free Pro DRY S media with three layers of synthetic media for maximum convenience. Its progressive layering provides great filtration efficiency and dust holding capacity, while not requiring the use of oils. This media is best suited for street and light off-road use. Its inverted top makes for more filter surface area, resulting in longer service intervals.

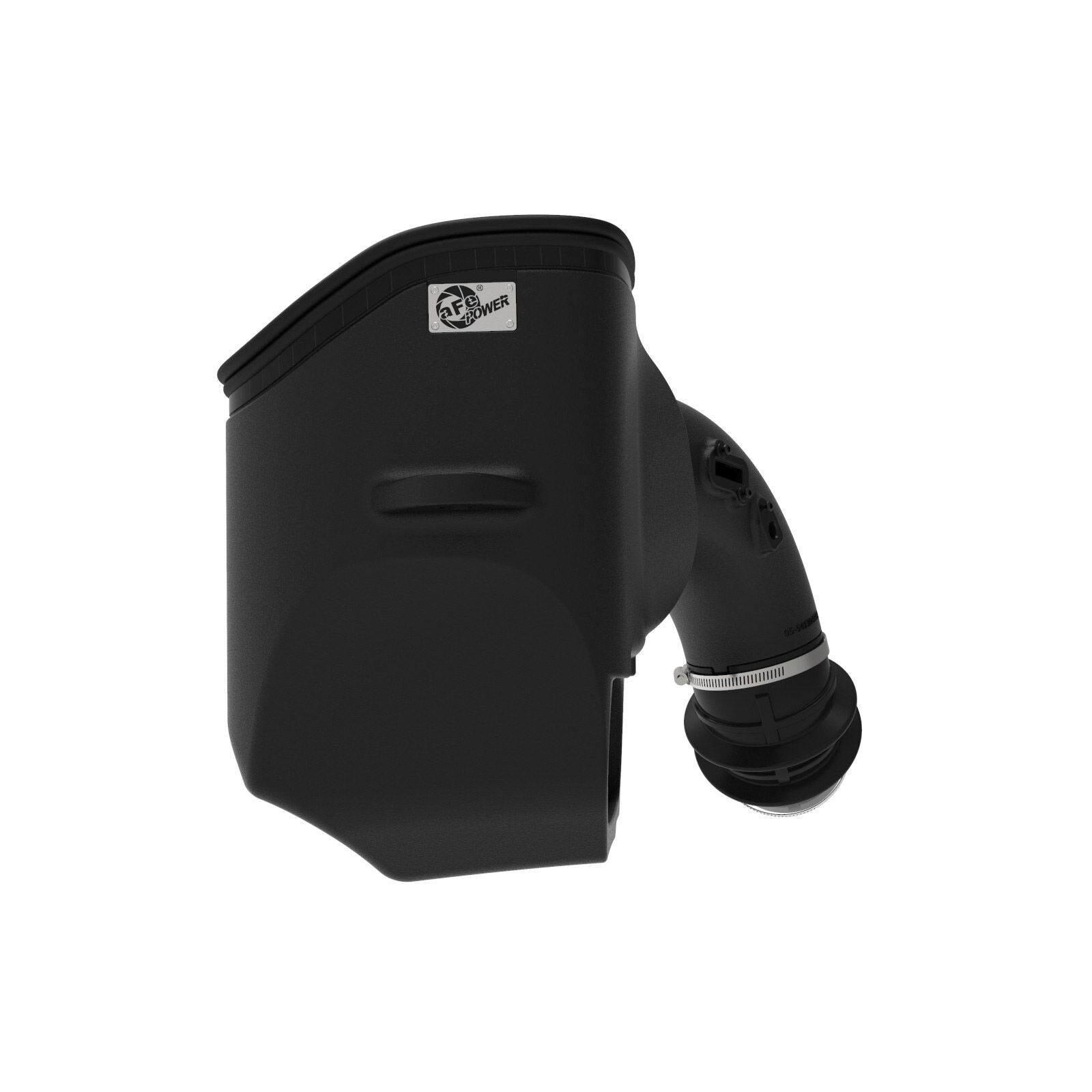

One-Piece Housing:

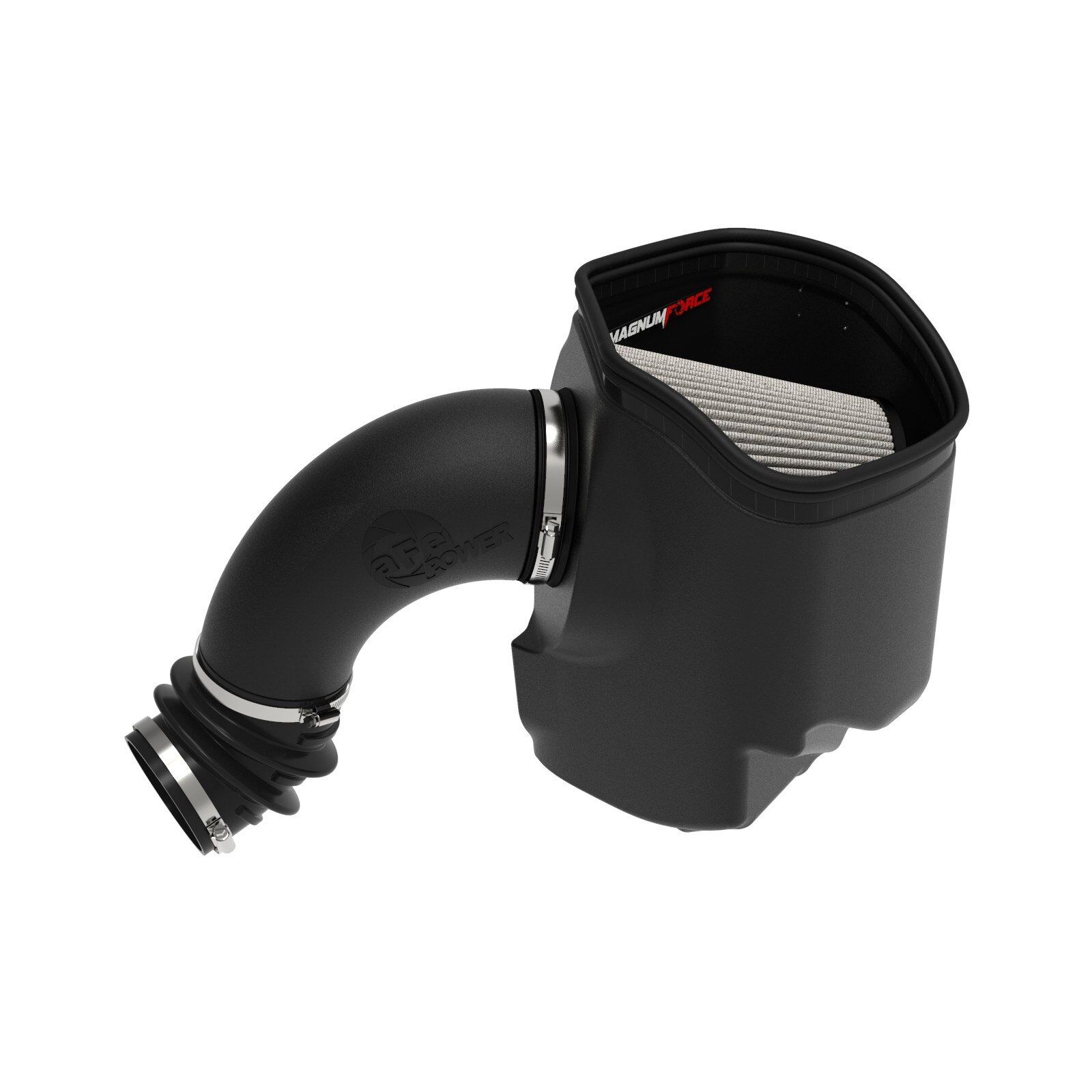

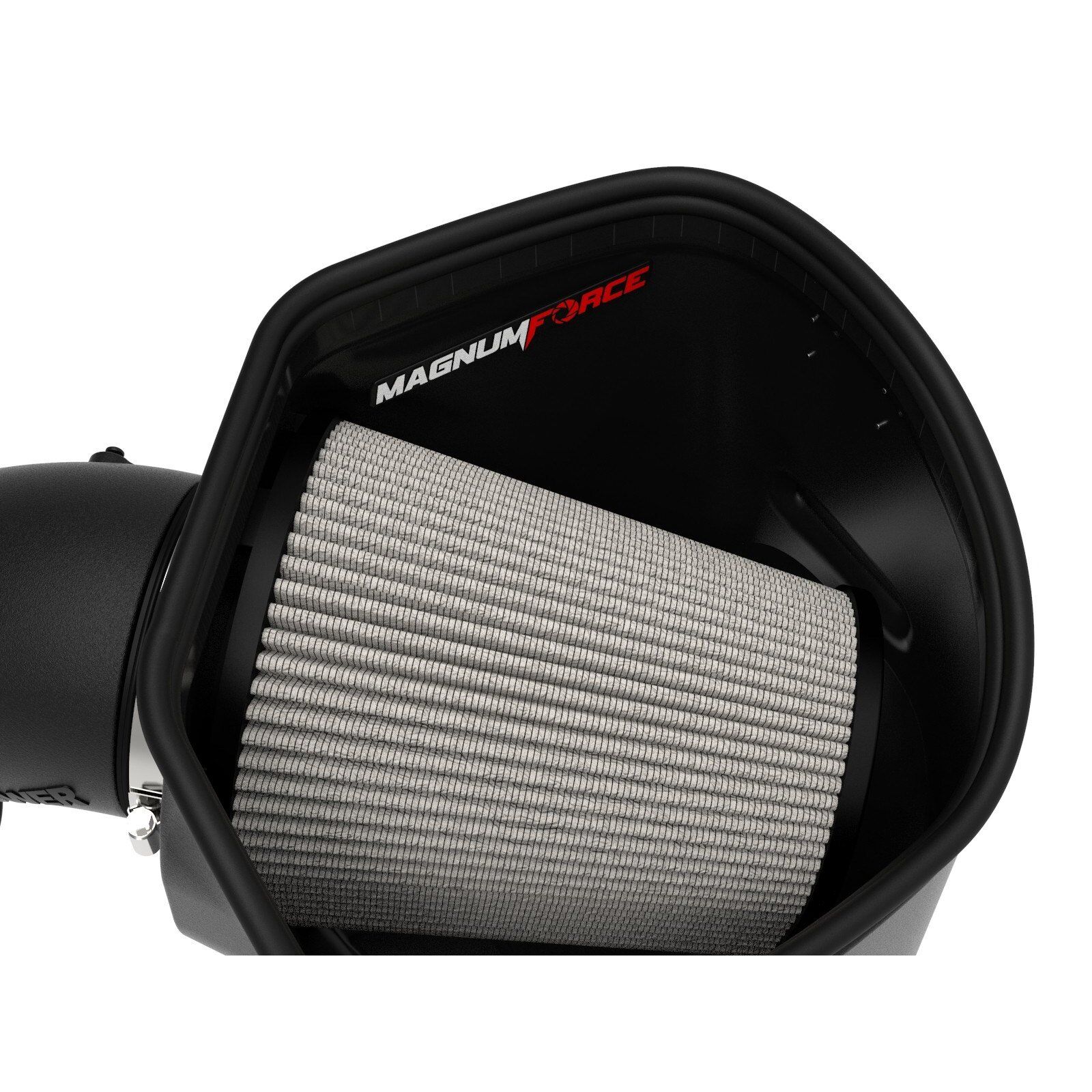

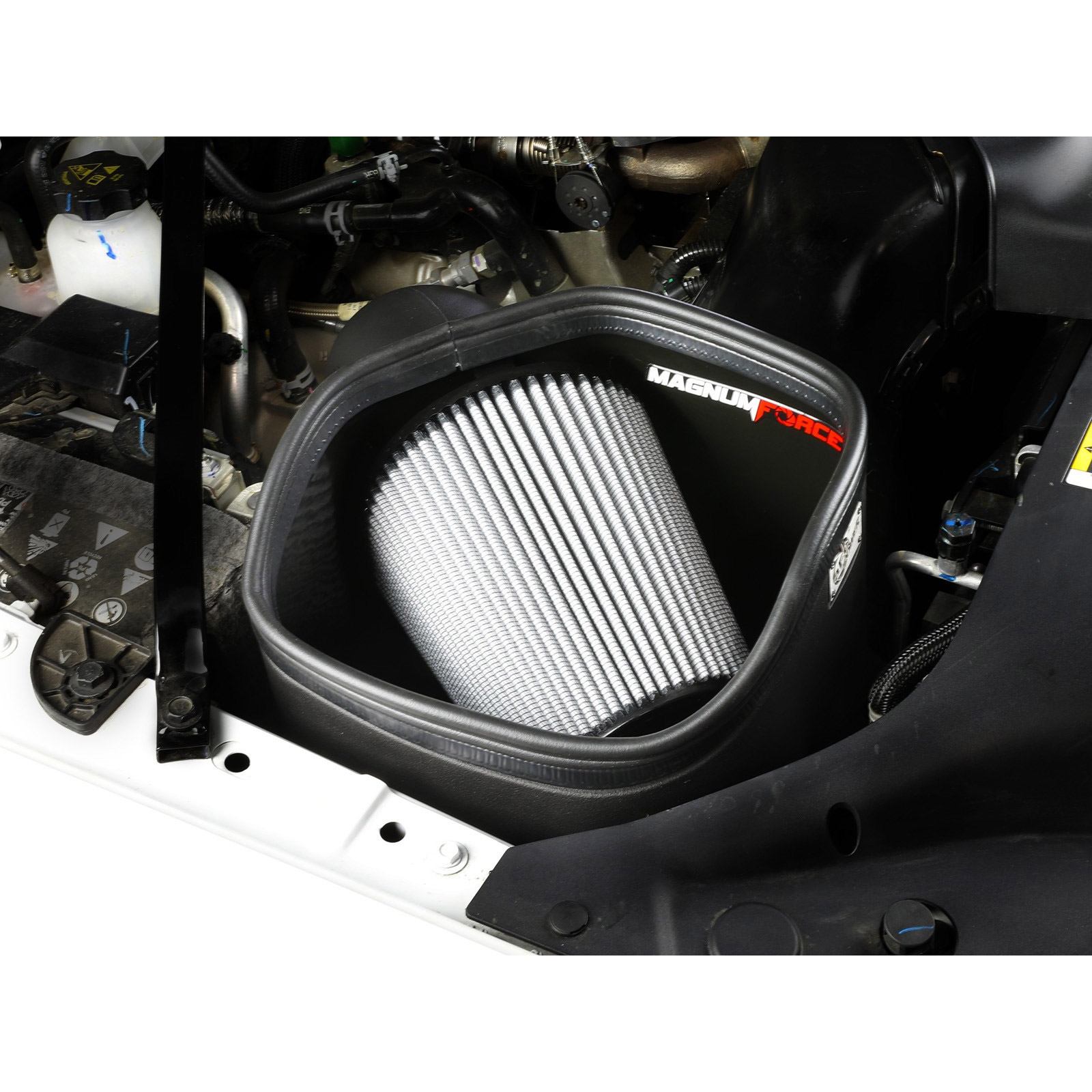

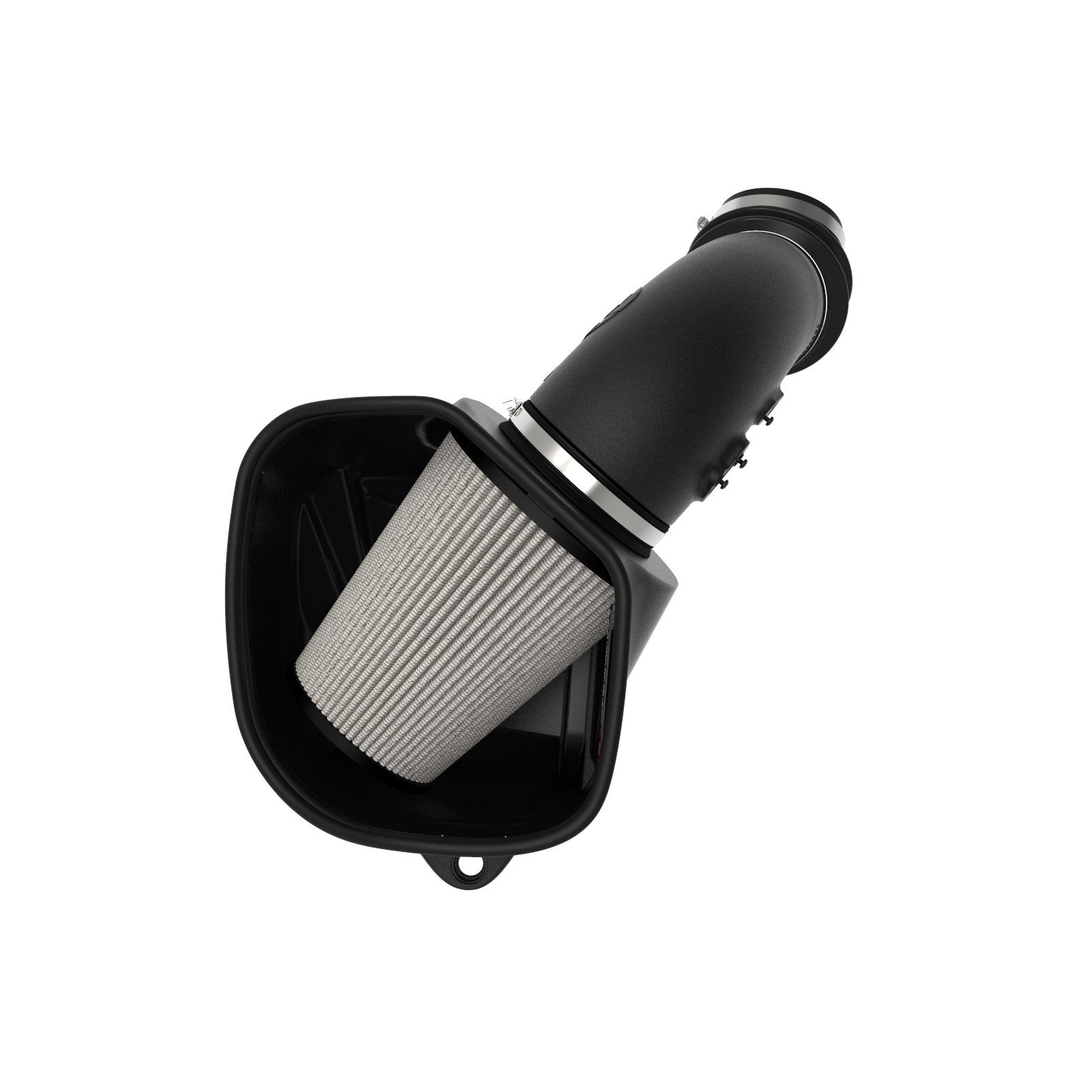

The included massive air filter is surrounded by an open-element XLPE (cross-linked polyethylene) polymer housing that minimizes warm engine air for maximum performance. Its open design allows for easy viewing of the air filter and delivers an aggressive Air Intake sound. It utilizes the vehicle’s OE air inlet with no additional hardware.

Dyno-Tuned Intake Tube:
This system features a high quality, computer-designed, dyno-tuned intake tube to achieve maximum power gains while maintaining a perfect fit. Its XLPE material is heat soak resistant and extremely durable. A custom, high-temperature silicone bellows coupling mates the tube directly to the vehicle’s turbo.

Hassle-Free Installation:

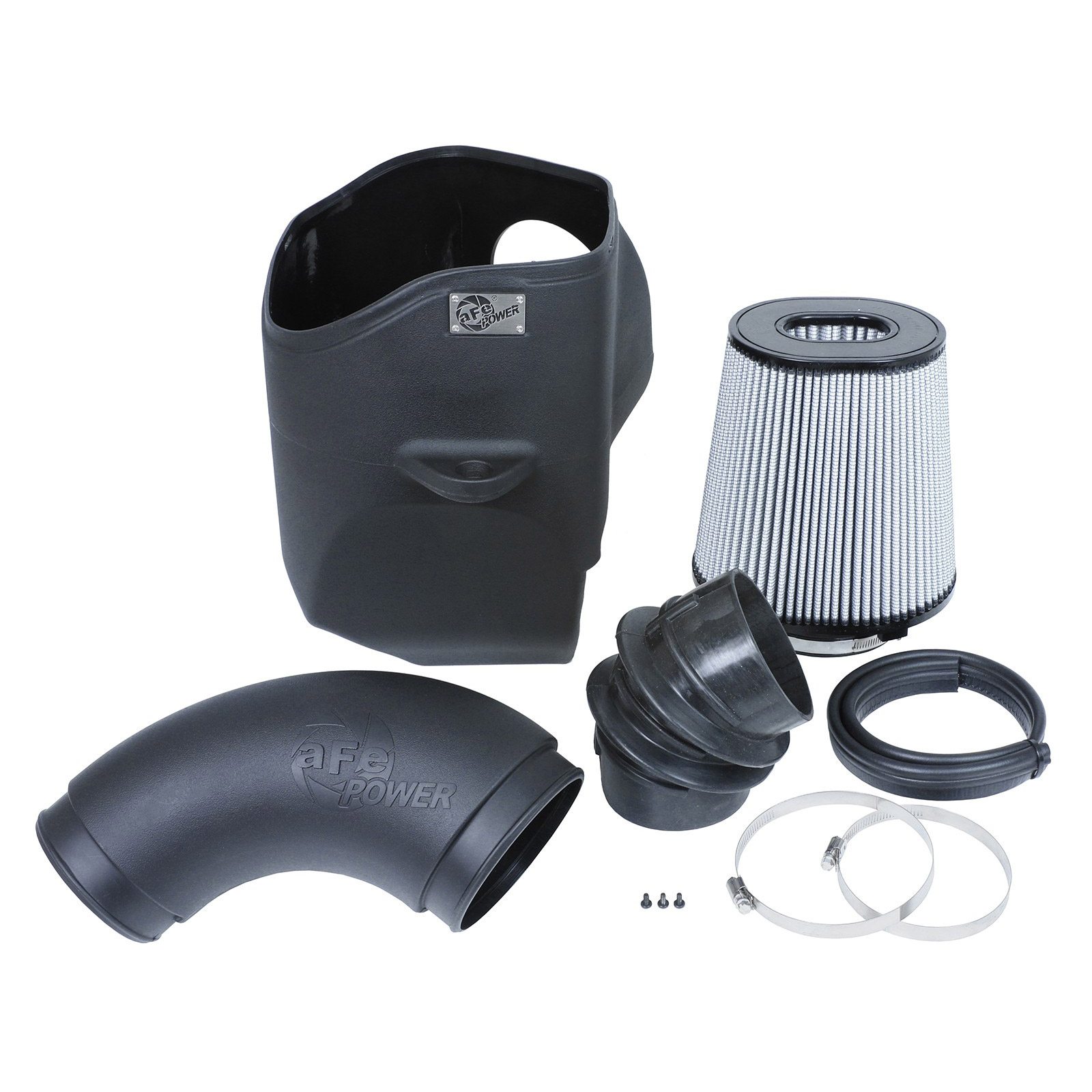

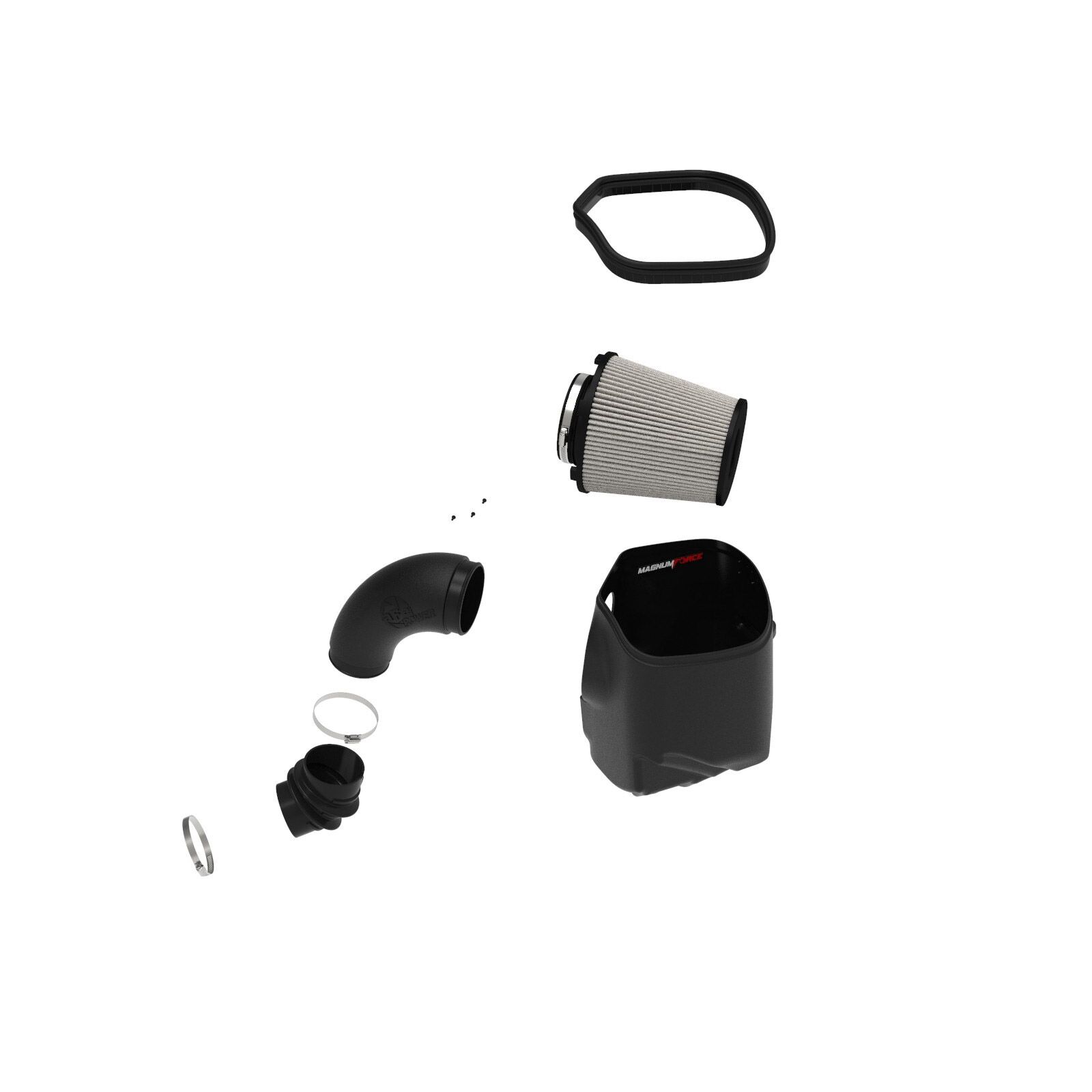

This is a direct fit intake system that utilizes factory mounting points and requires no cutting or modifications. All necessary clamps, couplings, and hardware are included. Its revolutionary design, featuring our patent pending filter-to-housing interface, uses half the number of parts of a traditional cold air intake system.

Emissions Disclaimer:
This product is not currently CARB exempt and is not available for purchase in California or for use on any vehicle registered with the California Department of Motor Vehicles.

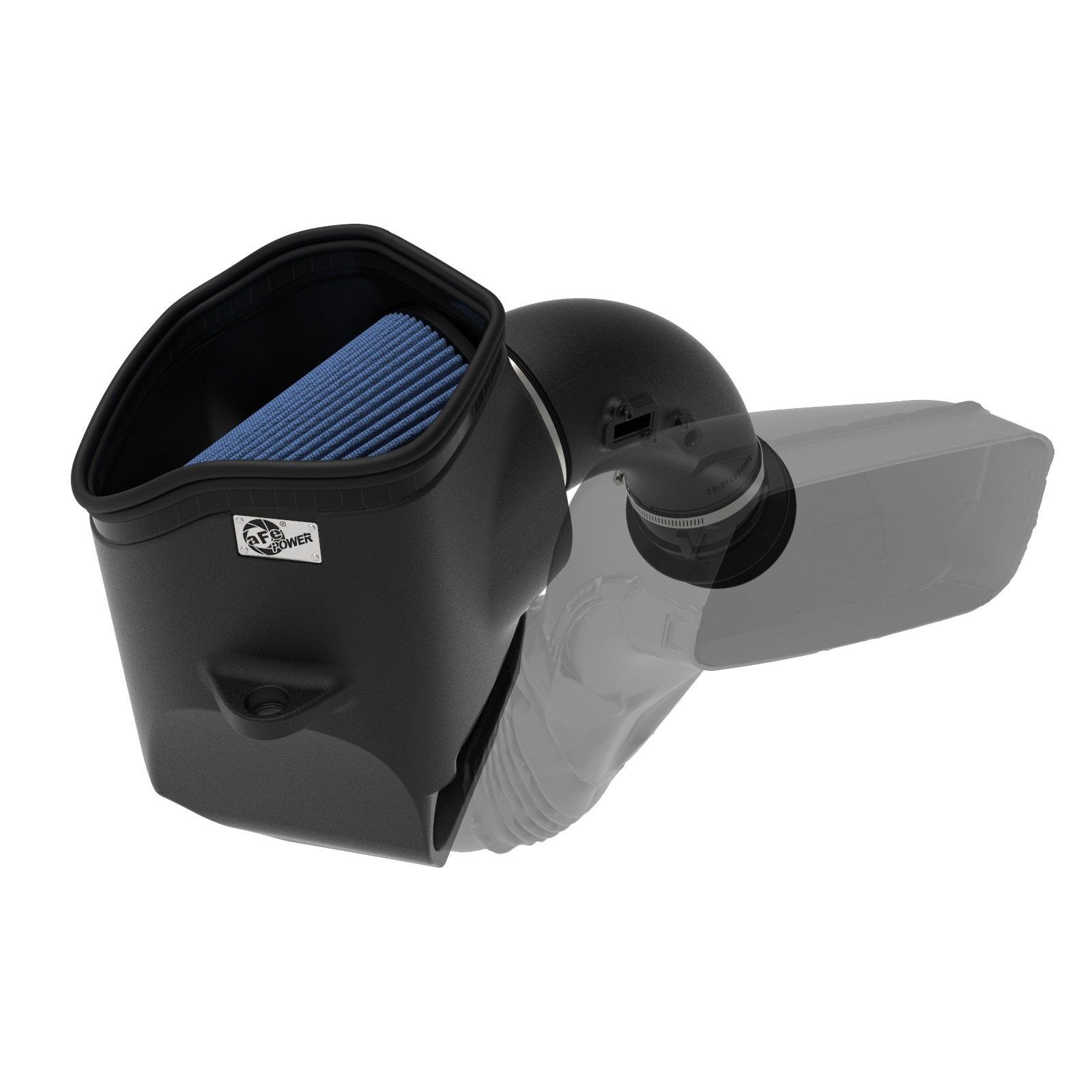

Model: Pro 5R Filter 54-13046R

Features

  • Dyno-Proven Gains up to +12 HP and +29 Lbs. x Ft. TQ
  • Outflows Factory Intake by 37%
  • Measured Flow: 710 CFM @ 7″ H20
  • Open-Element Design Showcases the Air Filter and Delivers an Aggressive Air Intake Sound
  • Incorporates Factory Air Scoop with No Hardware
  • Washable and Reusable Pro 5R Air Filter for Maximum Performance
  • Flexible Bellows Coupling Mates Directly to Turbo and Absorbs Engine Movement
  • Innovative Filter-to-Housing Interface for Easy Installation (Roughly 30 Minutes)

Large Five Layer Performance Air Filter:
This 9″ tall 360-degree radial flow air filter features a 5″ flange and our pre-oiled Pro 5R media with five layers of progressively finer cotton gauze media for maximum performance. It provides your engine with the largest amount of high-flowing air and delivers the highest power gains in most cases. This media is perfect for street use. Its inverted top makes for more filter surface area, resulting in longer service intervals.

One-Piece Housing:
The included massive air filter is surrounded by an open-element XLPE (cross-linked polyethylene) polymer housing that minimizes warm engine air for maximum performance. Its open design allows for easy viewing of the air filter and delivers an aggressive Air Intake sound. It utilizes the vehicle’s OE air inlet with no additional hardware.

Dyno-Tuned Intake Tube:
This system features a high quality, computer-designed, dyno-tuned intake tube to achieve maximum power gains while maintaining a perfect fit. Its XLPE material is heat soak resistant and extremely durable. A custom, high-temperature silicone bellows coupling mates the tube directly to the vehicle’s turbo.

Hassle-Free Installation:
This is a direct fit intake system that utilizes factory mounting points and requires no cutting or modifications. All necessary clamps, couplings, and hardware are included. Its revolutionary design, featuring our patent pending filter-to-housing interface, uses half the number of parts of a traditional cold air intake system.

Emissions Disclaimer:
This product is not currently CARB exempt and is not available for purchase in California or for use on any vehicle registered with the California Department of Motor Vehicles.

Specification

Model

Pro 5R Filter, Pro DRY S Filter

Brand

Compatibility

, , , , , , ,

Air Filter Flange Inside Diameter

5

Air Intake Tube Color

Black

Air Intake Tube Material

Cross-linked Polyethylene

Coupler Color

Black

Coupler Included

Yes

Filter Included

Yes

Housing Color

Black

Housing Material

Cross-linked Polyethylene

Modifications Required

No

Mounting Hardware Included

Yes

System Type

Sealed Intake

Tuning Required

No

Coupler Material

Silicone

WARNING CA Proposition 65

Yes

WARNING Message

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

UPC

AFE-54-13046D : 00802959545775 | AFE-54-13046R : 00802959545782

MPN

54-13046D | 54-13046R

Oiled or Dry Media

Dry, Oiled

Air Filter Color

Blue, Gray
