Description

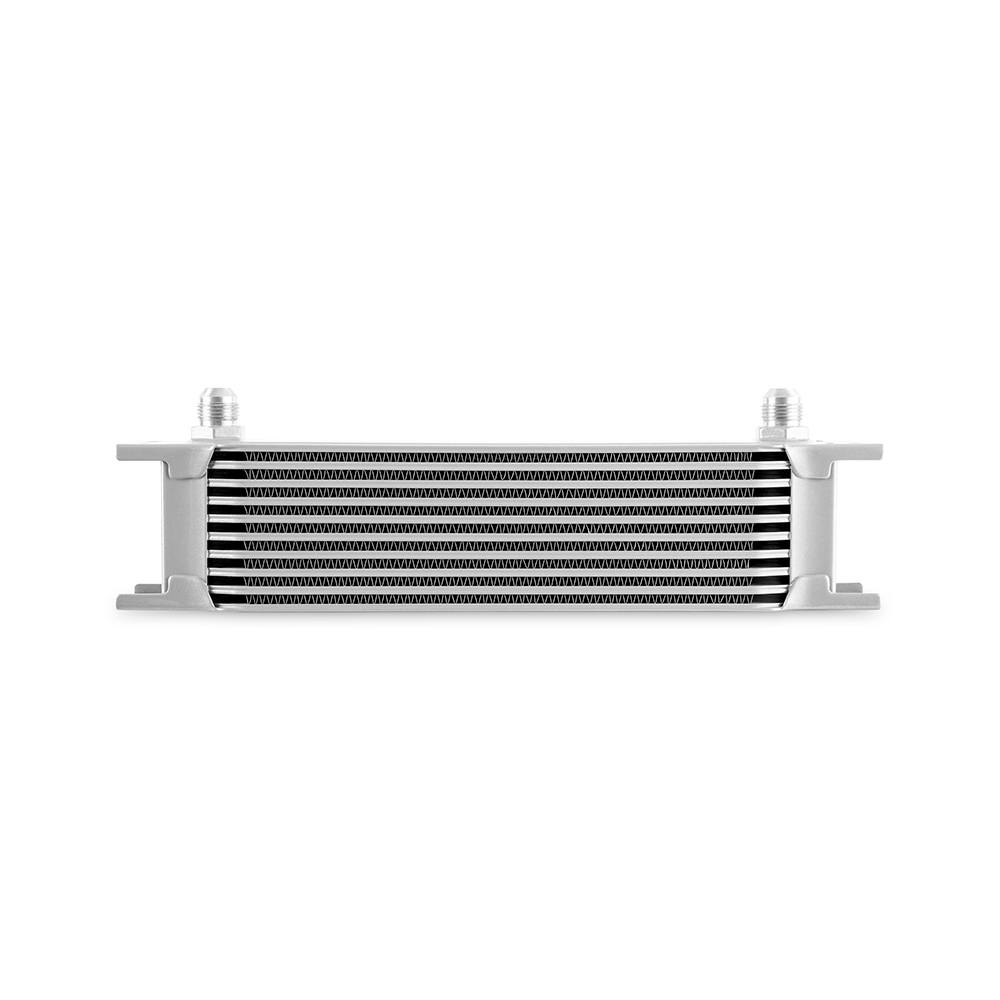

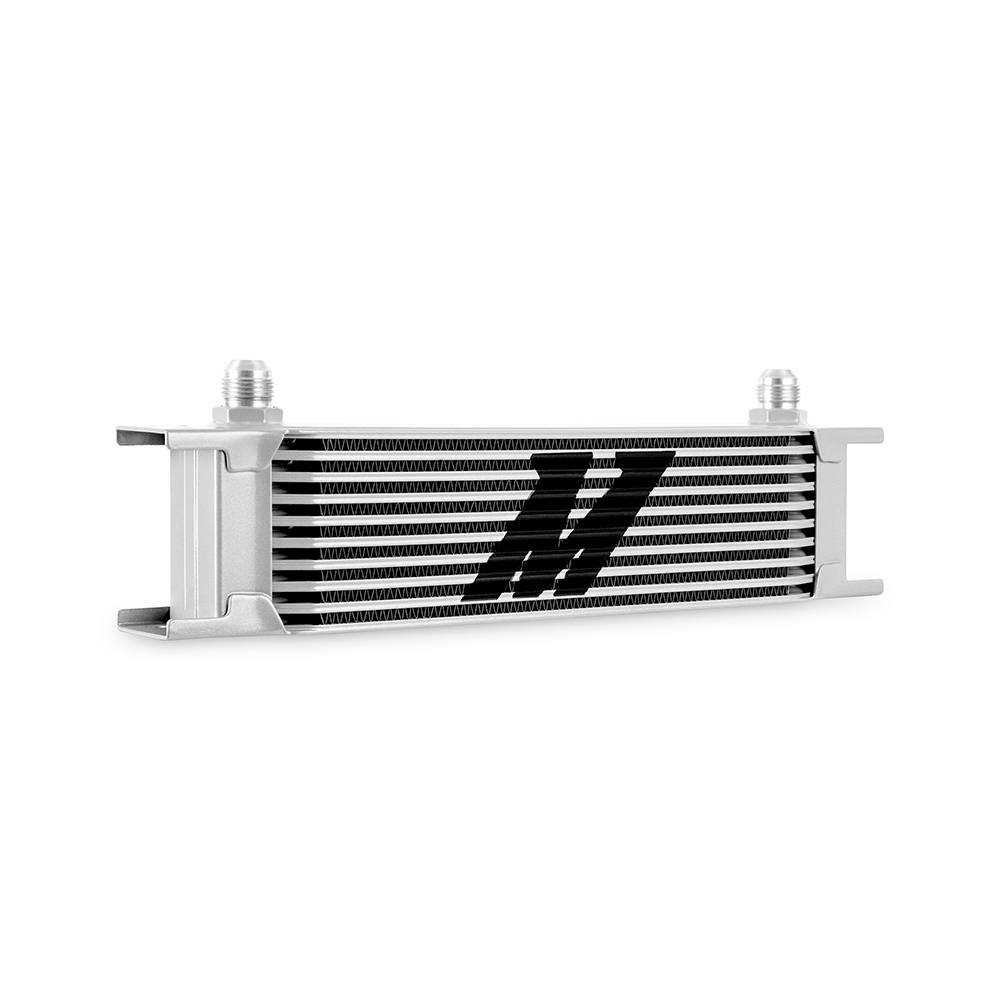

The Mishimoto MMOC-10-8SL is a 10-row stacked plate fluid cooler built around a bar-and-plate core and finished in silver, with brazed -8AN male AN-flare fittings on both the inlet and outlet for a leak-free connection. This performance-grade cooler is applicable for use with engine oil, transmission fluid, gear oil, or power steering fluid, giving you a single universal cooler that can be dedicated to whichever fluid system on your vehicle needs extra thermal support.
Mishimoto engineered this 10-row stacked plate cooler to withstand high pressure while delivering substantial heat transfer with minimal pressure loss, helping preserve fluid viscosity so lubrication stays consistent during high-stress driving conditions. Functioning as an oil cooler, transmission cooler, or power steering cooler, it works to extend the life of high-wear components by keeping fluids within their proper operating temperature range. Whether you are assembling a mishimoto oil cooler kit or upgrading the cooling capacity on a heavily modified build, the eight universal mounting holes make it easy to position in a variety of locations, and the -8AN connections are designed to pair with Mishimoto -8AN braided hoses and -8AN aluminum fittings to complete the ancillary cooler installation.
Vehicle Applications
This Mishimoto fluid cooler is a universal cooler rather than a vehicle-specific application, making it suited to engine oil, transmission fluid, gear oil, or power steering fluid systems across a wide range of vehicles and builds. Because it relies on eight universal mounting holes rather than vehicle-specific brackets, it can be installed as a mishimoto transmission cooler, mishimoto trans cooler, or supplemental oil cooler on vehicles that have been extensively modified or are used in high-stress driving conditions where factory cooling capacity may fall short.
Features
- Robust 10-row stacked plate core design withstands high pressure, reduces fluid temperatures, and exhibits minimal pressure loss
- Preserves fluid viscosity for proper lubrication during all driving conditions
- Extends life of high-wear components
- 8 universal mounting holes provide abundant installation options
- Brazed -8AN fittings provide long-term leak-free durability
- Applicable with engine oil, transmission fluid, gear oil, and power steering fluid
- Available in black, silver, or gold powder-coated finish
- Backed by the Mishimoto Lifetime Warranty

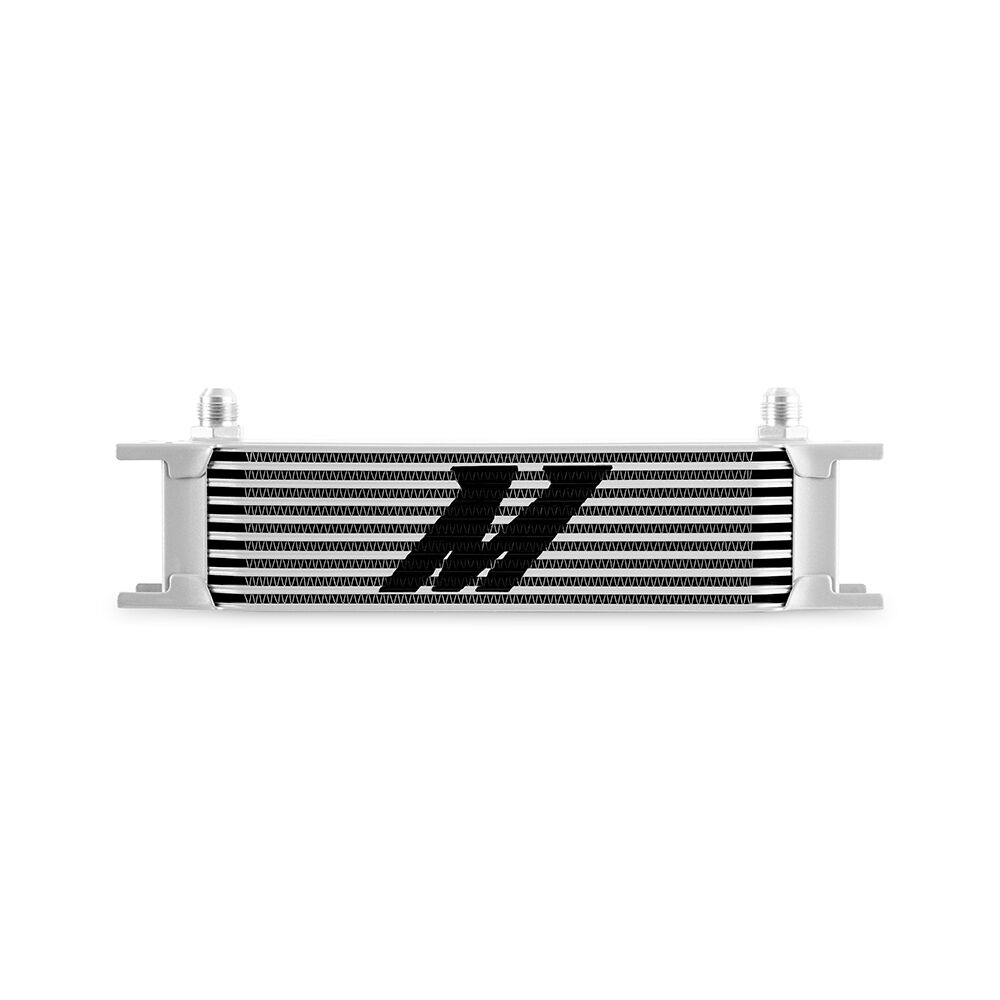

- Only one side of the cooler features the Mishimoto logo
Specifications
- Part Number: MMOC-10-8SL
- Core Row Quantity: 10
- Core Type: Bar-and-Plate
- Grade Type: Performance
- Color / Core Color: Silver
- Inlet Fitting Type: AN Flare, -8AN, Male
- Outlet Fitting Type: AN Flare, -8AN, Male
- Inlet Outside Diameter: 0.75 in
- Outlet Outside Diameter: 0.75 in
- Base Height: 3.8 in
- Overall Width: 1.97 in
- Overall Height: 3.8 in
- Overall Length: 12.95 in
- Includes: Mishimoto 10-Row Oil Cooler, Mishimoto Lifetime Warranty
Frequently Asked Questions
What fluids can the Mishimoto MMOC-10-8SL cooler be used with?
This Mishimoto 10-row fluid cooler is applicable for use with engine oil, transmission fluid, gear oil, and power steering fluid.
How many mounting holes does this cooler have?
It includes 8 universal mounting holes, providing an abundance of options for mounting on your vehicle.
What type of fittings does the MMOC-10-8SL use?
It uses brazed -8AN male AN-flare inlet and outlet fittings, each with a 0.75 in outside diameter, for leak-free operation.
What color is this cooler?
This unit is finished in silver, with a silver core.
What are the overall dimensions of the cooler?
The overall width is 1.97 in, overall height is 3.8 in, and overall length is 12.95 in, with a base height of 3.8 in.
Does this cooler come with a warranty?
Yes, it includes the Mishimoto Lifetime Warranty.
