Mishimoto 17-Row Bar-and-Plate Heavy-Duty Fluid Cooler

Description

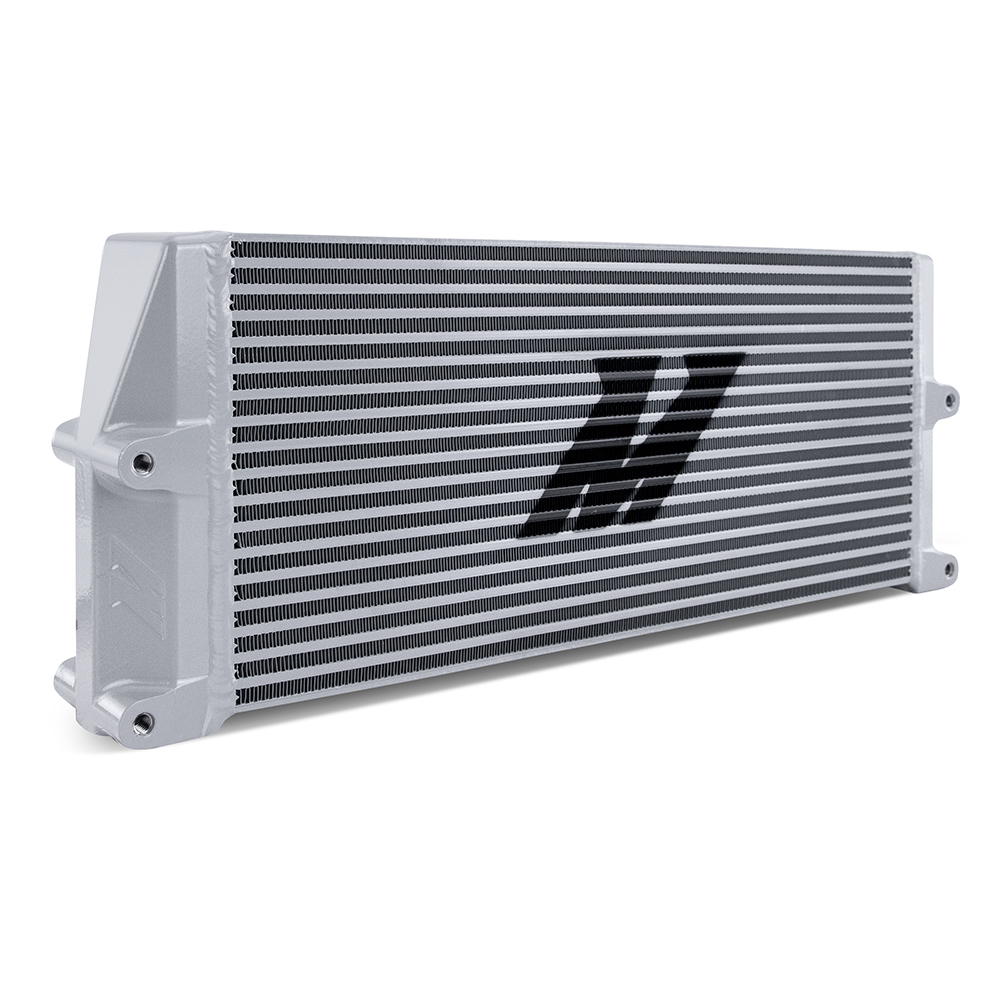

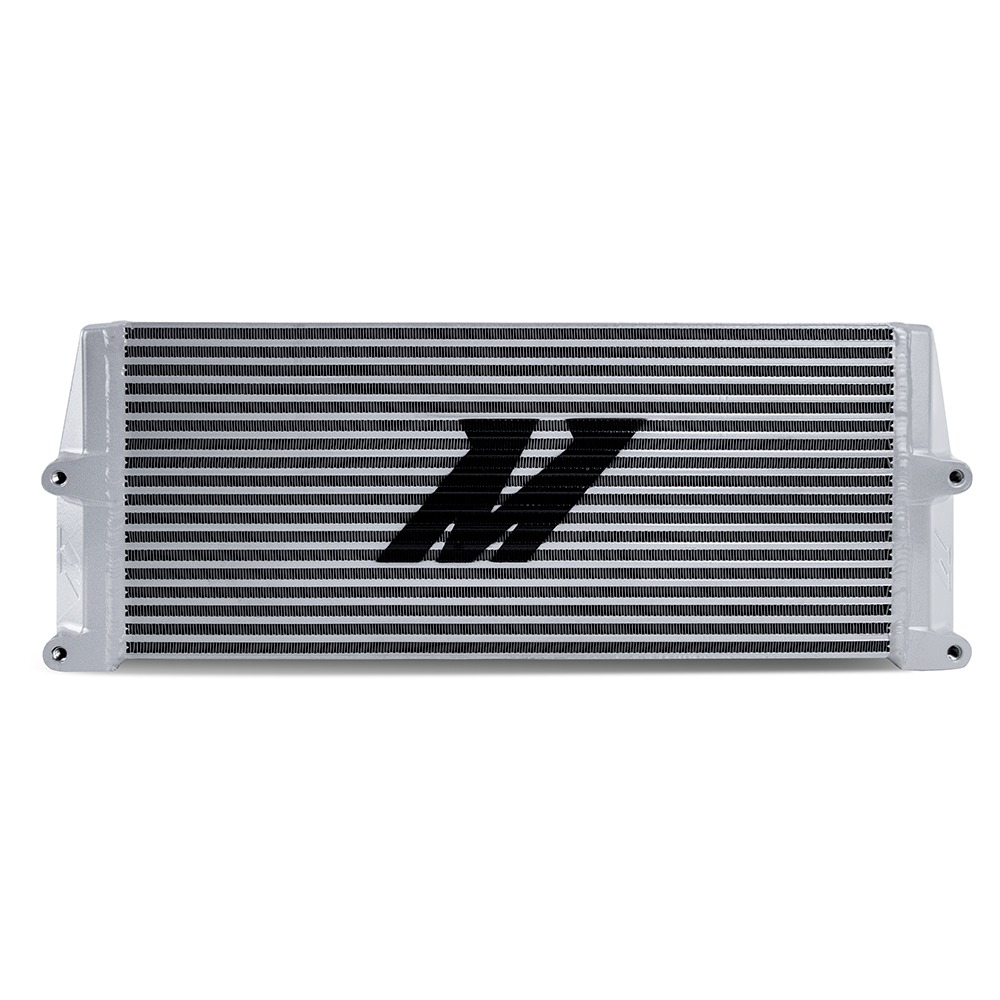

The Mishimoto MMOC-SSO-17SL is a heavy-duty, 17-row bar-and-plate fluid cooler engineered for street, track, or trail builds that demand serious thermal control. Measuring a 17.4-inch-wide, 7.79-inch-tall, 2.55-inch-thick core with a 1.95-quart fluid capacity, this Mishimoto cooler is built to manage oil, coolant, or transmission fluid temperatures in high-performance applications where stock coolers fall short.

As part of the Mishimoto Cooling lineup, this mishimoto oil cooler doubles as a mishimoto transmission cooler and mishimoto trans cooler depending on how it’s plumbed into your system. Turbulated fins inside the bar-and-plate core keep fluid circulating evenly across the full surface area, while large -16AN ports allow ample flow even under demanding conditions. Because it’s a mishimoto universal transmission fluid cooler rather than a vehicle-specific unit, it can be adapted into oil, coolant, or transmission cooling circuits on custom builds, race cars, or daily-driven performance vehicles that need extra capacity beyond the factory setup. Enthusiasts searching for a mishimoto cooler that isn’t locked to one platform will find this heavy-duty 17-row unit flexible enough to integrate into a wide range of custom cooling setups.

Vehicle Applications

This Mishimoto fluid cooler is a universal-application product rather than a vehicle-specific fitment. Mishimoto does not list a specific application, engine code, or chassis code for this cooler, which means it’s intended to be mounted using its eight M8 flush mounting points and installed with custom bracketry to suit whatever oil, coolant, or transmission cooling circuit you’re building, whether that’s a dedicated track car, a trail rig, or a daily driver in need of added cooling capacity.

Features

• Universal fit for any high-performance application
• 17-row core measuring 17.4 in. long x 7.79 in. tall x 2.55 in. thick for ample cooling capacity
• 1.95-quart fluid capacity for increased cooling potential
• Bar-and-plate core construction for extreme durability and cooling
• Turbulated fins circulate fluid throughout the core for even, efficient cooling

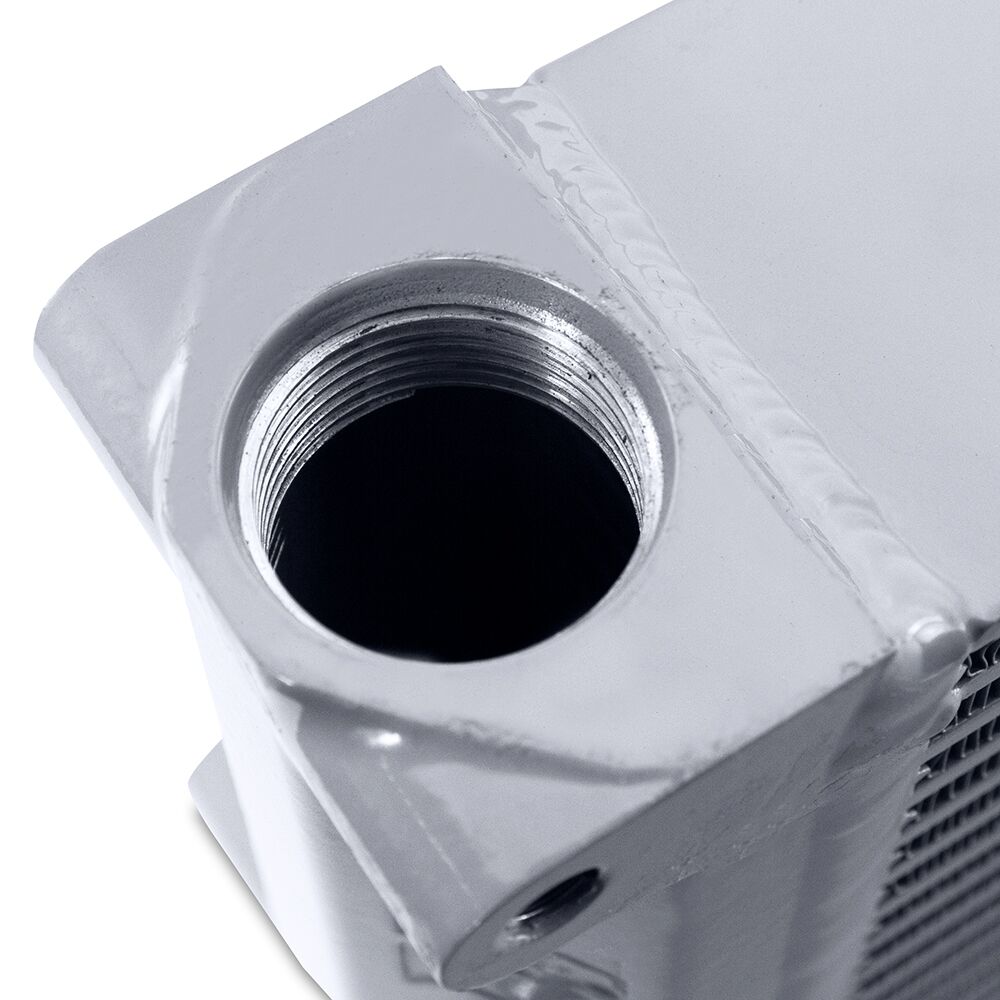

• Large -16AN male-threaded inlet and outlet fittings, each with a 1.313-inch outside diameter, for high flow and installation versatility
• Cast-aluminum end tanks precision TIG welded to the core for maximum durability
• Eight M8 flush mounting holes with steel threaded inserts secure the cooler to any custom bracket
• Same-side inlet and outlet for easy line routing
• Available in silver or black powder coat finish

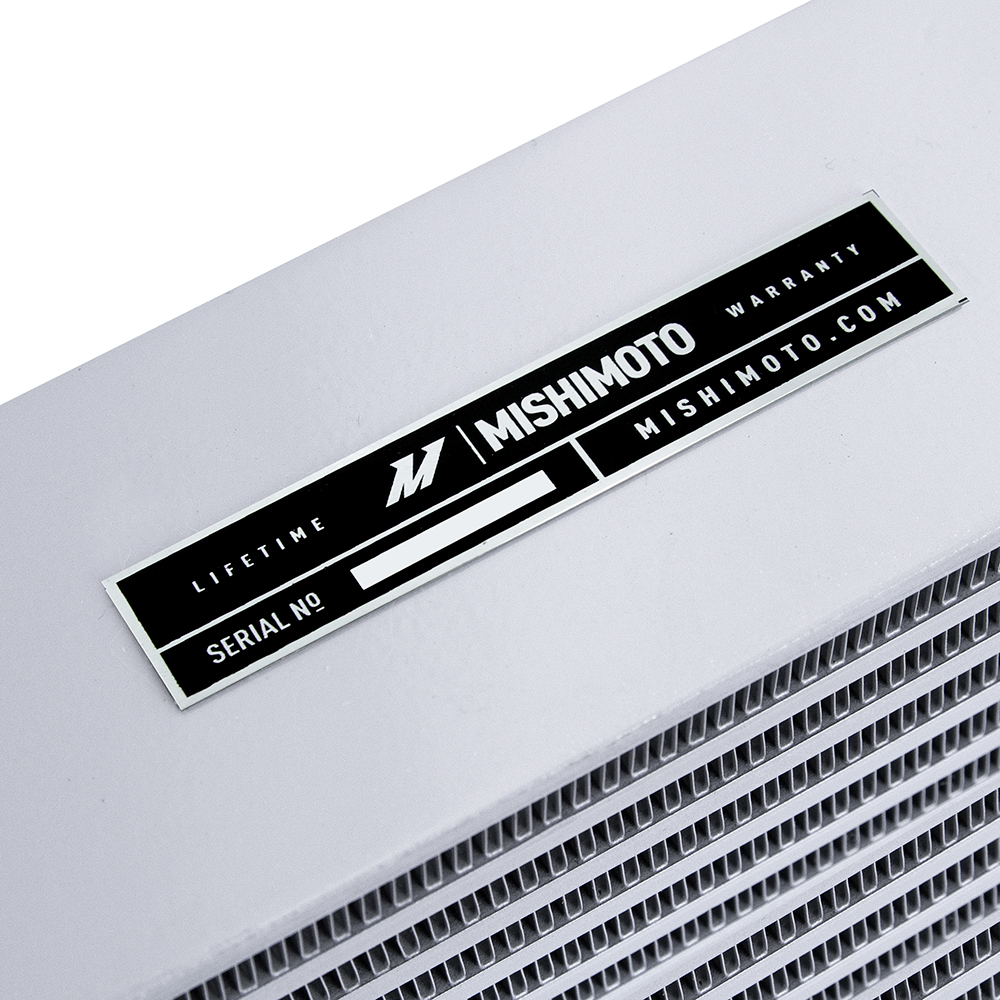

• Backed by the Mishimoto Lifetime Warranty

Specifications

• Brand: Mishimoto
• Part Number: MMOC-SSO-17SL
• Core Type: Bar-and-Plate
• Core Row Quantity: 17
• Grade Type: Performance
• Core Height: 7.79 in.
• Core Width: 17.4 in.
• Core Thickness: 2.55 in.
• Overall Length: 20.78 in.
• Overall Width: 2.55 in.
• Overall Height: 7.79 in.
• Fluid Capacity: 1.95 qt.
• Inlet Fitting Type: AN Flare, Male, 1.313 in. OD
• Outlet Fitting Type: AN Flare, Male, 1.313 in. OD
• Available Colors: Silver or Black powder coat
• Includes: Mishimoto Heavy-Duty Bar-and-Plate Fluid Cooler, Mishimoto Lifetime Warranty
