Mishimoto 17-Row Heavy-Duty Bar-and-Plate Fluid Cooler – Black

Description

The Mishimoto MMOC-SSO-17BK is a 17-row heavy-duty bar-and-plate fluid cooler finished in black, built to keep oil, coolant, or transmission fluid cool through street, track, or trail abuse. With a 17-inch-long, 7.5-inch-tall, 2.5-inch-thick core and a 1.95-quart fluid capacity, this Mishimoto cooler is engineered for high-performance applications that demand serious thermal management.

As a universal Mishimoto oil cooler and transmission cooler in one, this unit uses turbulated fins inside the bar-and-plate core to circulate fluid evenly and make the most of the entire core surface. Large -16AN ports supply ample flow for demanding engines, while the cast-aluminum end tanks are precision TIG welded to the core for a fluid cooler capable of handling the stresses of racing or daily driving. Whether you need a dedicated oil cooler, a universal transmission fluid cooler, or a stand-in power steering cooler for a custom build, this Mishimoto cooler is designed to be adapted to the job.

Vehicle Applications

This Mishimoto heavy-duty fluid cooler is a universal-fit cooler rather than a vehicle-specific application, making it suited to any high-performance build that needs an add-on oil, coolant, or transmission cooler. Eight M8 flush mounting points with steel threaded inserts allow it to be secured to any custom bracket, and the same-side inlet and outlet simplify line routing regardless of the vehicle or chassis it’s installed on.

Features

• Universal fit for any high-performance application
• 17-row core measuring 17-in long x 7.5-in tall x 2.5-in thick
• 1.95-quart fluid capacity for increased cooling potential
• Bar-and-plate core construction for extreme durability and cooling
• Turbulated fins circulate fluid throughout the core for even, efficient cooling

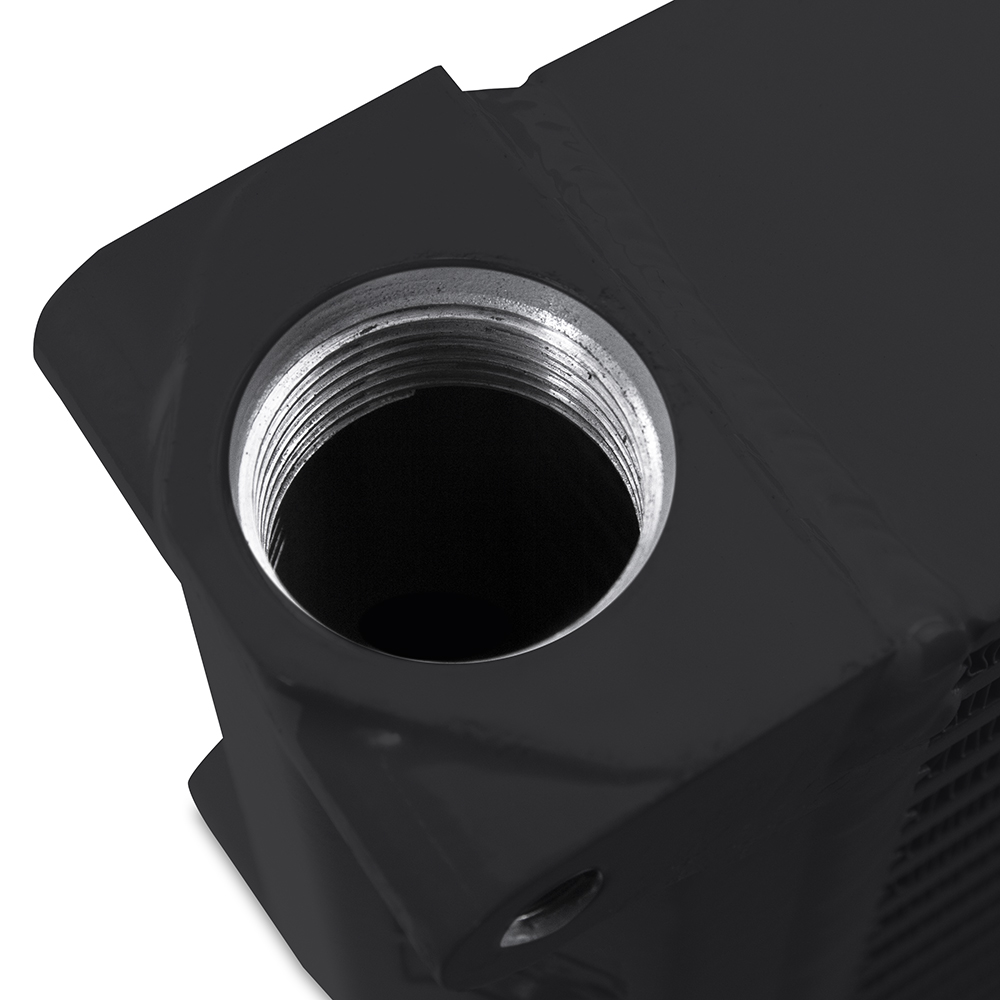

• Large -16AN ports for high flow and versatility
• Cast-aluminum end tanks precision TIG welded to the core for maximum durability
• Eight M8 flush mounting holes with steel threaded inserts secure the cooler to any custom bracket
• Same-side inlet and outlet for easy line routing
• Available in durable black or sleek silver powder coat (this listing is the black finish)

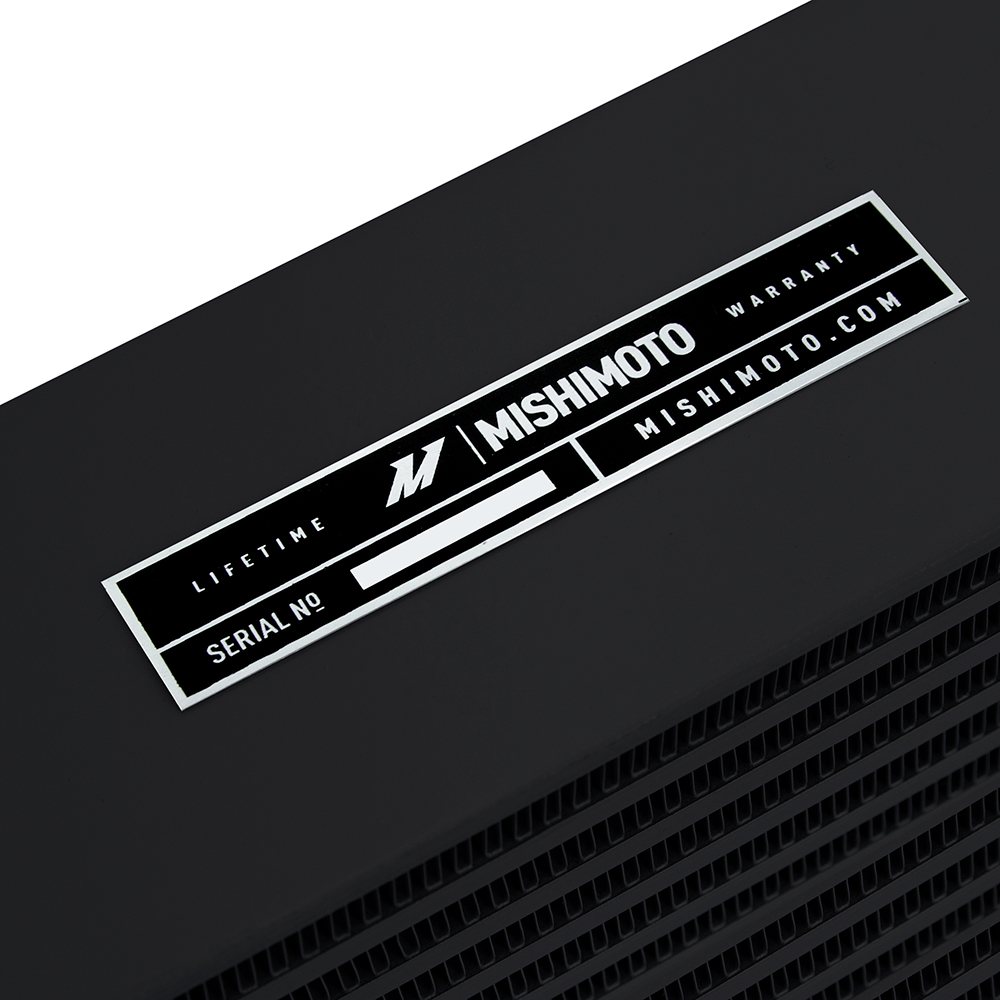

• Backed by the Mishimoto Lifetime Warranty

Specifications

• Brand: Mishimoto
• Part Number: MMOC-SSO-17BK
• Product Type: Cooling
• Core Type: Bar-and-Plate
• Core Row Quantity: 17
• Core Color: Black
• Core Height: 7.79 in
• Core Thickness: 2.55 in
• Core Width: 17.4 in
• Overall Length: 20.78 in
• Overall Width: 2.55 in
• Overall Height: 7.79 in
• Base Height: 7.79 in
• Fluid Capacity: 1.95 quarts
• Inlet/Outlet Fitting Type: AN Flare, Male
• Inlet/Outlet Outside Diameter: 1.313 in
• Grade Type: Performance
• Includes: Mishimoto Heavy-Duty Bar-and-Plate Fluid Cooler, Mishimoto Lifetime Warranty
