Description

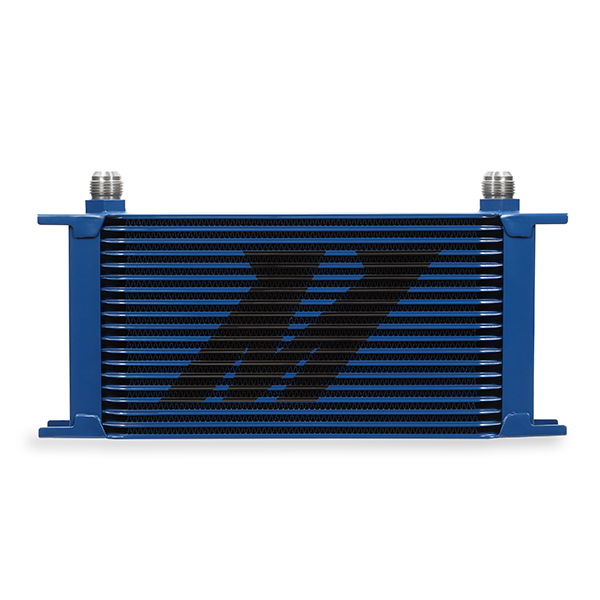

The Mishimoto 19 Row Oil Cooler Kit (MMOC-19BL) is a blue, anodized bar-and-plate oil cooler built with a 19-row core and -10AN male AN flare fittings on both the inlet and outlet. This is a genuine Mishimoto performance oil cooler kit engineered specifically for keeping engine oil temperatures under control when engines are pushed hard.
Enthusiasts who run their high-performance cars at the limit know that high oil temperatures can damage or even seize an engine. This Mishimoto oil cooler kit works to extend the life of essential high-wear engine components such as piston rings, skirts, and cam bearings by keeping them sufficiently lubricated with cooler oil, while the bar-and-plate core construction is designed to deliver oil temperature reduction with minimal pressure loss. Backed by the Mishimoto Lifetime Warranty, this Cooling category oil cooler kit is finished in a blue anodized coating and, like the silver, gold, red, and white options, carries the Mishimoto logo on one side; the stealth black version is the only finish without the logo.
Vehicle Applications
The Mishimoto 19 Row Oil Cooler Kit is offered as a universal-application performance oil cooler kit rather than a model-specific unit, making it suited to enthusiast installations where a standalone oil cooler with -10AN male flare connections is needed. No specific make, model, engine code, or chassis code is designated for this kit, so it is intended for builders integrating it into their own cooling setup.
Features
- 19-row stacked-plate (bar-and-plate) core for oil temperature reduction
- Extends the life of high-wear engine components, including piston rings, skirts, and cam bearings
- Minimal pressure loss design
- Blue anodized finish with Mishimoto logo on one side
- -10AN male AN flare inlet and outlet fittings
- Also available in Sleek Silver, Stealth Black, Bold Gold, Red, and White
- Backed by the Mishimoto Lifetime Warranty
- Includes: Mishimoto Oil Cooler and Mishimoto Lifetime Warranty
Specifications
- Color / Core Color: Blue
- Finish: Anodized
- Core Type: Bar-and-Plate
- Core Row Quantity: 19
- Grade Type: Performance
- Core Height: 5.43 in
- Core Width: 11 in
- Core Thickness: 1.97 in
- Overall Width: 1.97 in
- Overall Height: 12.95 in
- Overall Length: 6.44 in
- Base Height: 12.95 in
- Inlet Fitting Type: AN Flare (-10AN), Male
- Outlet Fitting Type: AN Flare (-10AN), Male
- Inlet Outside Diameter: 0.625 in
- Outlet Outside Diameter: 0.625 in
Frequently Asked Questions
How many rows does the Mishimoto MMOC-19BL oil cooler core have?
It features a 19-row bar-and-plate core, designed for oil temperature reduction.
What type of fittings does this Mishimoto oil cooler use?
It uses -10AN male AN flare fittings on both the inlet and outlet, each with a 0.625 in outside diameter.
Does the Mishimoto 19 Row Oil Cooler Kit include a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty, and the kit includes the Mishimoto Oil Cooler along with that warranty.
What colors is this oil cooler available in?
This oil cooler is available in Sleek Silver, Stealth Black, Bold Gold, Red, White, or Blue; this listing is the Blue version.
Does the blue oil cooler have the Mishimoto logo on it?
Yes, per Mishimoto, only one side of the silver, gold, red, white, and blue oil coolers has the Mishimoto logo; the stealth black option has no logo.
What are the overall dimensions of this oil cooler?
The kit has an overall width of 1.97 in, an overall height of 12.95 in, and an overall length of 6.44 in, with a core measuring 5.43 in tall, 11 in wide, and 1.97 in thick.
