Description
The Mishimoto 19-Row Oil Cooler Kit, part number MMOC-MUS-79, is a direct-fit cooling solution engineered specifically for the Fox Body Ford Mustang. Built around a large 19-row bar-and-plate oil cooler that mounts in the front bumper for maximum airflow, this kit uses an application-specific mounting bracket, preassembled stainless steel braided lines, and an oil sandwich plate to deliver a clean, factory-style installation.
High-output naturally aspirated, turbocharged, and supercharged Fox Body Mustangs generate significant underhood heat, which speeds up oil breakdown and accelerates engine wear. The Mishimoto oil cooler kit is designed to counter that heat load, offering a dramatic temperature drop with minimal pressure loss so your oil stays in its effective operating range longer. The kit also adds more than .5 qt to your total oil capacity and can be installed in less than two hours, with Mishimoto noting the swap can go in under an hour. Buyers can choose between a Stealth Black or Sleek Silver cooler finish, and a thermostatic sandwich plate option is available for owners who want additional oil temperature control. As with every Mishimoto cooling product, this oil cooler kit is backed by the Mishimoto Lifetime Warranty.
Vehicle Applications
This Mishimoto oil cooler kit is a direct fit for the Fox Body chassis Ford Mustang across the following trims and model years: Mustang Base (1979–1984), Mustang Cobra (1981), Mustang Ghia (1979–1982), Mustang GL and GLX (1982–1983), Mustang GT (1982–1993), Mustang GT-350 20th Anniversary (1984), Mustang L (1982–1984), Mustang LX (1984–1993), Mustang SVO (1984–1986), Mustang SVT Cobra and SVT Cobra R (1993), and Mustang Turbo GT (1983). It is engineered around the Fox chassis and the 302 ci / 4.9L engine code.
Features

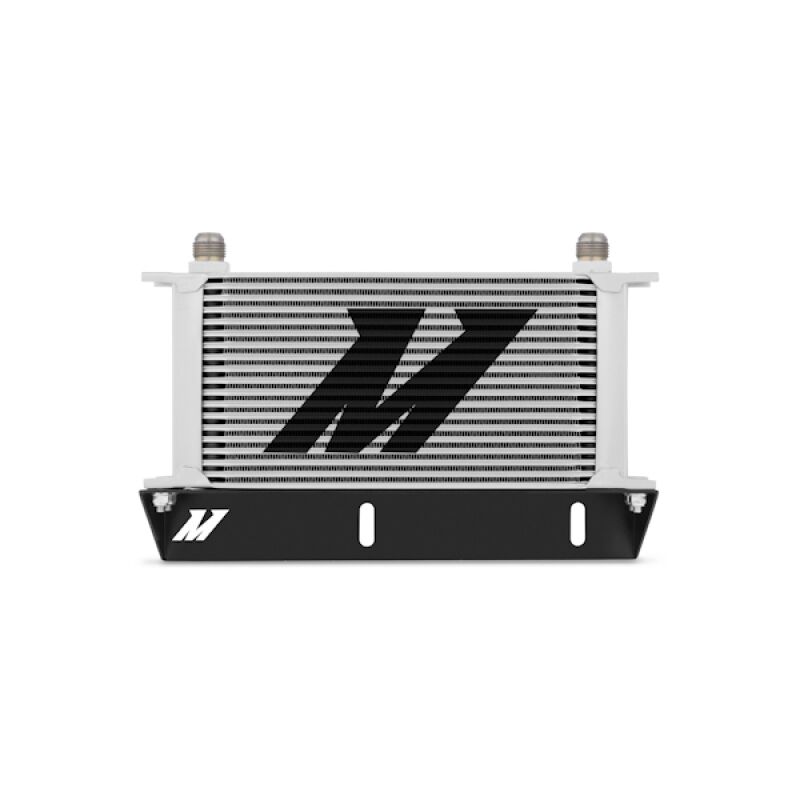

- Large 19-row bar-and-plate oil cooler core with a silver finish and anodized coating

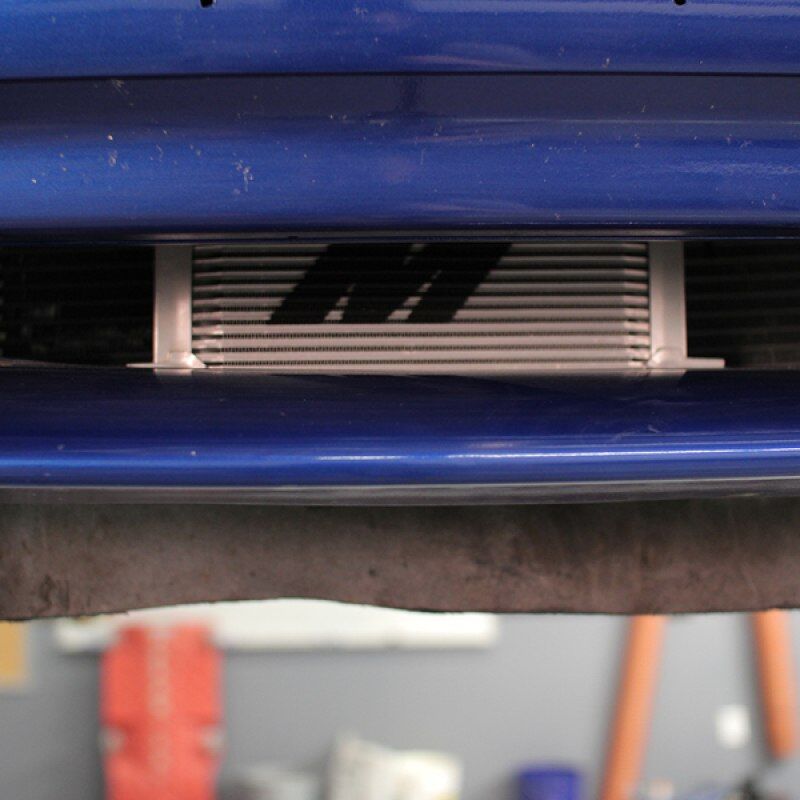

- Mounts in the front bumper for maximum airflow and cooling efficiency
- Delivers a dramatic oil temperature drop with minimal pressure loss

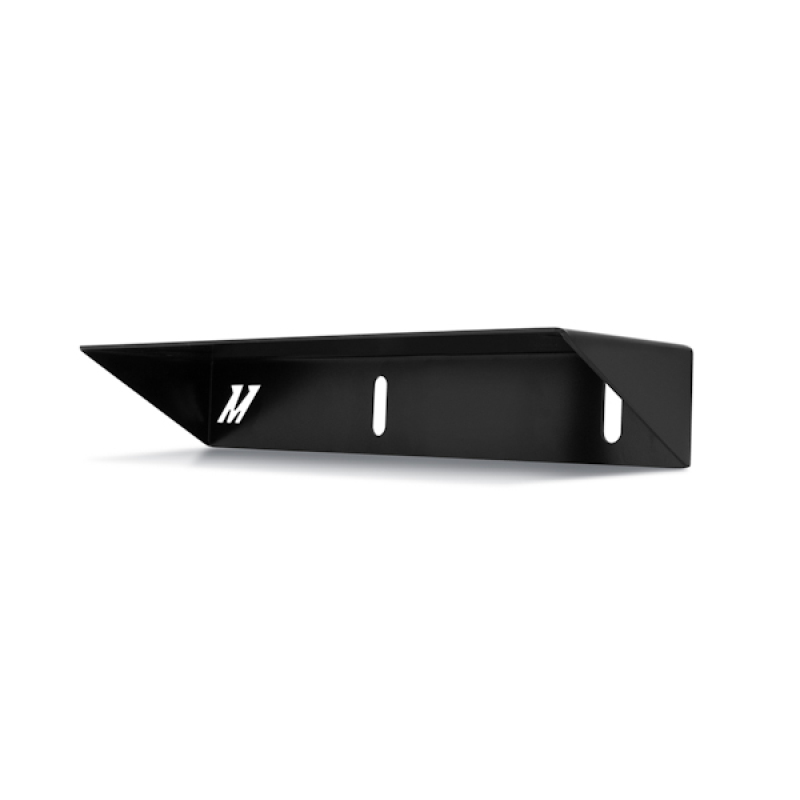

- Application-specific mounting bracket engineered for the Fox Body Mustang
- Preassembled stainless steel braided hoses with -10AN 45-degree and 90-degree fittings

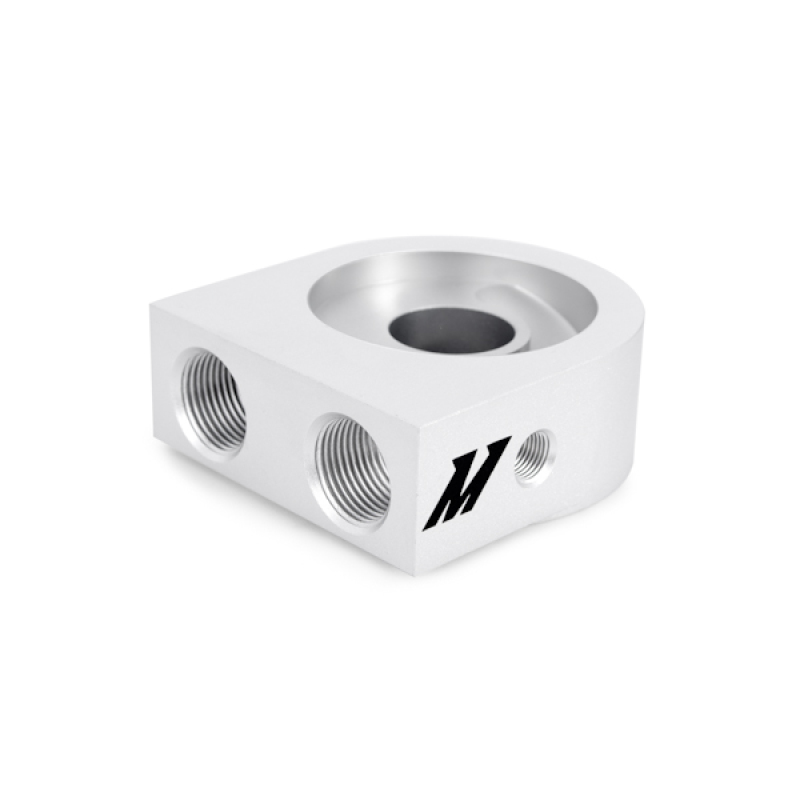

- Includes an M20 thermostatic sandwich plate and a 3/4 x 16 stainless steel sandwich plate adapter

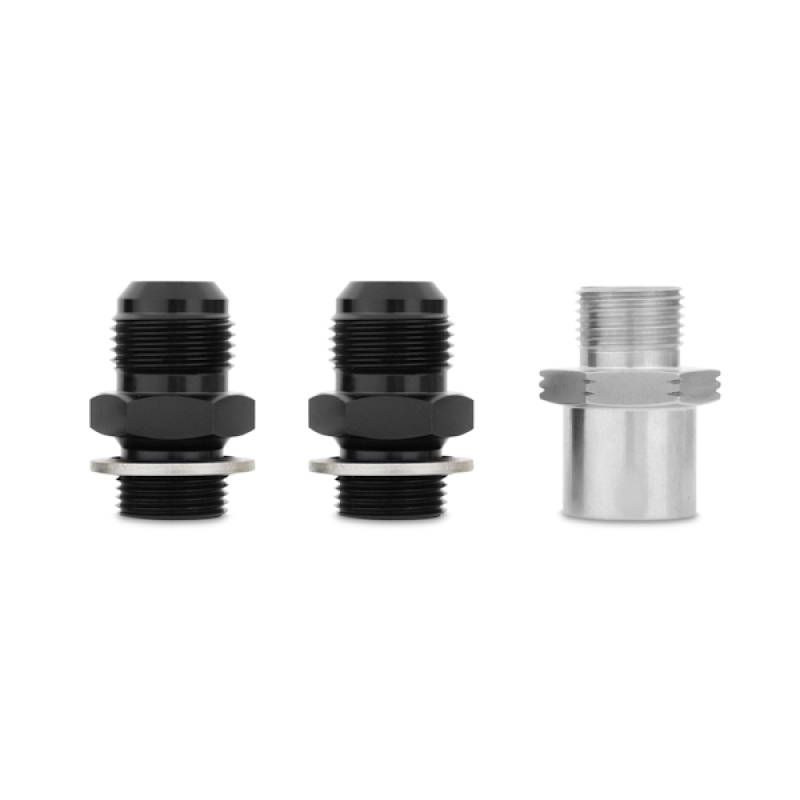

- M20 x -10AN straight fittings and a full mounting hardware set included
- Available with a thermostatic sandwich plate for additional oil temperature control
- Choice of Stealth Black or Sleek Silver cooler finish
- Installs in less than two hours, with installation possible in under an hour
- Adds more than .5 qt to total oil capacity
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMOC-MUS-79
- Product Type: Cooling
- Core Type: Bar-and-Plate
- Core Color / Finish: Silver, Anodized
- Core Row Quantity: 19-row core
- Core Height: 5.43 in
- Core Thickness: 1.97 in
- Core Width: 11 in
- Overall Width: 12 in
- Overall Height: 10 in
- Overall Length: 11 in
- Grade Type: Performance
- Inlet/Outlet Fitting Type: AN Flare, Male
- Engine Codes: 302 ci / 4.9L
- Chassis Codes: Fox
- Recommended torque for straight fittings and banjo bolts: 15-25 lb-ft; do not exceed 35 ft-lb maximum
Frequently Asked Questions
What vehicles does the Mishimoto MMOC-MUS-79 oil cooler kit fit?
This kit is a direct fit for the Fox Body chassis Ford Mustang, covering the Base (1979–1984), Cobra (1981), Ghia (1979–1982), GL and GLX (1982–1983), GT (1982–1993), GT-350 20th Anniversary (1984), L (1982–1984), LX (1984–1993), SVO (1984–1986), SVT Cobra and SVT Cobra R (1993), and Turbo GT (1983).
How many rows does the Mishimoto oil cooler core have?
The kit features a large 19-row oil cooler core.
What is included in the Mishimoto Fox Body Mustang oil cooler kit?

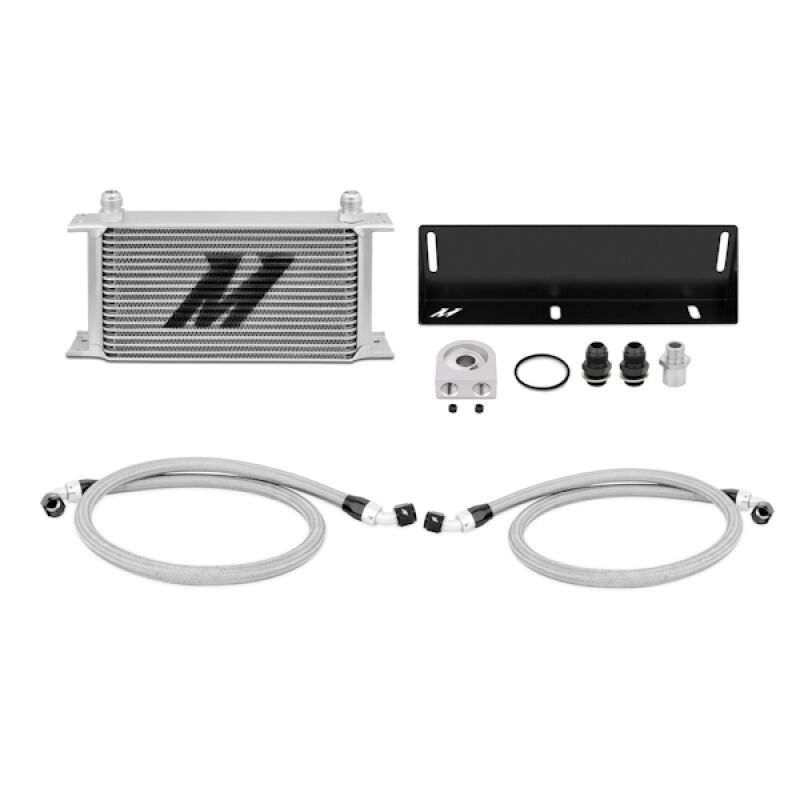

The kit includes an application-specific mounting bracket, the 19-row oil cooler, stainless steel braided hoses with -10AN 45-degree and 90-degree fittings, an M20 thermostatic sandwich plate, a 3/4 x 16 stainless steel sandwich plate adapter, M20 x -10AN straight fittings, a mounting hardware set, and the Mishimoto Lifetime Warranty.
Does this oil cooler kit offer a thermostatic option?
Yes, the kit is available with a thermostatic sandwich plate for additional oil temperature control.
What cooler finish options are available?
The cooler is offered in Stealth Black or Sleek Silver finish options.
How long does installation take?
Mishimoto states the kit can be installed in less than two hours, with installation possible in under an hour.
