Description
The Mishimoto MMINT-F35T-15KPSL is a direct-fit intercooler and pipe kit engineered specifically for the 2015-2016 Ford F-150 3.5L EcoBoost, pairing a Sleek Silver bar-and-plate intercooler with a full polished aluminum piping kit. This forced induction upgrade tosses out the factory plastic piping in favor of free-flowing aluminum tubing and Mishimoto Silicone Boots with DuraCore technology, delivering a 24-percent increase in total internal pipe volume alongside a 77-percent gain in intercooler core volume over the stock unit.
Built for owners looking to get more out of their forced induction system, this kit addresses two of the biggest bottlenecks in the stock EcoBoost induction path: restrictive OEM piping and an undersized intercooler core. The larger core, with 163-percent more external fin surface area than stock, combined with the added pipe volume, allows the twin-turbo 3.5L to breathe more freely, and Mishimoto reports a 10F (5.5C) reduction in intake air temperature with this setup. Constant-tension worm gear clamps keep every silicone boot locked down as the pipes and boots expand and contract under boost, while the cold-side pipe includes a CNC quick-disconnect fitting with a pre-installed O-ring and spring clip for straightforward installation. An additional port on the cold-side pipe can even be drilled and tapped for methanol injection or sensors, giving owners room to expand their forced induction turbo setup down the road. The kit is constructed from all-aluminum, TIG-welded materials and installs alongside the stock intercooler fans without modification.
Vehicle Applications
This Mishimoto intercooler and pipe kit is a specific fit for the 2015-2016 Ford F-150 built with the 3.5L V6 EcoBoost engine, identified by chassis code P552. Coverage includes the 2015-2016 F-150 King Ranch, Lariat, Platinum, XL, and XLT trims, as well as the 2016 F-150 Limited and SSV.
Features
- Direct fit for 2015-2016 Ford F-150 3.5L EcoBoost
- 24-percent total internal volume increase over the stock intercooler pipes
- Cold-side pipe includes CNC quick-disconnect with pre-installed O-ring and spring clip for quick and easy installation
- Additional port on cold-side pipe can be drilled and tapped for methanol injection or sensors
- Includes Mishimoto Silicone Boots with DuraCore technology for superior resistance to heat, pressure, fuel, and oil
- Constant-tension worm gear clamps keep a strong grip as pipes and boots expand and contract
- 10F (5.5C) reduction in intake air temperature
- 77-percent increase in internal intercooler core volume
- 163-percent increase in external fin surface area
- All-aluminum, TIG-welded construction
- Fits with stock intercooler fans without modification
- Intercooler available in Sleek Silver or Stealth Black; pipes available in polished or wrinkle black powder-coated finish
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core Material: Aluminum
- Core Height: 9.4 in
- Core Thickness: 4.7 in
- Core Length: 19.6 in
- Core Color: Silver
- Core Construction: Bar-and-Plate
- Intercooler Type: Air-to-Air
- End Tank Material: Aluminum
- End Tank Construction: Cast
- Inlet Diameter: 2.5 in
- Hot Side Pipe Inside Diameter: 2.5 in
- Pipe Material: Aluminum
- Pipe Color: Polished
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Maximum Boost Pressure: 50 PSI
- Grade Type: Performance
- Fit Type: Specific
- Overall Height: 9.5 in
- Overall Length: 29 in
- Chassis Codes: P552
- Engine Codes: 3.5L V6 EcoBoost
- CARB EO Number: D-759-6
Frequently Asked Questions
What vehicles does the Mishimoto MMINT-F35T-15KPSL fit?
This kit is a specific fit for the 2015-2016 Ford F-150 3.5L V6 EcoBoost, covering the King Ranch, Lariat, Platinum, XL, and XLT trims for 2015-2016, plus the 2016 Limited and SSV trims.
What colors does this particular kit come in?
This version of the kit includes a Sleek Silver intercooler with polished aluminum piping.
How much does this kit increase intercooler capacity?
It increases internal intercooler core volume by 77 percent and external fin surface area by 163 percent over the stock intercooler.
What is the maximum boost pressure rating?
The kit is rated for a maximum boost pressure of 50 PSI.
What is included in the kit?

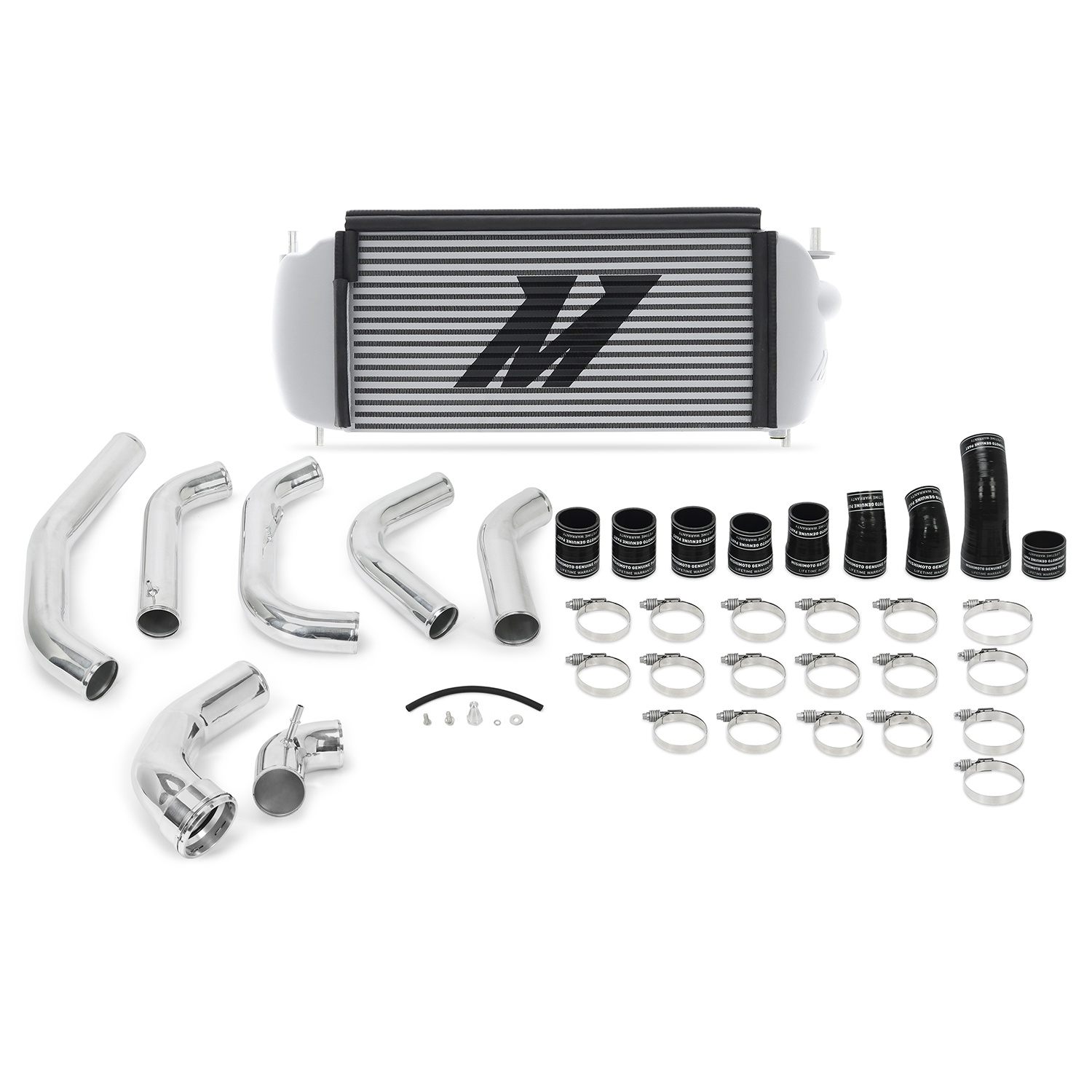

The kit includes one Mishimoto intercooler with assembled rubber trim, one bypass valve bracket, one aluminum cold-side pipe with CNC quick-disconnect flange, one aluminum cold-side pipe with CNC IAT sensor housing, five aluminum hot-side pipes, nine silicone boots with DuraCore technology, eighteen constant-tension worm gear clamps, mounting hardware, bypass valve hardware, and the Mishimoto Lifetime Warranty.
Is this intercooler and pipe kit covered by a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
