Description
The Mishimoto MMINT-F27T-15KPSL is a direct-fit intercooler and pipe kit engineered specifically for the 2015-2017 Ford F-150 2.7L V6 EcoBoost, pairing a bar-and-plate intercooler with cast aluminum end tanks to a full run of aluminum piping and DuraCore silicone boots. This kit swaps the factory’s weak, unattractive plastic piping for durable aluminum piping, increasing total pipe volume by 38 percent over stock while raising intercooler core volume by 77 percent and external fin surface area by 163 percent.
As a forced induction upgrade, this kit is built around the idea that a twin-turbocharged engine can only perform as well as the induction system feeding it. Mishimoto designed this force induction solution with a bar-and-plate core, cast end tanks, and constant-tension worm gear clamps that hold the DuraCore silicone boots tight under pressure, so boost reaches its destination instead of leaking at the seams. For F-150 owners chasing more performance induction from their 2.7L EcoBoost, replacing the undersized factory plastic piping and stock intercooler with this larger-volume forced induction system is a direct way to let the twin turbochargers breathe, and Mishimoto notes the kit is capable of a 10F (5.5C) reduction in intake air temperature.
Vehicle Applications
This Mishimoto intercooler and pipe kit is a direct-fit, specific-application part built for the 2015-2017 Ford F-150 powered by the 2.7L V6 EcoBoost engine (engine code 2.7L V6 EcoBoost, chassis code P552). It is designed to fit the F-150 XL, XLT, and Lariat trims across the 2015 through 2017 model years.
Features
- Direct fit for 2015-2017 Ford F-150 2.7L EcoBoost
- 38-percent increase in total internal pipe volume over the stock plastic piping
- Cold-side pipe includes a CNC quick-disconnect with pre-installed O-ring and spring clip for quick and easy installation
- Mishimoto Silicone Boots with DuraCore technology for superior resistance to heat, pressure, fuel, and oil
- Constant-tension worm gear clamps keep a strong grip as pipes and boots expand and contract
- 77-percent increase in internal intercooler core volume
- 163-percent increase in external fin surface area
- All-aluminum, TIG-welded intercooler construction
- Available with a silver or black intercooler and polished or wrinkle black powder-coated pipes; this listing is the Silver Intercooler, Polished Pipes option
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core Material: Aluminum
- Core Construction: Bar-and-Plate
- Core Height: 9.4 in
- Core Thickness: 4.7 in
- Core Length: 19.6 in
- End Tank Construction: Cast
- End Tank Material: Aluminum
- Intercooler Type: Air-to-Air
- Pipe Material: Aluminum
- Pipe Finish: Powder Coated
- Hot Side Pipe Inside Diameter: 2.5 in
- Inlet Diameter: 2.5 in
- Coupler Material: Silicone
- Coupler Color: Black
- Grade Type: Performance
- Maximum Boost Pressure: 50 PSI
- Overall Height: 9.5 in
- Overall Length: 29 in
- Hose Clamps Included: Yes
- CARB EO Number: D-759-6
Frequently Asked Questions
What vehicles does this Mishimoto intercooler and pipe kit fit?
It is a direct-fit kit for the 2015-2017 Ford F-150 XL, XLT, and Lariat trims equipped with the 2.7L V6 EcoBoost engine.
What color options are available for this kit?
This kit is available with a black or silver intercooler and wrinkle black or polished pipes; this listing is the Silver Intercooler, Polished Pipes option.
How much larger is the Mishimoto intercooler compared to the factory unit?
The Mishimoto intercooler increases internal core volume by 77 percent and external fin surface area by 163 percent over the stock intercooler.
What does the kit include?

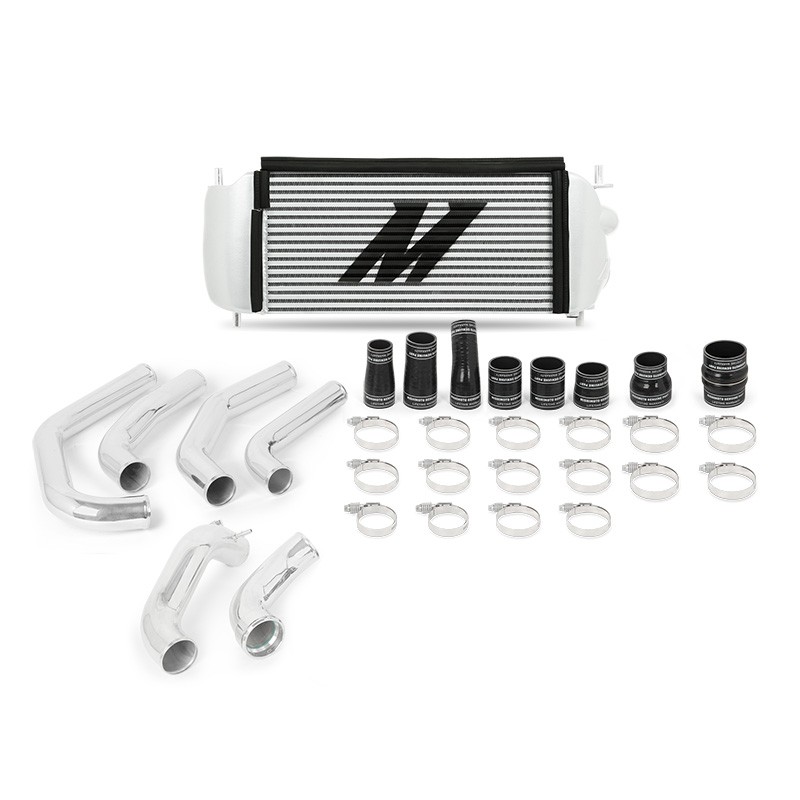

The kit includes one Mishimoto intercooler with assembled rubber trim, an aluminum pipe with CNC quick-disconnect flange, an aluminum pipe with CNC IAT sensor housing, four additional aluminum intercooler pipes, eight silicone boots with DuraCore technology, two high-torque worm gear clamps, fourteen constant-tension T-bolt clamps, mounting hardware, and the Mishimoto Lifetime Warranty.
What is the maximum boost pressure rating for this kit?
The kit is rated for a maximum boost pressure of 50 PSI.
Is this kit covered by a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
