Description
The Mishimoto MMINT-F35T-17KBSL is a direct-fit intercooler and pipe kit engineered specifically for the 2017-2020 Ford F-150 3.5L V6 EcoBoost, including the second-gen Raptor. This particular kit pairs the Sleek Silver intercooler with wrinkle black powder-coated piping, replacing the factory plastic tubing with a full aluminum piping system built around Mishimoto’s DuraCore technology silicone boots.
Stock plastic piping is a known weak point on the twin-turbo 3.5L EcoBoost, and this Mishimoto forced induction system addresses that with free-flowing aluminum pipes and a larger-volume path for boosted air. The included intercooler increases core volume by 77 percent and external fin surface area by 163 percent over the factory unit, while testing shows a 10F (5.5C) reduction in intake air temperature. Cast end tanks and bar-and-plate core construction give the intercooler the strength to stand up to sustained boost, and the all-aluminum, TIG-welded piping is finished with DuraCore silicone boots and constant-tension worm gear clamps to resist blowouts as pipes expand and contract under heat and pressure. Together, this induction system is built to let the two turbochargers on the 3.5L EcoBoost do their job with less restriction.
Vehicle Applications
This kit is a direct fit for the 2017-2020 Ford F-150 3.5L V6 EcoBoost across King Ranch, Lariat, Limited, Platinum, SSV, XL, and XLT trims, as well as the 2017-2020 Ford F-150 Raptor. It also fits the 2018-2020 Ford F-150 Police Responder. No modification to the stock intercooler fans is required for installation.
Features
- Direct fit for 2017-2020 Ford F-150 3.5L EcoBoost and 2017-2020 Raptor
- Increased intercooler pipe volume for improved flow and power potential
- Cold-side pipe includes a CNC quick-disconnect with pre-installed O-ring and spring clip for easier installation
- Additional port on the cold-side pipe can be drilled and tapped for methanol injection or sensors
- Mishimoto Silicone Boots with DuraCore technology resist heat, pressure, fuel, and oil
- Constant-tension worm gear clamps maintain a strong grip as pipes and boots expand and contract
- 10F (5.5C) reduction in intake air temperature
- 77-percent increase in intercooler internal core volume
- 163-percent increase in external fin surface area
- All-aluminum, TIG-welded construction
- Fits with stock intercooler fans without modification
- This option: Sleek Silver intercooler with wrinkle black powder-coated pipes
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Core Material: Aluminum
- Core Construction: Bar-and-Plate
- Intercooler Type: Air-to-Air
- End Tank Material: Aluminum (Cast construction)
- Core Height: 9.4 in
- Core Thickness: 4.7 in
- Core Length: 19.6 in
- Overall Height: 9.5 in
- Overall Length: 29 in
- Inlet Diameter: 2.5 in
- Pipe Material: Aluminum
- Pipe Finish: Powder Coated (wrinkle black on this kit)
- Coupler Material: Silicone (DuraCore technology)
- Hose Clamps Included: Yes
- Maximum Boost Pressure: 50 PSI
- Core Color: Silver
Frequently Asked Questions
Which vehicles does this Mishimoto intercooler and pipe kit fit?
It is a direct fit for the 2017-2020 Ford F-150 3.5L V6 EcoBoost in King Ranch, Lariat, Limited, Platinum, SSV, XL, and XLT trims, the 2017-2020 Ford F-150 Raptor, and the 2018-2020 Ford F-150 Police Responder.
What color is this specific kit (MMINT-F35T-17KBSL)?
This option pairs a Sleek Silver intercooler with wrinkle black powder-coated piping.
What is included in the kit?

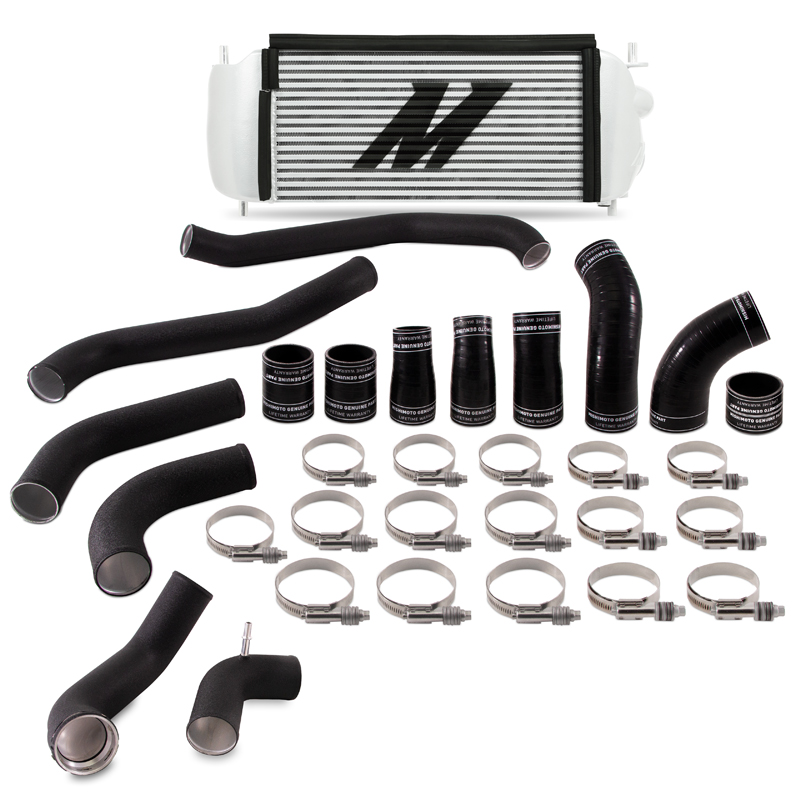

The kit includes one Mishimoto intercooler with assembled rubber trim, a bypass valve bracket, an aluminum cold-side intercooler pipe with CNC quick-disconnect flange, an aluminum cold-side intercooler pipe with CNC IAT sensor housing, four aluminum hot-side intercooler pipes, eight silicone boots with DuraCore technology, sixteen constant-tension worm gear clamps, mounting hardware, bypass valve hardware, and the Mishimoto Lifetime Warranty.
What is the maximum boost pressure this kit is rated for?
The kit has a maximum boost pressure rating of 50 PSI.
Will this intercooler work with my factory intercooler fans?
Yes, this kit fits with stock intercooler fans without modification.
How much does this intercooler improve over the stock unit?
It increases intercooler internal core volume by 77 percent and external fin surface area by 163 percent over stock, with a 10F (5.5C) reduction in intake air temperature.
