Description
The Mishimoto MMINT-F35T-17KPSL is a direct-fit intercooler & pipe kit engineered for the 2017-2020 Ford F-150 3.5L EcoBoost, including the second-generation Raptor, replacing the factory intercooler and weak plastic piping with a full aluminum forced induction upgrade. This kit pairs Mishimoto’s high-capacity intercooler with a complete set of aluminum pipes and DuraCoreâ„¢ silicone boots, giving the twin-turbo 3.5L EcoBoost room to breathe. It’s offered in this listing with a silver intercooler core and polished pipe finish, and the kit is also available with a black core and wrinkle black pipes.
Every Mishimoto forced induction component in this kit is designed to move more air with less restriction. The larger-volume aluminum piping replaces the factory plastic tubing that can act as a bottleneck under boost, while the intercooler itself increases internal core volume by 77 percent and external fin surface area by 163 percent over the stock unit, built with a bar-and-plate core and cast end tanks for strength. DuraCore silicone boots resist heat, pressure, fuel, and oil, and constant-tension worm gear clamps keep a firm seal as the pipes and boots expand and contract under boost. The cold-side pipe includes a CNC quick-disconnect fitting with a pre-installed O-ring and spring clip for simplified installation, plus an additional port that can be drilled and tapped for methanol injection or a sensor. Whether you’re upgrading your induction system, building out a more capable forced induction system, or simply want a specific-fit aluminum piping solution over the factory plastic, this Mishimoto kit is built around the 3.5L EcoBoost rather than a generic universal design.
Vehicle Applications
This Mishimoto intercooler and pipe kit is a specific fit for the 2017-2020 Ford F-150 in King Ranch, Lariat, Limited, Platinum, Raptor, SSV, XL, and XLT trims, all equipped with the 3.5L V6 EcoBoost engine. It also fits the 2018-2020 Ford F-150 Police Responder. Every pipe, boot, and clamp in the kit is designed around the factory 3.5L EcoBoost engine bay rather than a one-size-fits-all layout.
Features
- Direct fit for 2017-2020 Ford F-150 3.5L EcoBoost, including the Raptor
- Aluminum piping replaces factory plastic piping for increased pipe volume and flow
- Cold-side pipe includes a CNC quick-disconnect flange with a pre-installed O-ring and spring clip
- Additional port on the cold-side pipe can be drilled and tapped for methanol injection or sensors
- Mishimoto Silicone Boots with DuraCore technology resist heat, pressure, fuel, and oil
- Constant-tension worm gear clamps maintain a strong grip as pipes and boots expand and contract
- 10°F (5.5°C) reduction in intake air temperature
- 77-percent increase in intercooler internal core volume and 163-percent increase in external fin surface area versus stock
- All-aluminum, TIG-welded construction with a bar-and-plate core and cast end tanks
- Fits with stock intercooler fans without modification
- Intercooler available in Sleek Silver or Stealth Black; pipes available in polished or wrinkle black powder-coated finish
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMINT-F35T-17KPSL
- Product Type: Forced Induction
- Fit Type: Specific
- Grade Type: Performance
- Core Material: Aluminum
- Core Construction: Bar-and-Plate
- End Tank Material: Aluminum
- End Tank Construction: Cast
- Intercooler Type: Air-to-Air
- Core Height: 9.4 in
- Core Length: 19.6 in
- Core Thickness: 4.7 in
- Overall Height: 9.5 in
- Overall Length: 29 in
- Inlet Diameter: 2.5 in
- Hot Side Pipe Inside Diameter: 2.5 in
- Pipe Material: Aluminum
- Pipe Finish: Powder Coated
- Pipe Color: Polished
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Maximum Boost Pressure: 50 PSI
- Core Color: Silver
- Engine Codes: 3.5L V6 EcoBoost

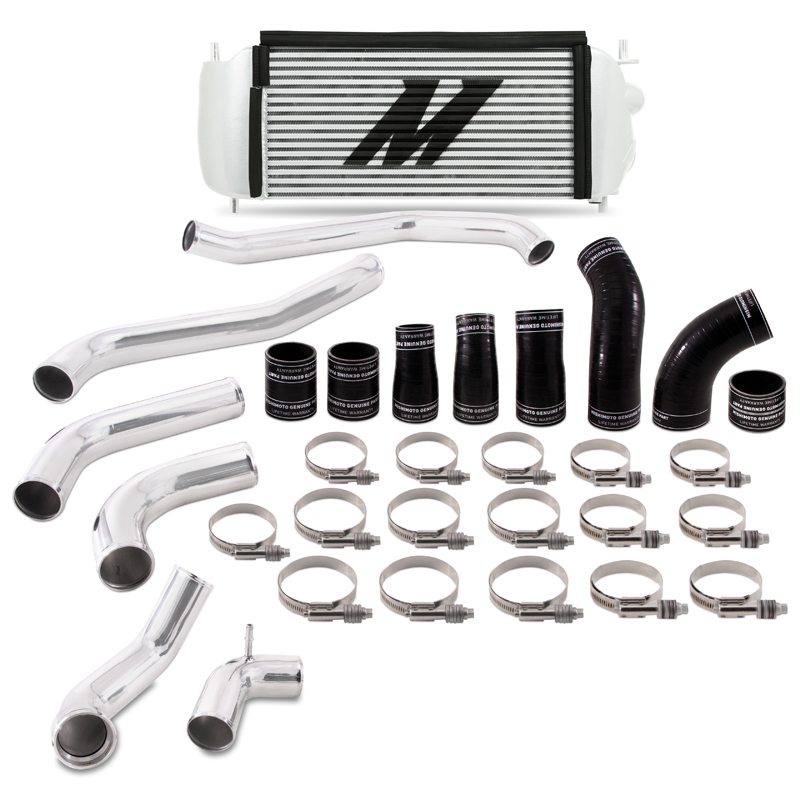

- Kit Includes: (1) Mishimoto Intercooler w/ Assembled Rubber Trim, (1) Bypass Valve Bracket, (1) Aluminum Cold-Side Intercooler Pipe w/ CNC Quick-Disconnect Flange, (1) Aluminum Cold-Side Intercooler Pipe w/ CNC IAT Sensor Housing, (4) Aluminum Hot-Side Intercooler Pipes, (8) Silicone Boots w/ DuraCore Technology, (16) Constant-Tension Worm Gear Clamps, Mounting Hardware, Bypass Valve Hardware, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does the Mishimoto MMINT-F35T-17KPSL intercooler and pipe kit fit?
It’s a specific fit for 2017-2020 Ford F-150 King Ranch, Lariat, Limited, Platinum, Raptor, SSV, XL, and XLT trims with the 3.5L V6 EcoBoost, plus the 2018-2020 Ford F-150 Police Responder.
What is included in the kit?
The kit includes one Mishimoto intercooler with assembled rubber trim, one bypass valve bracket, one aluminum cold-side intercooler pipe with CNC quick-disconnect flange, one aluminum cold-side intercooler pipe with CNC IAT sensor housing, four aluminum hot-side intercooler pipes, eight silicone boots with DuraCore technology, sixteen constant-tension worm gear clamps, mounting hardware, bypass valve hardware, and the Mishimoto Lifetime Warranty.
What color options are available?
This kit is available with a black or silver intercooler and wrinkle black or polished pipes.
How much does this kit reduce intake air temperature?
Mishimoto states a 10°F (5.5°C) reduction in intake air temperature.
What is the maximum boost pressure rating?
The kit is rated for a maximum boost pressure of 50 PSI.
Does this intercooler work with the stock intercooler fans?
Yes, it fits with stock intercooler fans without modification.
