Description

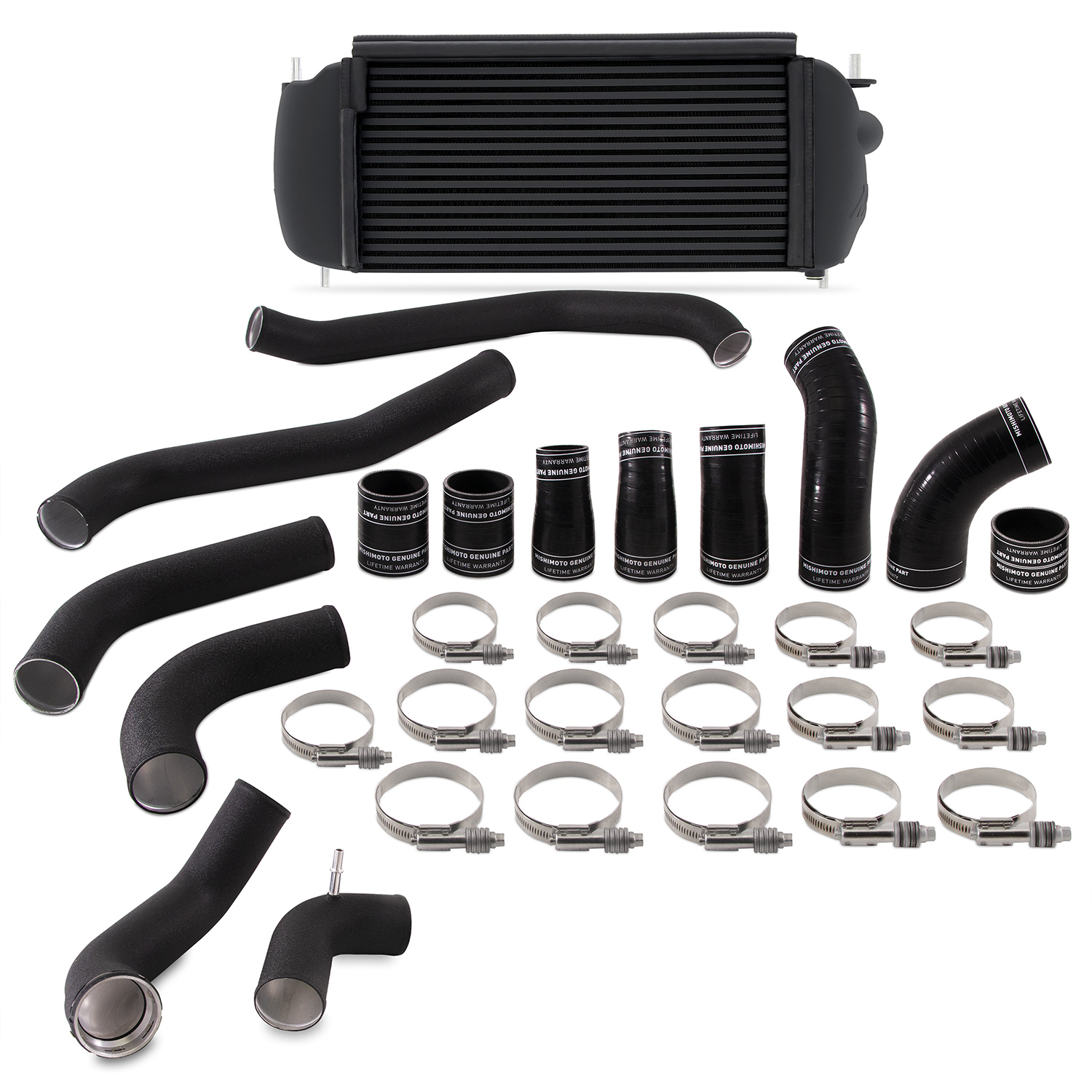

The Mishimoto MMINT-F35T-17KBBK is a direct-fit intercooler and pipe kit engineered specifically for the 2017-2020 Ford F-150 3.5L V6 EcoBoost, including the second-gen Raptor. This particular kit pairs the Stealth Black intercooler with wrinkle black powder-coated aluminum piping, tearing out the factory plastic tubing in favor of a free-flowing, all-aluminum forced induction upgrade built for the truck’s twin-turbo layout.
As a purpose-built forced induction upgrade, this Mishimoto kit is designed to help your induction system keep pace with the demands of a twin-turbocharged induction force. The larger-volume aluminum piping and Mishimoto Silicone Boots with DuraCore technology replace weak factory plastic components, giving the 3.5L EcoBoost’s forced induction system a more durable, better-flowing path for boosted air. Combined with the Mishimoto intercooler, core volume increases by 77 percent and external fin surface area increases by 163 percent over the stock unit, while cast end tanks and bar-and-plate core construction bring both strength and cooling capacity to this performance induction upgrade. The result is a reported 10°F (5.5°C) reduction in intake air temperature, helping the engine make the most of every boost cycle.
Vehicle Applications
This kit is a specific fit for the 2017-2020 Ford F-150 in XL, XLT, Lariat, King Ranch, Limited, Platinum, SSV, and Raptor trims, all equipped with the 3.5L V6 EcoBoost engine. It also fits the 2018-2020 Ford F-150 Police Responder with the same 3.5L V6 EcoBoost engine. No other years, makes, models, or trims are covered by this kit.
Features
- Direct fit for 2017-2020 Ford F-150 3.5L EcoBoost and 2017-2020 Ford Raptor 3.5L EcoBoost
- Increased intercooler pipe volume allows for better flow and power potential
- Cold-side pipe includes a CNC quick-disconnect with pre-installed O-ring and spring clip for quick and easy installation
- Additional port on the cold-side pipe can be drilled and tapped for methanol injection or sensors
- Includes Mishimoto Silicone Boots with DuraCore technology for superior resistance to heat, pressure, fuel, and oil
- Constant-tension worm gear clamps keep a strong grip as pipes and boots expand and contract
- 10°F (5.5°C) reduction in intake air temperature
- 77-percent increase in intercooler internal core volume
- 163-percent increase in external fin surface area
- All-aluminum, TIG-welded construction
- Fits with stock intercooler fans without modification
- Intercooler available in Sleek Silver or Stealth Black; pipes available in polished or wrinkle black powder-coated finish
- Backed by the Mishimoto Lifetime Warranty
- Kit includes: (1) Mishimoto Intercooler w/ Assembled Rubber Trim, (1) Bypass Valve Bracket, (1) Aluminum Cold-Side Intercooler Pipe w/ CNC Quick-Disconnect Flange, (1) Aluminum Cold-Side Intercooler Pipe w/ CNC IAT Sensor Housing, (4) Aluminum Hot-Side Intercooler Pipes, (8) Silicone Boots w/ DuraCore Technology, (16) Constant-Tension Worm Gear Clamps, Mounting Hardware, Bypass Valve Hardware, and Mishimoto Lifetime Warranty
Specifications
- Core Material: Aluminum
- Core Height: 9.4 in
- Core Thickness: 4.7 in
- Core Length: 19.6 in
- Core Construction: Bar-and-Plate
- Intercooler Type: Air-to-Air
- End Tank Material: Aluminum
- End Tank Construction: Cast
- Overall Height: 9.5 in
- Overall Length: 29 in
- Inlet Diameter: 2.5 in
- Hot Side Pipe Inside Diameter: 2.5 in
- Pipe Material: Aluminum
- Pipe Finish: Powder Coated
- Pipe Color: Black
- Coupler Material: Silicone
- Coupler Color: Black
- Hose Clamps Included: Yes
- Maximum Boost Pressure: 50 PSI
- Grade Type: Performance
- Fit Type: Specific
Frequently Asked Questions
What vehicles does the Mishimoto MMINT-F35T-17KBBK intercooler and pipe kit fit?
This kit is a specific fit for the 2017-2020 Ford F-150 in XL, XLT, Lariat, King Ranch, Limited, Platinum, SSV, and Raptor trims, as well as the 2018-2020 Ford F-150 Police Responder, all equipped with the 3.5L V6 EcoBoost engine.
What improvement does the Mishimoto intercooler offer over the stock unit?
The intercooler increases core volume by 77 percent and external fin surface area by 163 percent over stock, and is reported to reduce intake air temperature by 10°F (5.5°C).
What materials and construction does this kit use?
The kit uses an all-aluminum, TIG-welded core with bar-and-plate construction and cast end tanks. The intercooler piping is aluminum with a powder-coated finish, and Mishimoto Silicone Boots with DuraCore technology are used at connection points, secured with constant-tension worm gear clamps.
What color options are available for this kit?
The intercooler is available in Sleek Silver or Stealth Black, and the piping is available in a polished or wrinkle black powder-coated finish. This specific kit (MMINT-F35T-17KBBK) includes the Black Intercooler with Wrinkle Black Pipes.
What is included in the box?
The kit includes one Mishimoto Intercooler with assembled rubber trim, one bypass valve bracket, one aluminum cold-side intercooler pipe with CNC quick-disconnect flange, one aluminum cold-side intercooler pipe with CNC IAT sensor housing, four aluminum hot-side intercooler pipes, eight silicone boots with DuraCore technology, sixteen constant-tension worm gear clamps, mounting hardware, bypass valve hardware, and the Mishimoto Lifetime Warranty.
Does this kit work with the factory intercooler fans?
Yes, the kit fits with stock intercooler fans without modification.
