Mishimoto 2019+ Mazda Miata ND2 Oil Cooler Kit – Black Thermostatic

Description

The Mishimoto 2019+ Mazda Miata ND2 Oil Cooler Kit (MMOC-MIA-19TBK) is a direct-fit, Black Cooler Thermostatic upgrade purpose-built to replace the ND2’s factory liquid-to-liquid oil cooler with a dedicated 19-row stacked-plate oil cooler. Engineered for Miatas that see track duty, it swaps in a true oil cooler design so temperatures stay in check even when the factory coolant-based warmer starts to fall behind during sustained hard driving. Mishimoto engineers recorded consistent temperature decreases of up to 57°F (29.5°C) using the non-thermostatic version of this sandwich plate design.

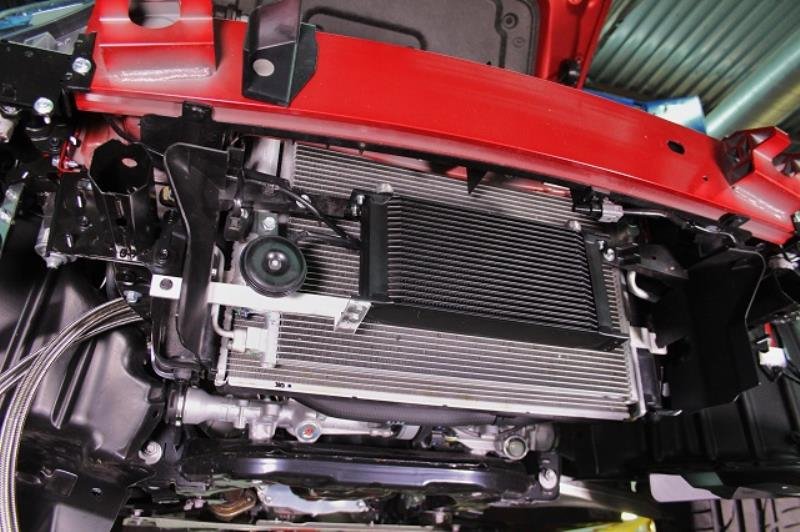

When Mazda transitioned the Miata from ND1 to ND2, it added a bump in top-end power along with a liquid-to-liquid oil cooler that uses engine coolant to warm oil during cold starts and cool it during aggressive driving-useful in daily traffic, but a component Mishimoto found sacrifices cooling performance once the engine is pushed hard for extended periods. This Mishimoto oil cooler kit closes that gap with a purpose-built Cooling upgrade: a 19-row stacked-plate oil cooler mounted on application-specific aluminum brackets that position it directly in front of the radiator for maximum airflow. Oil travels to the cooler through -10AN braided stainless-steel lines and a direct-fit billet-aluminum sandwich plate with a stainless-steel adapter, and the kit increases total oil capacity by 0.75 qt for added cooling margin. This particular Mishimoto oil cooler kit ships as the Black Cooler Thermostatic version, which Mishimoto recommends for daily-driven vehicles, while a non-thermostatic sandwich plate option is also offered for hot climates or dedicated race builds. As with all Mishimoto products, it’s backed by the Mishimoto Lifetime Warranty.

Vehicle Applications

This kit is a direct fit for the 2019+ Mazda Miata ND2 chassis, covering the MX-5 Miata Club, Grand Touring, RF Club, RF Grand Touring, and Sport trims from 2019 through 2026, along with the GS, GS-P, GT, RF GS-P, and RF GT trims from 2019 through 2025. It also fits the 100th Anniversary Special Edition and RF 100th Anniversary Special Edition for 2020-2021, as well as the 35th Anniversary trim for 2025.

Features

• Direct fit for 2019+ Mazda Miata ND2
• Eliminates factory liquid-to-liquid oil cooler for improved efficiency
• 19-row stacked-plate oil cooler drops temperatures by up to 57°F (29.5°C)
• Increases oil capacity by 0.75 qt for improved cooling capacity

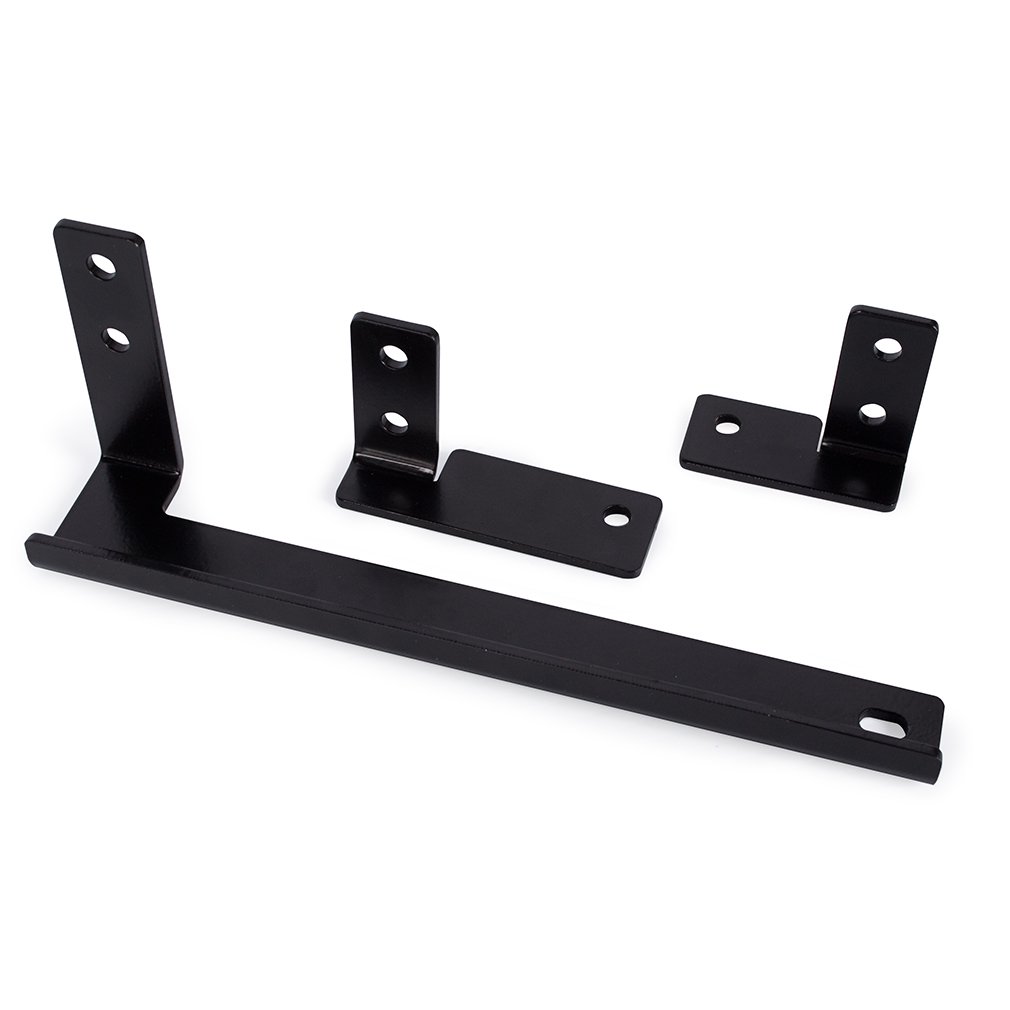

• Application-specific mounting brackets position the cooler for optimal airflow
• Aluminum brackets for light weight
• Direct-fit stainless-steel braided oil lines with durable -AN fittings

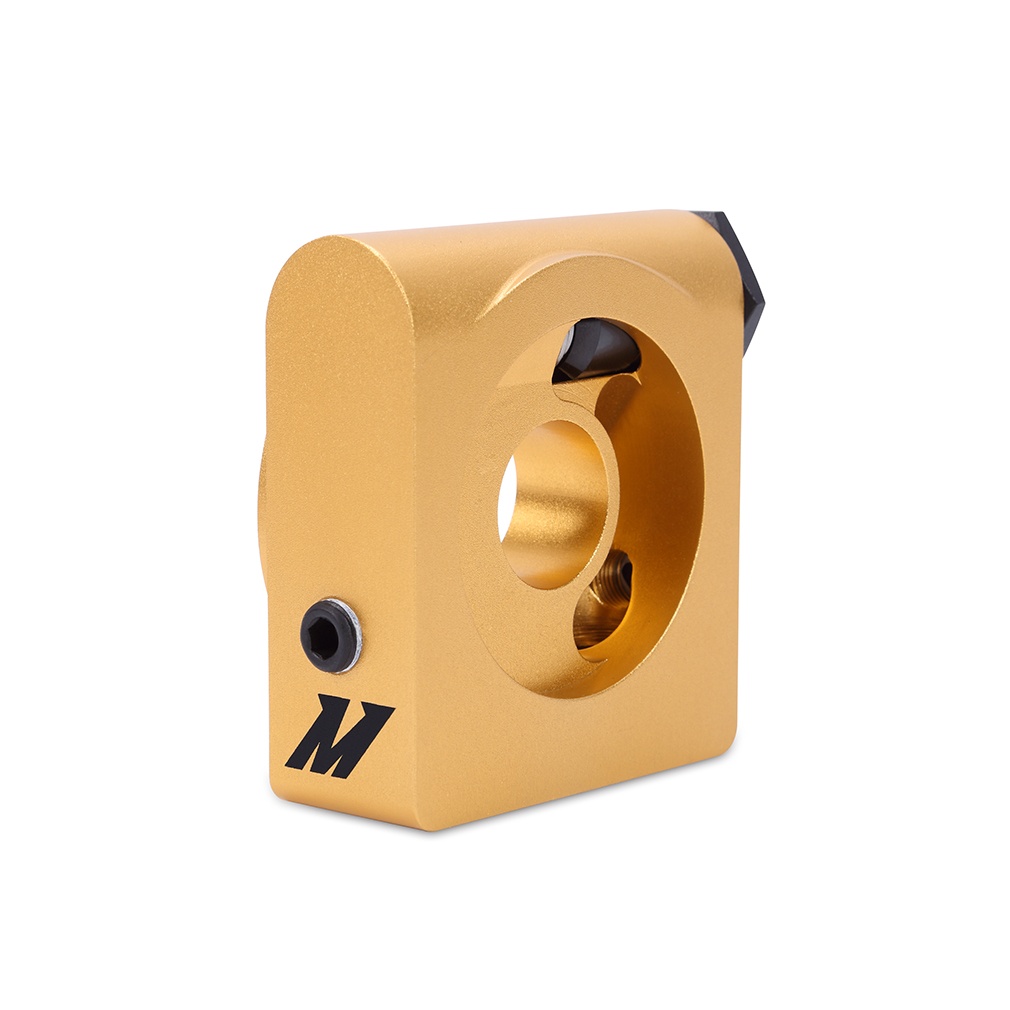

• Billet-aluminum oil sandwich plate
• Thermostatic sandwich plate (this variant) recommended for daily-driven vehicles
• Non-thermostatic sandwich plate option recommended for hot climates or dedicated race vehicles
• Available in Sleek Silver or Stealth Black
• Mishimoto Lifetime Warranty

Specifications

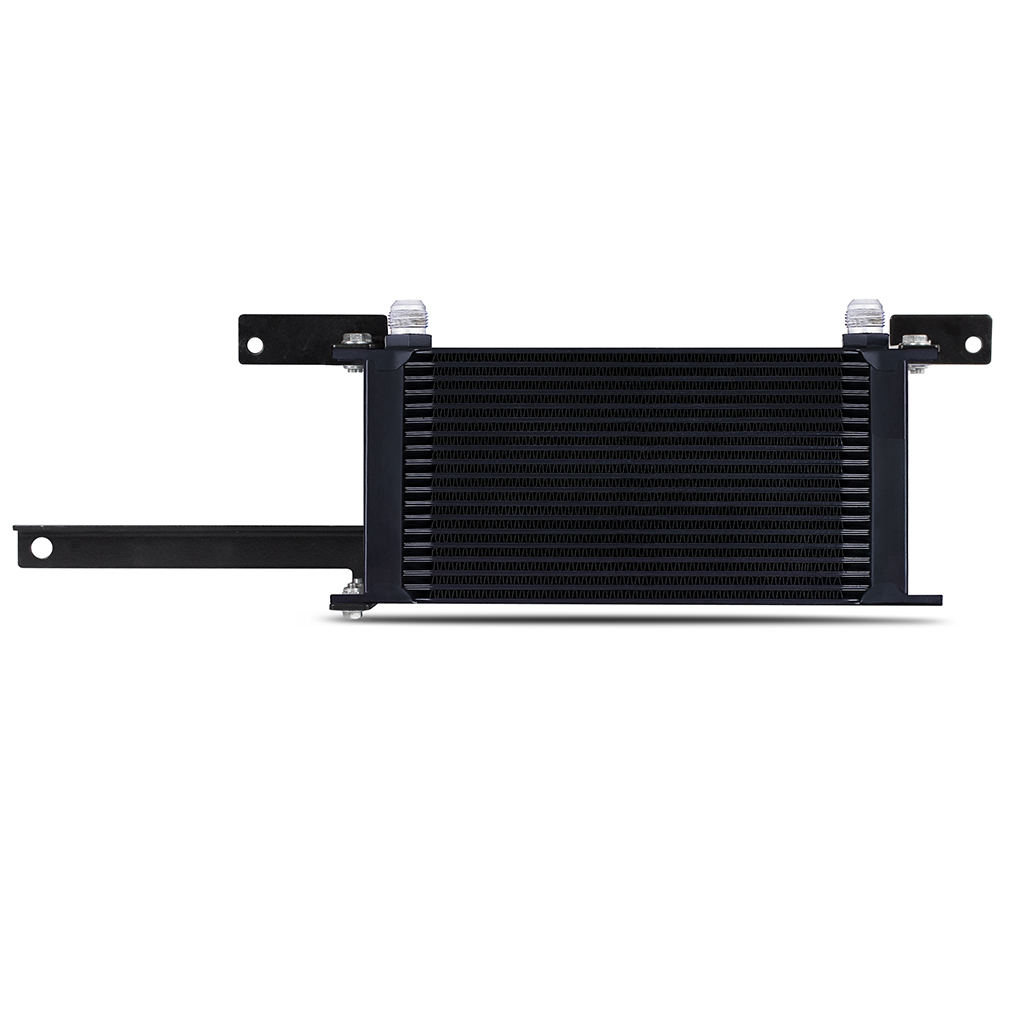

• Core Construction: Stacked-Plate
• Core Row Quantity: 19-Row
• Core Height: 5.43 in
• Core Thickness: 1.97 in
• Core Width: 11 in
• Core Color: Black
• Cooler Fluid Capacity: 0.8 qt
• Inlet Fitting Type: AN Flare, Male
• Outlet Fitting Type: AN Flare, Male
• Grade Type: Performance
• Color: Black
• Finish: Anodized
• Sandwich Plate Option: Black Cooler Thermostatic (MMOC-MIA-19TBK)
• Recommended Torque: 15-25 lb-ft for straight fittings and banjo bolts; do not exceed 35 lb-ft

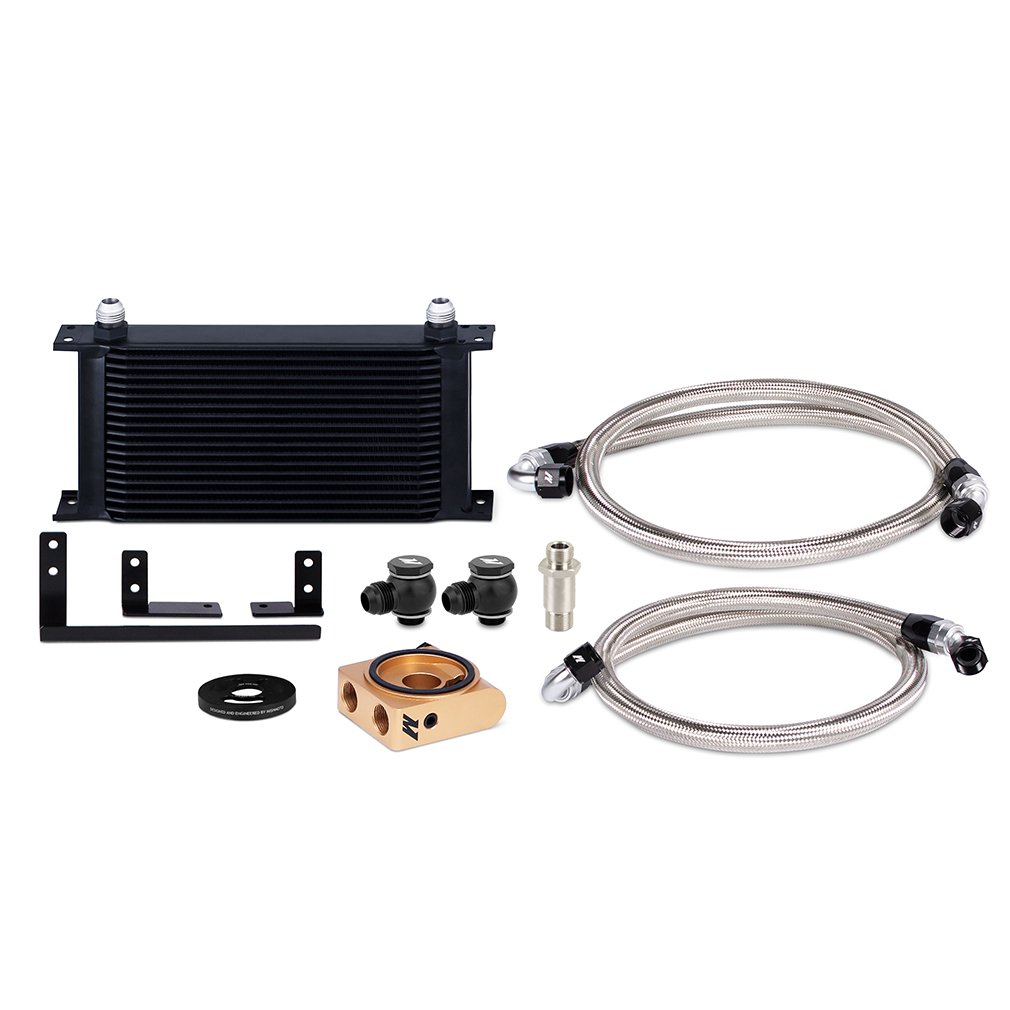

• Kit Includes: (3) Mounting Brackets, (1) 19-Row Oil Cooler, (2) Braided Stainless-Steel Lines, (1) Oil Sandwich Plate, (1) Stainless-Steel Sandwich Plate Adapter, (1) Sandwich Plate Spacer, (2) O-rings, (2) Sandwich Plate Banjo Fittings, (1) Allen Key, (1) Hose Connector Barb, Mounting Hardware
• Warranty: Mishimoto Lifetime Warranty
