Description

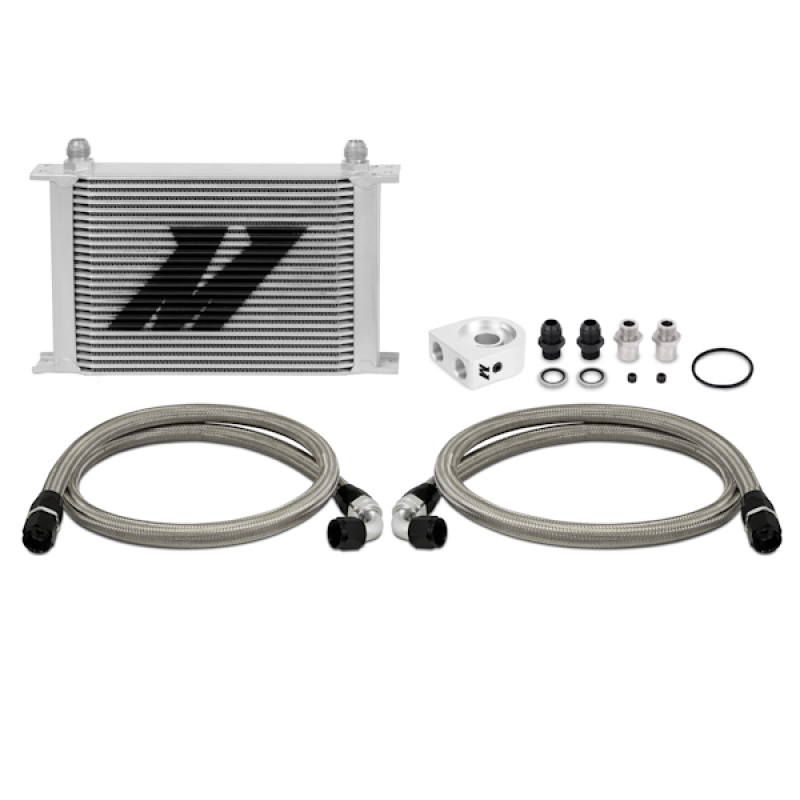

The Mishimoto Universal Oil Cooler Kit (MMOC-UH) pairs a proven 25-row stacked-plate, bar-and-plate cooler with a billet anodized aluminum sandwich plate, giving engine builders a single universal-fit oil cooling solution rather than a vehicle-specific unit. Finished in silver anodized aluminum, the core measures 7.32 in tall, 11 in wide, and 1.97 in thick, and the kit ships as the “Silver Cooler, Non-Thermostatic” option built to withstand high fluid pressures while pulling oil temperatures down with minimal pressure loss.
Proper oil temperature regulation is essential to extending the life of a stock or high-performance engine, and this Mishimoto oil cooler kit is designed to give your engine extra protection against oil degradation. The sandwich plate is available in either standard or thermostatic form, with the thermostatic version limiting oil flow to the cooler until optimal operating temperature is reached, a useful feature for those running in cooler climates. Every kit is completed with pre-assembled stainless steel braided oil lines using -10AN, male AN flare fittings and dowty seals for durable, leak-free connections, plus both 3/4-16 and M20-1.5 sandwich plate adapters so a single kit can support fitment across most makes and models.
Vehicle Applications
Because this Mishimoto cooler kit is built as a universal oil cooler rather than a make-specific part, it is applicable for most vehicles through its dual-thread sandwich plate adapters (3/4-16 and M20-1.5), which are designed to support fitment for most makes and models. Mishimoto notes this kit is equally at home under the hood of a boosted rotary application or a blown small block build, making it a flexible choice for engine bays where a dedicated, vehicle-specific oil cooler kit isn’t available.
Features
- Universal fitment across most makes and models
- 25-row stacked-plate, bar-and-plate core withstands high fluid pressures, reduces oil temperatures, and exhibits minimal pressure loss

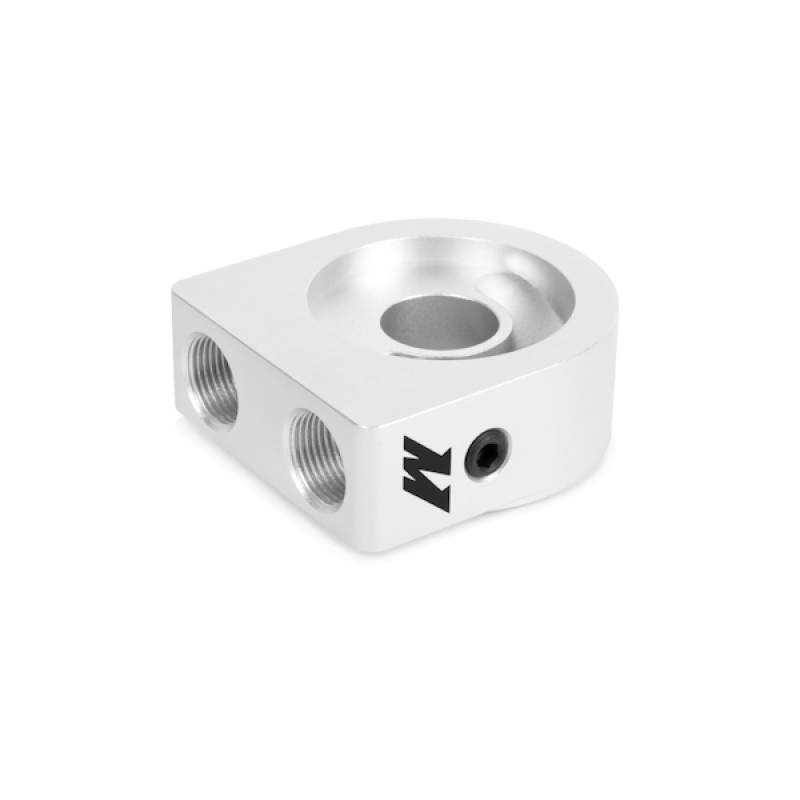

- Billet anodized aluminum sandwich plate available in standard or thermostatic form

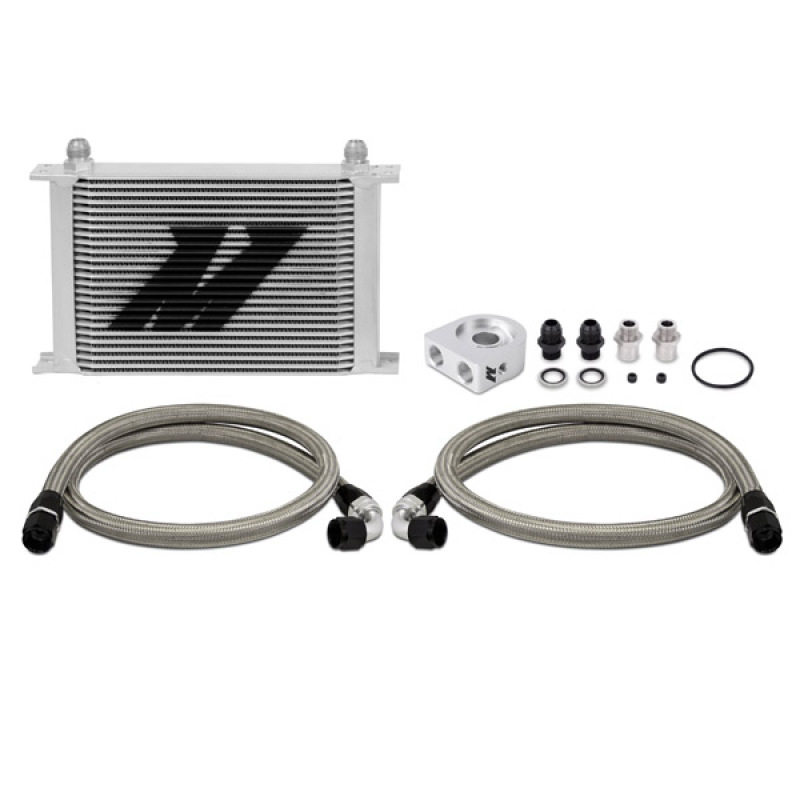

- Pre-assembled stainless steel braided oil lines with -10AN fittings and dowty seals for durable, leak-free connections
- Includes both a 3/4-16 and M20-1.5 sandwich plate adapter for broad thread compatibility
- Kit includes 4ft and 5ft stainless steel braided hoses with -10AN fittings, each with one straight fitting and one 90-degree swivel fitting

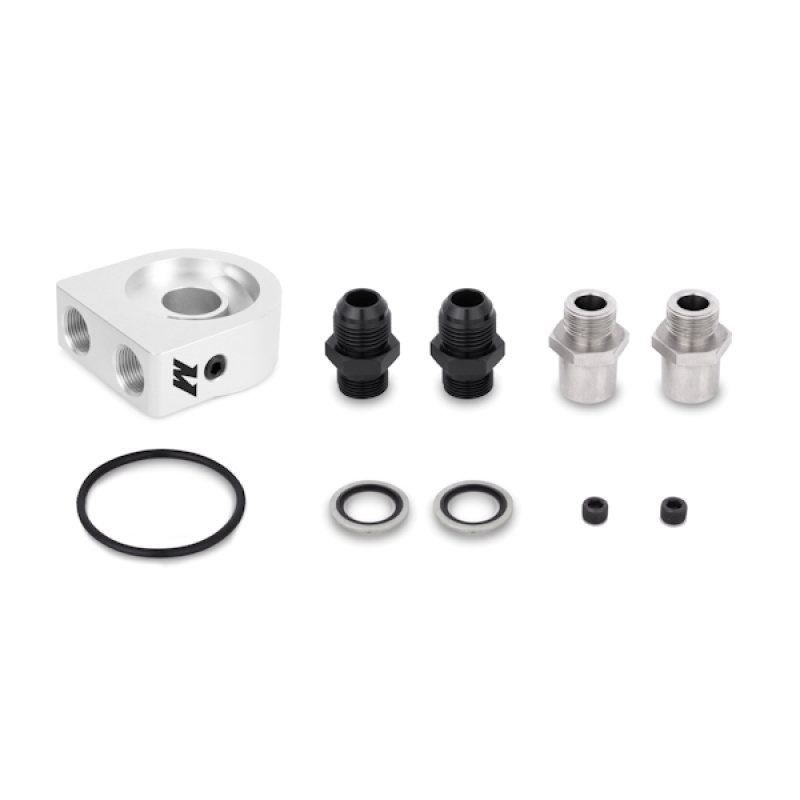

- Includes -10AN fittings, dowty oil seals, a large O-ring, and 1/8-in NPT Allen key plugs
- Backed by the Mishimoto Limited Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMOC-UH
- Product Type: Cooling
- Color / Core Color: Silver
- Finish: Anodized
- Core Type: Bar-and-Plate
- Grade Type: Performance
- Core Row Quantity: 25
- Core Height: 7.32 in
- Core Width: 11 in
- Core Thickness: 1.97 in
- Overall Width: 1.97 in
- Overall Height: 12.95 in
- Overall Length: 8.35 in
- Base Height: 12.95 in
- Inlet Fitting Type: AN Flare, Male
- Outlet Fitting Type: AN Flare, Male
- Sandwich Plate Adapter Threads: 3/4-16 or M20-1.5
- Recommended Torque (straight fittings/banjo bolts): 15-25 lb-ft; do not exceed 35 ft-lb
Frequently Asked Questions
What does the Mishimoto MMOC-UH Universal Oil Cooler Kit include?
The kit includes a 25-row oil cooler, a 4ft stainless steel braided hose with -10AN fittings (one straight and one 90-degree swivel fitting), a 5ft stainless steel braided hose with -10AN fittings (one straight and one 90-degree swivel fitting), an M20 thermostatic sandwich plate, -10AN fittings, dowty oil seals, a large O-ring, 1/8-in NPT Allen key plugs, sandwich plate adapters, and the Mishimoto Lifetime Warranty.
Will this oil cooler kit fit my vehicle?
This kit is designed for universal fitment and is applicable for most vehicles. It includes both a 3/4-16 and M20-1.5 sandwich plate adapter, which supports fitment for most makes and models.
Does this kit include a thermostatic sandwich plate?
The sandwich plate is available in either standard or thermostatic form. The Mishimoto Thermostatic Sandwich Plate provides additional temperature control by limiting oil flow to the cooler until optimal temperatures are reached, which is ideal for those in cooler climates.
What size are the core and overall kit dimensions?
The core measures 7.32 in in height, 11 in in width, and 1.97 in in thickness. Overall kit dimensions are 1.97 in wide, 12.95 in tall, and 8.35 in long, with a base height of 12.95 in.
What torque should be used when installing the fittings?
Mishimoto recommends a torque specification of 15-25 lb-ft for all straight fittings and banjo bolts, and the maximum torque rating of 35 ft-lb should not be exceeded.
Does the Mishimoto Universal Oil Cooler Kit come with a warranty?
Yes, this kit includes the Mishimoto Limited Lifetime Warranty.
