Description

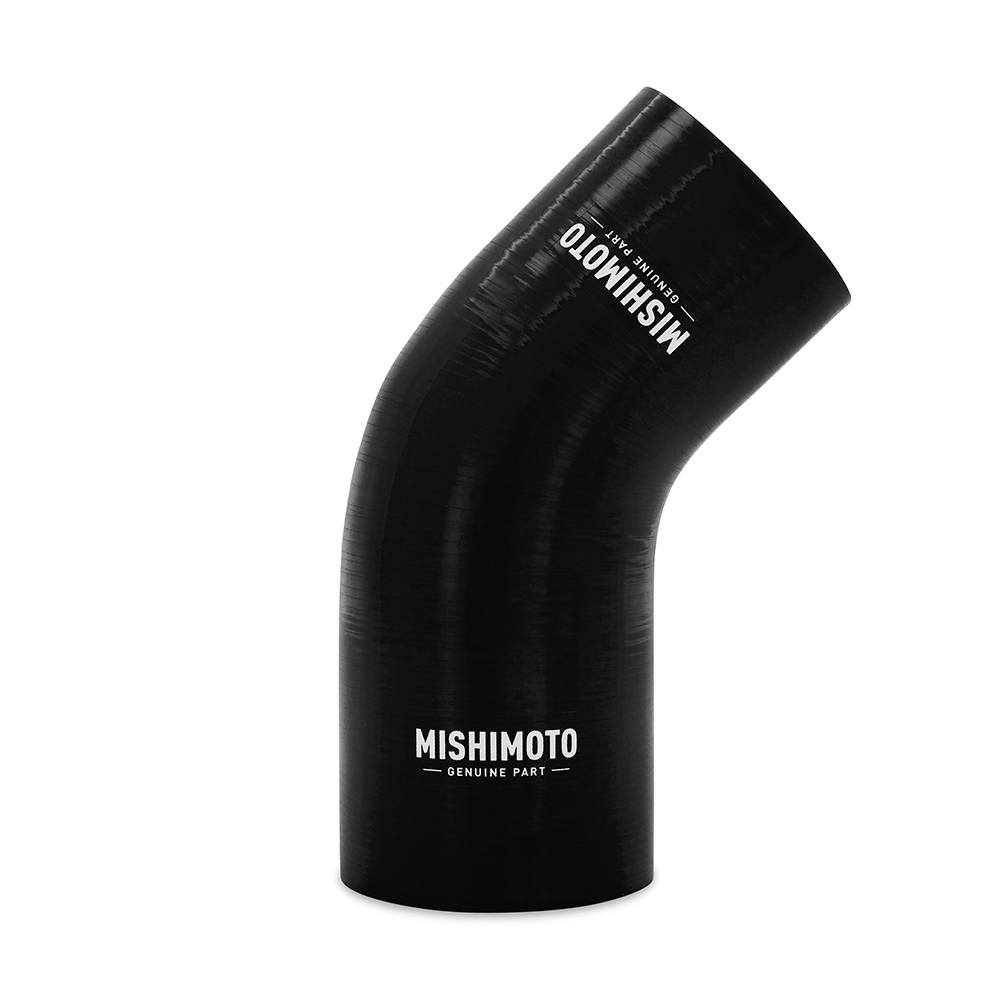

The Mishimoto 45-Degree Black Silicone Transition Coupler (MMCP-R45-2025BK) is a four-ply silicone elbow built to reroute coolant lines or air intake system piping through tight, awkward spaces in the engine bay. Constructed from four layers of silicone separated by heat-resistant embedded fibers, this transition elbow carries a maximum temperature rating of 330F, giving it the durability to serve as a dependable link in both coolant circuits and intercooler piping.
Whether you are plumbing a custom air intake system, rerouting coolant lines, or connecting intercooler piping under boost, this 45-degree coupler gives fabricators and DIY installers the flexibility to solve routing problems that straight sections or gentle-bend hoses cannot manage. Its 100-percent silicone construction is designed to resist cracking and hardening, and its high pressure tolerance makes it well suited for use on intercooler pipe connections. Finished in black to complement a variety of engine bays, this coupler is one entry in Mishimoto’s broader lineup of 45-degree transition couplers, which is also offered in blue and red across a range of sizes for both coolant and air passage systems.
Vehicle Applications
This Mishimoto transition coupler is a universal-fit component rather than a vehicle-specific part, making it applicable to custom coolant plumbing, air intake system builds, and intercooler piping projects across a wide range of engine bays. Because it does not ship with hose clamps, installers can select the clamp style that best matches their own coolant or air intake routing setup and pipe diameters.
Features
- Allows for easy routing of complex coolant or intercooler pipes
- 100-percent silicone construction

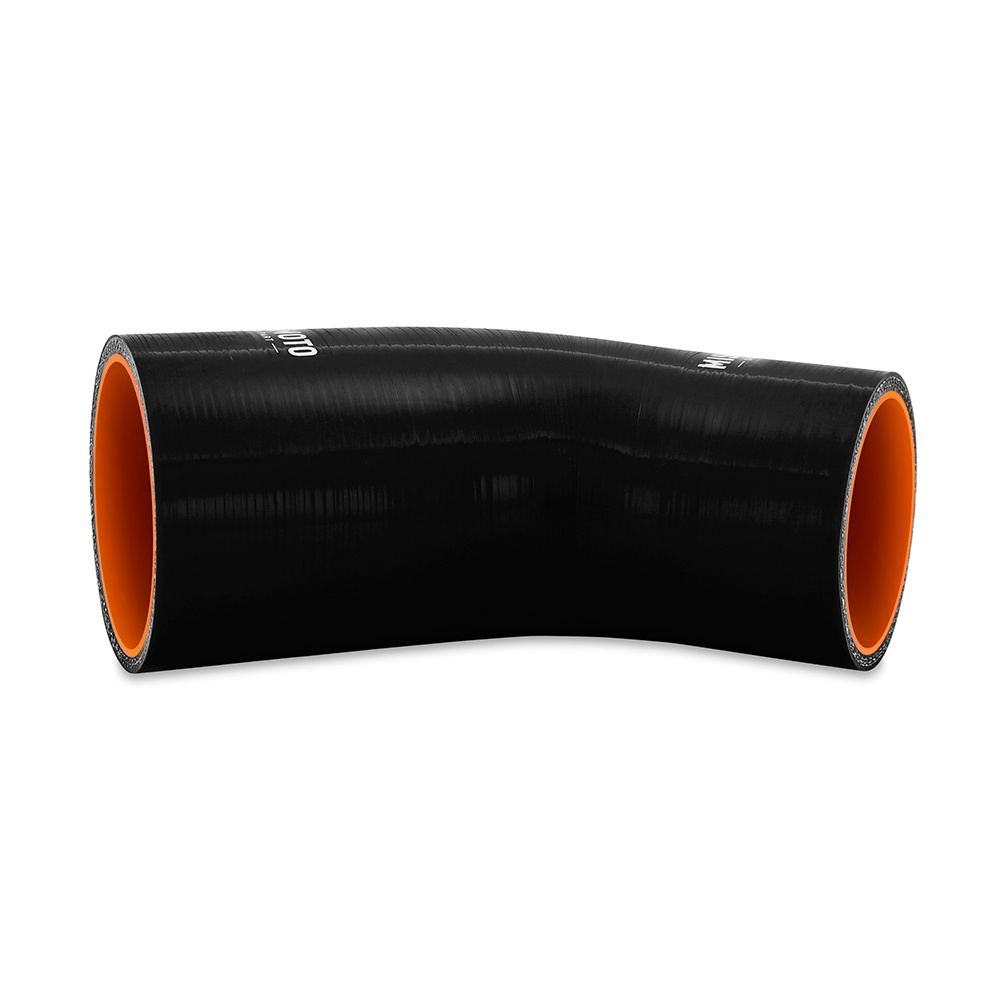

- Constructed from four layers of silicone with embedded heat-resistant fibers
- Rated for temperatures up to 330F
- High pressure tolerance is ideal for use on intercooler pipe connections
- Applicable for both coolant and air systems
- Available in black to match any engine bay
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMCP-R45-2025BK
- Material: Silicone
- Color: Black
- Shape: 45-Degree Transition
- Coupler Style: Transition Elbow
- Angle: 45 degrees

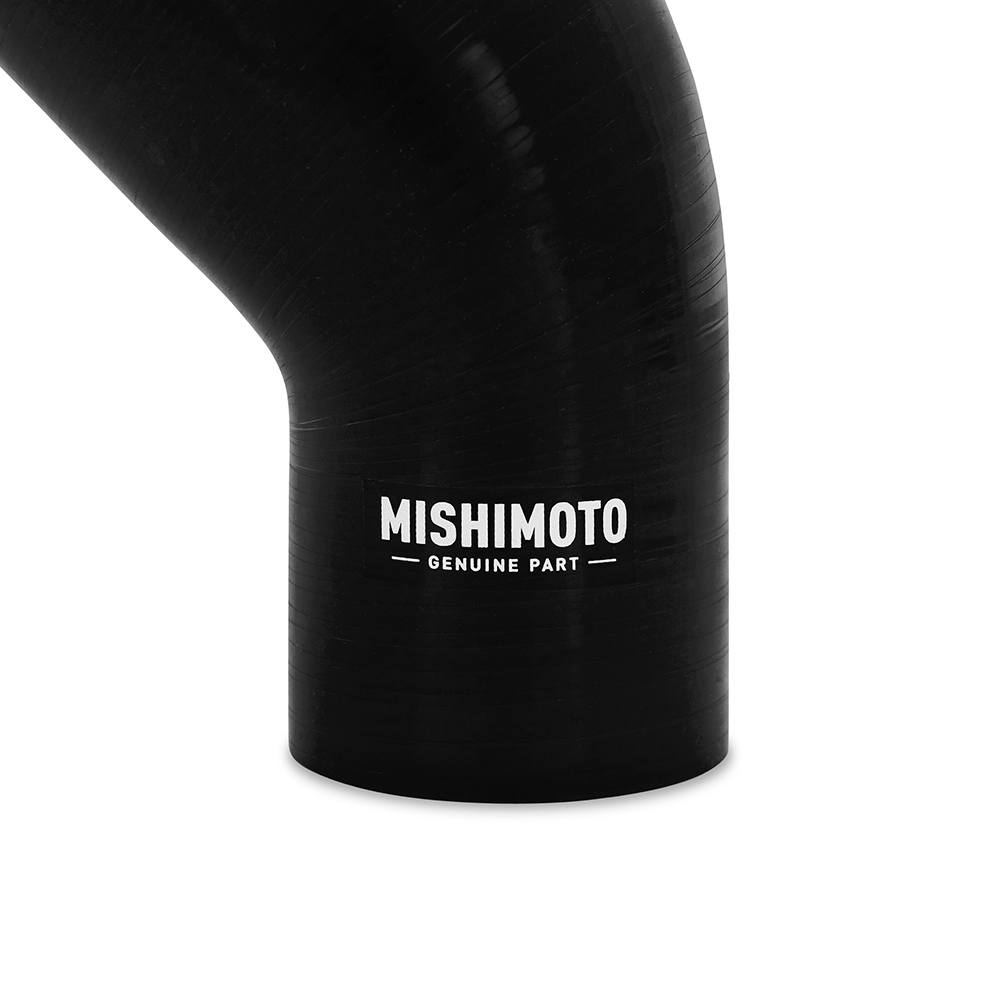

- End 1 Outside Diameter: 2.2 IN
- End 2 Outside Diameter: 2.7 IN
- End 2 Inside Diameter: 2.5 IN
- Maximum Temperature Rating: 330F
- Coolant Compatible: Yes
- Hose Clamps Included: No
- Purchase Includes: (1) Mishimoto 45-Degree Transition Coupler with Mishimoto Lifetime Warranty
Frequently Asked Questions
What temperature can this Mishimoto coupler withstand?
It carries a maximum temperature rating of 330F, thanks to its four-layer silicone construction with embedded heat-resistant fibers.
Are hose clamps included with this coupler?
No, hose clamps are not included with this Mishimoto 45-degree transition coupler.
Can this coupler be used for both coolant and air intake system piping?
Yes, it is applicable for both coolant and air systems and is listed as coolant compatible.
What are the diameters of this coupler?
End 1 has an outside diameter of 2.2 inches, End 2 has an outside diameter of 2.7 inches, and End 2 has an inside diameter of 2.5 inches.
What colors is this coupler available in?
Mishimoto’s 45-degree transition couplers are available in black, blue, and red; this listing is for the black version, part number MMCP-R45-2025BK.
What is included when I purchase this coupler?
Your purchase includes one Mishimoto 45-Degree Transition Coupler backed by the Mishimoto Lifetime Warranty.
