Description

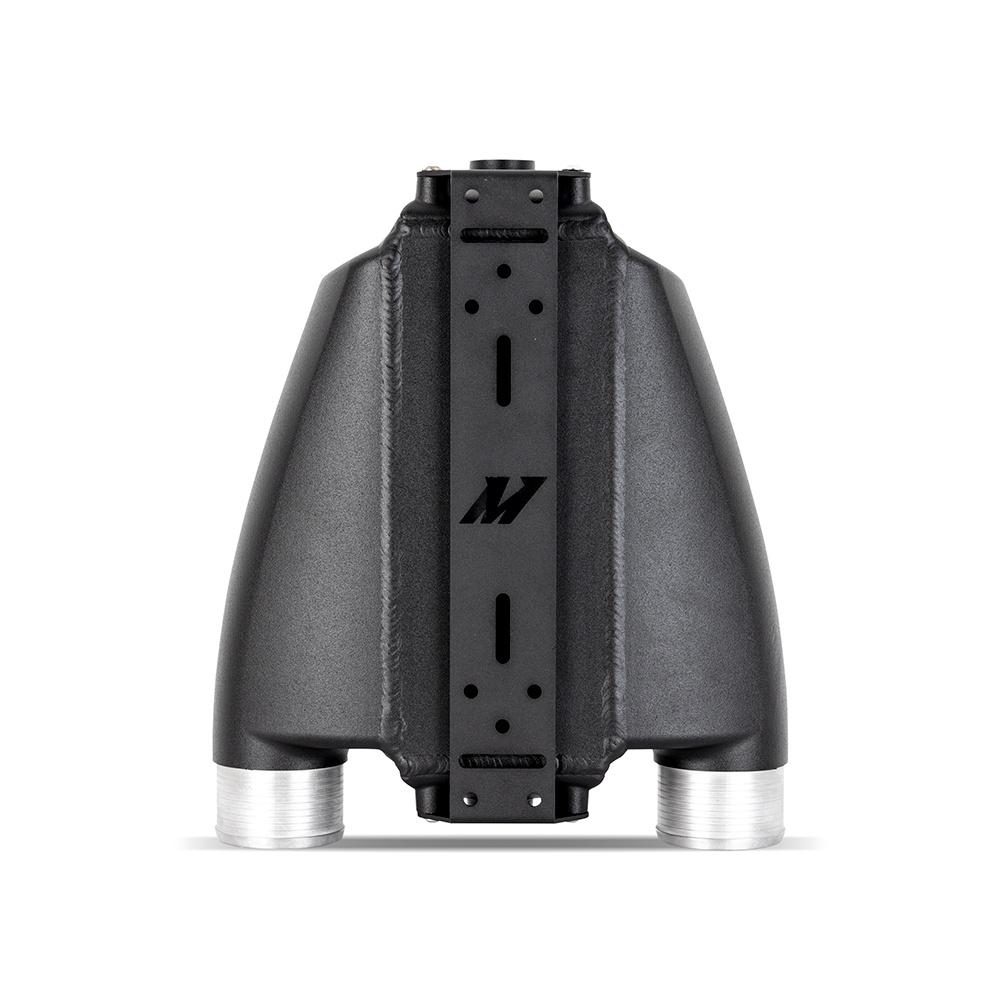

The Mishimoto MMINT-A2W-SP-1 is a bar-and-plate air-to-water intercooler built with a same-side inlet/outlet configuration and a maximum recommended rating of 500 horsepower at up to 100 psi of boost pressure. Its cast-aluminum end tanks are TIG-welded to the core for a compact, high-pressure-tolerant cooling package that brings liquid-to-air intercooling to forced induction projects.
Air intake temperature control is central to any performance induction strategy, and this Mishimoto forced induction intercooler is engineered to reduce the heat soak and detonation risk that come with sustained boost. The bar-and-plate core and custom-engineered end tanks work together to lower pressure drop while moving charge air efficiently, making this a strong core component for anyone assembling a forced induction system, dialing in an induction system upgrade, or replacing an aging intercooler on a boosted build. The -ORB coolant ports built into the core and the CNC-machined ribbed inlet/outlet couplers are designed to make plumbing and coupler connections secure, whether you’re routing lines for a single-pass or exploring Mishimoto’s broader air-to-water lineup for a dual-pass coolant flow setup.
Vehicle Applications
Mishimoto does not tie this bar-and-plate intercooler to a single factory platform: the listed vehicle applications, engine codes, and chassis codes for this part are unspecified in the technical documentation, and it is classified as a specific-fit configuration rather than a drop-in kit. That makes it a builder’s component intended for custom forced induction installations rather than one particular make or model. To help with mounting on whatever platform you’re building around it, Mishimoto includes a sturdy 1/8-inch thick steel universal mounting bracket along with the hardware needed to secure it.
Features
- Highly efficient air-to-water design delivers effective cooling in a compact package
- Bar-and-plate core provides durability and efficient cooling
- Cast-aluminum end tanks are custom engineered to yield superb airflow and durability
- Available in multiple core sizes, end tank configurations, and single or dual pass coolant flow across the Mishimoto lineup
- All-aluminum, professionally TIG-welded construction rated to 100 psi of boost pressure

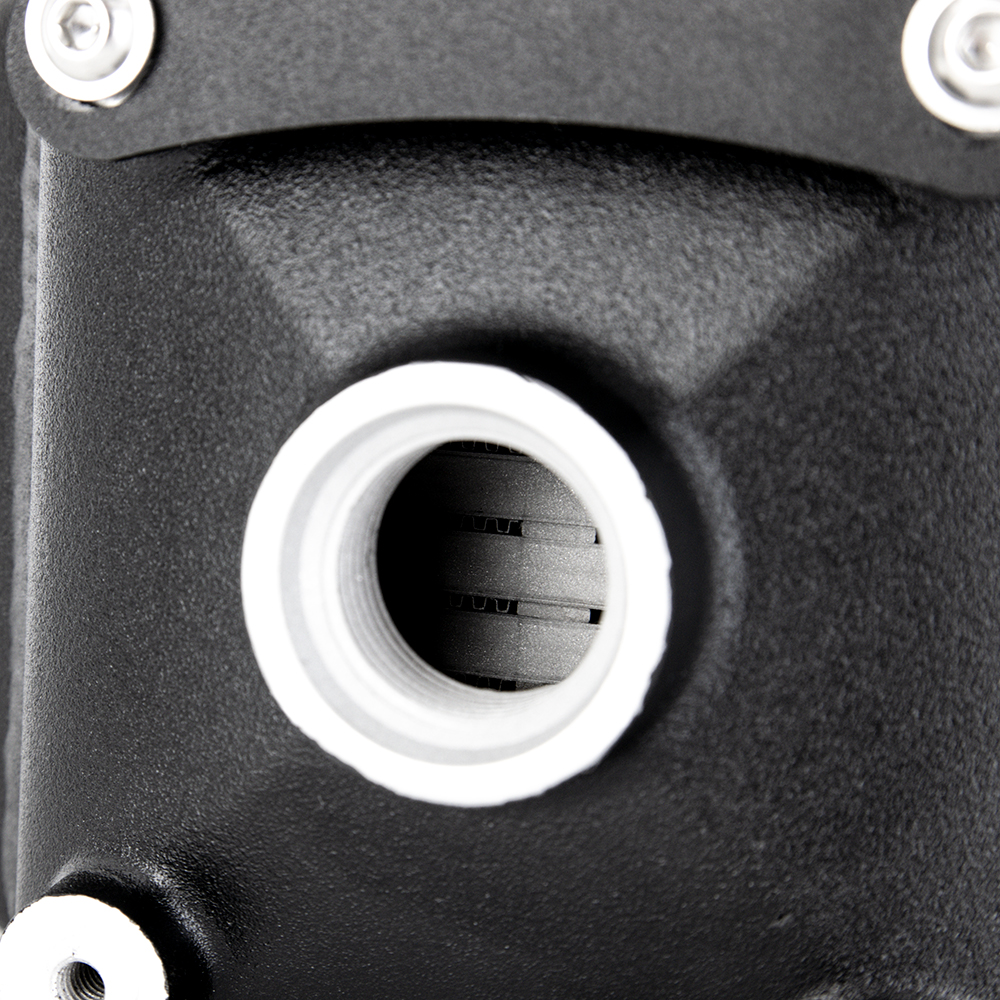

- CNC-machined ribbed airflow inlet/outlet produces secure coupler connections

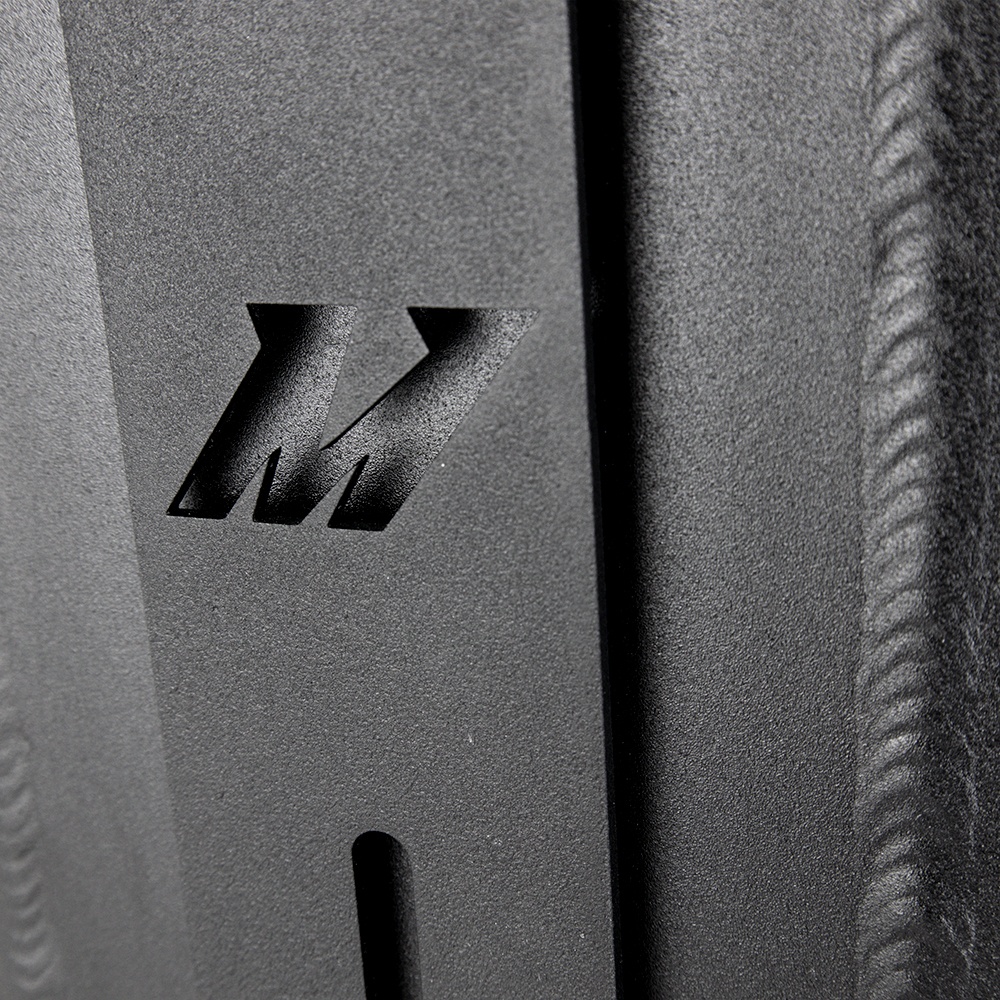

- Sleek, subtle, and durable micro-wrinkle black powder coat finish
- Includes a robust 1/8-inch thick steel mounting bracket and hardware
- Backed by the Mishimoto Lifetime Warranty

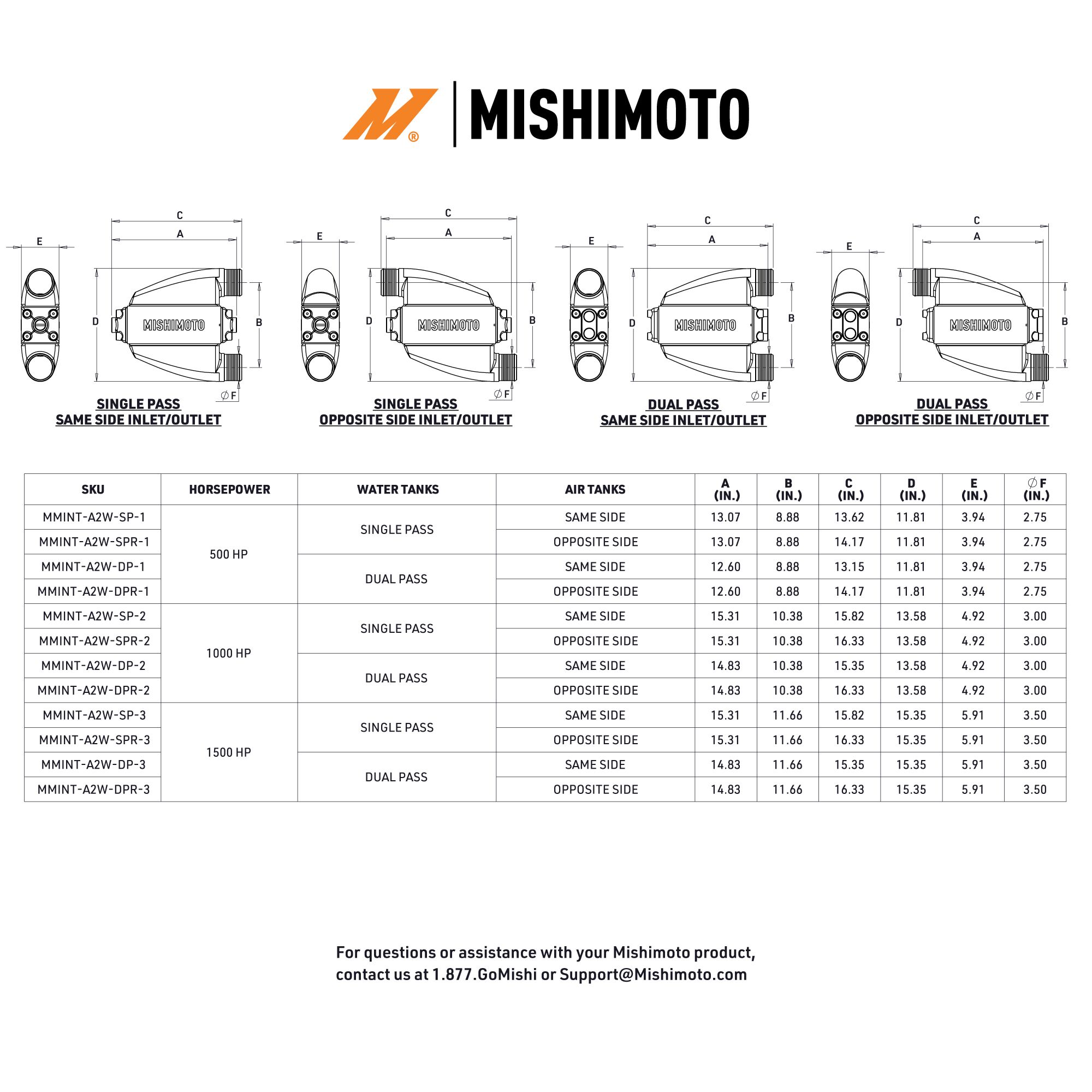

Specifications
- Part Number: MMINT-A2W-SP-1

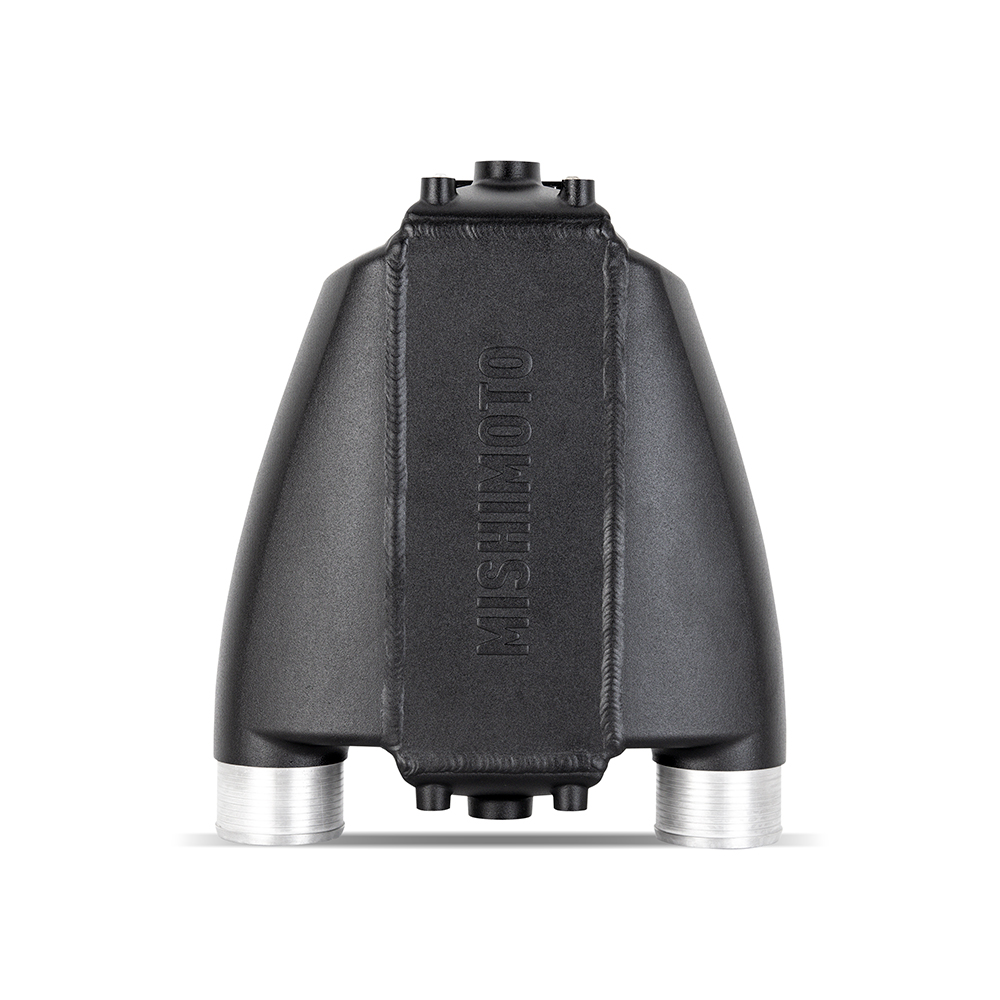

- Configuration: 500HP – Same Side Inlet/Outlet
- Core Type: Bar-and-Plate
- Core Material: Aluminum
- Inlet Tank Material: Aluminum
- Overall Length: 13.61 in
- Overall Width: 3.93 in
- Overall Height: 9.25 in
- Core Length: 9.79 in
- Core Height: 3.93 in
- Core Thickness: 3.93 in
- Inlet Outside Diameter: 2.75 in
- Outlet Outside Diameter: 2.75 in
- Inlet Fitting Gender: Male
- Outlet Fitting Gender: Male
- Grade Type: Performance
- Universal or Specific Fit: Specific
- Maximum Recommended Horsepower: 500
- Maximum Recommended Boost Pressure: 100 psi
- Weight: 25 lbs
- Includes: (1) Mishimoto Air-To-Water Intercooler, (1) Mounting Bracket, (4) Mounting Bracket Bolts M6x1.0 x 16mm, Mishimoto Lifetime Warranty
Frequently Asked Questions
What is the maximum recommended horsepower for this Mishimoto intercooler?
This configuration, the MMINT-A2W-SP-1, is rated to a maximum recommended 500 horsepower.
What boost pressure can this intercooler handle?
It is rated for a maximum recommended boost pressure of 100 psi, supported by its all-aluminum, professionally TIG-welded construction.
What core design does this intercooler use?
It uses a bar-and-plate aluminum core measuring 9.79 in in core length, 3.93 in in core height, and 3.93 in in core thickness.
What is included with the Mishimoto MMINT-A2W-SP-1?
It includes (1) Mishimoto Air-To-Water Intercooler, (1) Mounting Bracket, (4) Mounting Bracket Bolts M6x1.0 x 16mm, and the Mishimoto Lifetime Warranty.
Does this intercooler fit a specific vehicle?
Mishimoto lists this as a specific-fit configuration, but no vehicle applications, engine codes, or chassis codes are specified in the product data, making it intended for custom forced induction builds.
What inlet and outlet sizes does this intercooler have?
Both the inlet and outlet outside diameters measure 2.75 in with male fitting gender, arranged in a same-side inlet/outlet configuration.
