Description

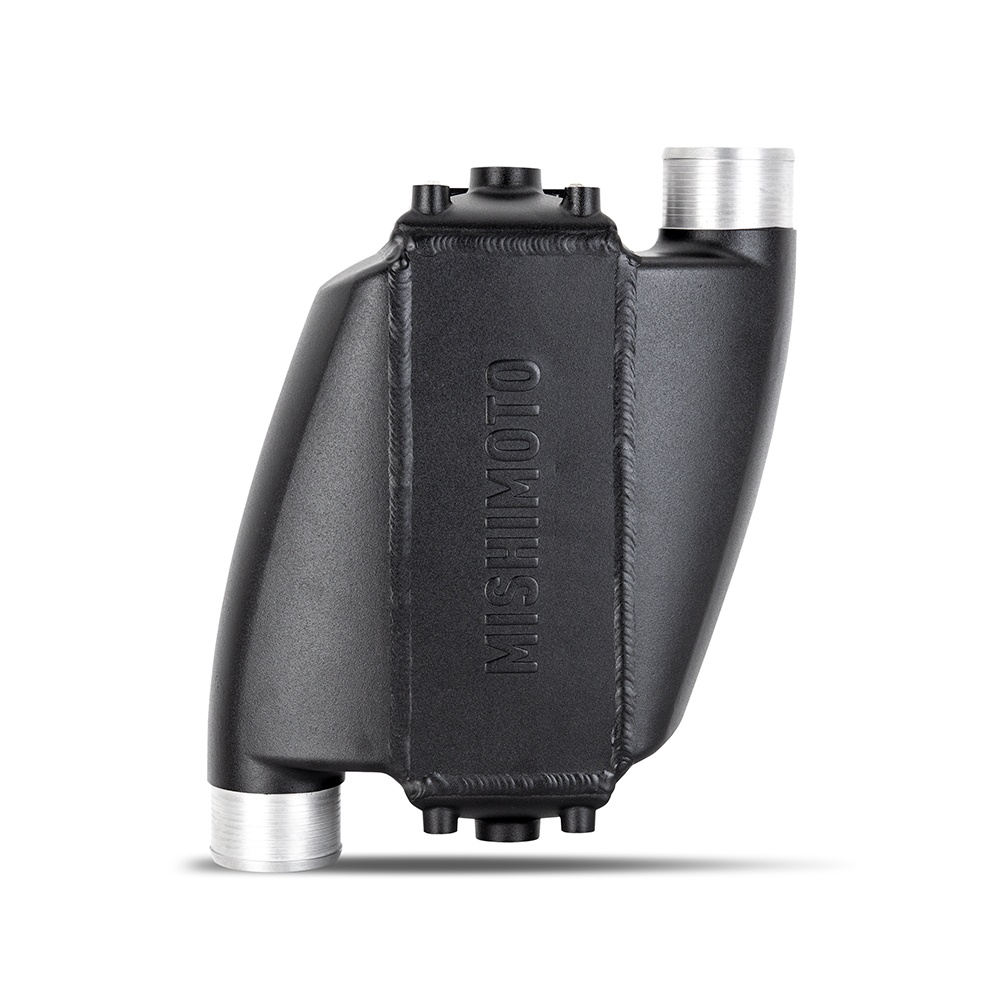

Mishimoto’s MMINT-A2W-SPR-1 is a purpose-built air-to-water intercooler engineered for forced induction applications, featuring a bar-and-plate aluminum core in an opposite-side inlet/outlet configuration rated for builds up to 500 horsepower. Constructed with 5mm-thick cast-aluminum end tanks that are professionally TIG-welded to the core, this Mishimoto intercooler is built to withstand up to 100 psi of boost pressure while delivering the compact cooling efficiency today’s forced induction systems demand.
Keeping intake air temperatures in check is critical to reducing heat soak and detonation while sustaining consistent power delivery from any forced induction turbo setup, and this Mishimoto air-to-water intercooler brings that liquid-to-air cooling advantage to your project. It pairs an efficient bar-and-plate core with CNC-machined ribbed inlet and outlet couplers for a secure grip between the intercooler and your induction system piping. Whether you’re dialing in a performance induction upgrade, rebuilding an aftermarket induction system, or improving charge-air cooling on a project vehicle, the MMINT-A2W-SPR-1 offers durable all-aluminum construction finished in a sleek micro wrinkle black powder coat that holds up under the hood. Mishimoto backs this force induction component with its signature Lifetime Warranty.
Vehicle Applications
The MMINT-A2W-SPR-1 is built as a Specific-fit performance component rather than a one-size-fits-all universal cooler, making it a strong foundation for custom forced induction builds, turbo swaps, and air-to-water intercooling projects where installers need precise coolant plumbing and a defined mounting footprint. Its ORB-style coolant ports, 2.75-in male inlet and outlet connections, and included 1/8-in thick steel mounting bracket are designed to simplify integration into project vehicles running forced induction turbo systems rated up to 500 horsepower with this opposite-side inlet/outlet configuration.
Features
- Highly efficient air-to-water bar-and-plate core delivers effective cooling in a compact package for builds up to 500 horsepower
- 5mm-thick cast-aluminum end tanks custom engineered for superb airflow and reduced pressure drop
- End tanks professionally TIG-welded to the core for a pressure tolerance up to 100 psi of boost
- CNC-machined ribbed inlet and outlet couplers ensure secure connections with intake piping

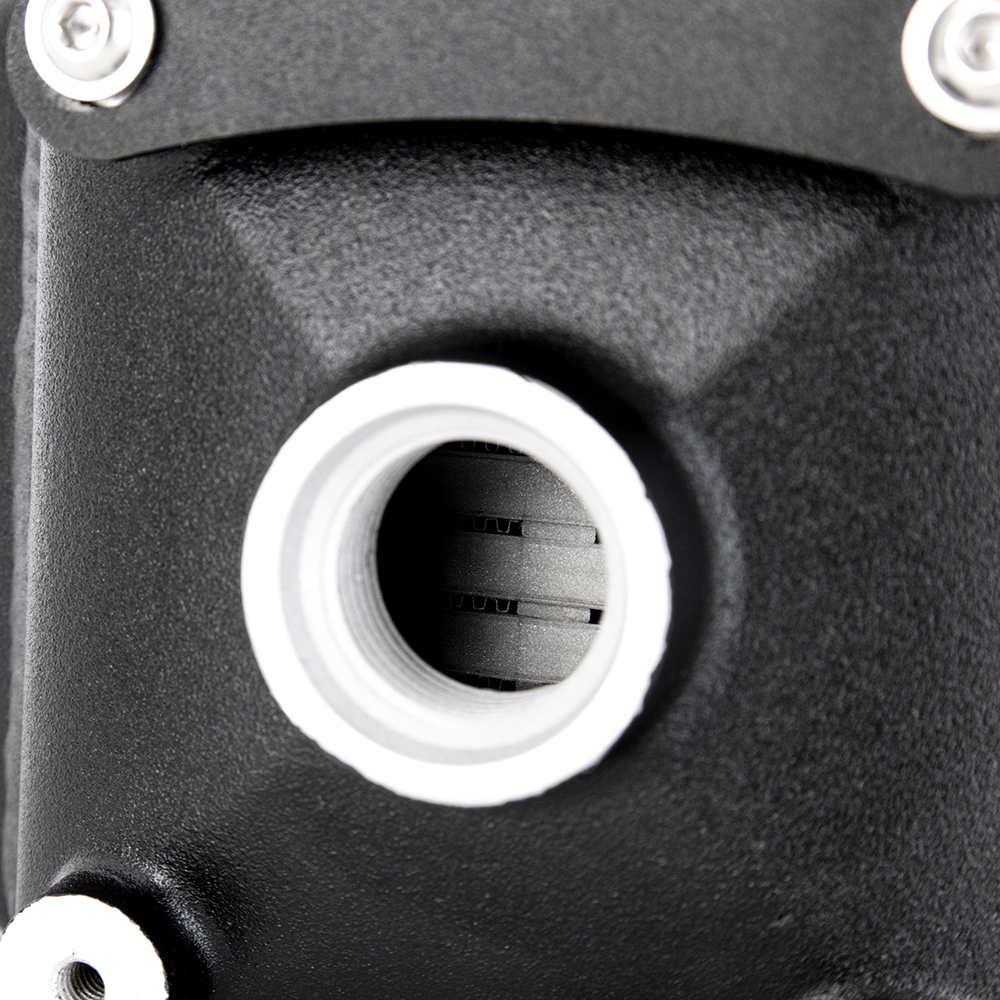

- ORB coolant ports provide leak-free line connections, adaptable with Mishimoto ORB Aluminum Fittings

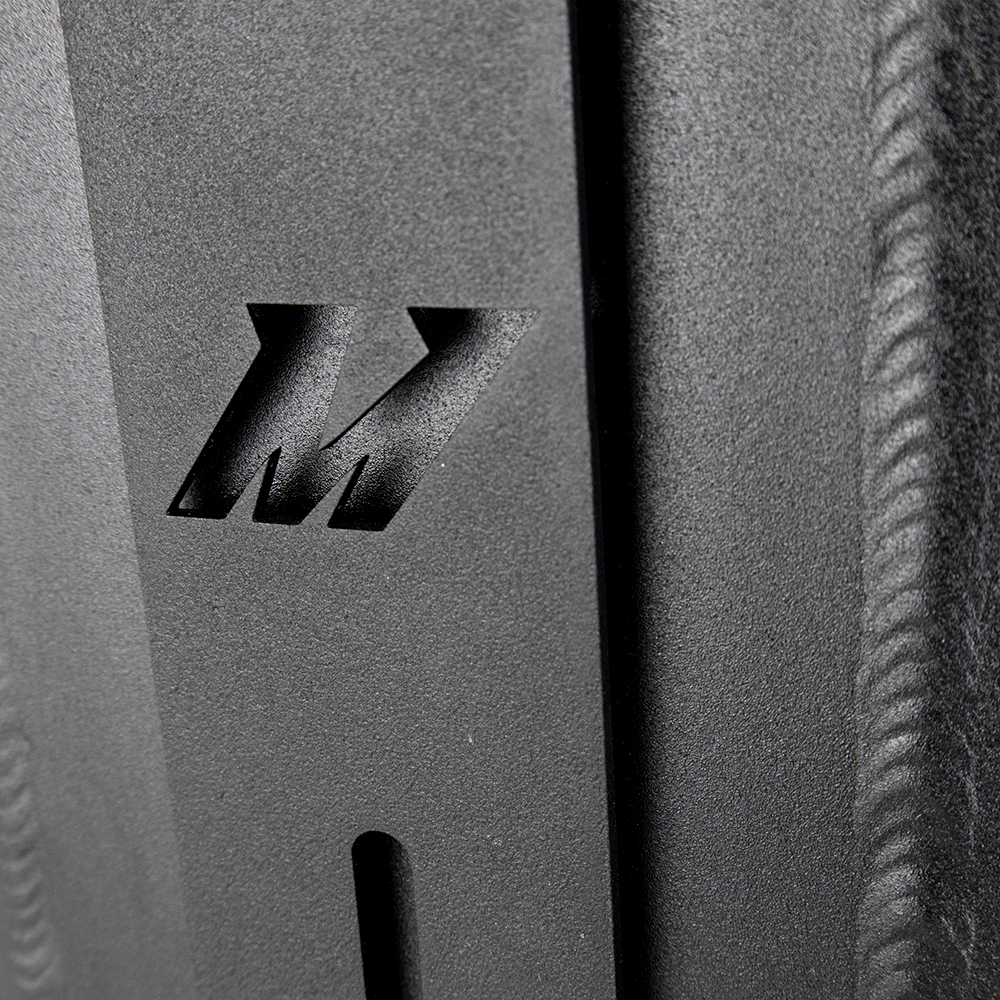

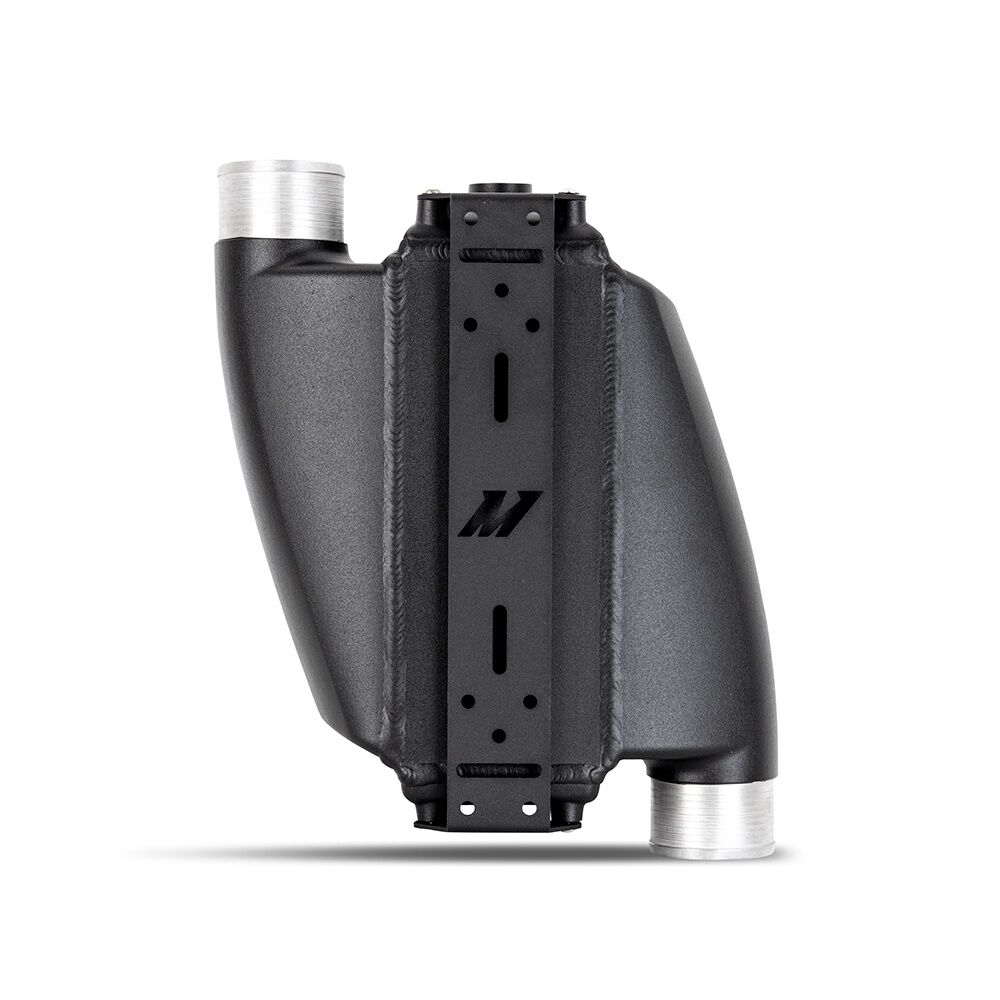

- Includes a sturdy 1/8-in thick steel universal mounting bracket and hardware
- Finished in a sleek, durable micro wrinkle black powder coat
- Can be paired with a Mishimoto Air-to-Water Heat Exchanger for the ultimate charge-air cooling efficiency
- Part of the Mishimoto air-to-water intercooler lineup available in multiple core sizes, single or dual-pass coolant flow, and same-side or opposite-side outlet options
- Backed by the Mishimoto Lifetime Warranty

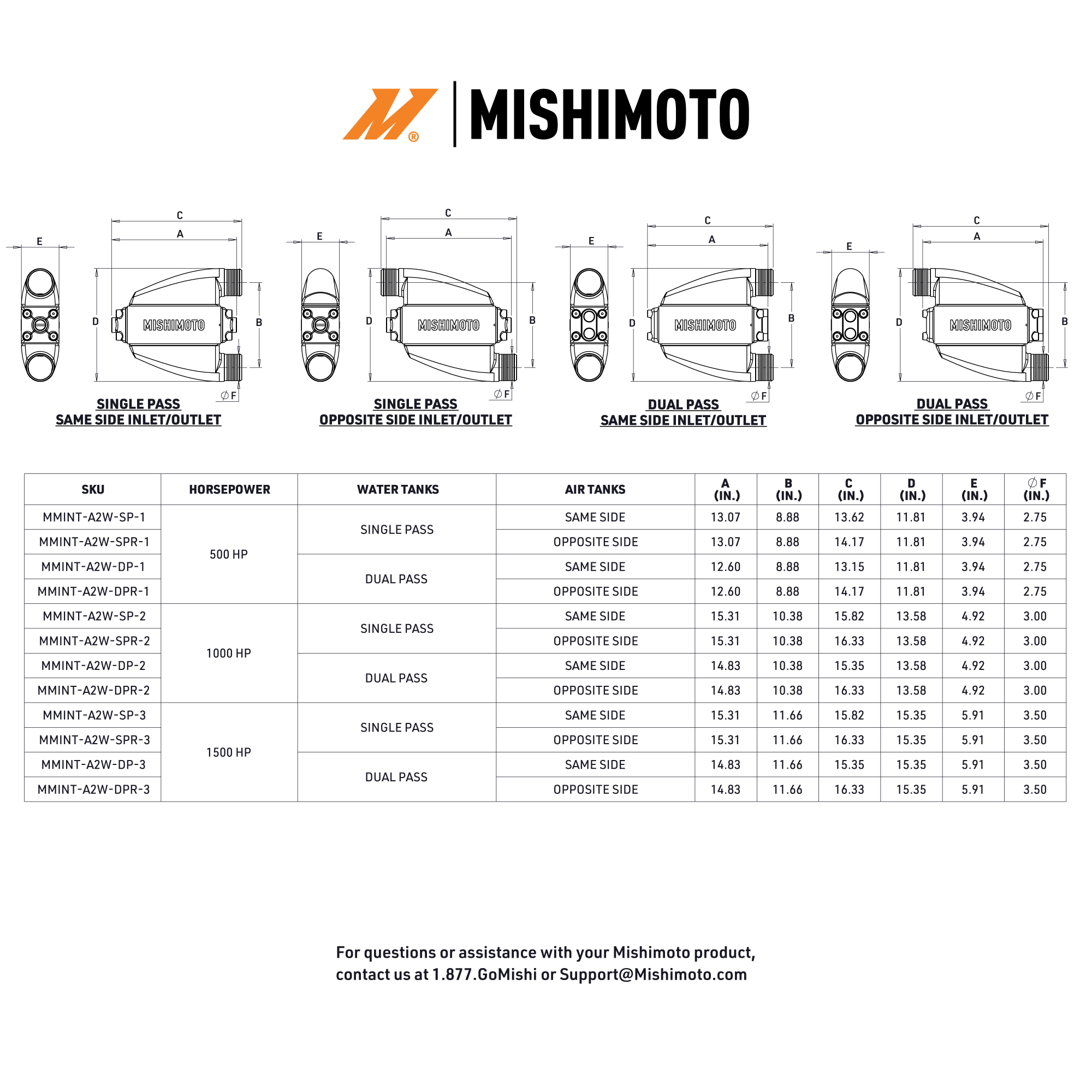

Specifications
- Brand: Mishimoto
- Part Number: MMINT-A2W-SPR-1
- Type: Bar-and-Plate
- Core Material: Aluminum
- Inlet Tank Material: Aluminum
- Overall Length: 14.13 in
- Overall Width: 3.93 in
- Overall Height: 9.25 in
- Core Height: 3.93 in
- Core Thickness: 3.93 in
- Core Length: 9.79 in
- Inlet Outside Diameter: 2.75 in
- Outlet Outside Diameter: 2.75 in
- Inlet Fitting Gender: Male
- Outlet Fitting Gender: Male
- Grade Type: Performance
- Universal or Specific Fit: Specific
- Configuration: 500HP – Opposite Side Inlet/Outlet
- Maximum Recommended Horsepower: 500
- Maximum Recommended Boost Pressure: 100 psi
Frequently Asked Questions
What is the maximum recommended horsepower for the Mishimoto MMINT-A2W-SPR-1 intercooler?
This intercooler configuration is rated for builds up to 500 horsepower.
What boost pressure can this intercooler handle?
It is built to a maximum recommended boost pressure of 100 psi, thanks to its TIG-welded cast-aluminum end tanks.
What type of core does this intercooler use?
It uses a bar-and-plate core constructed from aluminum.
What size are the inlet and outlet on this intercooler?
Both the inlet and outlet have a 2.75-in outside diameter with male fitting connections.
Does this intercooler include a mounting bracket?
Yes, it includes a sturdy 1/8-in thick steel mounting bracket and hardware.
What warranty does Mishimoto provide on this intercooler?
This intercooler is backed by the Mishimoto Lifetime Warranty.
