Description

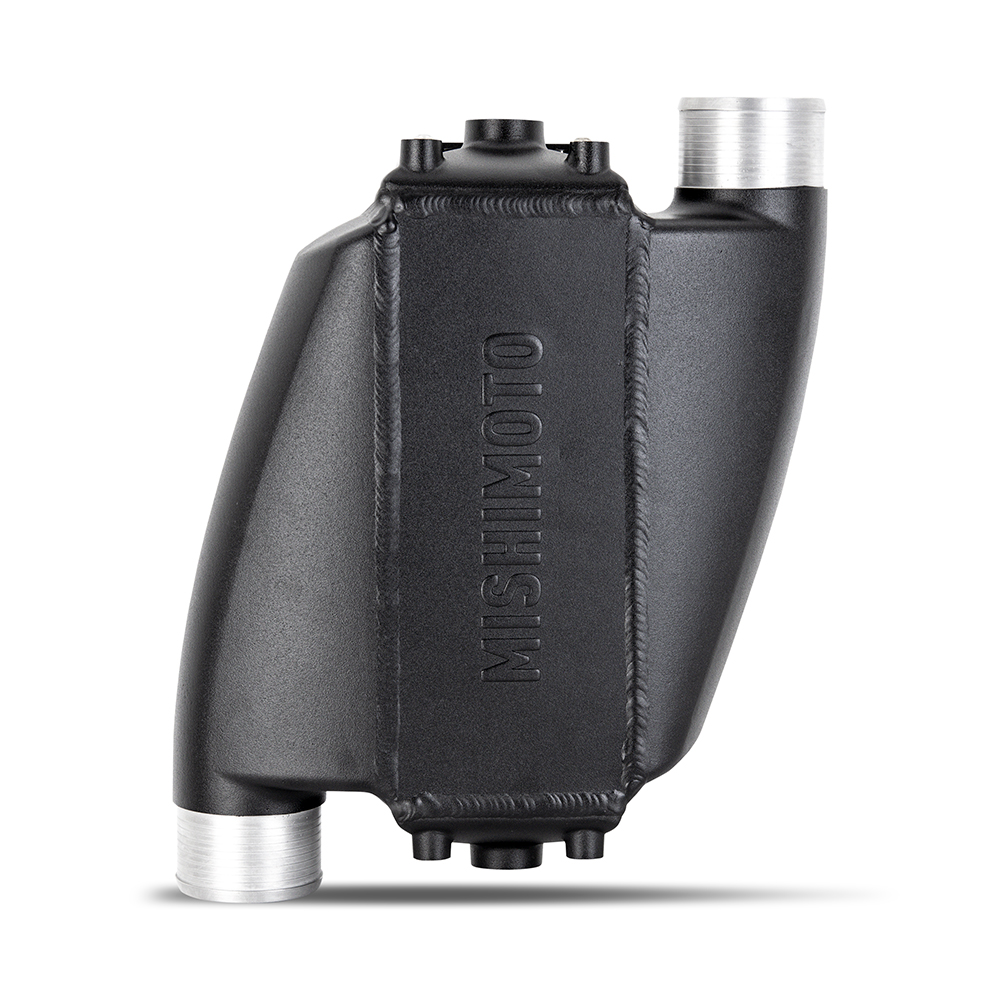

The Mishimoto MMINT-A2W-SPR-2 is a purpose-built air-to-water intercooler engineered for forced induction platforms that demand serious charge-air cooling without a bulky footprint. This specific configuration pairs a bar-and-plate core with an opposite-side inlet/outlet layout and is rated to support builds up to 1000 horsepower at up to 100 psi of boost. The cast-aluminum end tanks are custom engineered for airflow and are professionally TIG-welded directly to the core, giving this intercooler the strength to handle demanding forced induction system builds.
Air-to-water intercooling has become a popular route for compact, high-efficiency forced induction systems, and this Mishimoto unit brings that technology to your project in a package sized for tight engine bays. By pulling heat out of the charge air, this induction system helps reduce the effects of heat soak and detonation, supporting more consistent power output run after run. Whether you’re wiring up a forced induction turbo setup, developing a custom force induction package, or refining an existing performance induction platform, the 5mm-thick cast-aluminum end tanks and CNC-machined ribbed inlet/outlet couplers keep every connection secure, while the ORB coolant ports and included 1/8-inch thick steel mounting bracket simplify installation. Mishimoto offers this core in additional sizes and coolant-flow configurations, so builders can select the exact combination their forced induction turbo or induction engine project requires.
Vehicle Applications
This Mishimoto air-to-water intercooler is designed as a component for custom forced induction installations rather than a specific factory application. No vehicle-specific fitment data is provided for this configuration, making it a flexible core for builders integrating air-to-water charge cooling into custom turbo systems, engine swaps, or other aftermarket forced induction projects where a compact, high-capacity intercooler is needed.
Features
- Highly efficient air-to-water design delivers effective cooling in a compact package
- Bar-and-plate core construction provides durability and efficient cooling for builds up to 1500hp
- Cast-aluminum end tanks are custom engineered for superb airflow and are TIG-welded to the core for a pressure tolerance up to 100 psi of boost
- CNC-machined ribbed inlet/outlet couplers ensure maximum grip between couplers and piping

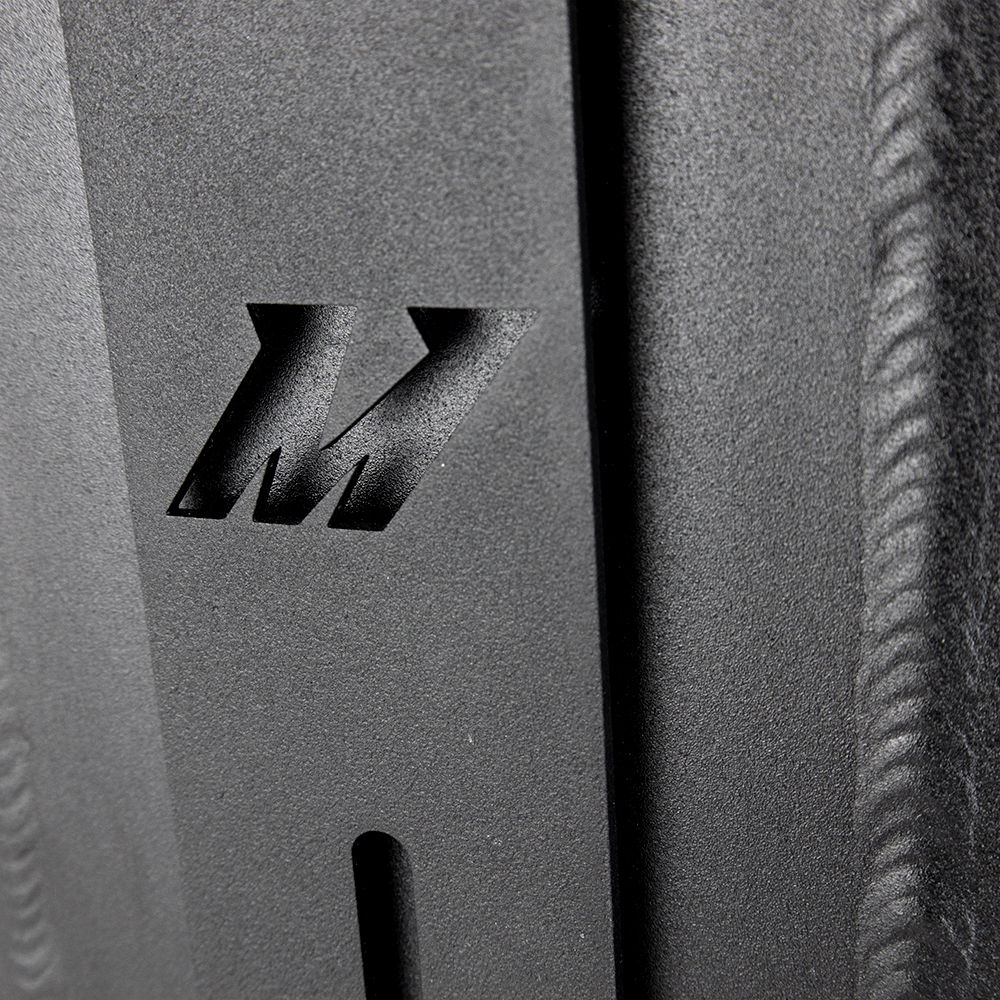

- Sleek, durable micro-wrinkle black powder coat finish

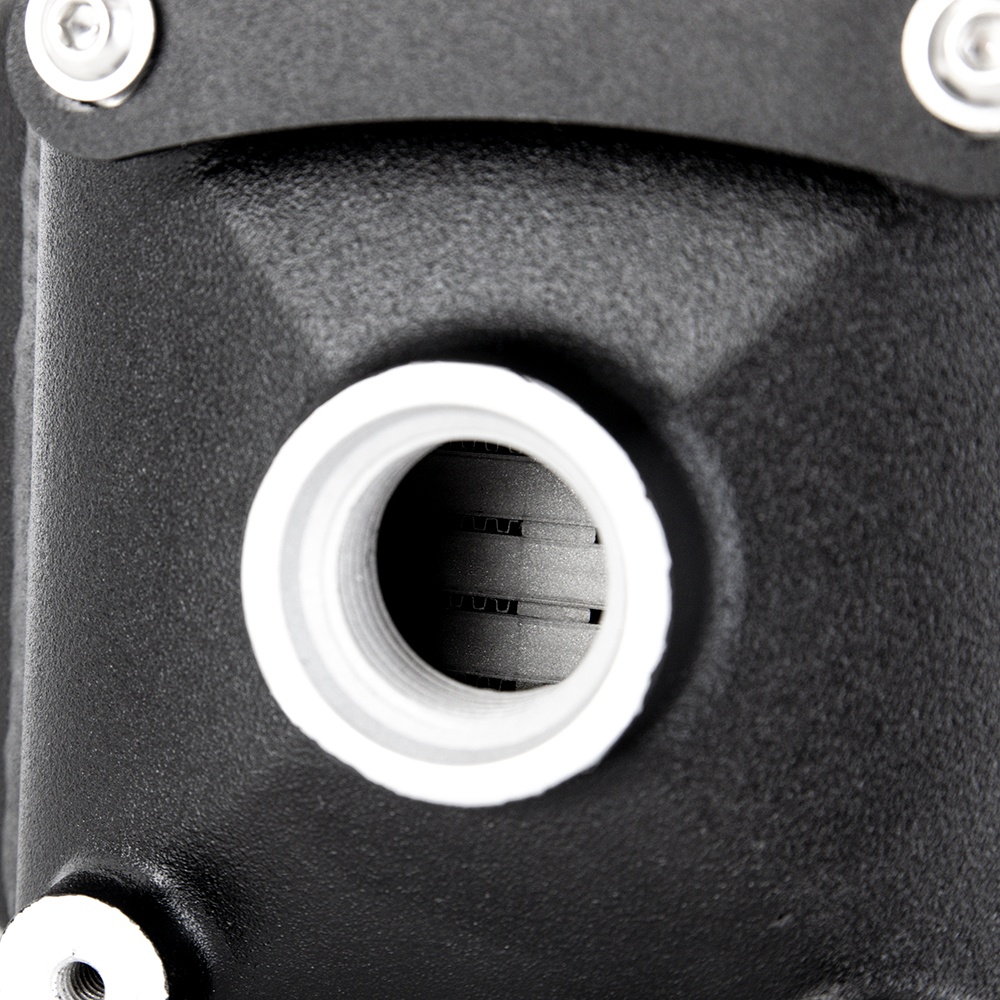

- ORB coolant ports built into the core, adaptable with Mishimoto’s ORB Aluminum Fitting selection for leak-free line connections

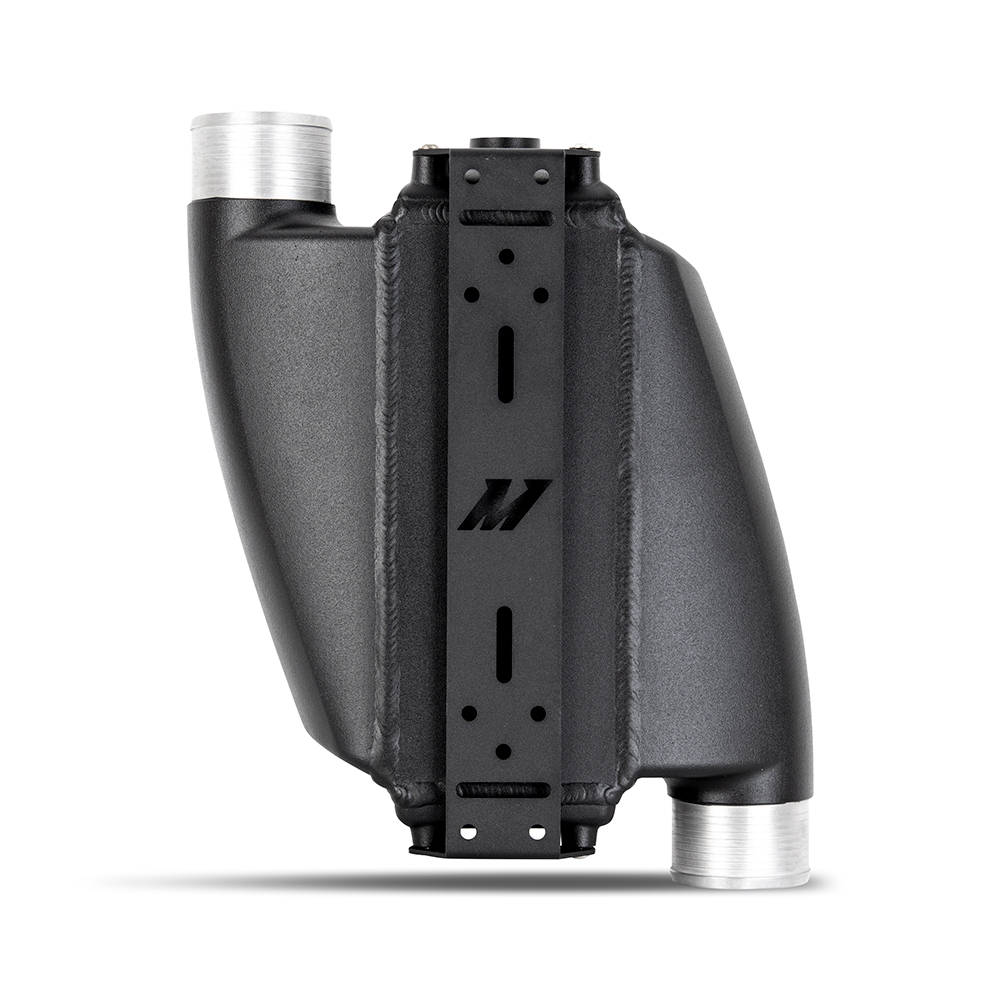

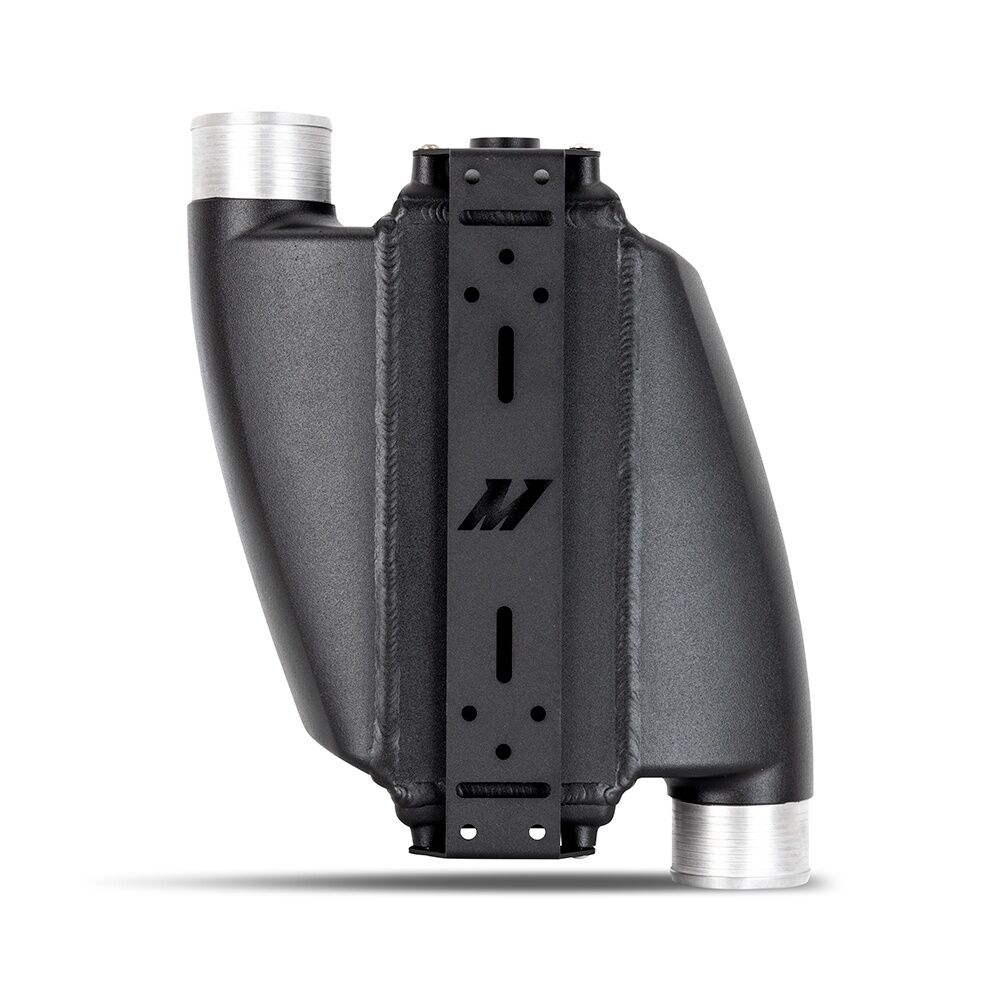

- Includes a sturdy 1/8-inch thick steel universal mounting bracket and hardware
- Available in multiple core sizes, end tank configurations, and single- or dual-pass coolant flow
- Backed by the Mishimoto Lifetime Warranty

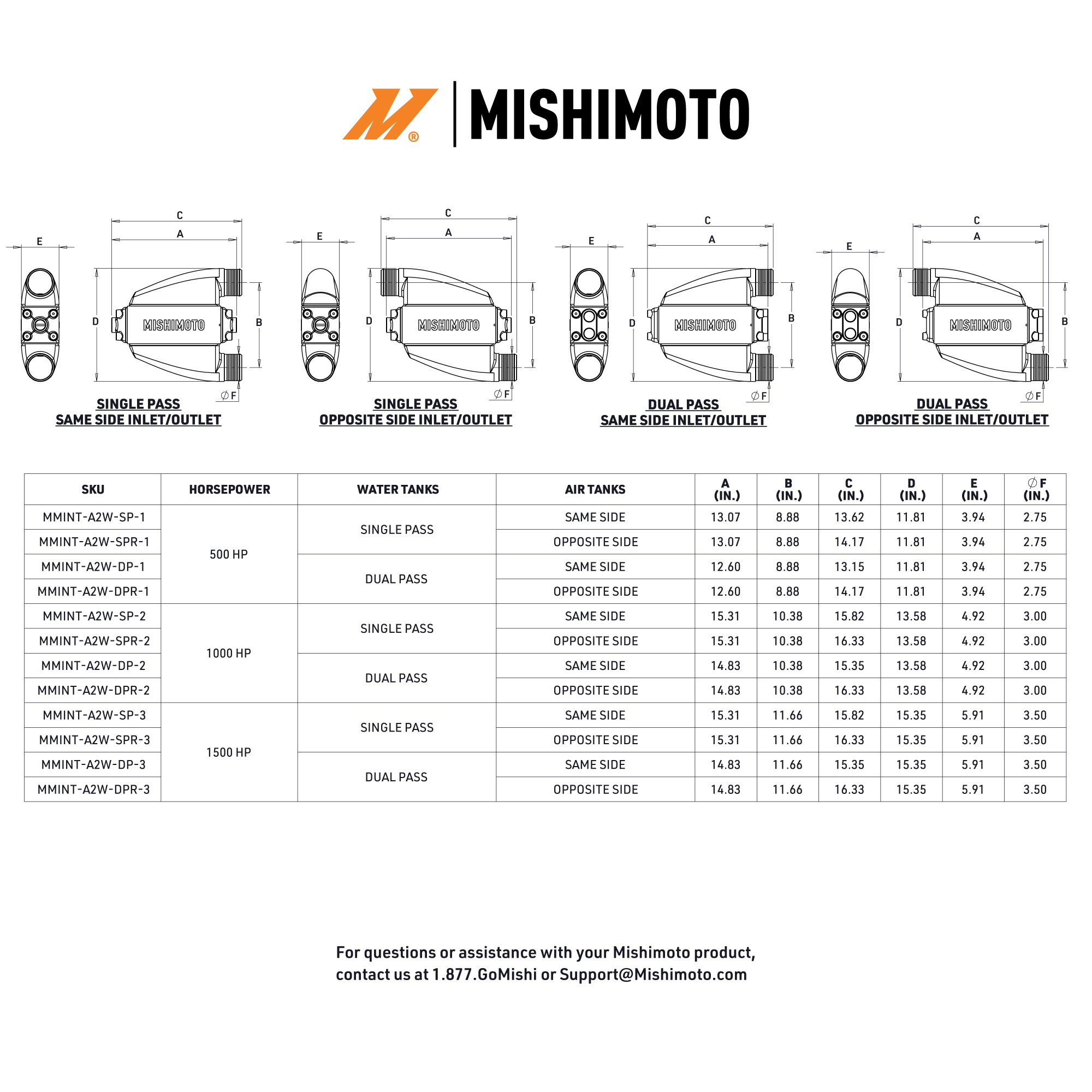

Specifications
- Brand: Mishimoto
- Part Number: MMINT-A2W-SPR-2
- Type: Bar-and-Plate
- Core Material: Aluminum
- Inlet Tank Material: Aluminum
- Core Length: 12 in
- Core Height: 4.92 in
- Core Thickness: 4.92 in
- Overall Length: 14.13 in
- Overall Width: 4.92 in
- Overall Height: 10.75 in
- Grade Type: Performance
- Inlet Fitting Gender: Male
- Outlet Fitting Gender: Male
- Configuration: 1000HP – Opposite Side Inlet/Outlet
- Maximum Recommended Horsepower: 1000
- Maximum Recommended Boost Pressure: 100 psi
Frequently Asked Questions
What is the maximum horsepower this Mishimoto intercooler is rated for?
This configuration, part number MMINT-A2W-SPR-2, is rated to support builds up to 1000 horsepower.
What is the maximum boost pressure this intercooler can handle?
It is rated for up to 100 psi of boost pressure.
What type of core does this intercooler use?
It uses a bar-and-plate core construction.
What material are the end tanks made from, and how are they attached to the core?
The end tanks are cast aluminum and are professionally TIG-welded to the core.
Does this intercooler include a mounting bracket?
Yes, it includes a sturdy 1/8-inch thick steel universal mounting bracket and hardware.
Is this Mishimoto intercooler covered by a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
