Description

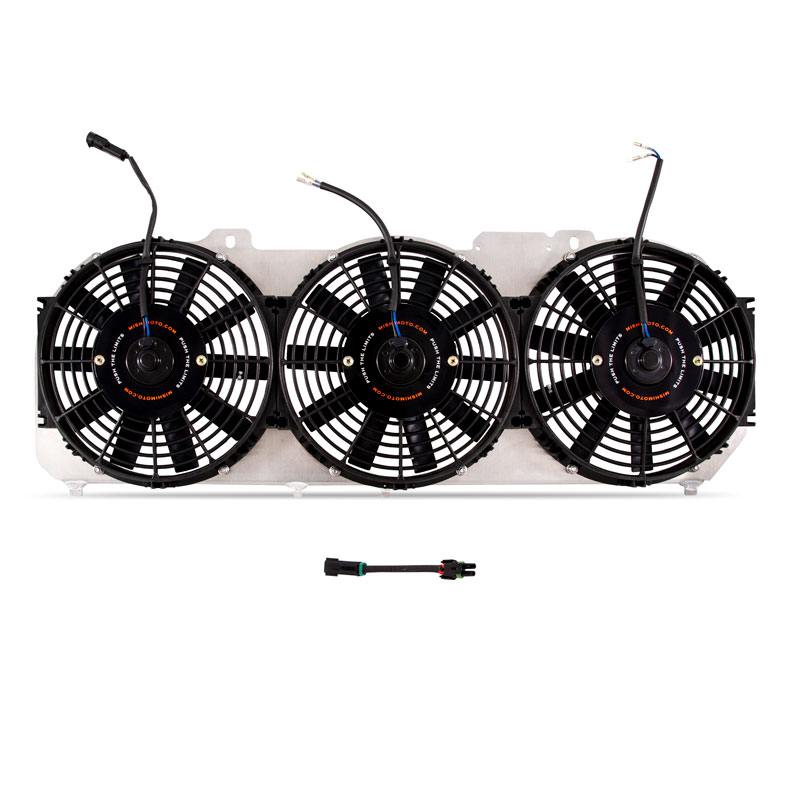

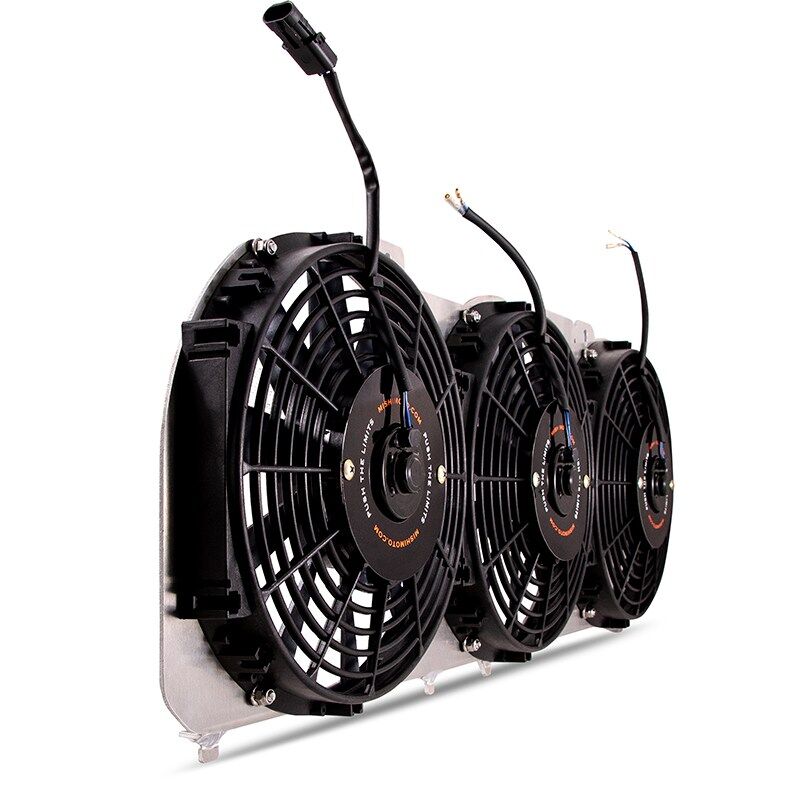

The Mishimoto Performance Aluminum Fan Shroud (MMFS-XJ-89K) is a direct-fit replacement for the outdated engine-driven fan on the 1989-2001 Jeep Cherokee XJ 4.0L. In place of the heavy mechanical fan, this lightweight aluminum shroud houses three Mishimoto high-flow 10-inch electric slim fans, each moving a constant 950 CFM no matter what the engine is doing. One fan takes over stock A/C fan duty while the other two are dedicated to cooling the radiator, giving your XJ’s cooling system a serious upgrade for trail duty or daily driving.
Because the stock fan is powered off the engine, its airflow drops off whenever engine speed drops, exactly when you’re crawling rocks or climbing muddy hills at low RPM. The Mishimoto fan shroud solves that by delivering steady, engine-speed-independent airflow while also eliminating the drag and rotating mass of the mechanical fan, freeing up horsepower and torque instead of spending it spinning a fan. In Mishimoto’s own testing, this fan shroud moved 41.9-percent more air than the stock fan shroud at idle and 22-percent more than the stock fans at 2,500 RPM. The lightweight aluminum shroud also covers more of the radiator core than the factory shroud, so the entire radiator benefits from the added airflow, and it fits with either the stock radiator or a Mishimoto radiator. An included A/C fan jumper harness keeps A/C function proper on 1997-2001 models, and the fans can be run off a manual switch (sold separately) or the optional Mishimoto adjustable fan controller, which mounts right on the shroud and can trigger the fans anywhere from 150F to 240F.
Vehicle Applications
This fan shroud is built specifically for the 1989-2001 Jeep Cherokee XJ 4.0L and covers a wide span of XJ trims across those model years. That includes the Cherokee Base from 1987-1994, Briarwood from 1991-1992, Chief from 1987-1988, Classic in 1996 and 1998-2001, Country from 1993-1997, Laredo from 1987-1992, Limited from 1987-1992 and again in 1998-2001, Pioneer from 1987-1990, SE from 1994-2001, and Sport from 1989-2001. If your XJ falls within these production years and trims, this shroud and fan package is engineered to bolt into place.
Features
- Direct-fit for 1989-2001 Jeep Cherokee XJ w/ 4.0L engine
- Fits with stock and Mishimoto Radiator
- Includes three Mishimoto high-flow 10-in slim fans, each flowing 950 CFM
- Available in polished, powder coated black, or powder coated gold finishes
- Increases airflow through the radiator by 41.9-percent over stock at idle
- Eliminates heavy mechanical fan to improve low-speed airflow, reduce rotating mass, and free up power
- Lightweight aluminum shroud improves airflow coverage across the radiator core
- Retains stock A/C fan control for proper A/C function
- Includes A/C fan jumper to connect Mishimoto fan to 1997-2001 models

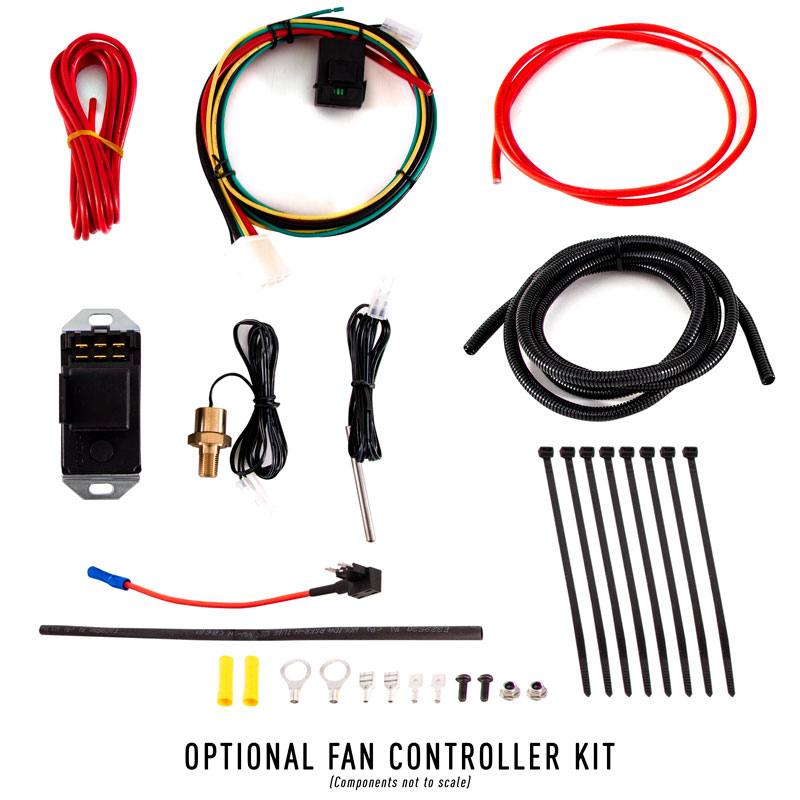

- Available fan controller features adjustable activation temperature and includes wiring harness, NPT temperature sensor, and probe temperature sensor
- Durable scratch-resistant powder coated finish provides unique engine bay styling
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMFS-XJ-89K
- Material: Plastic / Aluminum
- Finish: Uncoated (also available Polished, or with Fan Controller)
- Fan Quantity: 3
- Fan Diameter: 10 in
- CFM (Each Fan): 950
- Universal or Specific Fit: Specific
- Applications: 1989-2001 Jeep Cherokee XJ 4.0L
- Includes: (1) Mishimoto Fan Shroud, (3) Mishimoto High-Flow 10-in Slim Electric Fans, (1) Jumper Harness for 1997-2001 Models, Foam Weather Strip, Mishimoto Lifetime Warranty
- Optional Fan Controller: Mishimoto MMFAN-CNTL-U, includes both NPT and Probe type sensors
Frequently Asked Questions
What vehicles does the Mishimoto MMFS-XJ-89K fan shroud fit?
It is a direct fit for the 1989-2001 Jeep Cherokee XJ 4.0L, covering trims including Base (1987-1994), Briarwood (1991-1992), Chief (1987-1988), Classic (1996, 1998-2001), Country (1993-1997), Laredo (1987-1992), Limited (1987-1992, 1998-2001), Pioneer (1987-1990), SE (1994-2001), and Sport (1989-2001).
How much air do the fans move?
Each of the three Mishimoto high-flow 10-inch slim electric fans moves a constant 950 CFM regardless of engine speed.
How much better is airflow compared to the stock fan?
In Mishimoto’s testing, the fan shroud moved air 41.9-percent better than the stock fan shroud at idle and 22-percent better than the stock fans at 2,500 RPM.
Will the A/C still work with this fan shroud installed?
Yes, one of the three fans replaces the stock A/C fan, and an included A/C fan jumper harness ensures proper A/C function on 1997-2001 models.
How are the fans activated?
The fans can be activated manually with a switch (sold separately) or with Mishimoto’s available adjustable fan controller, which mounts on the shroud and can be set to activate the fans anywhere from 150F to 240F.
Does this fan shroud work with the stock radiator?
Yes, the shroud fits with both the stock radiator and a Mishimoto radiator.
