Description
The Mishimoto MMICP-BR23-21USP is a direct-fit, polished aluminum intercooler pipe upgrade kit engineered specifically for the 2021-2024 Ford Bronco 2.3L EcoBoost. Unlike a standalone pipe kit, this system is purpose-built as a companion piece for customers who already run the Mishimoto Stock Location Performance Intercooler and want to complete the full Mishimoto charge air system. It is not compatible with the factory Bronco intercooler—Bronco owners keeping the factory core should instead look at Mishimoto part number MMICP-BR23-21.

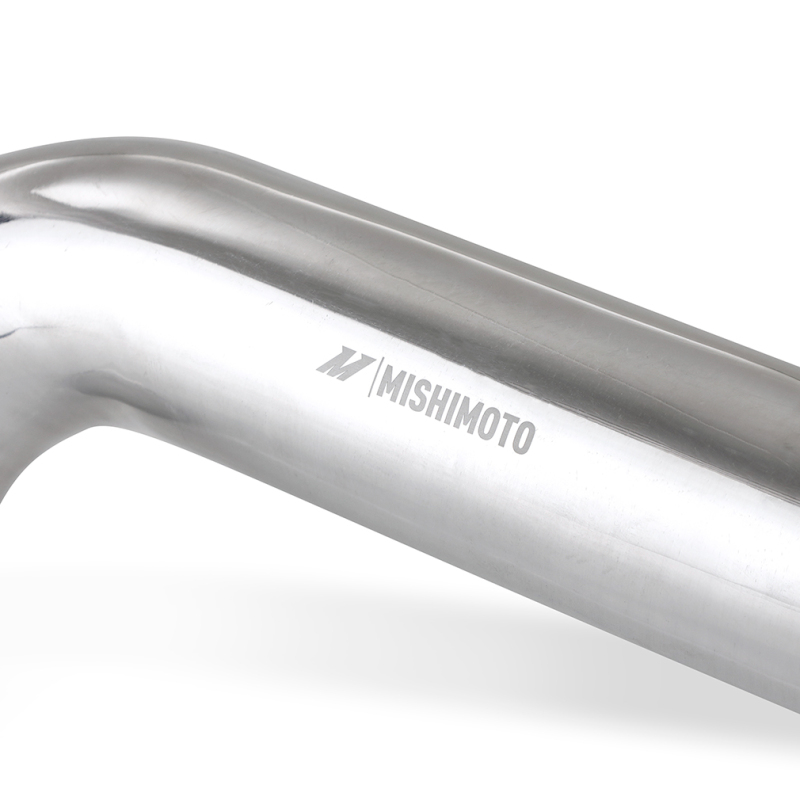

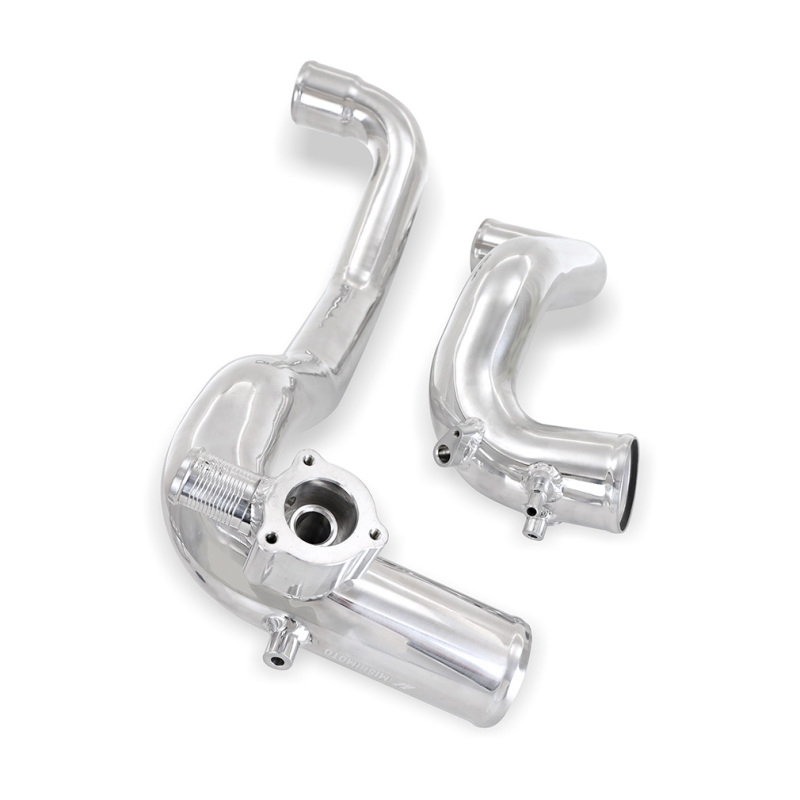

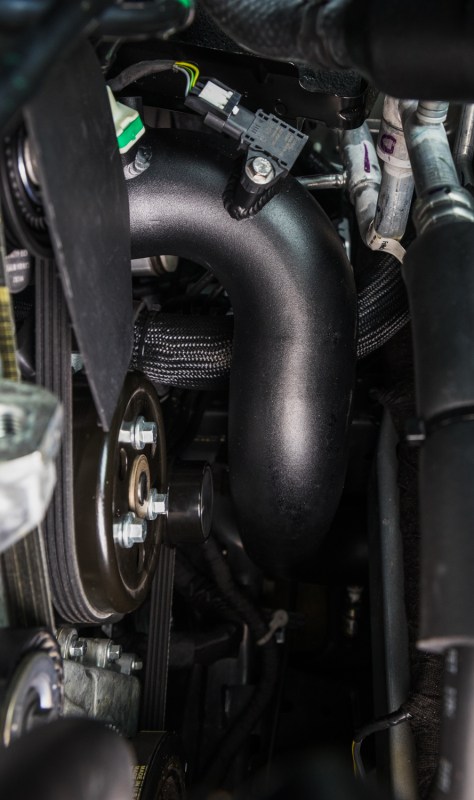

This forced induction upgrade replaces the factory plastic charge piping with mandrel-bent, high-flowing aluminum pipes and Mishimoto DuraCore silicone boots, addressing one of the more common weak points in the stock induction system. Mishimoto states this piping flows up to 61-percent better than stock and is up to 60-percent less restrictive, letting the 2.3L EcoBoost turbo breathe more freely across daily driving, commuting, and off-road trailblazing alike. CNC-machined aluminum intercooler outlets provide unrestricted flow from the pipes into the intercooler core, while a cold-side pipe includes an additional 1/8-NPT port for methanol injection or extra sensor placement—useful for owners building out a broader performance induction setup. Constant-tension worm gear clamps keep the DuraCore boots sealed tight as they expand and contract under boost, helping ensure consistent power delivery through the forced induction system.
Vehicle Applications
This Mishimoto intercooler pipe kit is designed for the 2021-2024 Ford Bronco 2.3L EcoBoost (chassis code U725) and fits a broad range of Bronco trims: the Badlands, Big Bend, and Outer Banks trims are covered for 2021-2026, the Base trim for 2021-2023 and 2025-2026, the Black Diamond trim for 2021-2024, the Everglades trim for 2022-2025, and the Heritage Edition for 2023-2026. Installation requires that the Mishimoto Stock Location Performance Intercooler is already in place, as this pipe kit will not fit the factory Bronco intercooler.
Features
- Direct fit for 2021-2024 Ford Bronco 2.3L EcoBoost equipped with the Mishimoto Stock Location Intercooler
- Up to 60-percent less restrictive than stock piping, flowing up to 61-percent better for improved forced induction performance

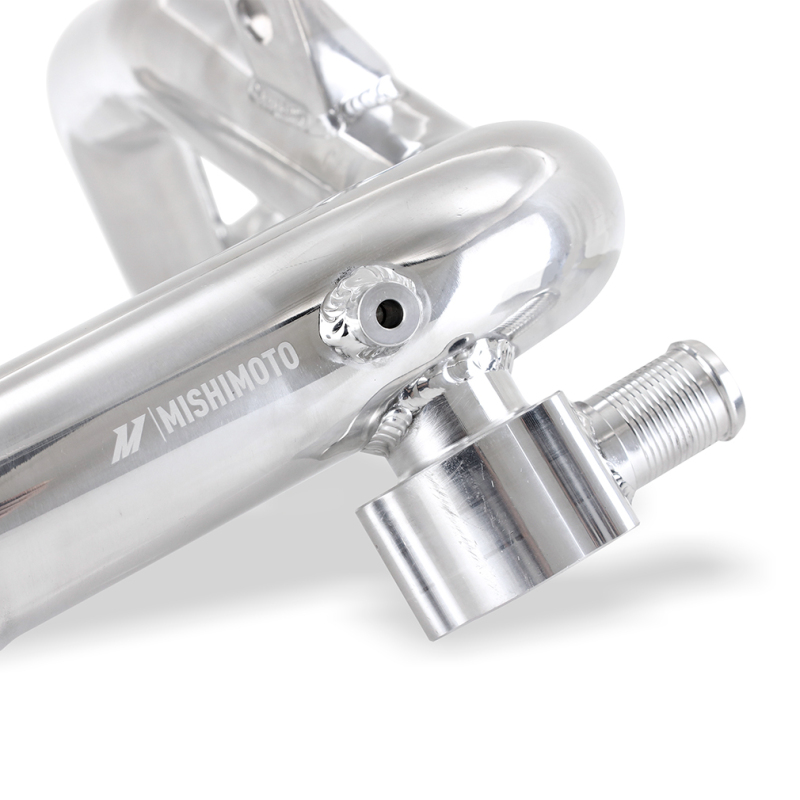

- CNC-machined aluminum intercooler outlets for unrestricted flow from piping to the intercooler

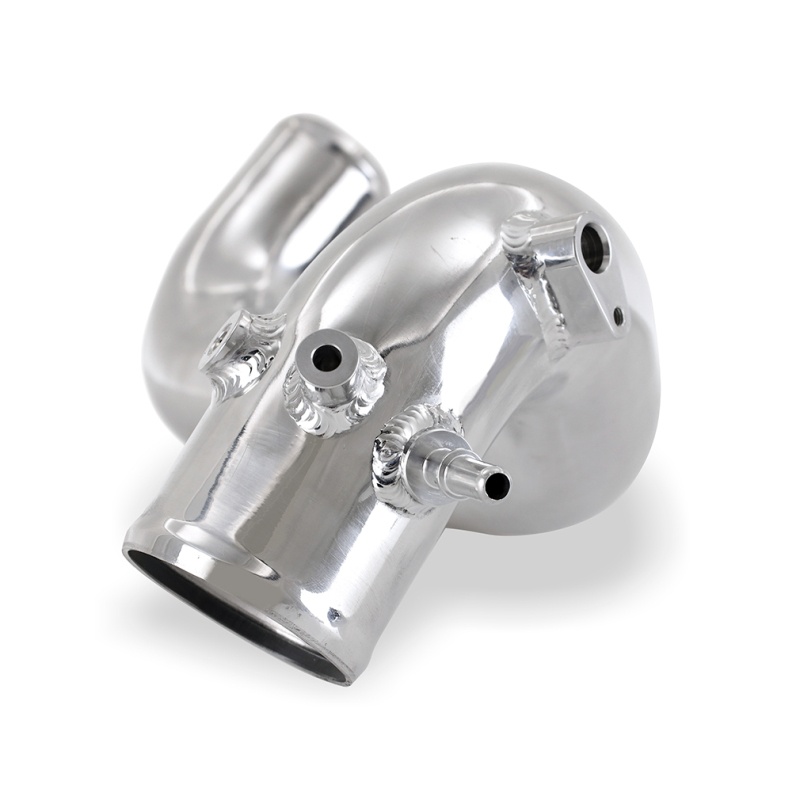

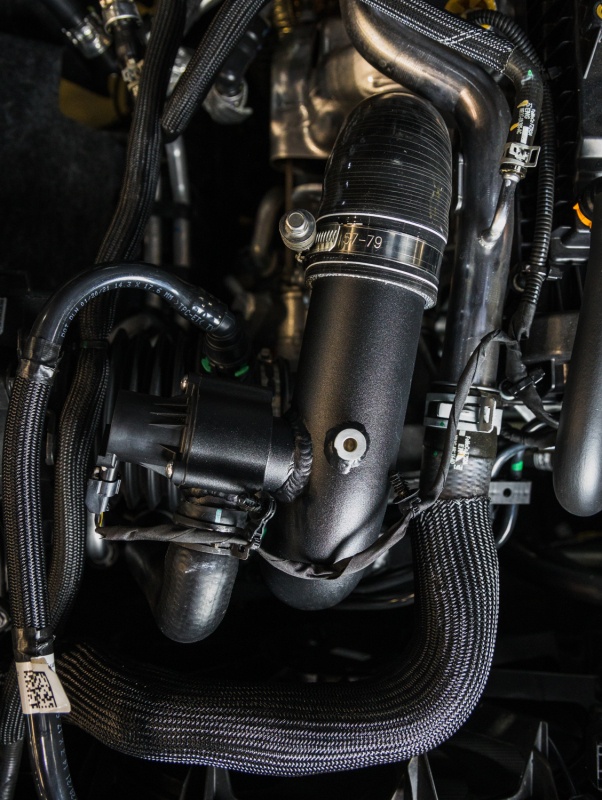

- Additional 1/8-NPT port on the cold-side pipe for methanol injection or additional sensors

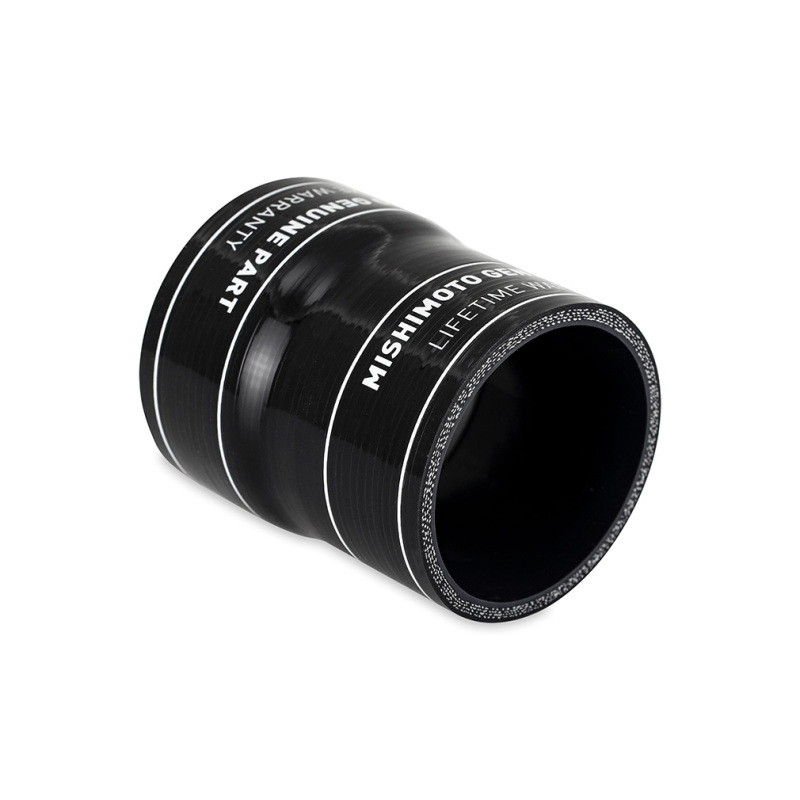

- Mishimoto silicone boots with DuraCore technology for resistance to heat, pressure, fuel, and oil
- Constant-tension worm gear clamps maintain a strong seal as pipes and boots expand and contract
- Available in a polished aluminum finish
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMICP-BR23-21USP
- Product Type: Forced Induction
- Applications: Ford Bronco 2.3L L4, 2021-2024
- Engine Codes: 2.3L EcoBoost
- Chassis Codes: U725
- Pipe Material: Aluminum
- Pipe Finish/Color: Polished
- Pipe Bend Type: Mandrel
- Coupler Material: Silicone (DuraCore)
- Coupler Color: Black
- Clamp Type: Worm Gear
- Clamps Included: Yes

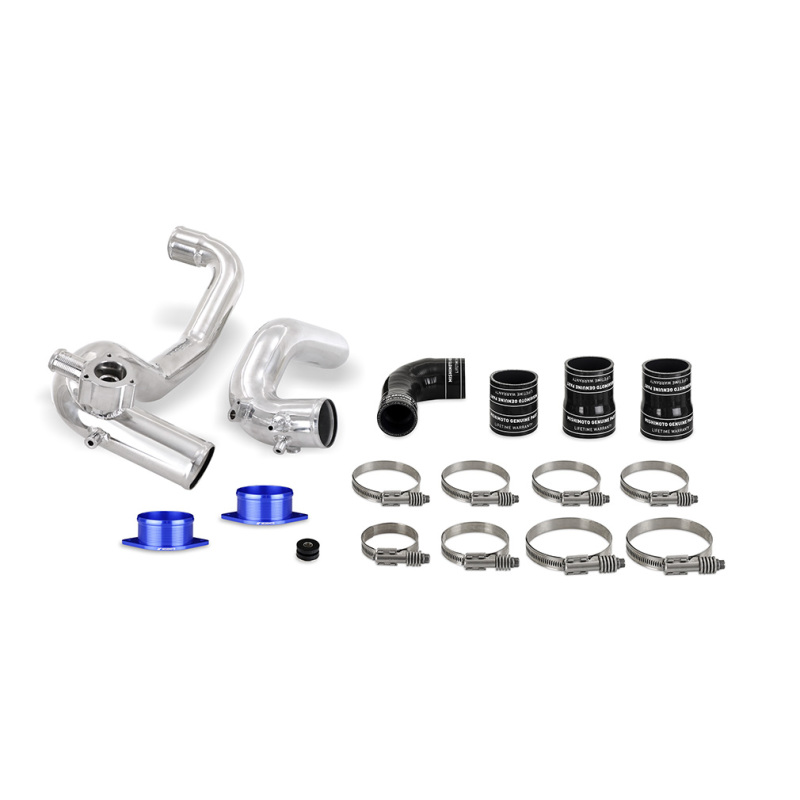

- Kit Includes: (1) Hot-side pipe, (1) Cold-side pipe, (4) DuraCore intercooler pipe couplers, (2) CNC quick-disconnects, (8) constant-tension worm gear clamps, mounting hardware, Mishimoto Lifetime Warranty
- Installation Note: 22 in-lbs (2.5 N-M) recommended torque for all worm-gear clamps; operating range 18-27 in-lbs (2-3 N-M); do not exceed 27 in-lbs (3 N-M) maximum
- Compatibility Note: Intended as an upgrade for use with the Mishimoto Stock Location Performance Intercooler; will not fit the factory Bronco intercooler (use part number MMICP-BR23-21 for factory intercooler applications)
Frequently Asked Questions
Does this Mishimoto pipe kit fit the factory Ford Bronco intercooler?
No. This kit is intended as an upgrade for use with the Mishimoto Stock Location Performance Intercooler and will not fit with the factory Bronco intercooler. To use the factory intercooler, Mishimoto offers part number MMICP-BR23-21 instead.
What vehicles does the MMICP-BR23-21USP intercooler pipe kit fit?
It fits the 2021-2024 Ford Bronco 2.3L EcoBoost (chassis code U725), covering the Badlands, Big Bend, and Outer Banks trims for 2021-2026, the Base trim for 2021-2023 and 2025-2026, the Black Diamond trim for 2021-2024, the Everglades trim for 2022-2025, and the Heritage Edition for 2023-2026.
What materials are used in this intercooler pipe kit?
The pipes are made from aluminum with a polished finish, while the couplers are made from black silicone using Mishimoto’s DuraCore technology. Clamps included are constant-tension worm gear clamps.
How much does this pipe kit improve airflow over the stock piping?
According to Mishimoto, the pipes flow up to 61-percent better than the stock plastic piping and are up to 60-percent less restrictive, allowing the 2.3L EcoBoost turbo to breathe more freely.
What is included in the Mishimoto MMICP-BR23-21USP kit?
The kit includes one hot-side pipe, one cold-side pipe, four DuraCore intercooler pipe couplers, two CNC quick-disconnects, eight constant-tension worm gear clamps, mounting hardware, and the Mishimoto Lifetime Warranty.
What torque should be used on the worm gear clamps during installation?
Mishimoto recommends 22 in-lbs (2.5 N-M) of torque for all worm-gear clamps, with an operating range of 18-27 in-lbs (2-3 N-M). Do not exceed the maximum torque rating of 27 in-lbs (3 N-M).
