Description

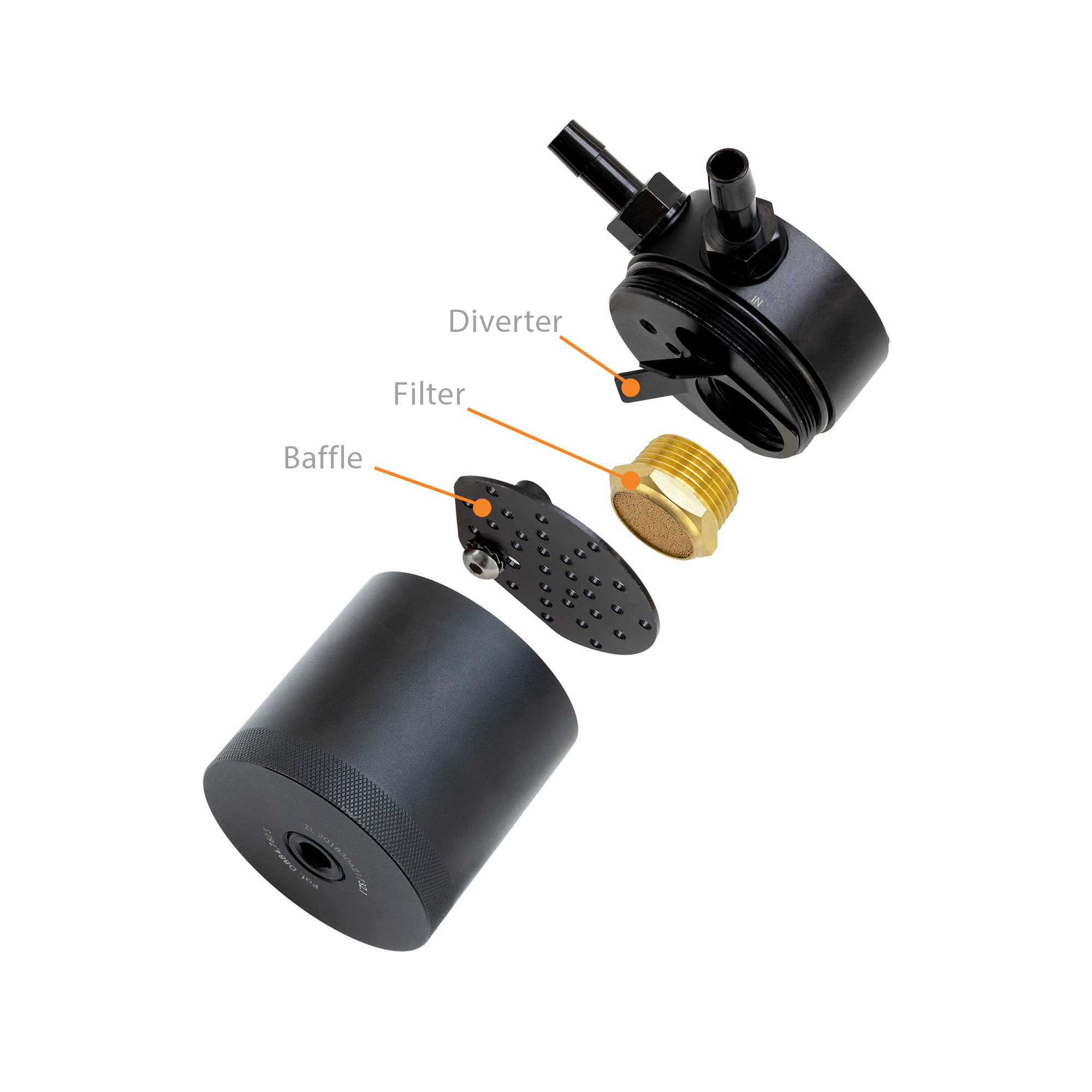

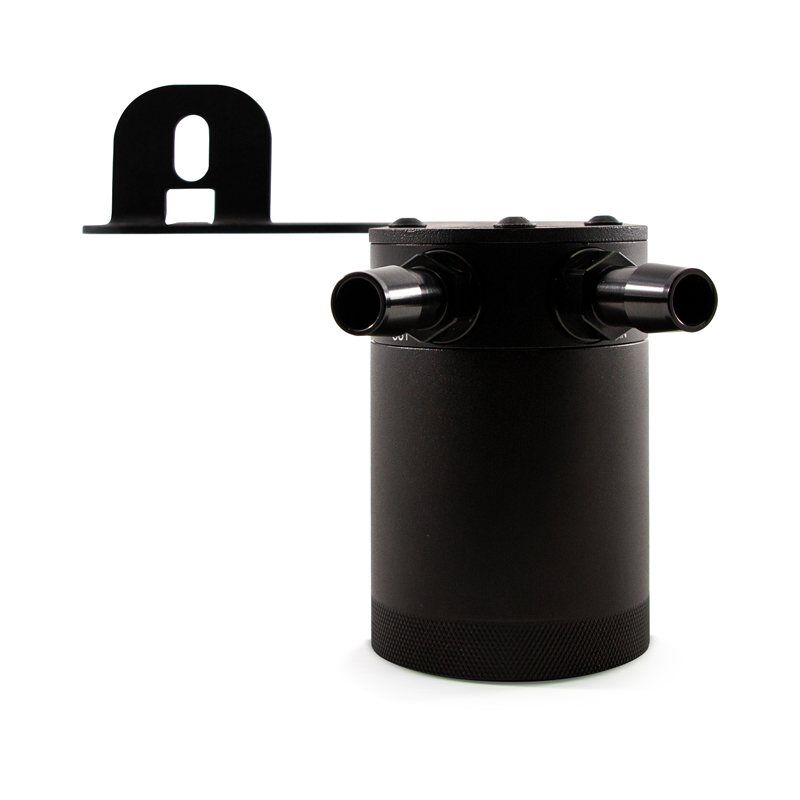

The Mishimoto MMBCC-CSS-10APBE is a direct-fit, automatic-Camaro baffled oil catch can engineered around the L99 engine found in the 5th Gen Camaro SS. Machined from 6061-T6 billet aluminum and finished in black anodized trim, this twist-off catch can uses an internal baffle and air diverter to slow incoming air and condense oil and fuel vapors before they can reach a 50-micron bronze filter at the outlet. Unlike heated air-oil-separator systems that drain blow-by back into the oil pan, this Mishimoto can traps blow-by permanently and keeps it out of the engine.
Every car engine produces blow-by as oil, fuel, and combustion by-products slip past the piston rings, and on a boosted or high-output car engine those vapors can quickly find their way into the intake, robbing components of automobile engine efficiency and power. This catch can kit addresses that weak point among the many parts of a car engine by capturing contaminated vapor before it recirculates, helping maintain proper octane levels and protecting sensitive engine parts for car owners who care about long-term performance. Because the can is unheated, it condenses low-octane oil vapor and contaminated fuel vapor from automobile combustion that lighter, heated systems often let pass, making it a meaningful upgrade among aftermarket car engine parts for Camaro owners.
Vehicle Applications
This Mishimoto catch can kit is built to fit the Chevrolet Camaro LS, LT, and SS from 2010 through 2015, the Chevrolet Camaro Z/28 from 2014 through 2015, and the Chevrolet Camaro ZL1 from 2012 through 2015. The mounting bracket is custom designed for these Camaro platforms so the can installs without drilling or cutting, and direct-fit lines with quick-disconnect fittings mate the can to the factory Chevrolet PCV system for a clean, application-specific fit.
Features
- Single can mounts in line with the PCV system, separating oil from air using a 50-micron bronze filter

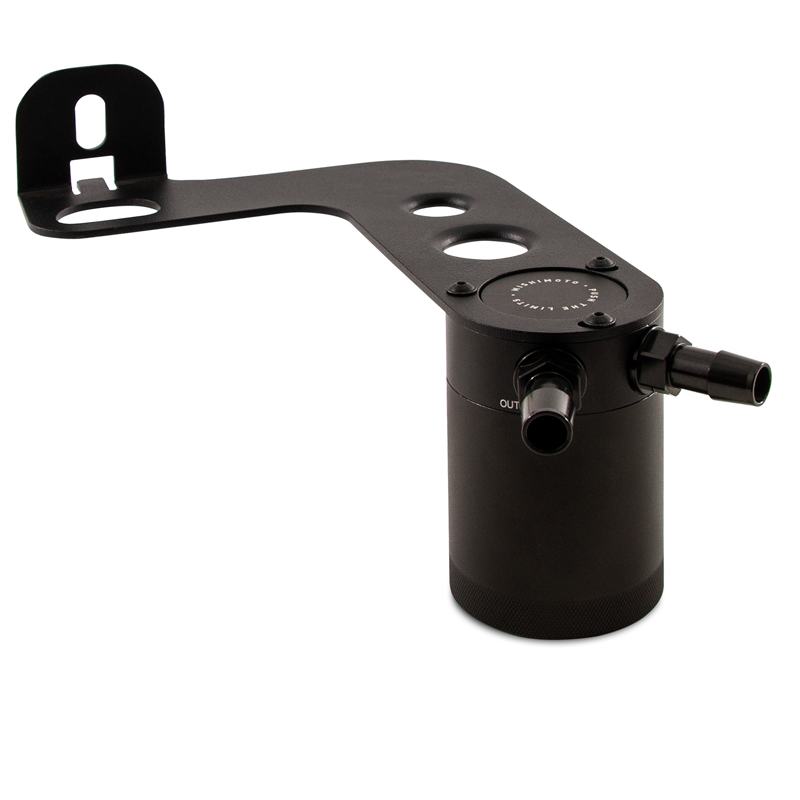

- Robust, application-specific bracket mounts the can in a serviceable location away from most intake and supercharger kits
- Works in conjunction with the stock air/oil separator to deliver additional protection for the engine
- 2 oz. catch can capacity for longer servicing intervals

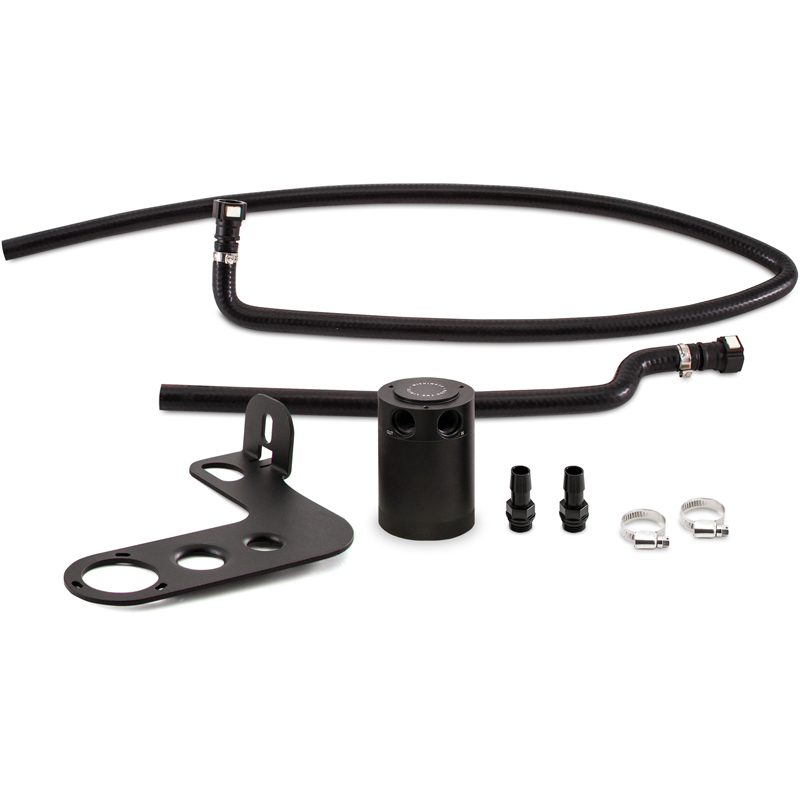

- Silicone hoses include pre-attached, stock-style quick-disconnect fittings for a plug-and-play install
- Defends the intake system and essential components from oil blow-by
- Helps maintain proper octane levels to reduce potential detonation
- Billet 6061 aluminum sealed can is fully serviceable

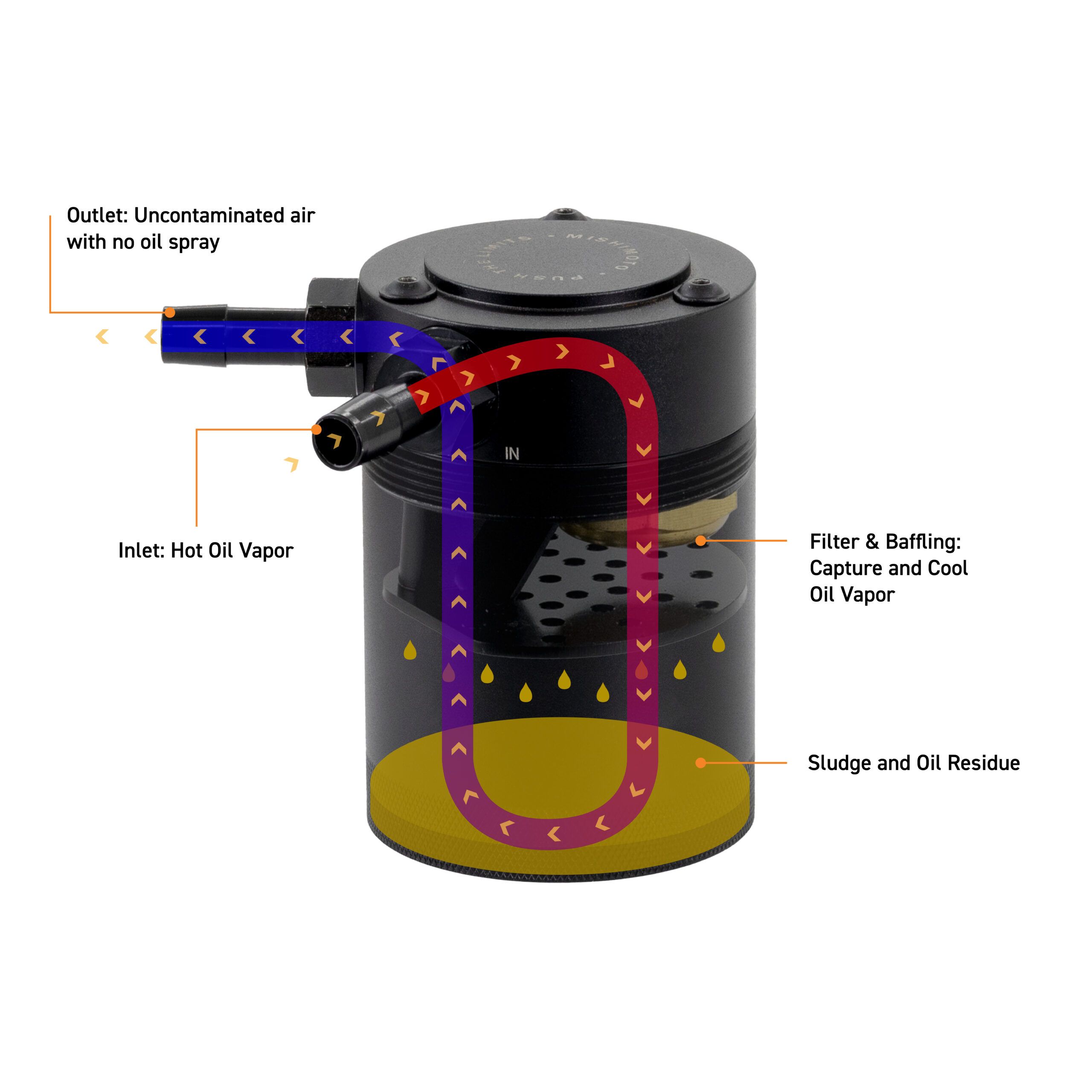

- Internal air diverter increases air turbulence to improve oil separation
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Color: Black
- Height: 3.7 in
- Mounting Bracket Included: Yes
- Finish: Powdercoated
- Hose Included: Yes
- Outlet Port Inside Diameter: 0.6 in
- Inlet Port Inside Diameter: 0.6 in
- Drain Plug Included: Yes
- Interior Baffle: Yes
- Can Material: 6061-T6 Billet Aluminum

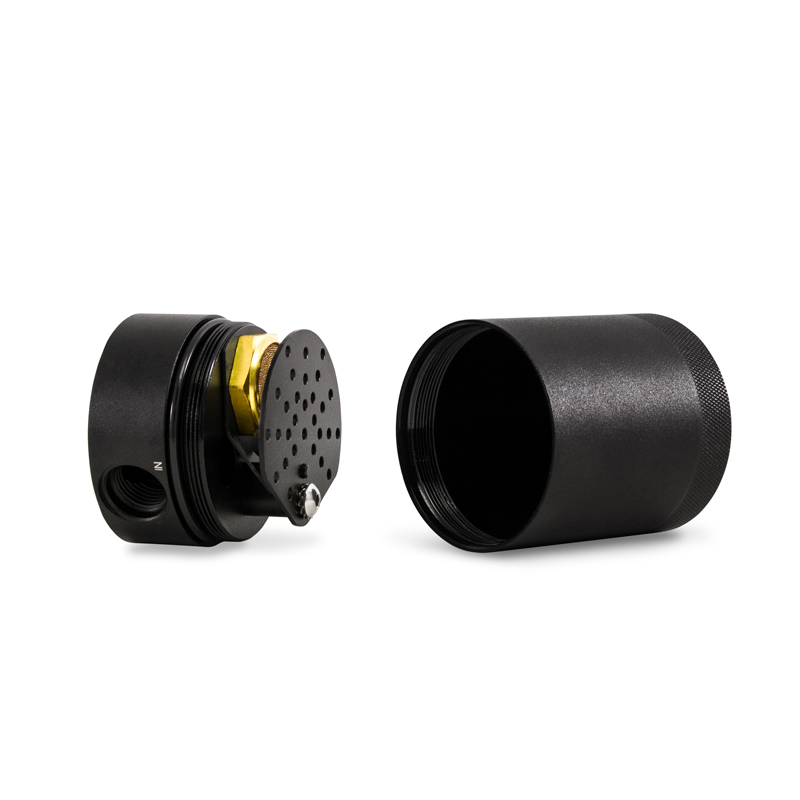

- Can Type: Twist Off
- Can Outside Diameter: 2.5 in
- Can Finish: Anodized
- Bracket Material: 6061 Aluminum
- Maximum Can Capacity: 2 oz.
Frequently Asked Questions
Which Camaro models does this Mishimoto catch can fit?
It is a direct fit for the Chevrolet Camaro LS, LT, and SS from 2010 through 2015, the Chevrolet Camaro Z/28 from 2014 through 2015, and the Chevrolet Camaro ZL1 from 2012 through 2015.
What filtration does the catch can use?
The catch can outlet uses a 50-micron bronze filter to help prevent blow-by from escaping back into the intake.
Does installation require drilling or cutting?
No. The mounting bracket is custom designed to fit the Camaro without any drilling or cutting, and direct-fit lines with quick-disconnect fittings mate the can to the factory Chevrolet PCV system.
What is the capacity of the catch can?
The catch can has a 2 oz. capacity, designed for longer servicing intervals.
What material is the catch can made from, and what is the finish?
The can is made from 6061-T6 billet aluminum with an anodized finish; the mounting bracket is made from 6061 aluminum with a powdercoated finish.
Does this catch can kit include a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
