Description

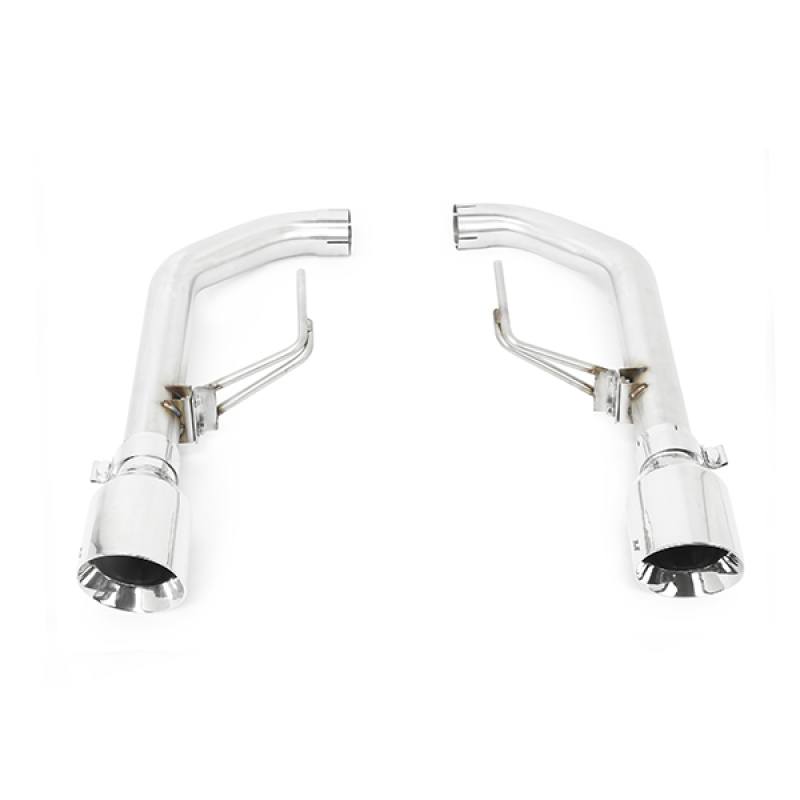

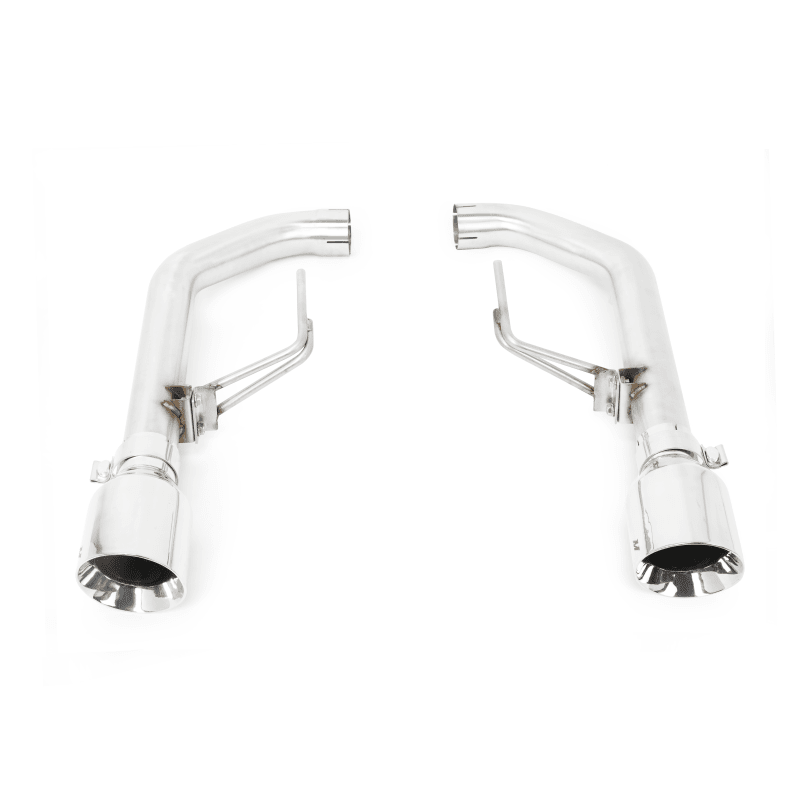

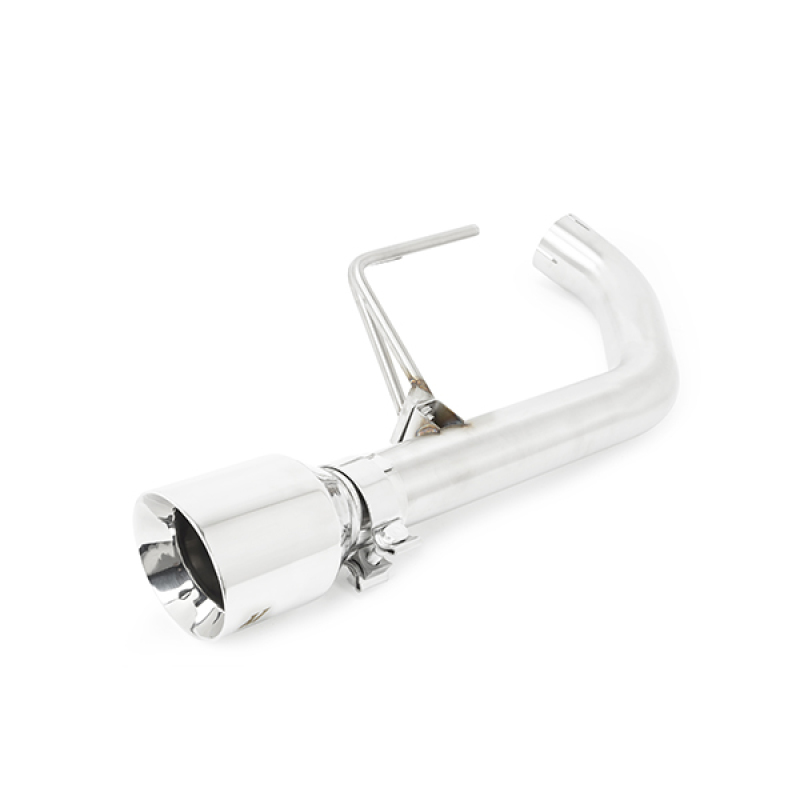

The Mishimoto MMEXH-MUS8-15ARP is a purpose-built axle-back exhaust engineered exclusively for the 2015-2017 Ford Mustang GT and its 5.0 Coyote engine. Built from full 304 stainless steel with mandrel-bent piping, this muffler-less, muffler-delete axle-back design is finished with dual 4.5-inch double wall polished tips for a bold, aggressive look and sound.
This Mishimoto exhaust is designed to unleash the tone hiding behind your Mustang GT’s stock piping. Because it’s a muffler-less axle-back system, it maximizes exhaust tone under both light cruising and heavy acceleration, giving your Coyote-powered Mustang a noticeably more aggressive racing exhaust note. The 2.5-inch main piping mates easily to the factory exhaust and remains fully compatible with the stock center resonator, a Mishimoto X-Pipe or H-Pipe, or other aftermarket mid-pipes, so you can build out your exhaust system in stages. Every joint is TIG welded, the tips use a slip-fit, angle-cut, round polished design, and flat band clamps are included to secure the connection. Because this is an axle-back system installed downstream of the rear axle, it does not include or interact with any emissions-related components.
Vehicle Applications
This Mishimoto axle-back exhaust is designed specifically for the 2015-2017 Ford Mustang GT, including the Mustang GT Premium (2015-2017) and the Mustang GT 50 Years Limited Edition (2015), all built on the S-550 chassis with the 5.0 Coyote engine. It fits both manual and automatic transmission Mustang GT models.
Features
- Cut and clamp design specifically for the 2015-2017 Ford Mustang GT
- Extremely aggressive racing exhaust tone under light and heavy acceleration
- Muffler-less axle-back design maximizes exhaust tone
- Bolt-on adjustable exhaust hangers for added adjustability and ease of install
- Installs in under an hour
- Dual 4.5-inch double wall polished tips
- Full 304 stainless steel mandrel-bent construction
- Easily mates to the stock exhaust piping
- Fully compatible with the stock center resonator, Mishimoto X/H pipes, or other aftermarket mid-pipes
- TIG welded construction
- Includes clamps and mounting hardware
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Pipe material: 304 stainless steel
- Main piping diameter: 2.5 in
- Exhaust tip diameter: 4.5 in
- Exhaust tip material: 304 stainless steel
- Exhaust tip finish: Polished
- Exhaust tip shape: Round
- Exhaust tip wall: Double-wall
- Exhaust tip cut: Angle
- Exhaust tip connection: Slip-fit
- Exit style: Rear
- Clamping type: Flat band
- Clamps included: Yes
- Hangers included: Yes
- Grade type: Performance
- Chassis code: S-550
- Engine code: 5.0 Coyote
- Applications: 2015-2017 Ford Mustang GT

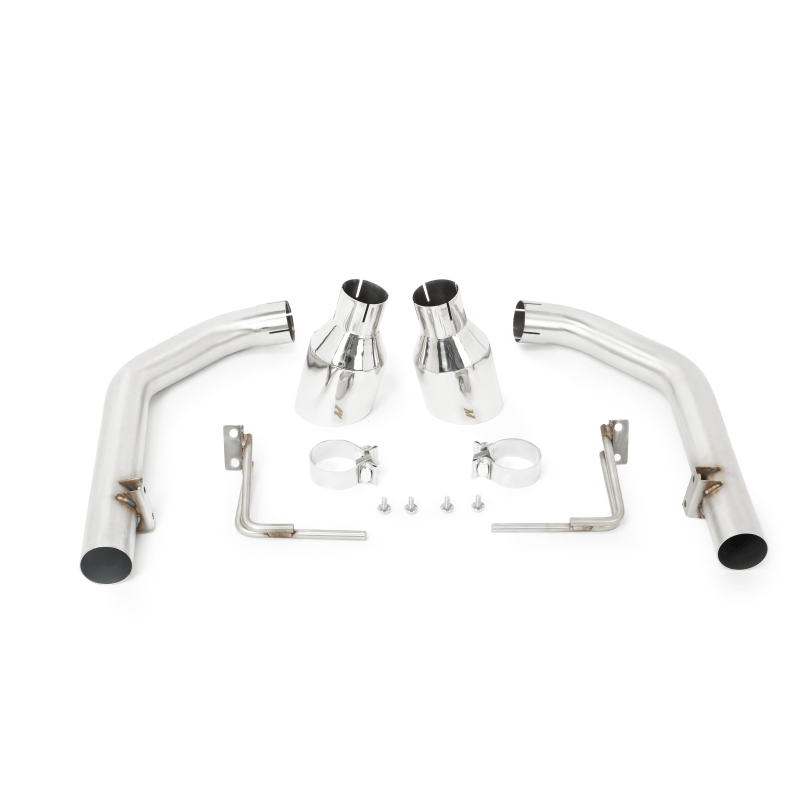

- Includes: (1) left side axle-back muffler delete assembly, (1) right side axle-back muffler delete assembly, (4) adjustable exhaust hangers, (2) polished or black tips, mounting hardware, Mishimoto Lifetime Warranty
Frequently Asked Questions
Does this Mishimoto exhaust affect my Mustang GT’s emissions equipment?
No. This is an axle-back system installed on the exhaust piping downstream of the rear axle, and it does not include or interact with any emissions-related components.
Will this exhaust fit both manual and automatic Mustang GTs?
Yes, the Mishimoto 2015-2017 Ford Mustang GT axle-back exhaust fits both manual and automatic transmission vehicles.
What tips come with this exhaust?
It includes dual 4.5-inch double wall polished tips with a round shape, angle cut, and slip-fit connection.
Is cutting of the stock exhaust required for installation?
Yes, cutting of your stock exhaust system is required to install this product. The included install guide provides instructions for correctly measuring, marking, and cutting the stock exhaust pipes.
What is included with this Mishimoto axle-back exhaust?
It includes one left side axle-back muffler delete assembly, one right side axle-back muffler delete assembly, four adjustable exhaust hangers, two polished or black tips, mounting hardware, and the Mishimoto Lifetime Warranty.
Can this exhaust be paired with other Mishimoto exhaust parts?
Yes, it is fully compatible with the stock center resonator, the Mishimoto X-Pipe or H-Pipe, or other aftermarket mid-pipes.
