Description

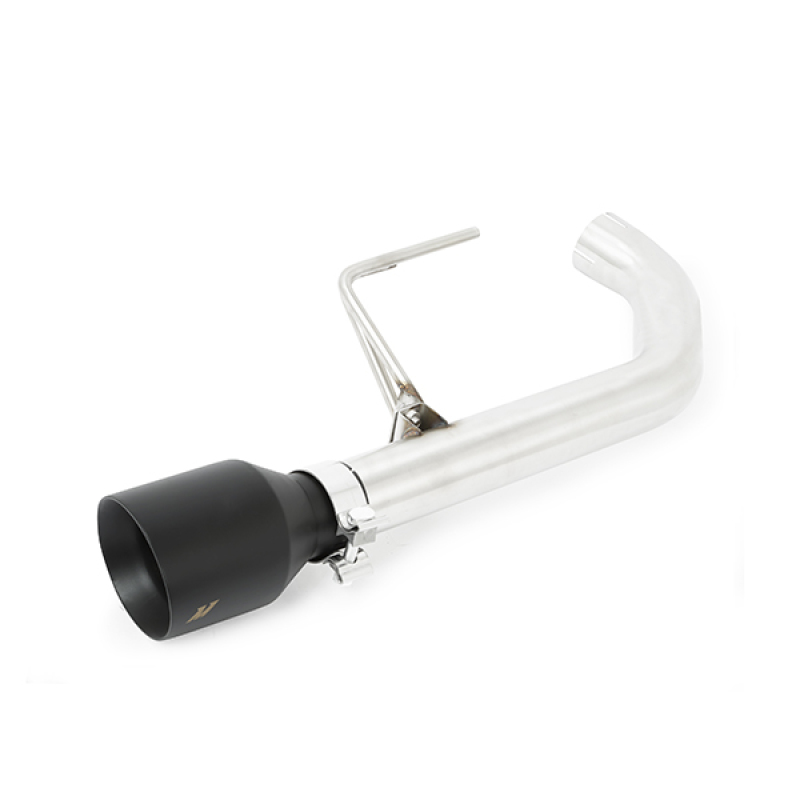

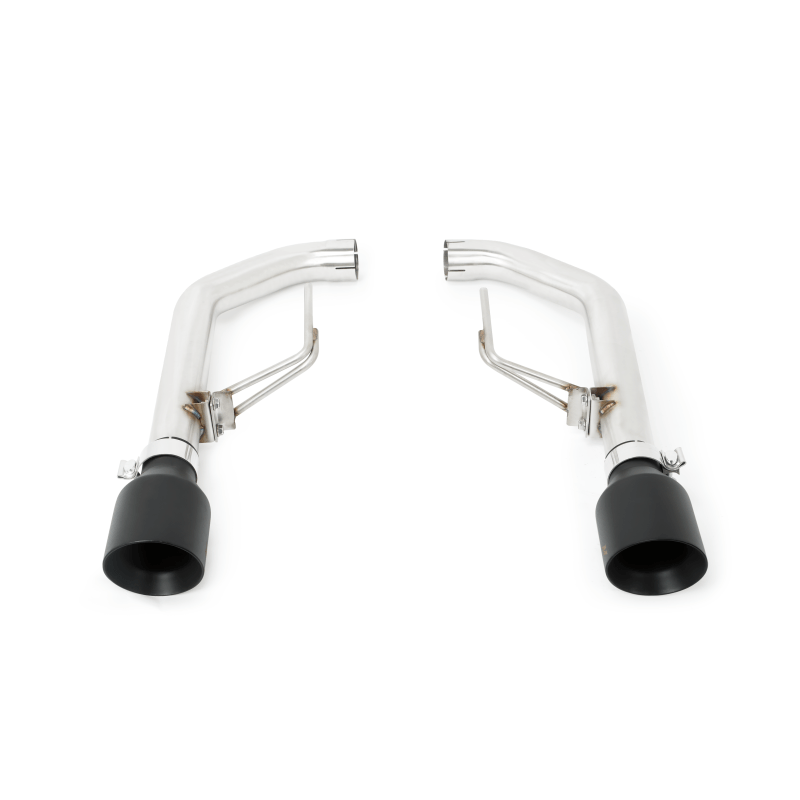

The Mishimoto MMEXH-MUS8-15ARBK axle-back exhaust is a muffler-less, mandrel-bent 304 stainless steel system built specifically for the 2015-2017 Ford Mustang GT. It finishes the rear of the car with dual 4.5-inch double-wall, angle-cut, round tips in a matte black finish, giving the S-550 chassis an aggressive stance to match its aggressive sound.
This Mishimoto Mustang GT axle-back exhaust is a cut-and-clamp design that installs on the exhaust piping downstream of the rear axle and does not include or interact with any emissions-related components. The muffler-less layout is engineered to maximize exhaust tone, delivering an extremely aggressive racing note under both light and heavy acceleration, while the full 304 stainless steel construction is Tig welded and mandrel-bent for optimal flow from the 5.0 Coyote engine. Four adjustable exhaust hangers add installation flexibility, and the system easily mates to the factory exhaust piping, remaining fully compatible with the stock center resonator, a Mishimoto X-pipe or H-pipe, or other aftermarket mid-pipes for shoppers looking to further dial in their exhaust performance.
Vehicle Applications
This Mishimoto axle-back exhaust is designed to fit the 2015-2017 Ford Mustang GT and 2015-2017 Ford Mustang GT Premium, as well as the 2015 Ford Mustang GT 50 Years Limited Edition. It fits both manual and automatic transmission Mustang GT models built on the S-550 chassis with the 5.0 Coyote engine.
Features
- Cut and clamp design specifically for the 2015-2017 Ford Mustang GT
- Extremely aggressive racing exhaust tone under light and heavy acceleration
- Muffler-less axle-back design maximizes exhaust tone
- Bolt-on, adjustable exhaust hangers for ease of install
- Installs in under an hour

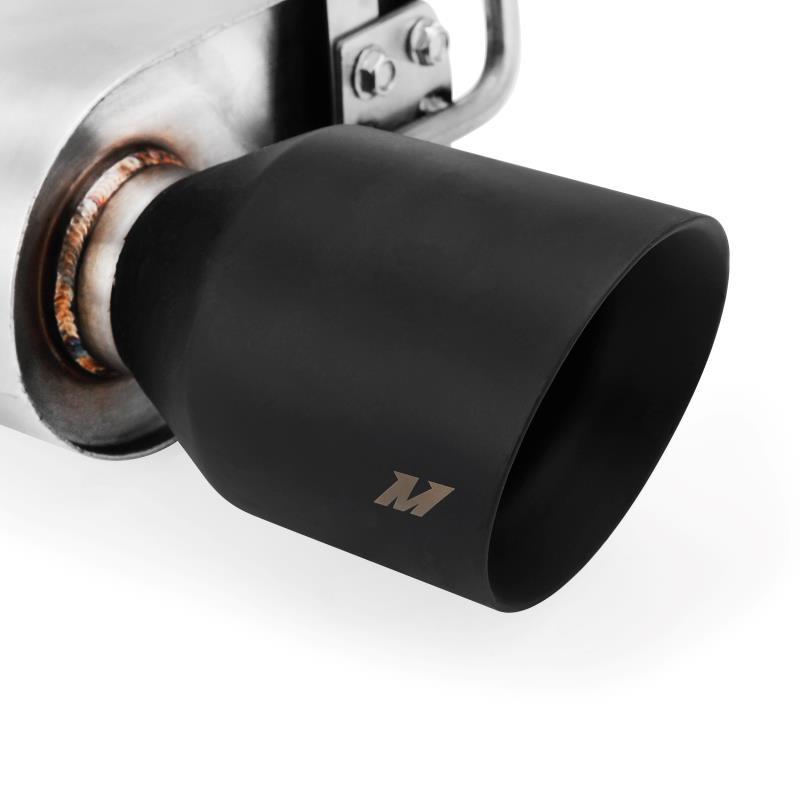

- Dual 4.5-inch double-wall, angle-cut, round tips finished in matte black
- Full 304 stainless steel, mandrel-bent, Tig-welded construction
- Easily mates to the stock exhaust piping
- Fully compatible with the stock center resonator, Mishimoto X/H-pipes, or other aftermarket mid-pipes
- Flat band clamps and mounting hardware included
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMEXH-MUS8-15ARBK
- Pipe Material: 304 Stainless Steel
- Grade Type: Performance
- Main Piping Diameter: 2.5 in
- Exit Style: Rear
- Exhaust Tip Quantity: 2
- Exhaust Tip Diameter: 4.5 in
- Exhaust Tip Material: 304 Stainless Steel
- Exhaust Tip Finish: Matte
- Exhaust Tip Color: Black
- Exhaust Tip Shape: Round
- Exhaust Tip Cut: Angle
- Exhaust Tip Wall: Double-Wall
- Exhaust Tip Connection: Slip-Fit
- Clamping Type: Flat Band
- Clamps Included: Yes
- Hangers Included: Yes
- Chassis Code: S-550
- Engine Code: 5.0 Coyote

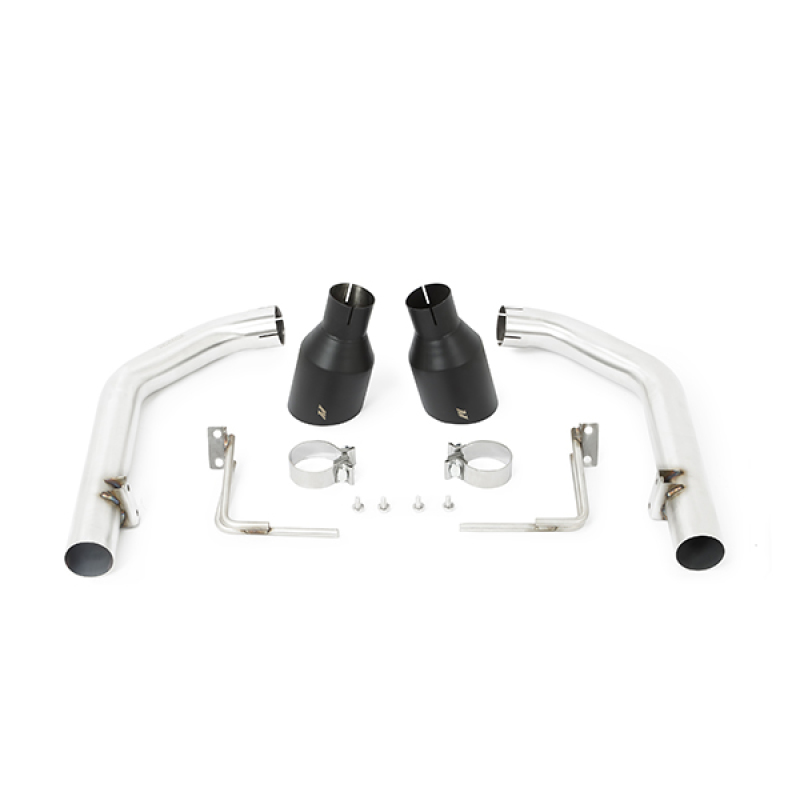

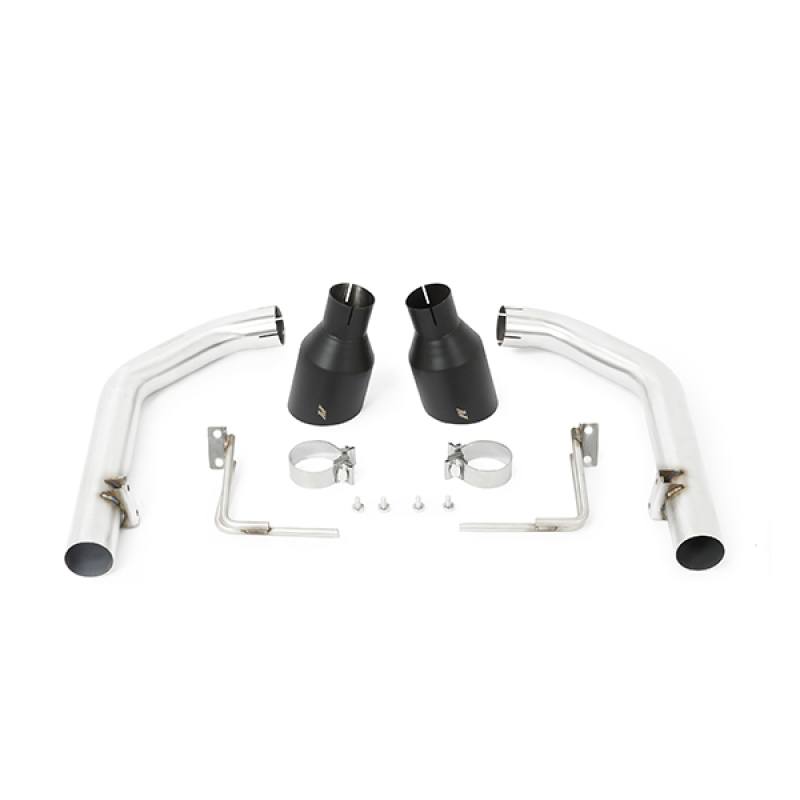

- Includes: Left side axle-back muffler delete assembly, right side axle-back muffler delete assembly, 4 adjustable exhaust hangers, 2 black tips, mounting hardware, and the Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does this Mishimoto axle-back exhaust fit?
It fits the 2015-2017 Ford Mustang GT, 2015-2017 Ford Mustang GT Premium, and the 2015 Ford Mustang GT 50 Years Limited Edition, in both manual and automatic transmission configurations.
What material is this exhaust made from?
It is constructed from full 304 stainless steel with mandrel-bent, Tig-welded piping.
Does this exhaust include a muffler?
No, it uses a muffler-less axle-back design intended to maximize exhaust tone.
Is cutting required to install this exhaust?
Yes, cutting of the stock exhaust system is required. The included install guide provides instructions for correctly measuring, marking, and cutting the stock exhaust pipes.
Can this be paired with other Mishimoto exhaust components?
Yes, it is fully compatible with the stock center resonator, a Mishimoto X-pipe or H-pipe, or other aftermarket mid-pipes.
What is included in the box?
The kit includes a left side axle-back muffler delete assembly, a right side axle-back muffler delete assembly, four adjustable exhaust hangers, two black tips, mounting hardware, and the Mishimoto Lifetime Warranty.
