Description
The Mishimoto Baffled Oil Catch Can (MMBCC-UNI-BK) is the result of over a year of dedicated research and development, engineered to be one of the most effective oil catch cans available for separating oil particles from PCV air before it returns to the intake. Machined from 100-percent billet 6061 aluminum and finished in black, this universal catch can uses a custom-grooved inlet and an internal baffle to keep oil where it belongs, not in your intake tract.
For anyone building out the components of a car engine’s ventilation system, this catch can plays a key role among the many parts of a car engine that manage crankcase pressure and airflow. As PCV air enters, the specially engineered inlet pattern turbulates the air longer, allowing oil to condense and sink to the bottom of the can rather than passing through with the air stream. Only clean air makes it through the 40-micron bronze filter and back into the intake system. An internal baffle keeps collected oil contained even under hard cornering, making this a practical addition for anyone focused on maintaining clean engine parts and preserving the health of car engines over time. The can accepts -AN fittings at the inlet, outlet, and drain, opening up over 25 possible configurations, while the top cog mounting setup allows it to be installed from multiple angles to suit tight engine bays. It’s also 100-percent washable, so instead of replacing the filtration system, you simply clean it and put it back to work.
Vehicle Applications
This Mishimoto Baffled Oil Catch Can is a universal-fit component rather than a vehicle-specific part; Mishimoto does not tie it to a particular make, model, chassis code, or engine code in the sourced specifications. Its -AN fitting inlet and outlet, push-on M20x1.5 barbed fittings, and versatile cog-style mounting bracket are designed to give installers flexibility across a wide range of engine bay layouts where a baffled catch can with a 5/8-inch inlet hose and M20x1.5 thread pitch is needed. A conversion option to -10AN is available through a separate sandwich plate fitting if your setup requires it.
Features

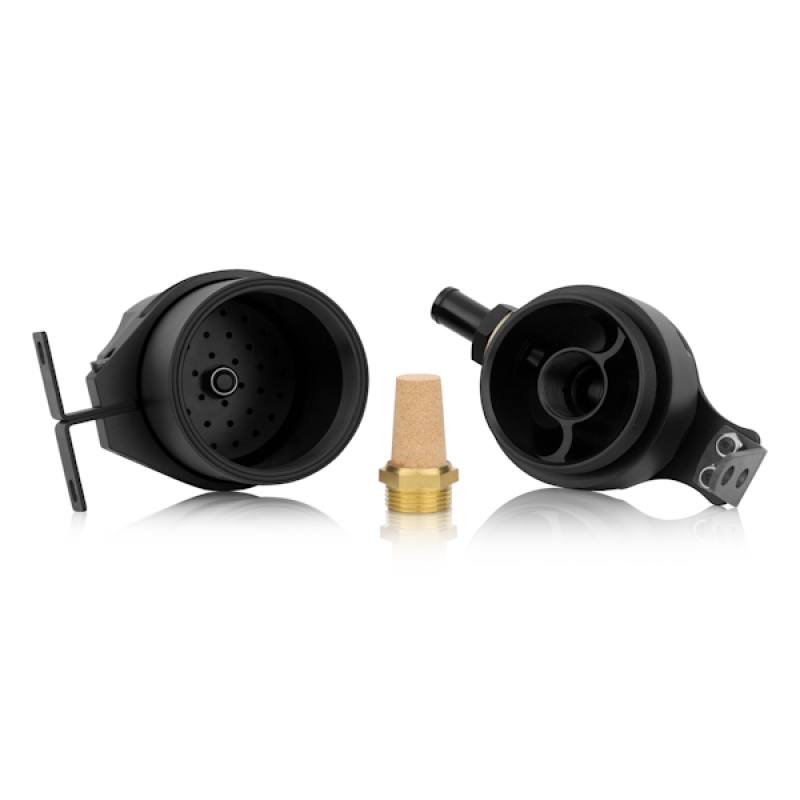

- 40-micron bronze filter blocks oil from depositing in the ventilation system
- Specially engineered inlet pattern turbulates air longer, allowing oil to condense
- Internal baffle ensures no oil escapes during high-speed cornering
- Replaceable single-unit filter is easy to maintain

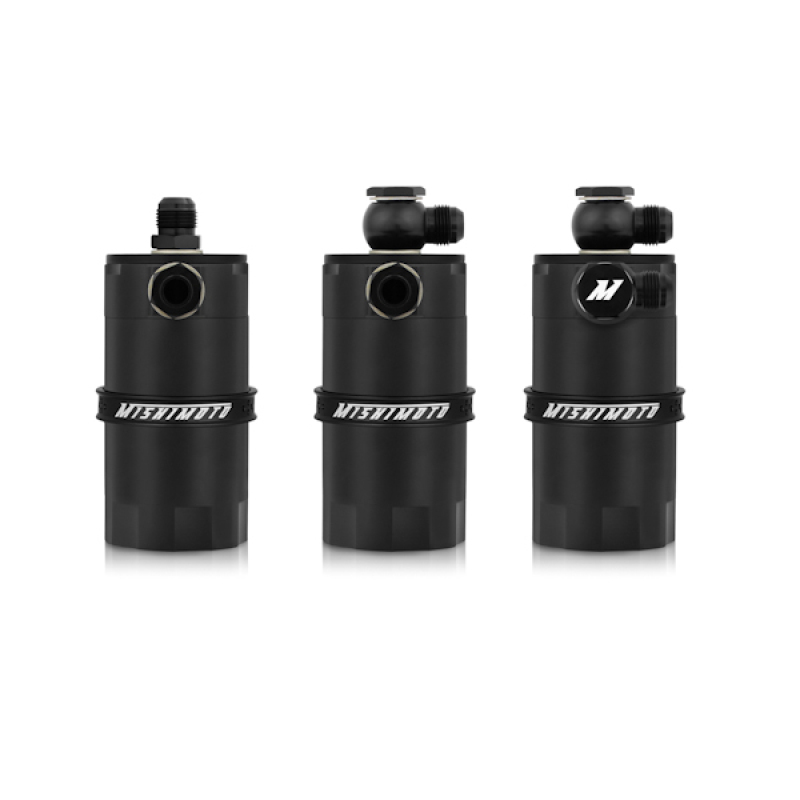

- Inlet and outlet accept -AN fittings for various configurations

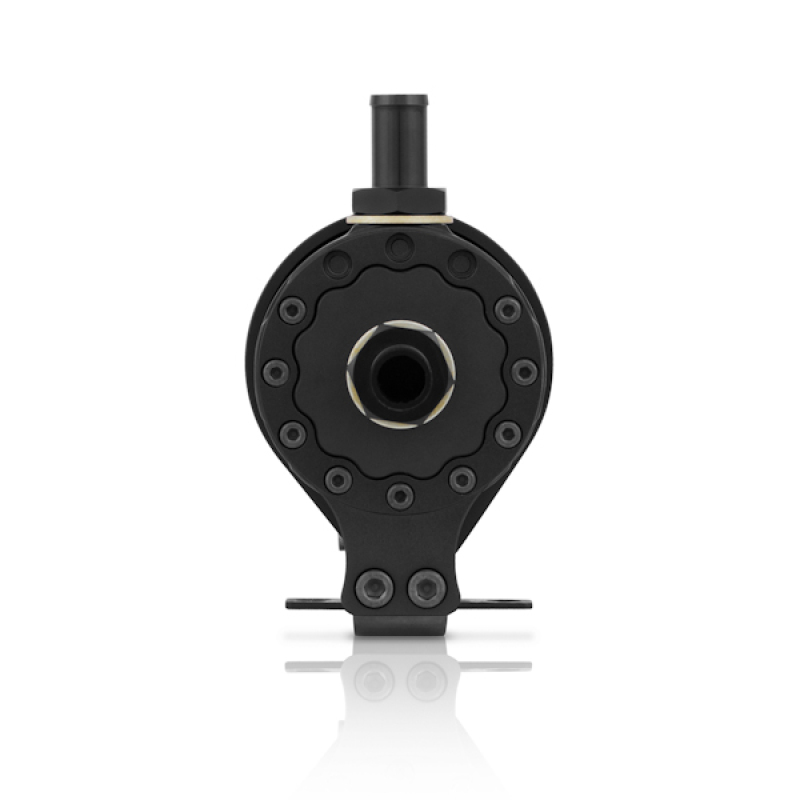

- 100-percent billet anodized 6061 aluminum with laser-etched finish
- Safe to use in pressurized systems

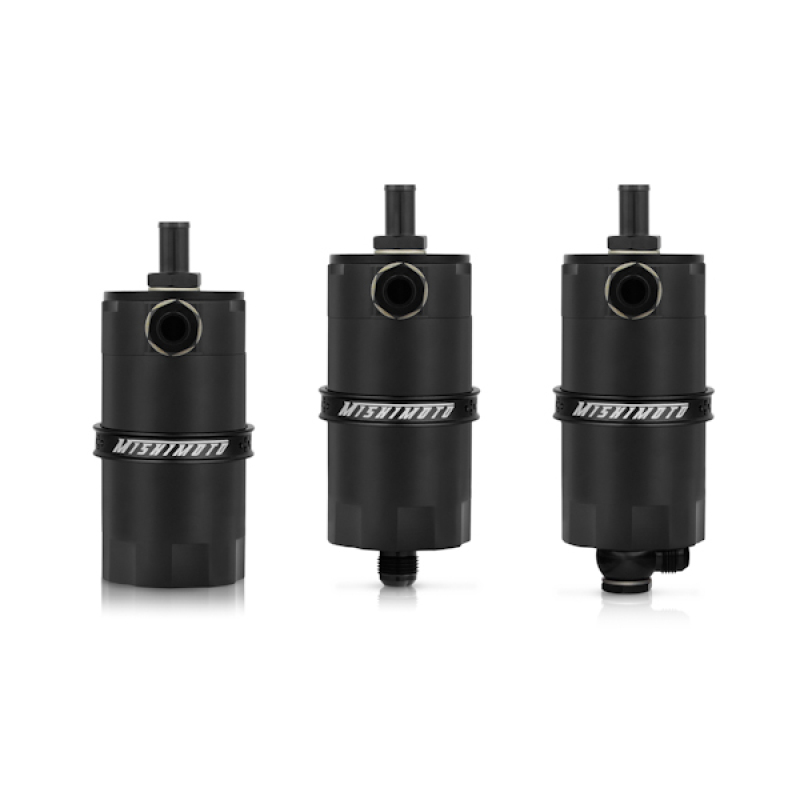

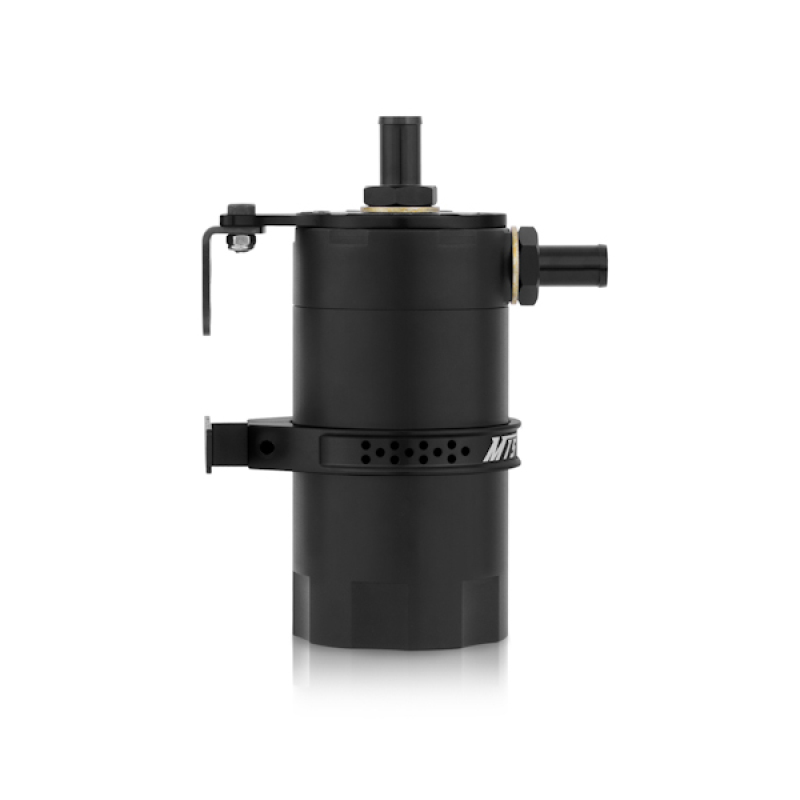

- Drain plug can be removed to allow for -AN return to the oil pan
- Unique upper mounting bracket cogs provide versatile mounting options
- Includes push-on fittings for easy installation
- 100-percent washable filtration system
Specifications
- Brand: Mishimoto
- Part Number: MMBCC-UNI-BK
- Color: Black
- Material: 6061 Aluminum
- Grade Type: Performance
- Port Outside Diameter: 20 MM
- Inlet: M20x1.5
- Outlet: M20x1.5
- Drain Plug Thread Size: M20x1.5
- Inlet hose size: 5/8 inch

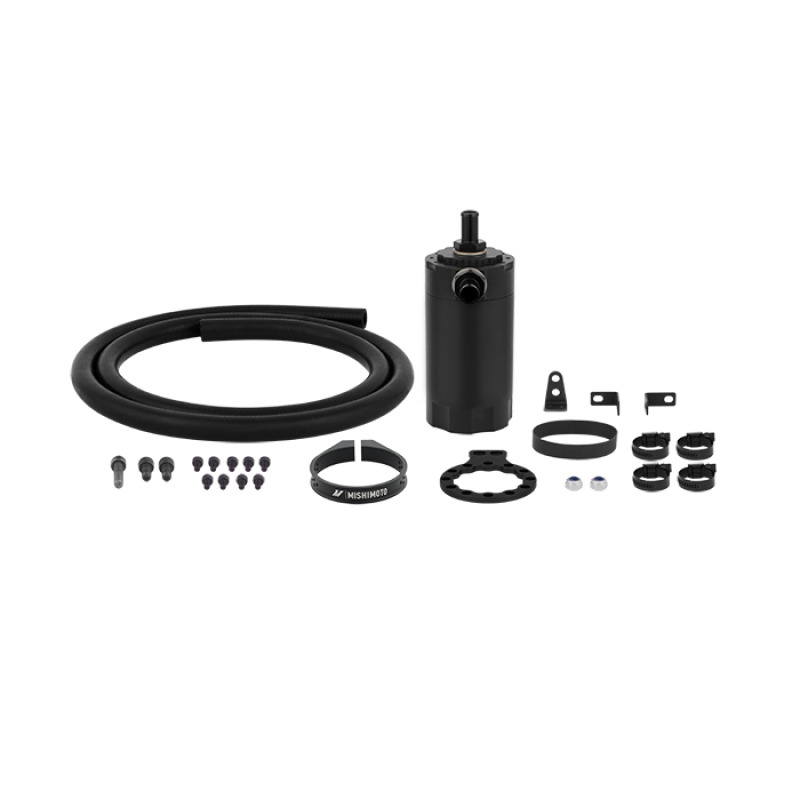

- Includes: (1) Black Anodized 6061 Aluminum Catch Can, (2) Aluminum Mounting Brackets, (1) Bronze Filter, (1) Internal Baffle, (3) Dowty Oil Seals, (2) M20x1.5 x 5/8″ Push-on Barbed Fittings, (1) Drain Plug, (6) Black Rubber Oil Line, (4) Worm Gear Clamps, (1) Black Rubber Band, Mounting Hardware and Brackets, Mishimoto Lifetime Warranty
Frequently Asked Questions
What does the Mishimoto Baffled Oil Catch Can do?
It separates oil particles from PCV air that would normally be routed back to the intake. Custom grooves in the inlet turbulate the air longer so oil sinks to the bottom of the can, while a 40-micron bronze filter lets only clean air pass through to the intake.
What is the Mishimoto Baffled Oil Catch Can made from?
It is machined from 100-percent billet 6061 aluminum with a laser-etched finish, and this version is finished in black.
Can the filter and can be cleaned instead of replaced?
Yes, the Mishimoto Baffled Oil Catch Can is 100-percent washable, unlike many other catch cans that require replacing the entire filtration system.
What fittings does this catch can use?
The inlet, outlet, and drain accept -AN fittings for over 25 possible configurations. It includes push-on barbed fittings with an M20x1.5 thread pitch and a 5/8-inch inlet hose; a separate sandwich plate fitting is available to convert to -10AN.
Is this catch can vehicle-specific?
No, it is a universal-fit product. The manufacturer’s specifications list applications, engine codes, and chassis codes as N/A, and the top cog mounting setup is designed to allow mounting from multiple angles across different installations.
Does the Mishimoto Baffled Oil Catch Can come with a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
