Description

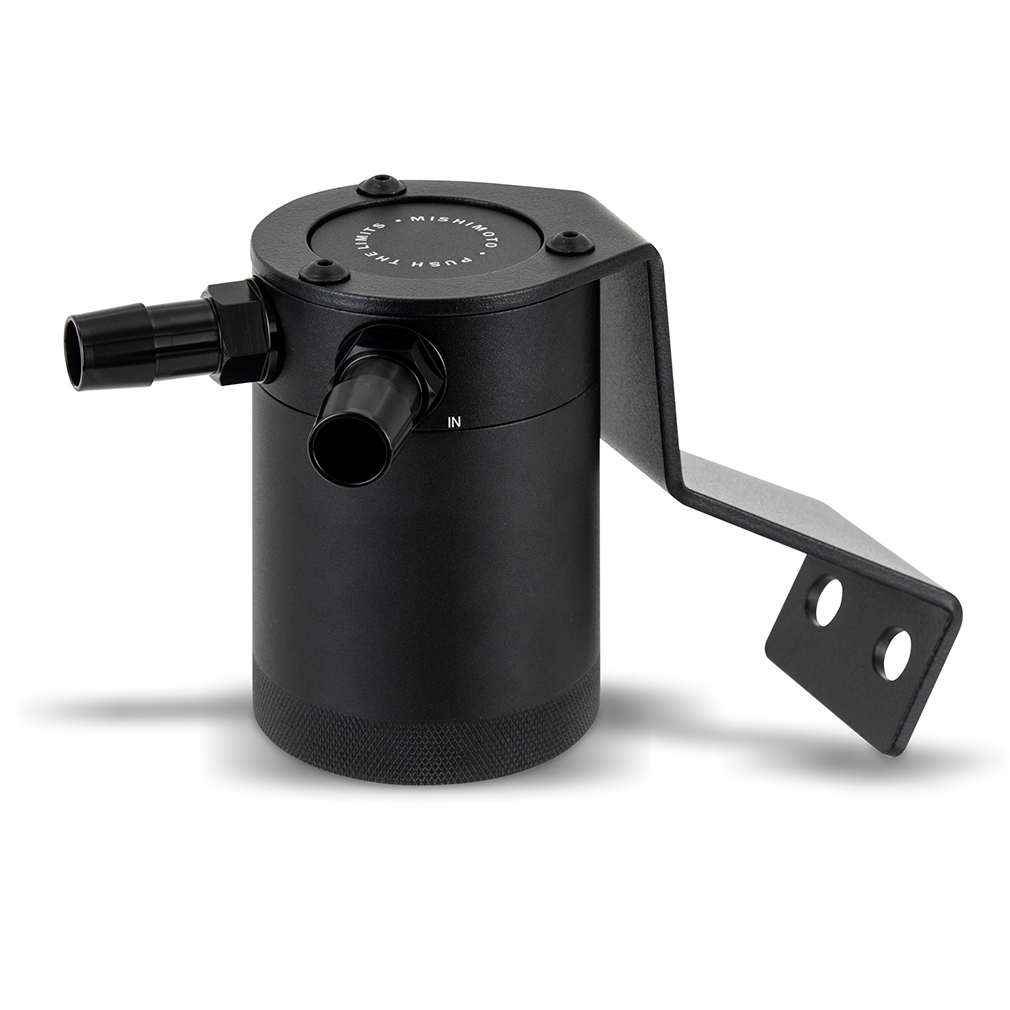

The Mishimoto MMBCC-BRZ-22 baffled oil catch can kit is purpose-built for the FA24-powered 2022+ Subaru BRZ and Toyota GR86, giving these twin-injected car engines a dedicated line of defense against blow-by vapor before it ever reaches the intake tract. At the center of the kit is Mishimoto’s 2-port compact baffled catch can, machined from 6061-T6 billet aluminum and finished in anodized black, built specifically to separate oil, fuel, and water out of the crankcase gases moving through this engine.

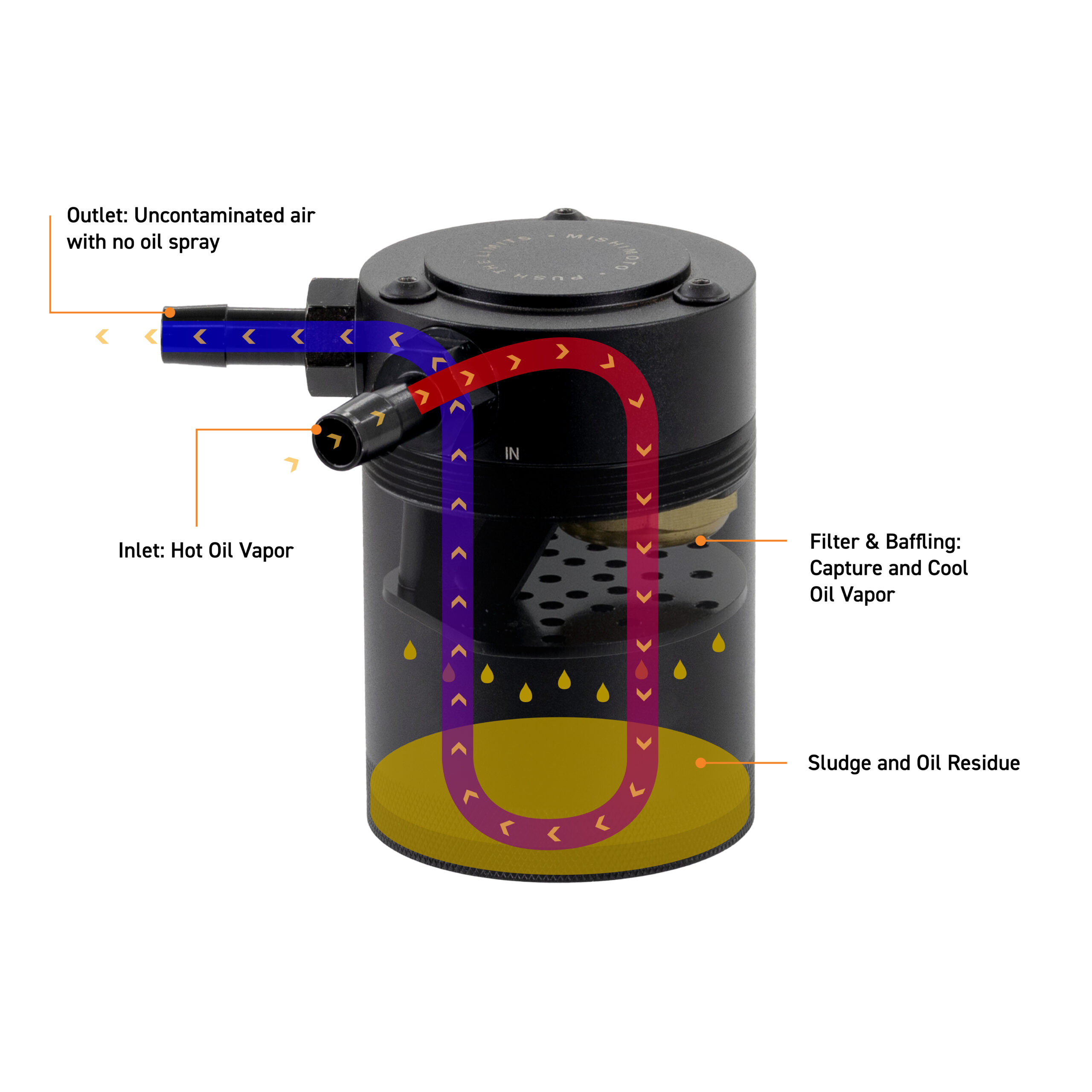

The FA24 in the BRZ and GR86 uses a combination of direct and port injection, which helps power delivery throughout the RPM range and generally keeps carbon buildup less severe than on many direct-injected car engines. Even so, blow-by vapor can condense on sensors and skew readings, or work its way into the cylinders where it raises the chance of knock and costs power. This catch can kit routes that vapor through a bronze filter, internal air turbulators, and an internal baffle, condensing it and holding it in the can until it’s drained at your next oil change instead of letting it recirculate through the intake manifold and other parts of a car engine. Two CNC-machined aluminum fittings, each sealed with an O-ring, connect molded direct-fit hoses between the can, the engine, and the intake manifold for a clean, leak-free installation, while an application-specific mounting bracket keeps the can positioned away from engine vibration. The can itself is a twist-off design with a fully serviceable interior, so maintaining these engine parts is as simple as opening the can and draining it through the 3/8-NPT plug.
Vehicle Applications
This kit is a direct fit for the FA24 2.4L engine (chassis code ZN8) found in the 2022-2025 Subaru BRZ Base, 2022-2026 BRZ Limited, 2023 and 2025 BRZ Limited EyeSight, 2022-2025 BRZ Premium, 2026 BRZ Series.Yellow, 2022-2026 BRZ Sport-tech, 2025-2026 BRZ TS, and 2025 BRZ tS EyeSight, as well as the 2022-2026 Toyota GR86 Base and Premium, 2023 GR86 10th Anniversary Special Edition, 2025 GR86 Hakone Edition, and 2026 GR86 Yuzu Edition. The kit is designed to fit left-hand-drive (LHD) vehicles only and will not fit right-hand-drive (RHD) vehicles due to interference with the brake lines.
Features
- Direct fit for 2022+ Subaru BRZ and Toyota GR86
- Helps prevent knock and power loss caused by blow-by

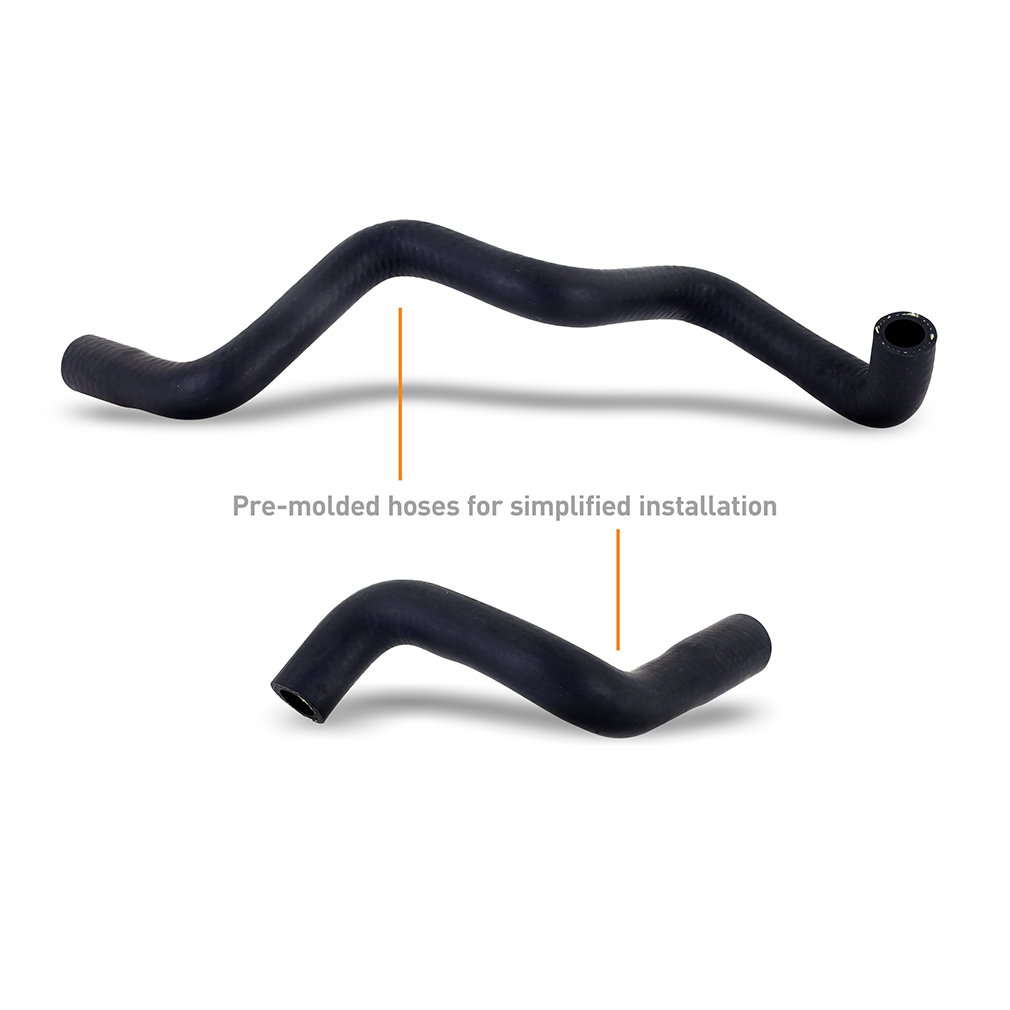

- Includes molded direct-fit hoses for a clean and simple install
- 3oz catch can captures oil and fuel vapors, preventing fouling of sensors
- Fully serviceable can and internal components

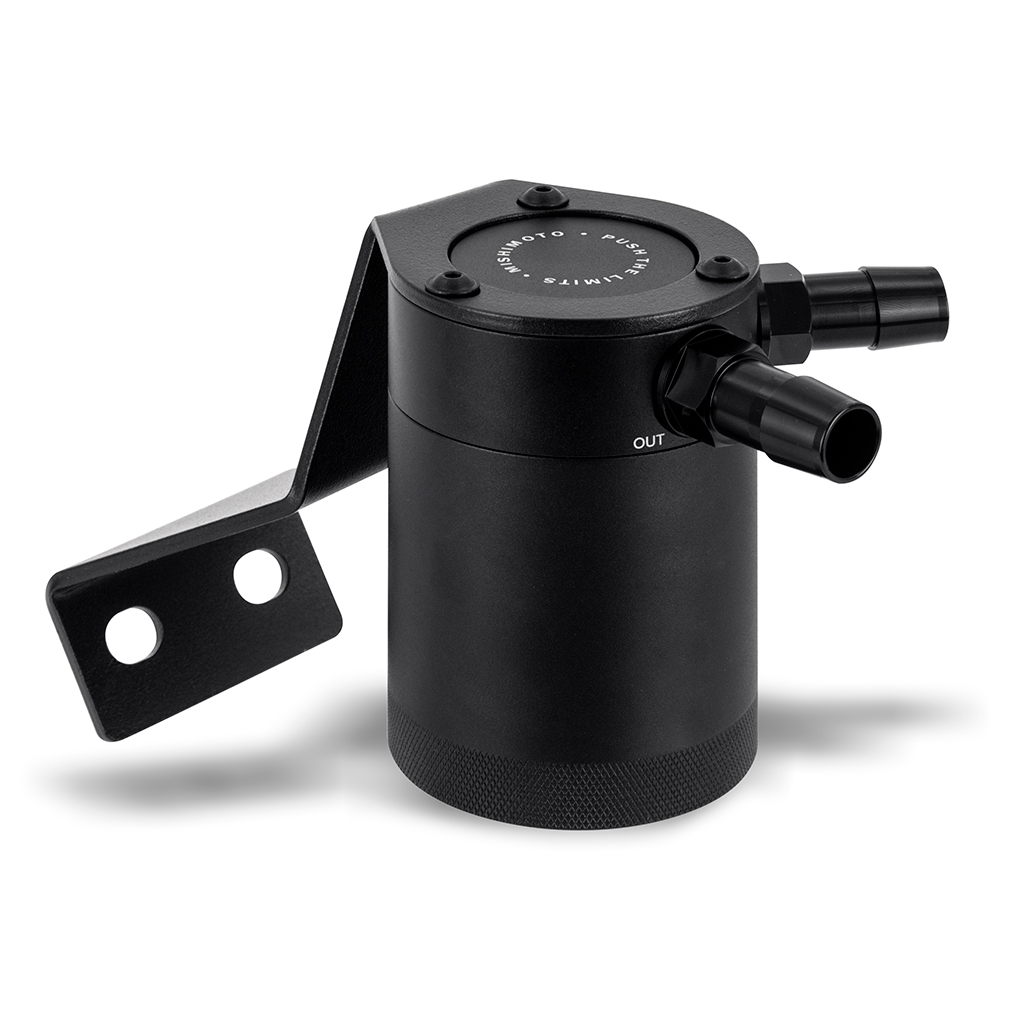

- Application-specific mounting bracket mounts the can away from engine vibration

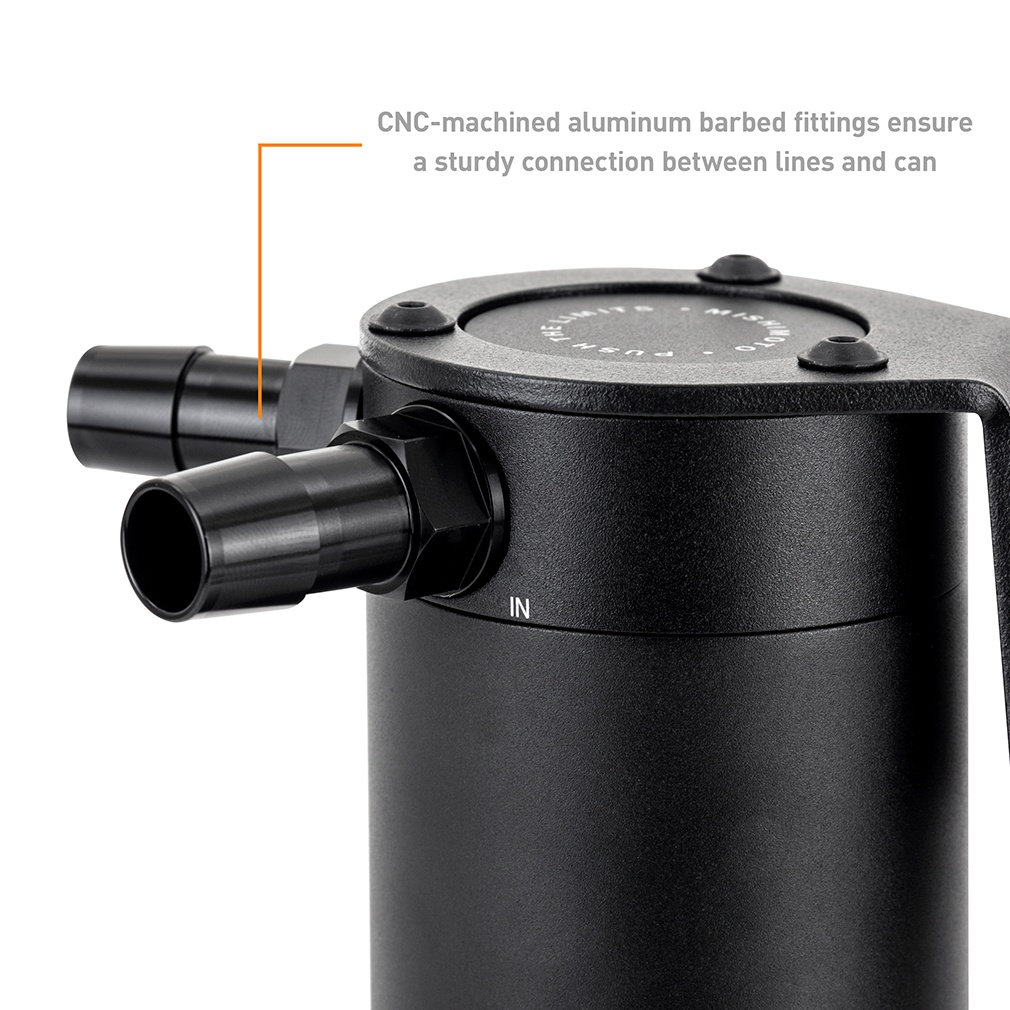

- CNC-machined fittings with O-ring seals for leak-free operation
- Internal air diverter increases air turbulence to improve oil separation

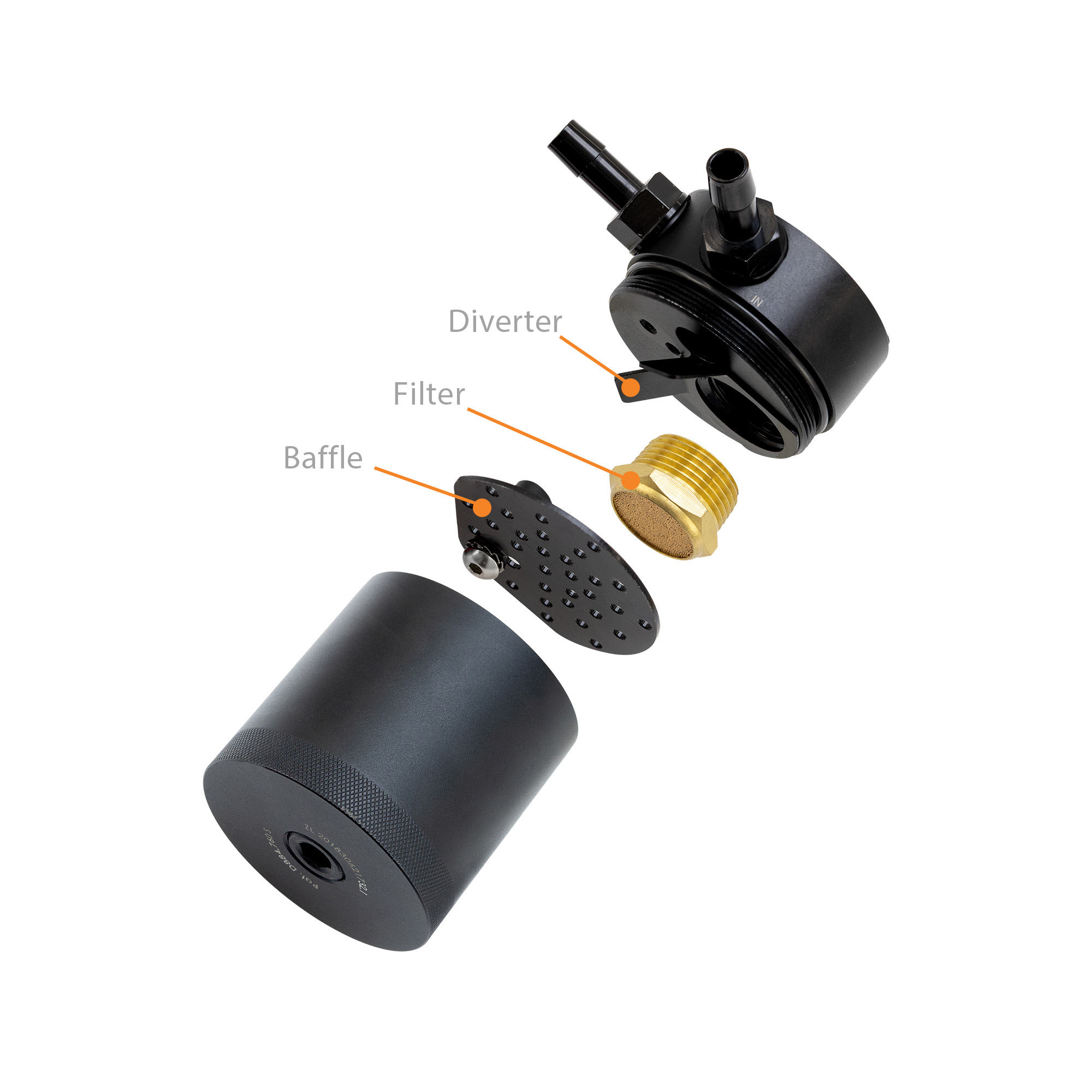

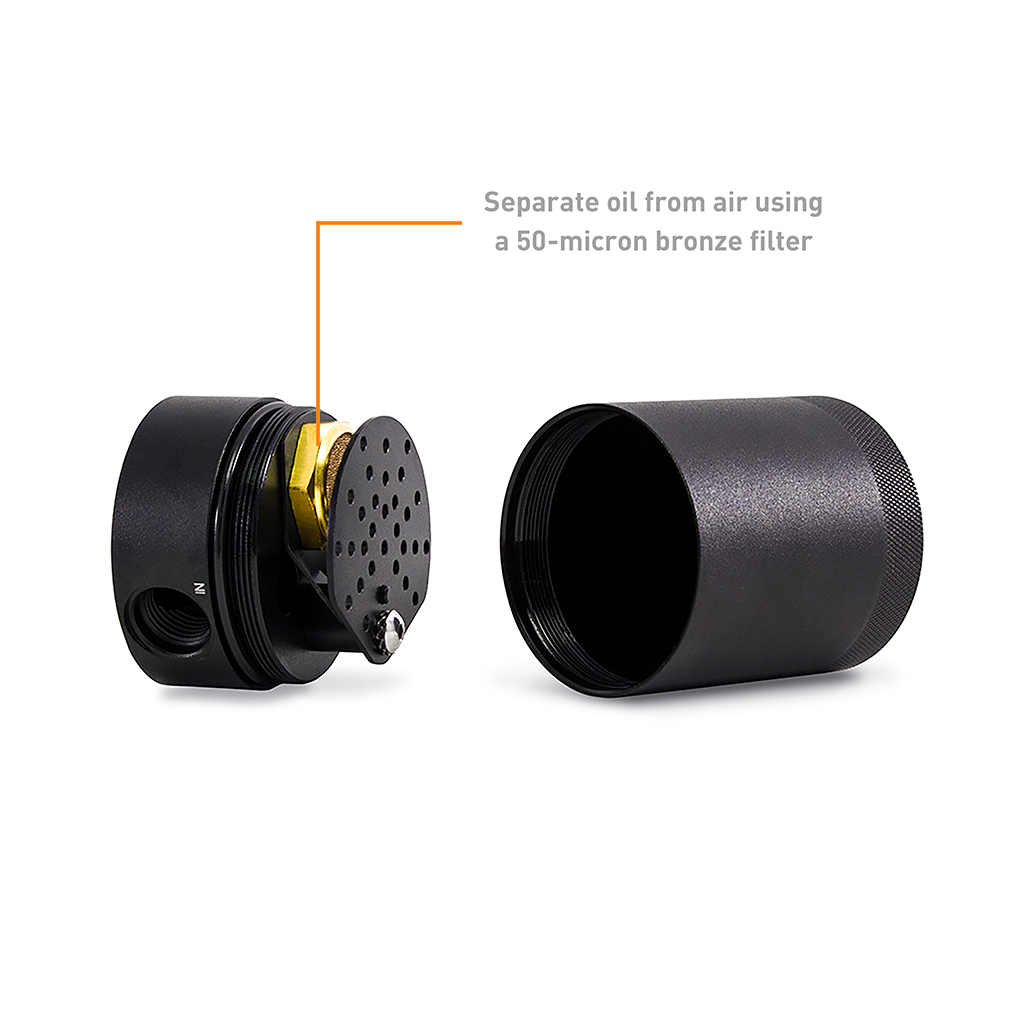

- Bronze filter and internal baffle aid in separating oil, fuel, and water from blow-by gases
- Patent No. US D966,372 S
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMBCC-BRZ-22
- Color: Black
- Finish: Anodized
- Height: 3.7 in
- Can Material: 6061-T6 Billet Aluminum
- Can Type: Twist Off
- Can Outside Diameter: 2.5 in
- Can Finish: Anodized
- Inlet Port Inside Diameter: 0.6 in
- Outlet Port Inside Diameter: 0.6 in
- Inlet Thread: M16x1.5
- Outlet Thread: M16x1.5

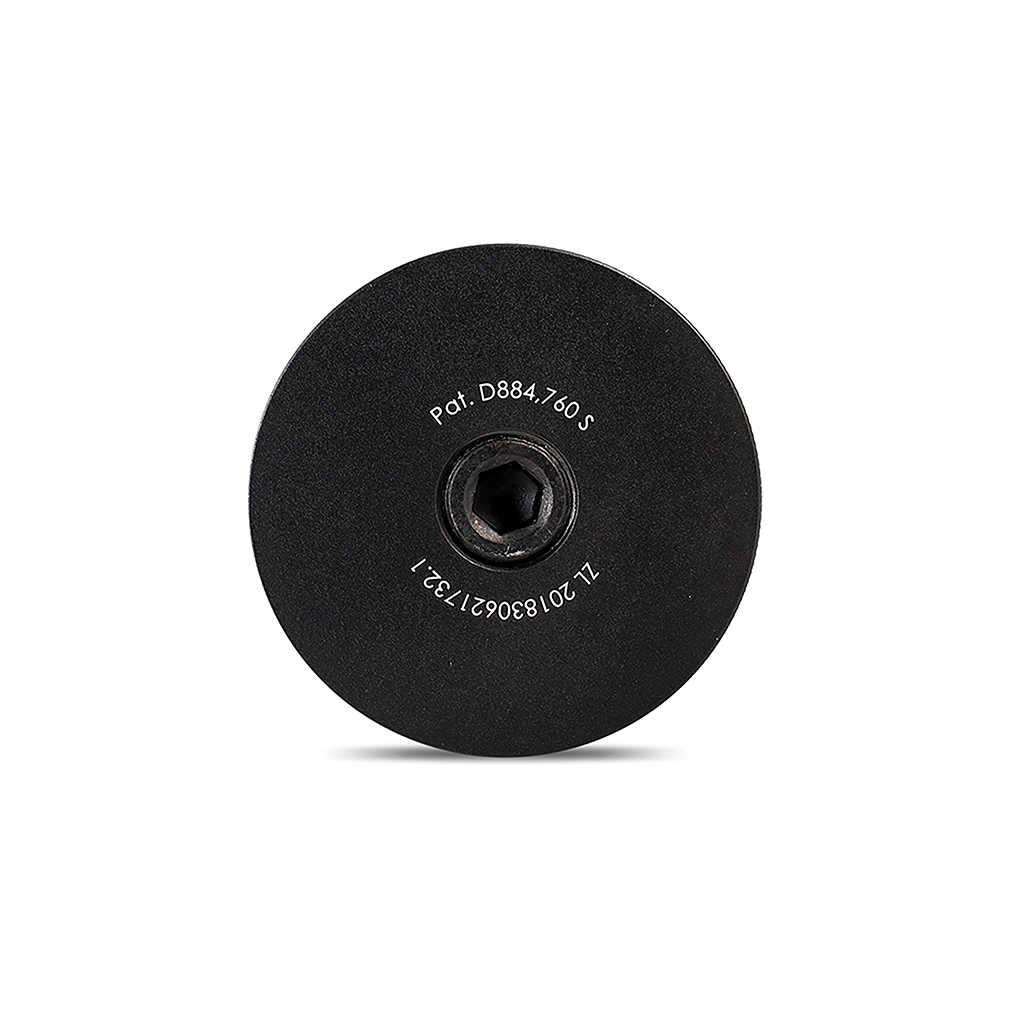

- Drain Plug Thread Size: 3/8-NPT
- Mounting Bracket Included: Yes
- Hose Included: Yes
- Drain Plug Included: Yes
- Interior Baffle: Yes
- Engine Code: FA24
- Chassis Code: ZN8

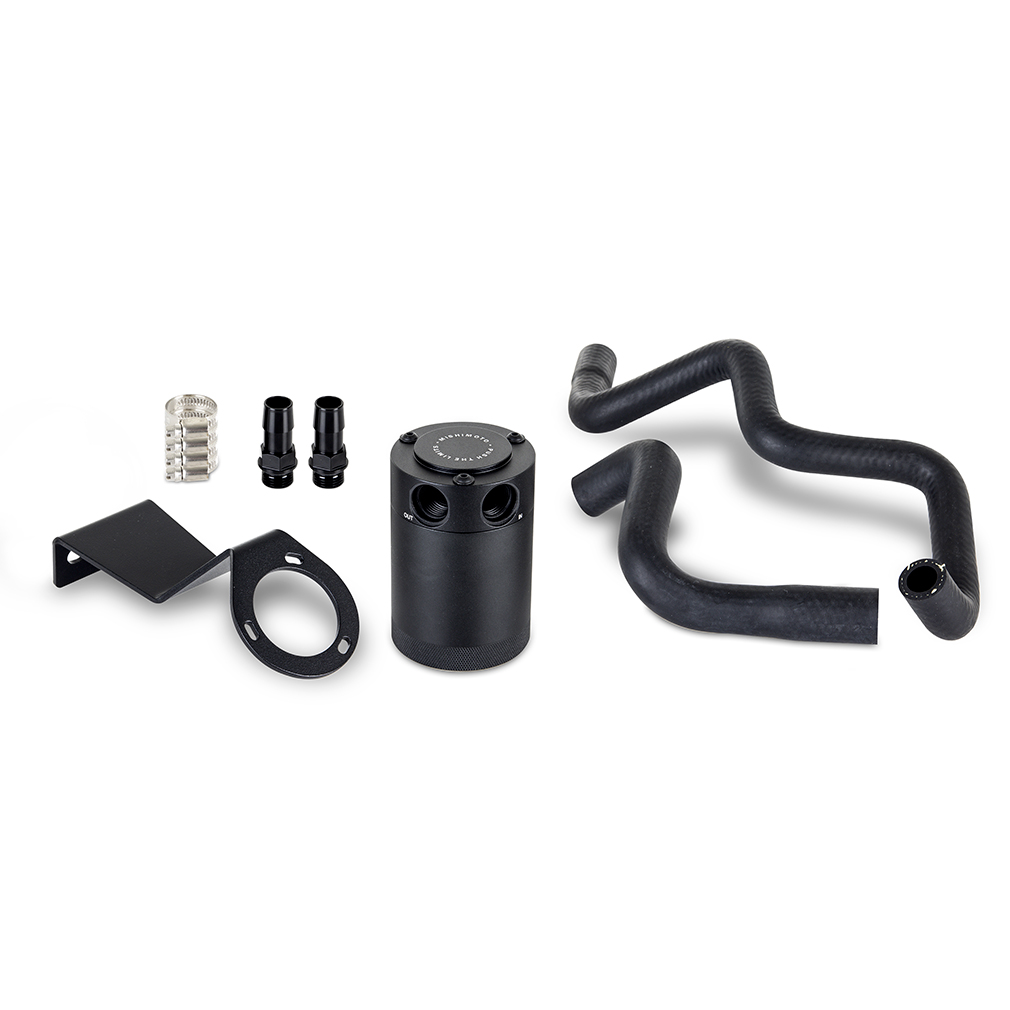

- Includes: (1) Compact Baffled Oil Catch Can, (2) Direct Fit Hoses, (1) Application-Specific Mounting Bracket, (2) 9/16-in Aluminum Fittings, (2) Worm Gear Clamps, Mounting Hardware, Mishimoto Lifetime Warranty
- Patent: US D966,372 S
- Warranty: Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does this Mishimoto catch can kit fit?
It fits the FA24 2.4L engine (chassis code ZN8) in the 2022-2025 Subaru BRZ Base, 2022-2026 BRZ Limited, 2023 and 2025 BRZ Limited EyeSight, 2022-2025 BRZ Premium, 2026 BRZ Series.Yellow, 2022-2026 BRZ Sport-tech, 2025-2026 BRZ TS, 2025 BRZ tS EyeSight, and the 2022-2026 Toyota GR86 Base and Premium, 2023 GR86 10th Anniversary Special Edition, 2025 GR86 Hakone Edition, and 2026 GR86 Yuzu Edition. It is designed for LHD vehicles only.
What comes in the kit?
The kit includes one compact baffled oil catch can, two direct-fit hoses, one application-specific mounting bracket, two 9/16-in aluminum fittings, two worm gear clamps, mounting hardware, and the Mishimoto Lifetime Warranty.
Is the catch can serviceable?
Yes, the can and its internal components are fully serviceable, and the can uses a twist-off design with a 3/8-NPT drain plug.
How often should I check the catch can?
Mishimoto recommends checking the contents of the baffled catch can every 1,000 miles until a baseline is established, since oil blow-by accumulation varies with ambient temperature and driving conditions.
What is the catch can made from?
The can is machined from 6061-T6 billet aluminum with an anodized finish.
Will this fit a right-hand-drive BRZ or GR86?
No, this kit is designed to fit LHD vehicles only and will not fit RHD vehicles due to interference with the brake lines.
