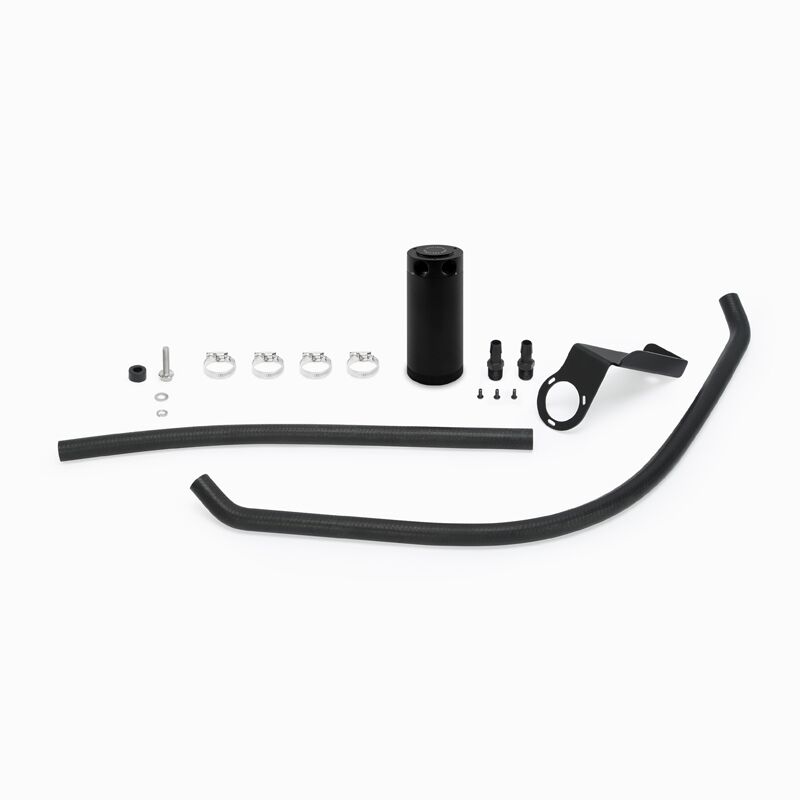

The Mishimoto MMBCC-RAM-09PBE2 is a direct-fit, baffled oil catch can kit engineered specifically for the 5.7L V8 found in Ram 1500 trucks. After testing revealed that a standard 2oz can filled with blow-by in under 1000 miles, Mishimoto scaled up to a 7.5 oz billet aluminum can so this Hemi-powered platform gets a catch can sized for real-world use rather than a token accessory. It’s a purpose-built engine component, not a generic add-on, designed to bolt cleanly into the engine bay of this specific truck.
As one of the more overlooked car engine parts, an oil catch can plays an outsized role in keeping the internals of a car engine clean. By intercepting crankcase blow-by before it reaches the intake tract, this Mishimoto kit helps protect components of an automobile engine like the valves and intake system from oil residue and carbon buildup, which in turn can extend the interval between valve servicing. The 7.5 oz can uses internal baffling, air diverters, and a 50-micron bronze filter to separate oil from vapor, so oil stays out of the intake and away from the valves. For anyone researching parts of a car engine that actually reduce maintenance headaches, this catch can addresses a real weak point in the 5.7L Hemi’s design.
Vehicle Applications
This kit is a direct fit for the 2009-2010 Dodge Ram 1500 Laramie, SLT, Sport, ST, TRX, and TRX4. It also fits the 2011-2017 Ram 1500 Big Horn, Laramie, Laramie Longhorn, SLT, Sport, and Tradesman, as well as the 2012-2017 Ram 1500 Express and the 2014-2017 Ram 1500 Lone Star and Special Service. Additional covered trims include the 2013-2016 Ram 1500 HFE, 2014-2015 Ram 1500 Laramie Limited, 2015-2017 Ram 1500 Limited and Rebel, 2011-2016 Ram 1500 Outdoorsman, 2013 Ram 1500 R/T, 2011-2012 Ram 1500 ST, and 2012 Ram 1500 Tradesman HD.
Features

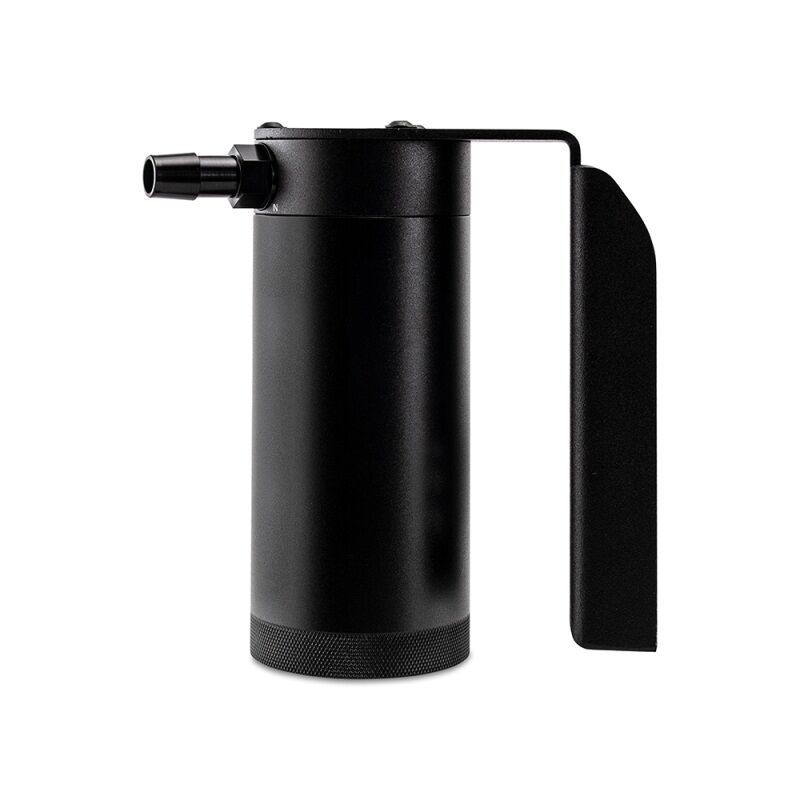

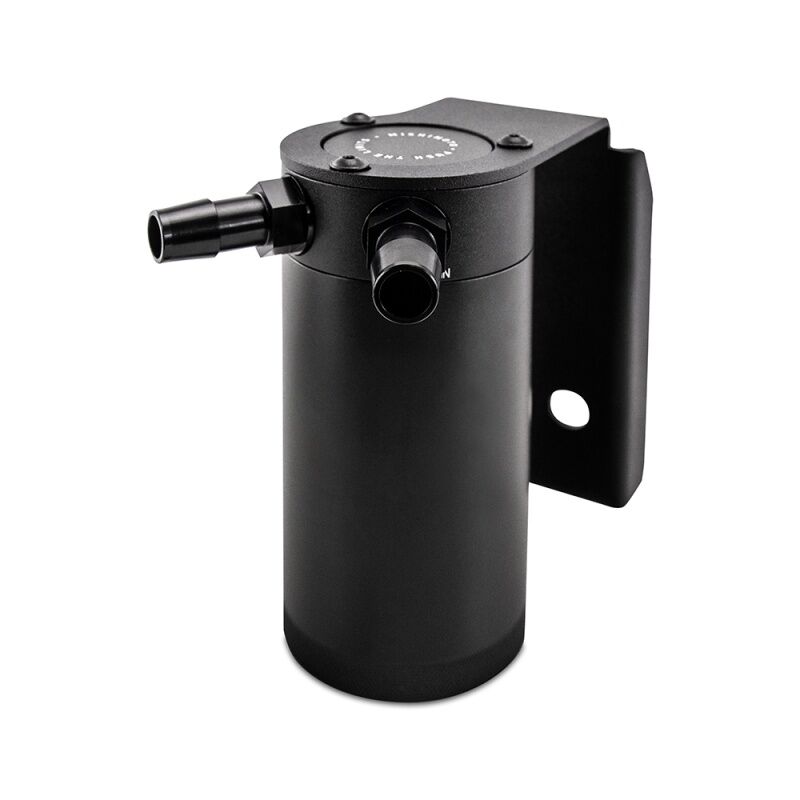

- Direct-fit bracket mounts the can in a serviceable location and bolts to the radiator support for a clean OEM look
- Single can mounts in line with the PCV system and separates oil particles using a 50-micron bronze filter
- Larger 7.5 oz capacity extends the time between checks compared to a standard 2oz can
- Helps maintain proper octane levels to reduce potential detonation

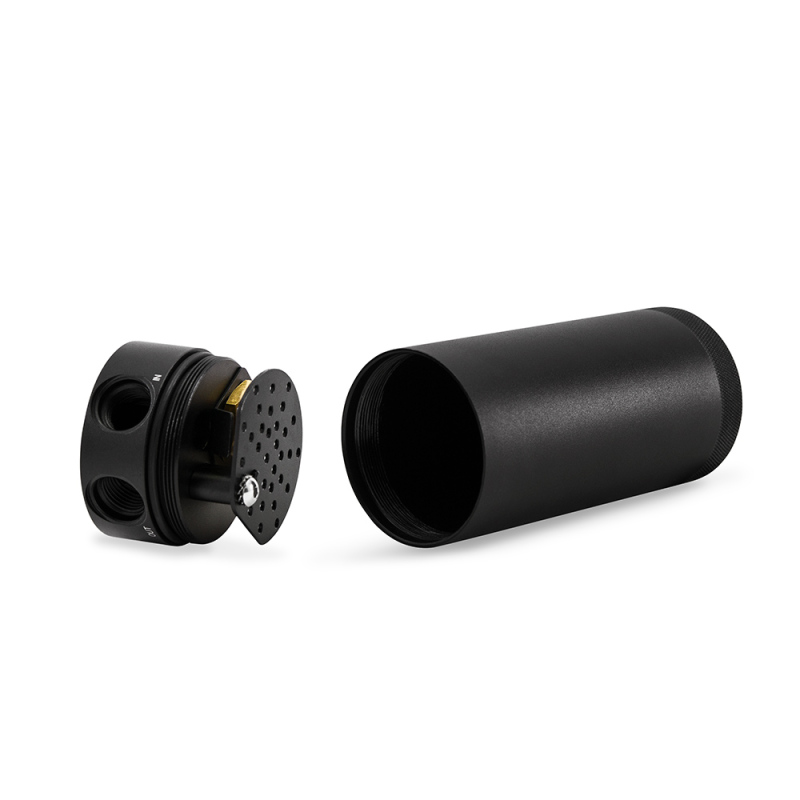

- Filters and cans are fully serviceable, with an included drain plug
- Internal air diverter increases air turbulence to improve oil separation
- 100-percent billet 6061 aluminum sealed cans
- Backed by the Mishimoto Lifetime Warranty
- Installs in under 1 hour
Specifications
- Can Material: 6061-T6 Billet Aluminum
- Can Type: Twist Off
- Can Outside Diameter: 2.5 in
- Can Finish: Anodized
- Maximum Can Capacity: 7.5 oz
- Color: Black
- Finish: Powder Coat
- Material: 6061 Aluminum
- Height: 6.2 in
- Mounting Bracket Included: Yes
- Hose Included: Yes
- Drain Plug Included: Yes
- Interior Baffle: Yes
- Inlet Port Inside Diameter: 0.5 in
- Outlet Port Inside Diameter: 0.5 in
Frequently Asked Questions
What vehicles does this Mishimoto oil catch can kit fit?
It is a direct fit for the 2009-2010 Dodge Ram 1500 Laramie, SLT, Sport, ST, TRX, and TRX4, and the 2011-2017 Ram 1500 across trims including Big Horn, Laramie, Laramie Longhorn, SLT, Sport, Tradesman, Express, Lone Star, Special Service, HFE, Laramie Limited, Limited, Rebel, Outdoorsman, R/T, ST, and Tradesman HD, per the years listed for each trim.
How large is the catch can?
The can has a maximum capacity of 7.5 oz and is made from 6061-T6 billet aluminum with an anodized finish in black.
Does the kit include a mounting bracket?
Yes, a mounting bracket is included and bolts directly to the radiator support for an OEM-style look.
How long does installation take?
This kit installs in under 1 hour.
What filtration does the can use?
The can uses internal baffling, air diverters, and a 50-micron bronze filter to separate oil from crankcase vapor.
What warranty is included with this kit?
This kit comes with the Mishimoto Lifetime Warranty.
