Description
The Mishimoto MMBCC-FOST-13PBE2 is a baffled oil catch can kit built specifically for the 2013-2018 Ford Focus ST, tapping into the vehicle’s vacuum-assisted PCV system where Mishimoto engineers found the greatest amount of oil accumulates during both normal and aggressive driving. Rather than running multiple cans, this kit relies on a single Mishimoto 2-Port Compact Baffled Oil Catch Can, which the brand found works best for the vast majority of Focus ST owners.
Direct fuel injection is efficient, but it removes the fuel wash that once helped keep intake valves clean in older engine designs, so oil vapor and blow-by can accumulate on valves and other components of an automobile engine over time. This Mishimoto catch can addresses that reality by pulling oil out of crankcase vapors before they re-enter the intake tract, helping protect the intercooler, intake system, and other engine parts from oil contamination, helping reduce carbon build-up on the intake valves, and helping maintain proper octane levels to reduce potential detonation. For anyone researching engine parts for car maintenance or simply trying to keep the parts of a car engine cleaner over the long run, this kit is a targeted, application-specific solution rather than a generic universal setup.
Vehicle Applications
This Mishimoto baffled oil catch can kit is designed as a direct fit for the Ford Focus ST across the 2013 through 2018 model years, using an application-specific mounting bracket and two direct-fit hoses that connect the catch can to the crankcase and intake manifold without modification.
Features
- Single can mounted inline with the PCV system separates oil particles using a 50 micron bronze filter

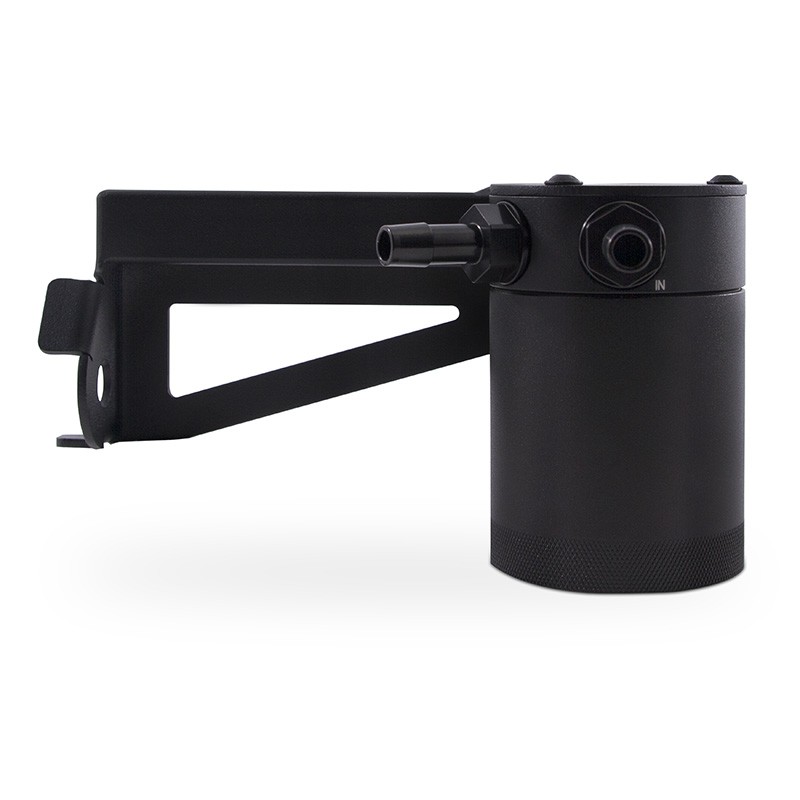

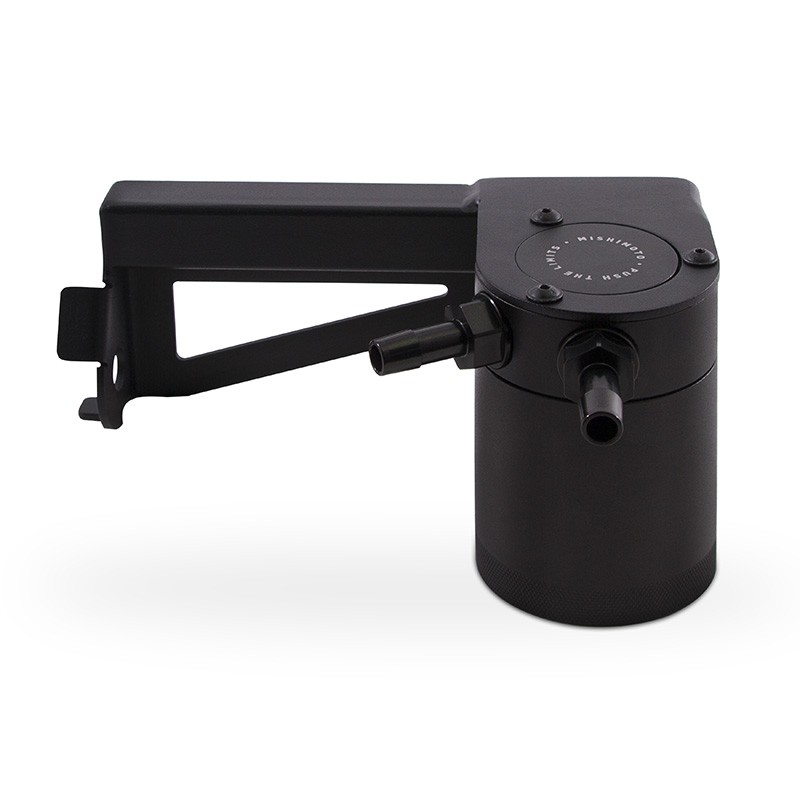

- Application-specific bracket mounts easily and positions the can in a serviceable location next to the engine’s oil drain plug, conveniently located near the transmission
- Black hoses come pre-molded for a reliable, direct-fit install

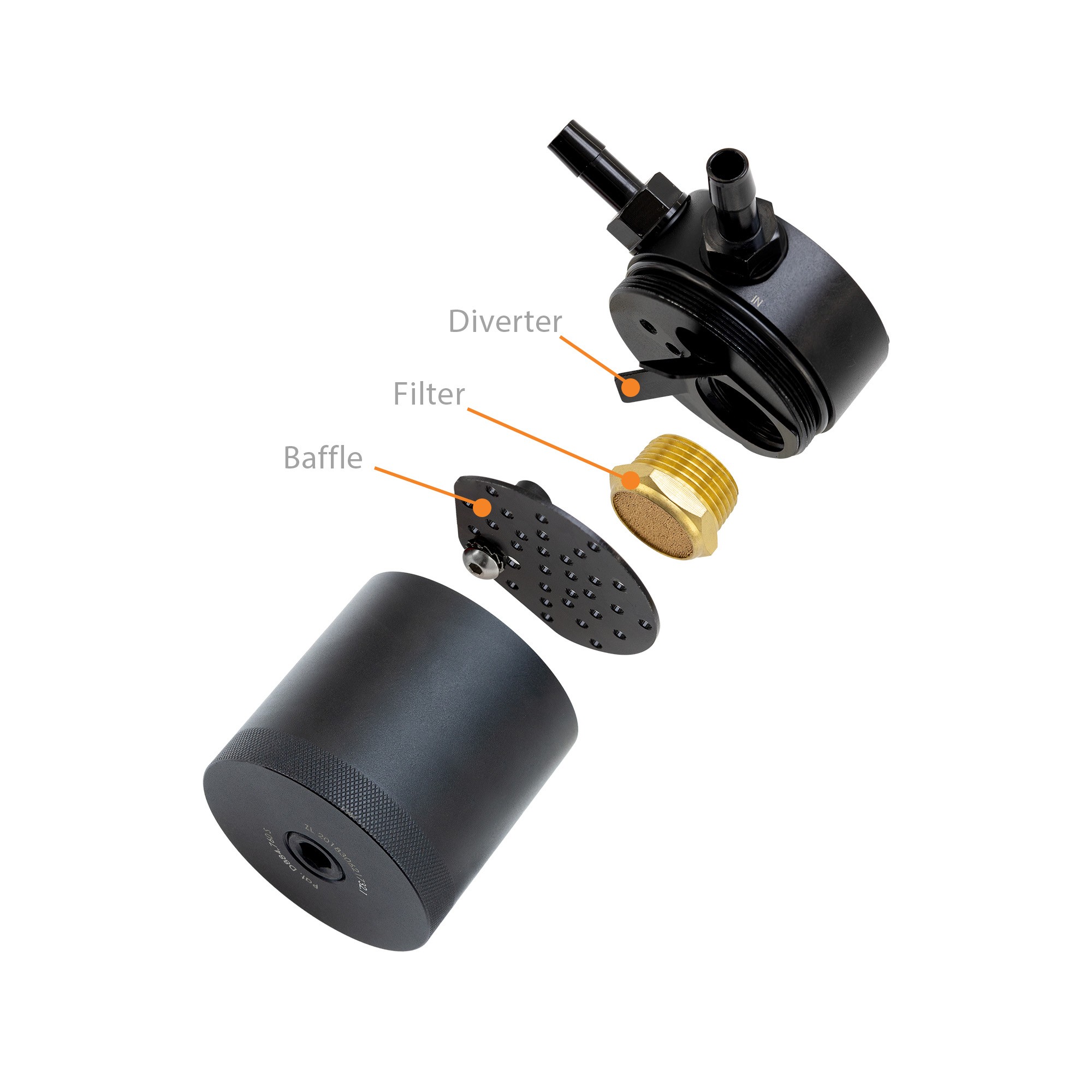

- Billet 6061 aluminum sealed can with anodized finish and internal baffling separates oil from crankcase vapors
- Two CNC-machined aluminum 3/8-in barb fittings connect the hoses to the can
- Defends the intercooler, intake system, and essential components from oil blow-by

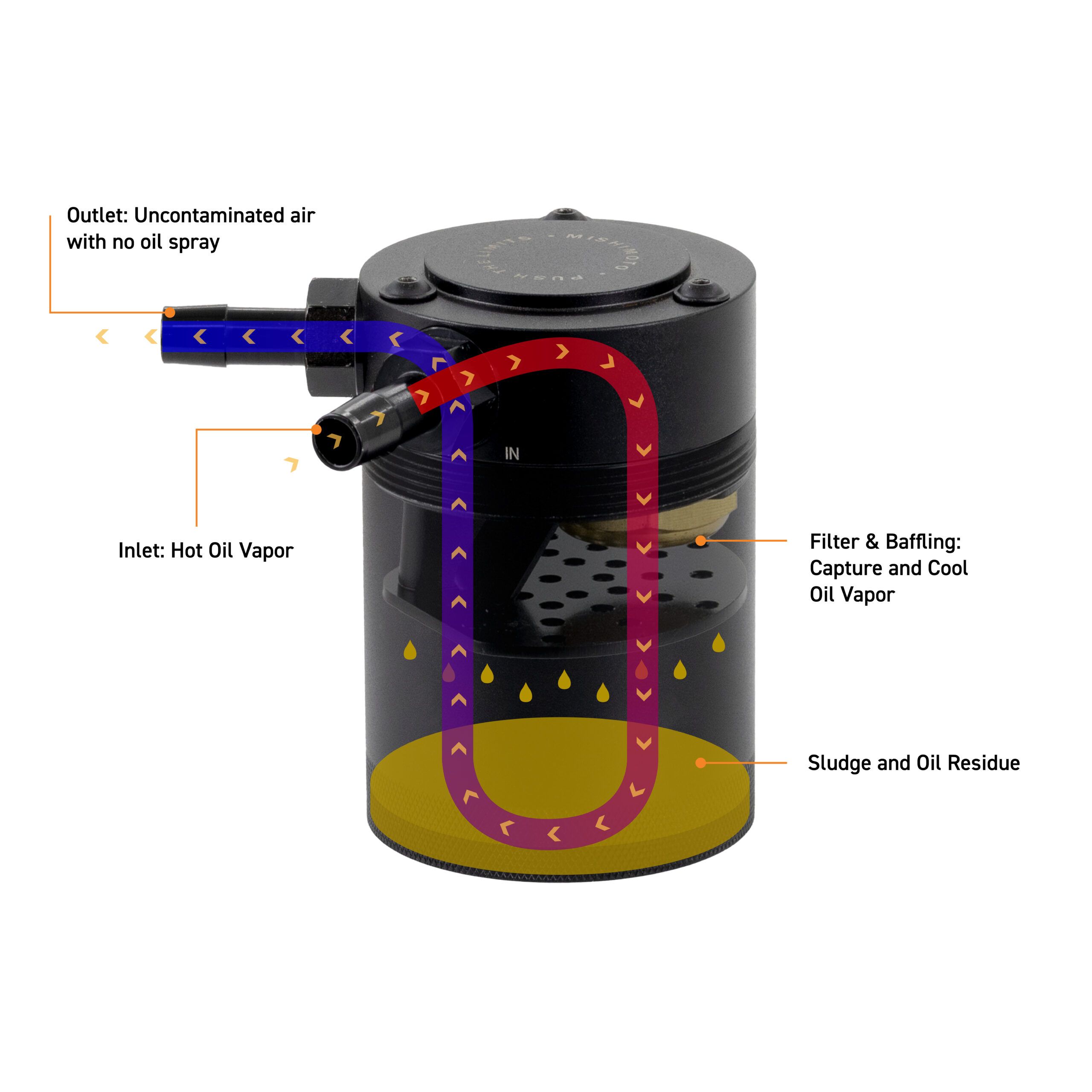

- Internal air diverter turbulates air longer to improve oil separation

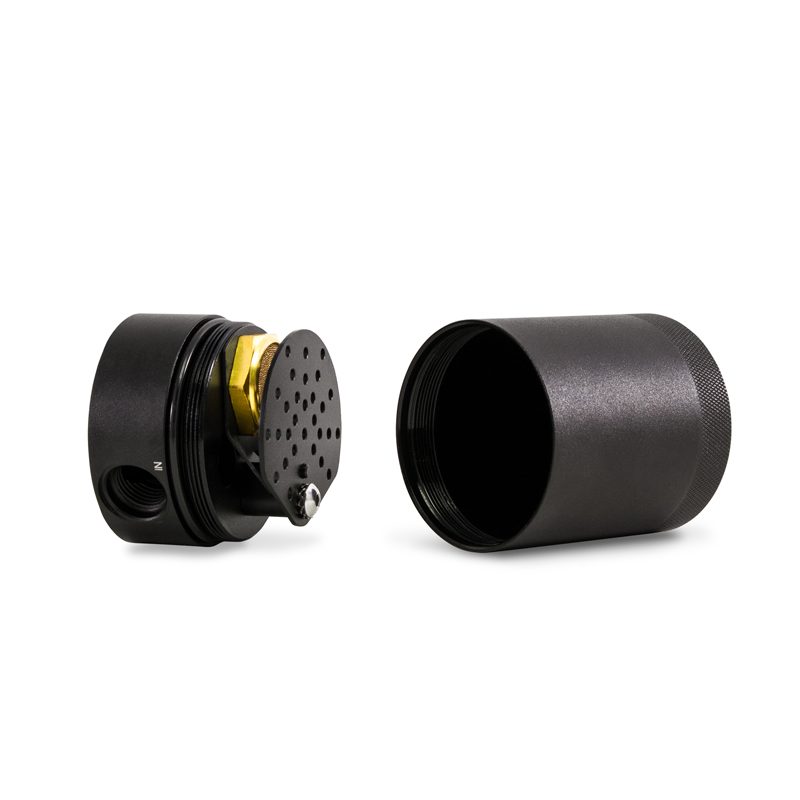

- Filters and can are fully serviceable
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMBCC-FOST-13PBE2
- Color: Black
- Finish: Anodized
- Material: 6061 Aluminum
- Can Material: 6061-T6 Billet Aluminum
- Can Type: Twist Off
- Can Outside Diameter: 2.5 in
- Height: 3.7 in
- Inlet Port Inside Diameter: 0.6 in
- Outlet Port Inside Diameter: 0.6 in
- Interior Baffle: Yes
- Mounting Bracket Included: Yes
- Hose Included: Yes
- Drain Plug Included: Yes

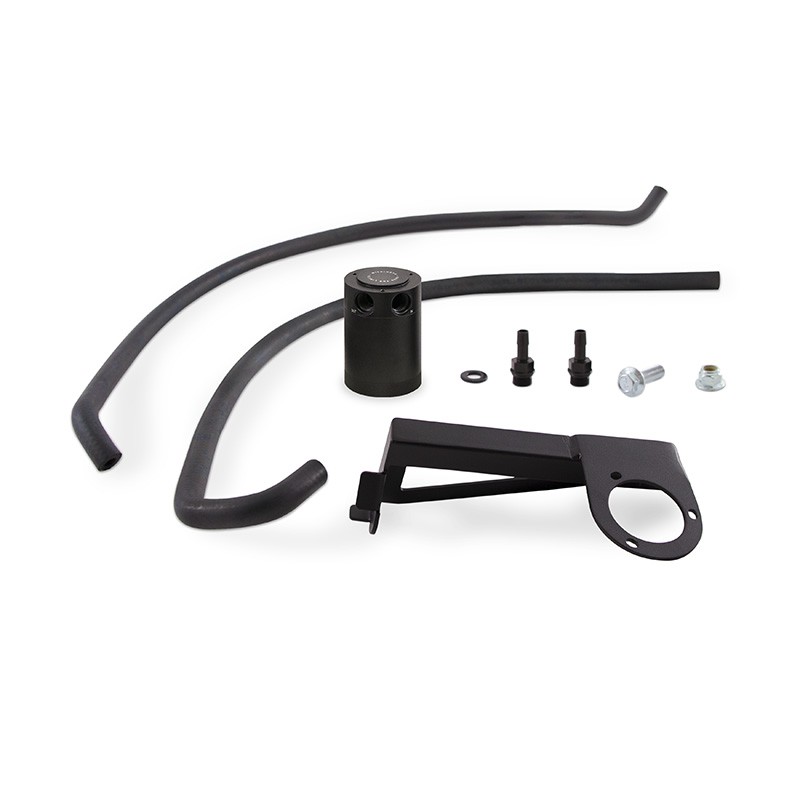

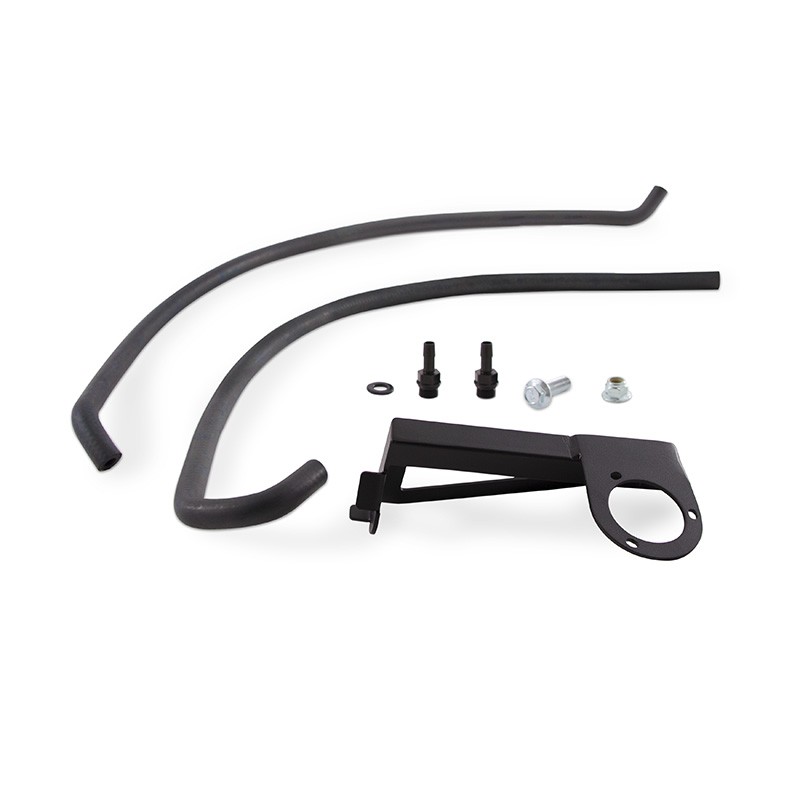

- Kit Includes: (1) Compact Baffled Oil Catch Can, (1) Application-Specific Mounting Bracket, (2) Direct-Fit Hoses, (2) 3/8-in Aluminum Barbed Fittings, (4) Worm Gear Clamps, Mounting Hardware, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does the Mishimoto MMBCC-FOST-13PBE2 catch can kit fit?
This kit is designed as a direct fit for the Ford Focus ST from 2013 through 2018.
What is included in the kit?
The kit includes (1) Compact Baffled Oil Catch Can, (1) Application-Specific Mounting Bracket, (2) Direct-Fit Hoses, (2) 3/8-in Aluminum Barbed Fittings, (4) Worm Gear Clamps, Mounting Hardware, and the Mishimoto Lifetime Warranty.
What is the catch can made of?
The can is made from 6061-T6 billet aluminum with an anodized finish.
Does the catch can include a filter?
Yes, the kit uses a 50 micron bronze filter along with internal baffling and an internal air diverter to separate oil from crankcase vapors.
Where does this catch can connect on the Focus ST?
It is plumbed inline with the vacuum-assisted PCV system using two direct-fit hoses that connect the can to the crankcase and intake manifold, and it mounts in a serviceable location next to the engine’s oil drain plug, conveniently located near the transmission.
What warranty comes with this kit?
This baffled catch can kit is backed by the Mishimoto Lifetime Warranty.
