Mishimoto Baffled Oil Catch Can Kit for 2015-2017 Mustang GT

Description

The Mishimoto MMBCC-MUS8-15PBE is a purpose-built baffled oil catch can engineered specifically for the 2015-2017 Ford Mustang GT’s 5.0L Coyote engine. This single-can, two-port kit mounts in line with the PCV system and uses a 50 micron bronze filter with an internal baffle to pull oil out of crankcase vapors before it reaches the intake tract. It’s a compact, application-specific solution designed to keep this Coyote-powered engine running cleaner without cluttering the engine bay.

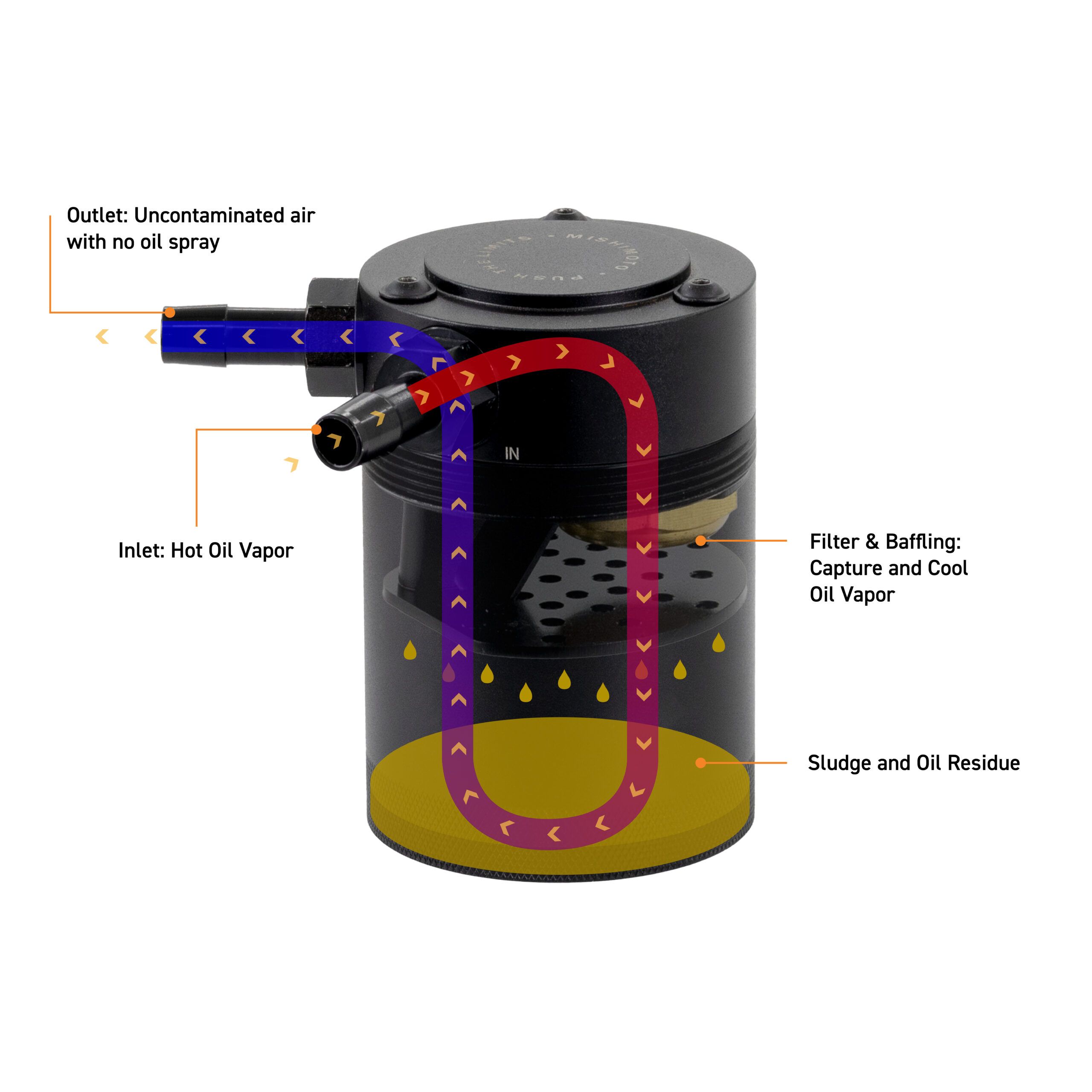

Engine blow-by can leave an oily residue inside the intake manifold and lower octane levels, which raises the risk of detonation – a real concern for anyone pushing more air through their car engine, whether with forced induction or a stock setup. Unlike heated AOS systems that drain condensed vapor back into the oil pan, this Mishimoto catch can traps low-octane oil vapor and contaminated fuel vapor permanently, keeping it out of the crankcase for good. An internal air diverter turbulates the incoming air longer to improve oil separation, and because the can and filter are fully serviceable, maintaining this piece of your engine’s parts inventory is straightforward. The billet 6061 aluminum can features a twist-off top for quick servicing, and the whole kit is backed by the Mishimoto Lifetime Warranty.

Vehicle Applications

This catch can kit is a direct fit for the 2015-2017 Ford Mustang GT, including GT Premium models across that same 2015-2017 range. It also fits the 2015 Ford Mustang GT 50 Years Limited Edition, the 2016 Ford Mustang Base, and the 2017 Ford Mustang V8. The application-specific bracket positions the can away from most intake and supercharger kits, leaving room to add forced induction down the road without relocating the catch can.

Features

• Direct fit for the 2015-2017 Ford Mustang GT
• Single can mounts in line with the PCV system, separating oil from air using a 50 micron bronze filter
• Installs in under 30 minutes

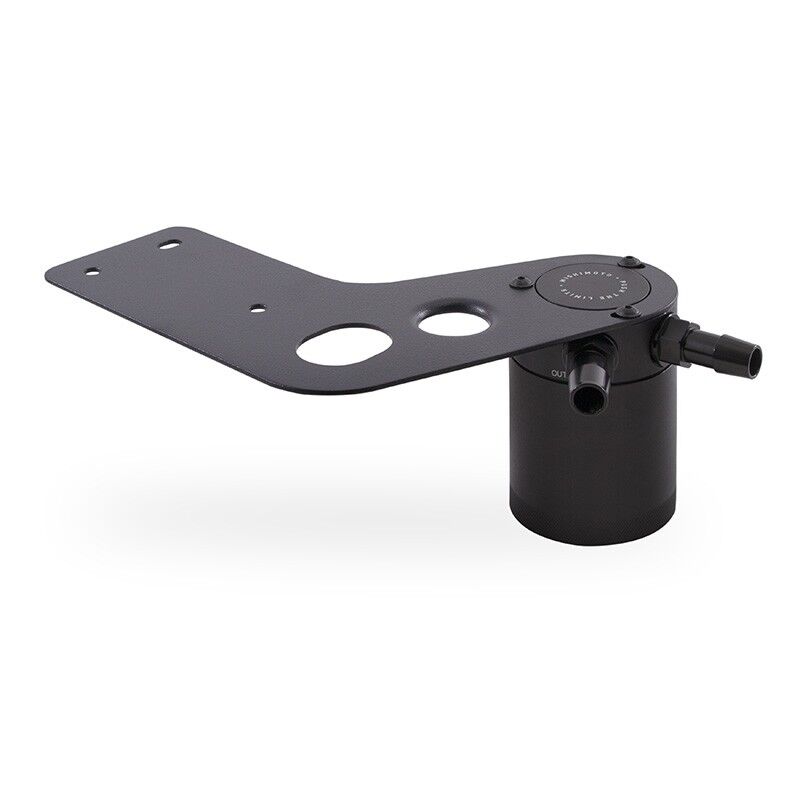

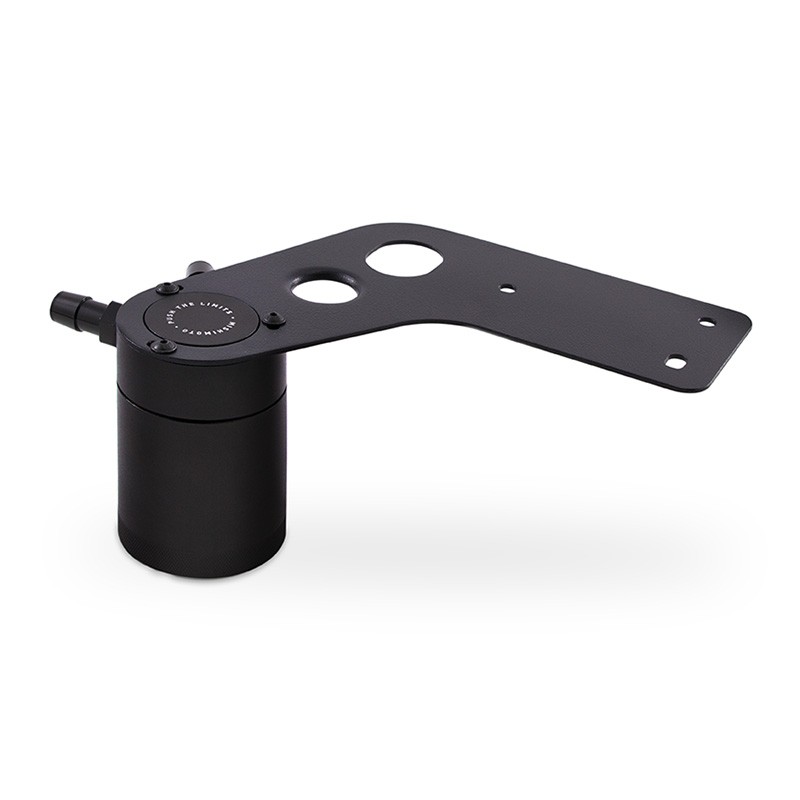

• Robust, application-specific bracket mounts the can in a serviceable location away from most intake and supercharger kits
• 2 oz. capacity for longer servicing intervals

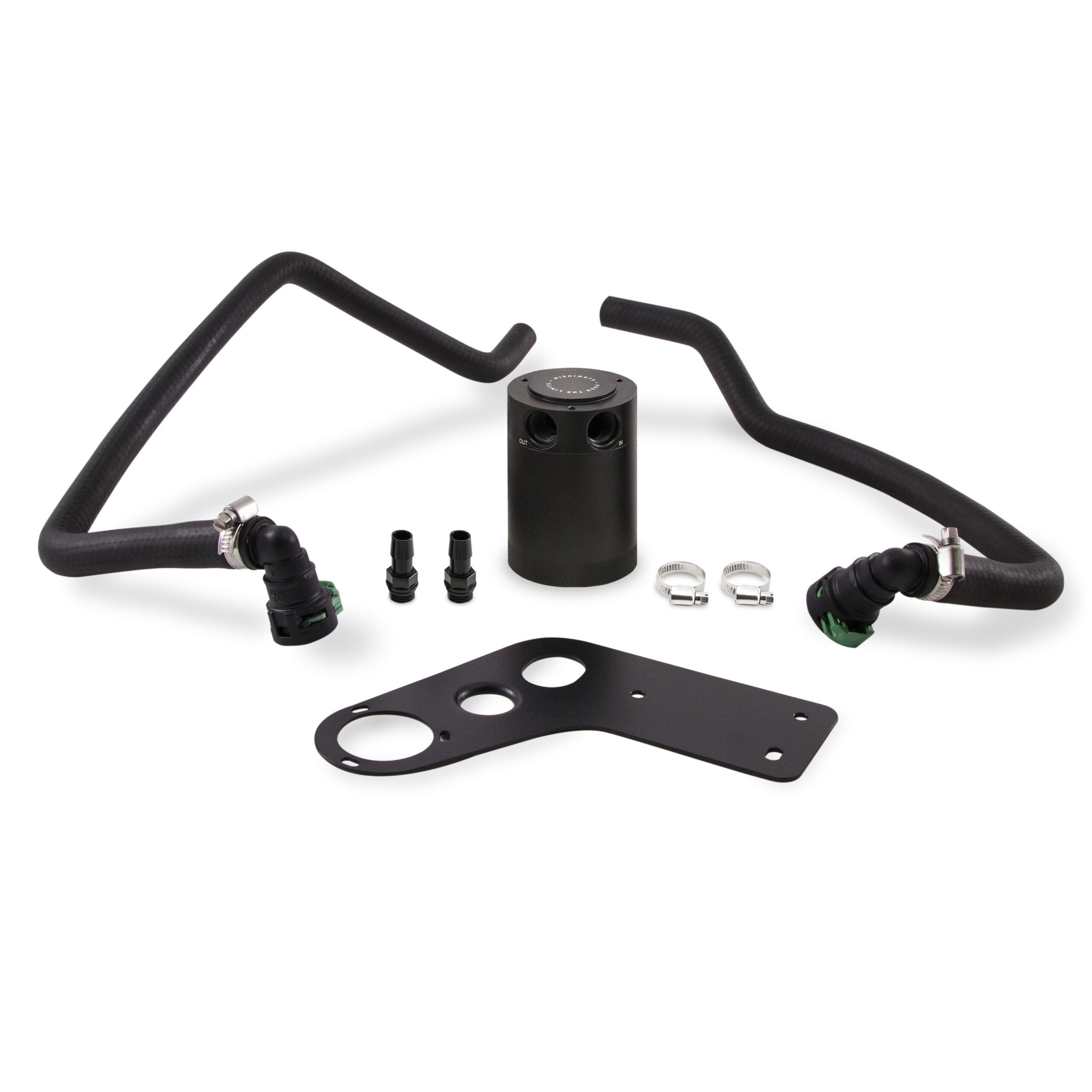

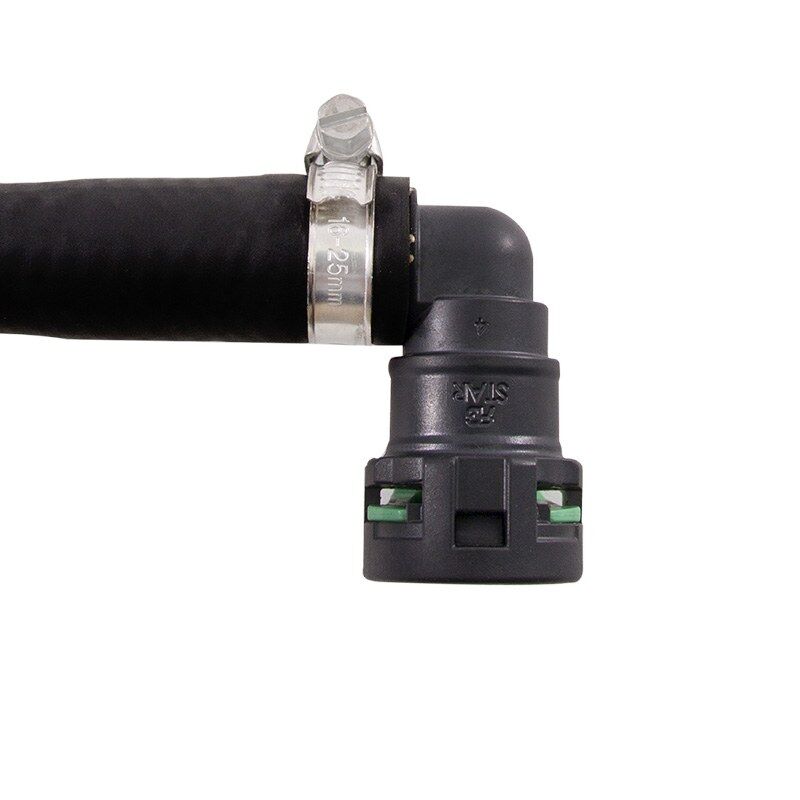

• Silicone hoses include pre-attached stock-style, quick-disconnect fittings for a true plug-and-play install

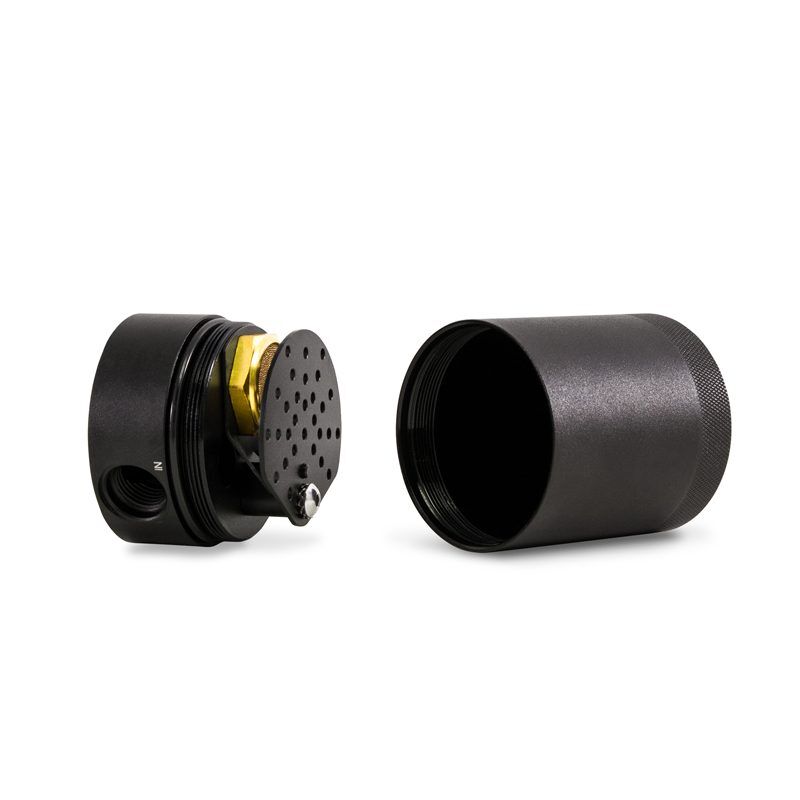

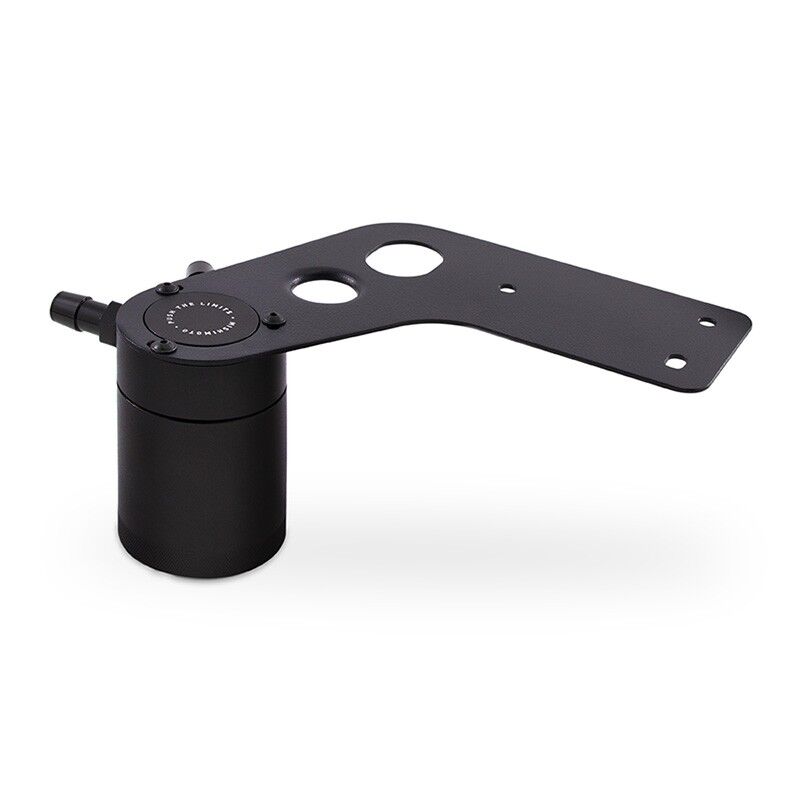

• Billet 6061 aluminum sealed can with a twist-off design for easy servicing
• Defends the intake system and essential engine parts from oil blow-by
• Helps maintain proper octane levels to reduce potential detonation
• Filter and can are fully serviceable

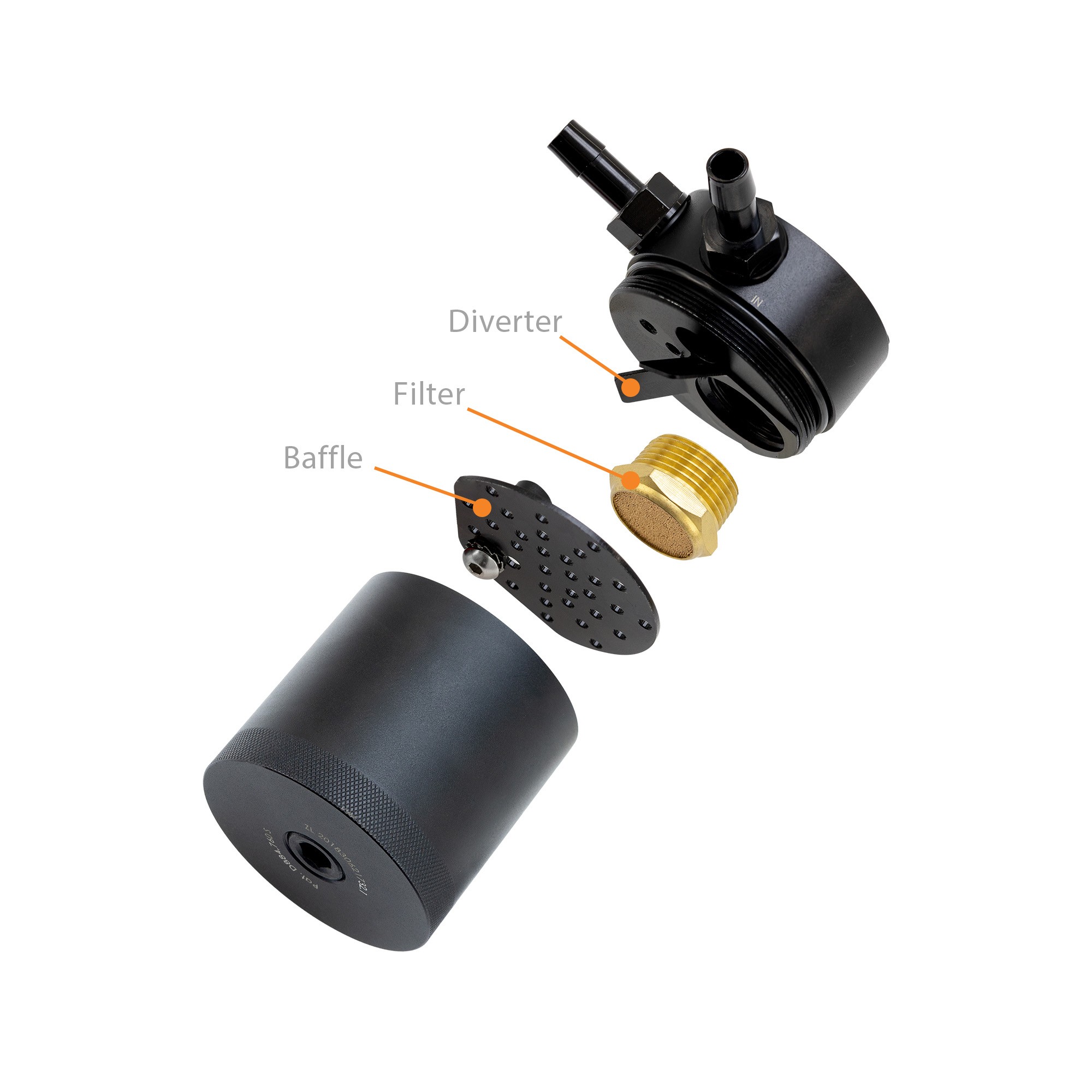

• Internal air diverter turbulates air longer to improve oil separation
• Direct-fit hoses available in black, blue, or red
• Backed by the Mishimoto Lifetime Warranty

Specifications

• Part Number: MMBCC-MUS8-15PBE
• Title: Mishimoto Ford Mustang GT Baffled Oil Catch Can, PCV Side, 2015-2017
• Color: Black
• Finish: Powder Coat (bracket) / Anodized (can)
• Can Material: 6061-T6 Billet Aluminum
• Can Type: Twist Off
• Can Outside Diameter: 2.5 IN
• Height: 3.7 IN
• Inlet Port Inside Diameter: 0.6 IN
• Outlet Port Inside Diameter: 0.6 IN
• Interior Baffle: Yes
• Mounting Bracket Included: Yes
• Hose Included: Yes
• Drain Plug Included: Yes
