Description

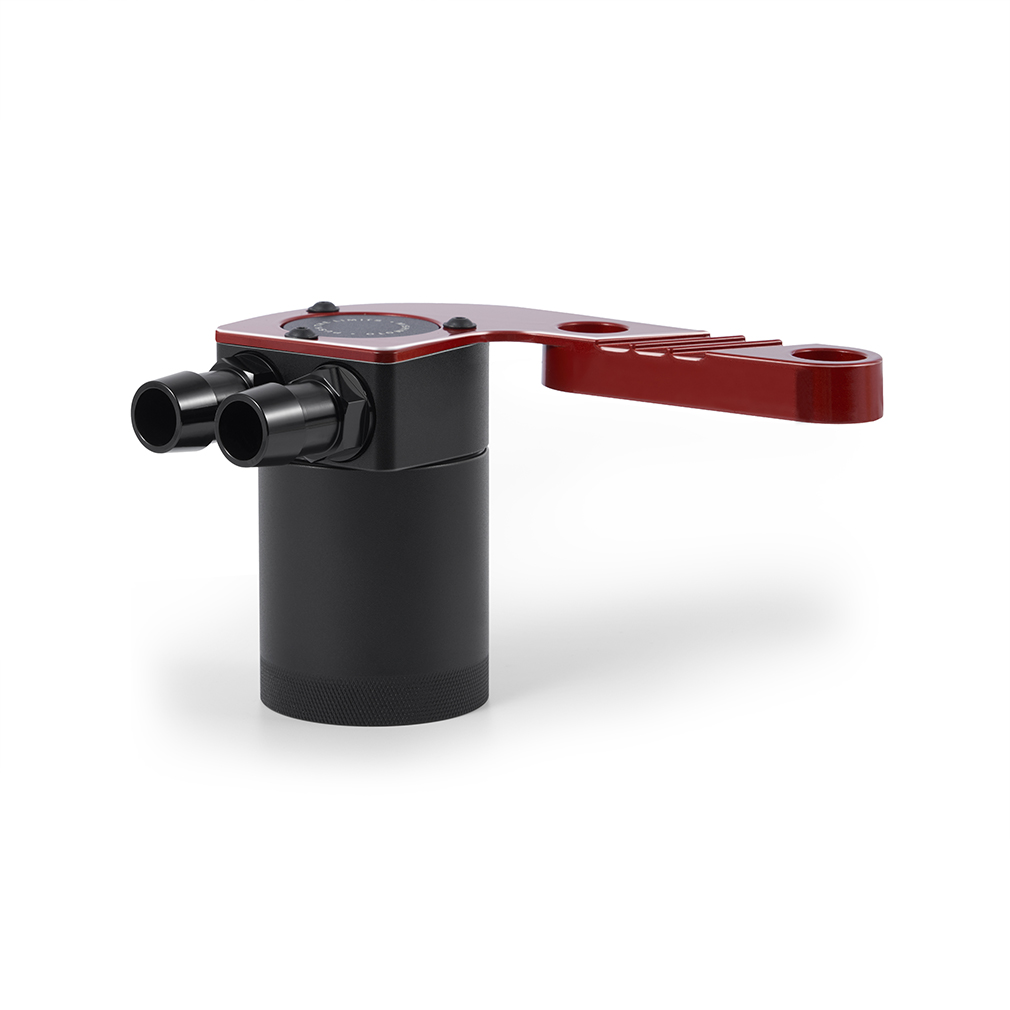

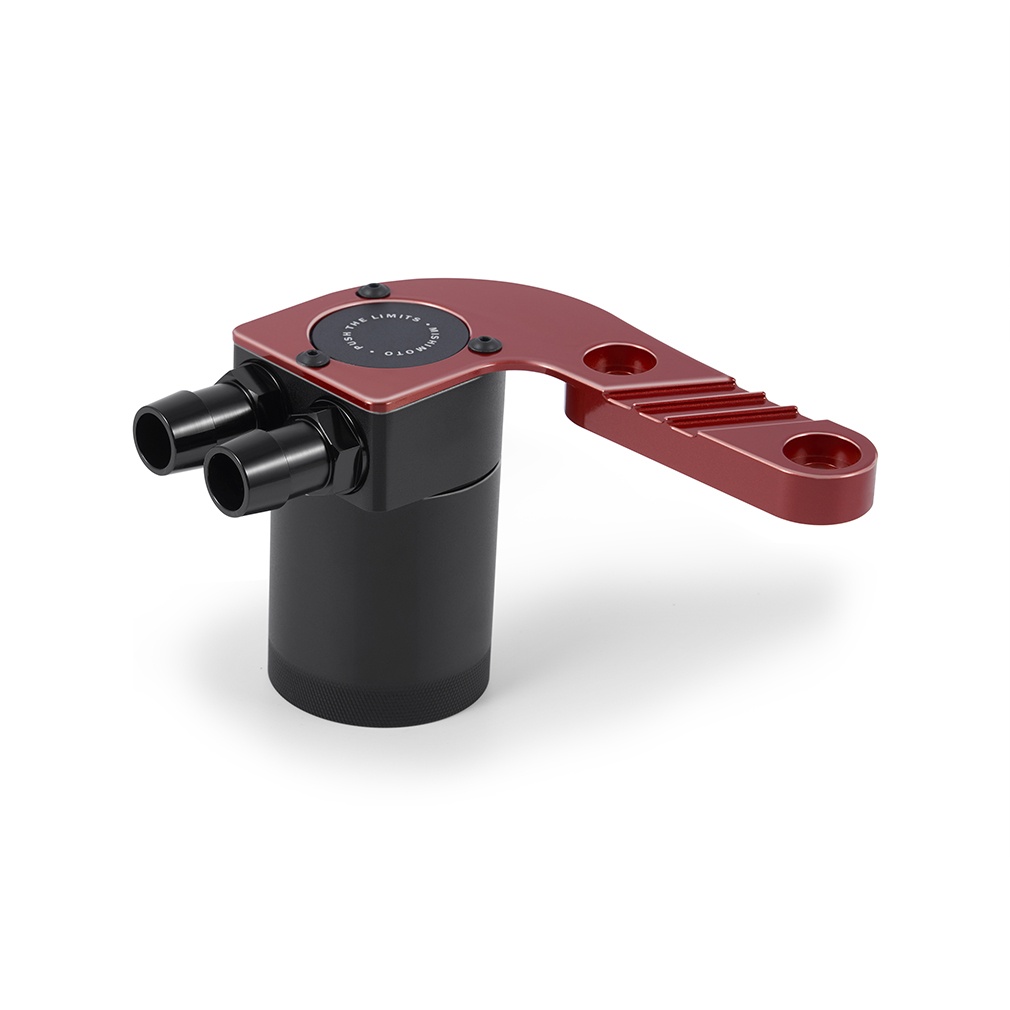

The Mishimoto Baffled Oil Catch Can Kit (MMBCC-F80-15CSO) is purpose-built for the S55-powered F8X chassis, giving the turbocharged BMW M3 and M4 a dedicated defense against crankcase blow-by. Machined from billet aluminum with a CNC-machined lid sized to match the CCV hose diameter, this catch can uses Mishimoto’s patent-pending 2-Port Compact Baffled design with a 50-micron bronze filter and internal baffle to pull oil out of crankcase vapors before they can reach sensitive intake components.
Every set of car engine parts benefits from keeping oil vapor and blow-by out of the intake tract, and this baffled oil catch can does exactly that for the components of your BMW’s engine bay. By trapping oil and contaminated fuel vapors instead of draining them back into the oil pan like many air-oil-separator systems, it helps defend the intercooler, intake system, and VANOS system while helping maintain proper octane levels to reduce potential detonation. An internal air diverter increases turbulence inside the can to further improve oil separation, and because the can and filter are fully serviceable, maintaining this piece of your car’s engine hardware is straightforward. It ships complete with a direct-fit billet aluminum mounting bracket, two direct-fit hoses, and two 3/4-inch aluminum barbed fittings, so installation requires no modification to the engine cover.
Vehicle Applications
This kit is a direct fit for the S55-powered F80/F82/F83/F87 chassis BMWs. Coverage includes the 2015-2018 BMW M3, the 2015-2020 BMW M4 (coupe and convertible), the 2016 BMW M4 GTS, the 2018-2020 BMW M4 CS, and the 2019-2020 BMW M2 Competition. If your BMW falls within these model years and chassis codes, this catch can kit installs without modifying the factory engine cover.
Features
- Direct fit for the 2015-2020 F8X BMW M3, M4, and M2 Competition
- Single 2-Port Compact Baffled Oil Catch Can separates oil particles using a 50-micron bronze filter
- Application-specific bracket mounts the can in a serviceable location
- Direct-fit hoses allow installation with no modification to the engine cover
- Application-specific lid designed so fitting size matches the CCV line size
- Billet 6061 aluminum sealed can
- Aluminum bracket available in 12 BMW-specific color-matched options or classic black
- Defends the intercooler, intake system, and VANOS system from oil blow-by
- Helps maintain proper octane levels to reduce potential detonation
- Internal air diverter increases air turbulence to improve oil separation
- Filters and can are fully serviceable
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Can Material: 6061-T6 Billet Aluminum
- Can Type: Twist Off
- Can Finish: Anodized
- Can Outside Diameter: 2.5 in
- Inlet Port Inside Diameter: 0.6 in
- Outlet Port Inside Diameter: 0.6 in
- Interior Baffle: Yes
- Drain Plug Included: Yes
- Hose Included: Yes
- Mounting Bracket Included: Yes
- Bracket Finish: Anodized
- Bracket Color Options: Black or 12 BMW-specific color-matched finishes (e.g., Sakhir Orange Metallic)
- Fitting Material: Aluminum, 3/4-in barb fittings
- Engine Code: S55
- Chassis Codes: F80, F82, F83, F87

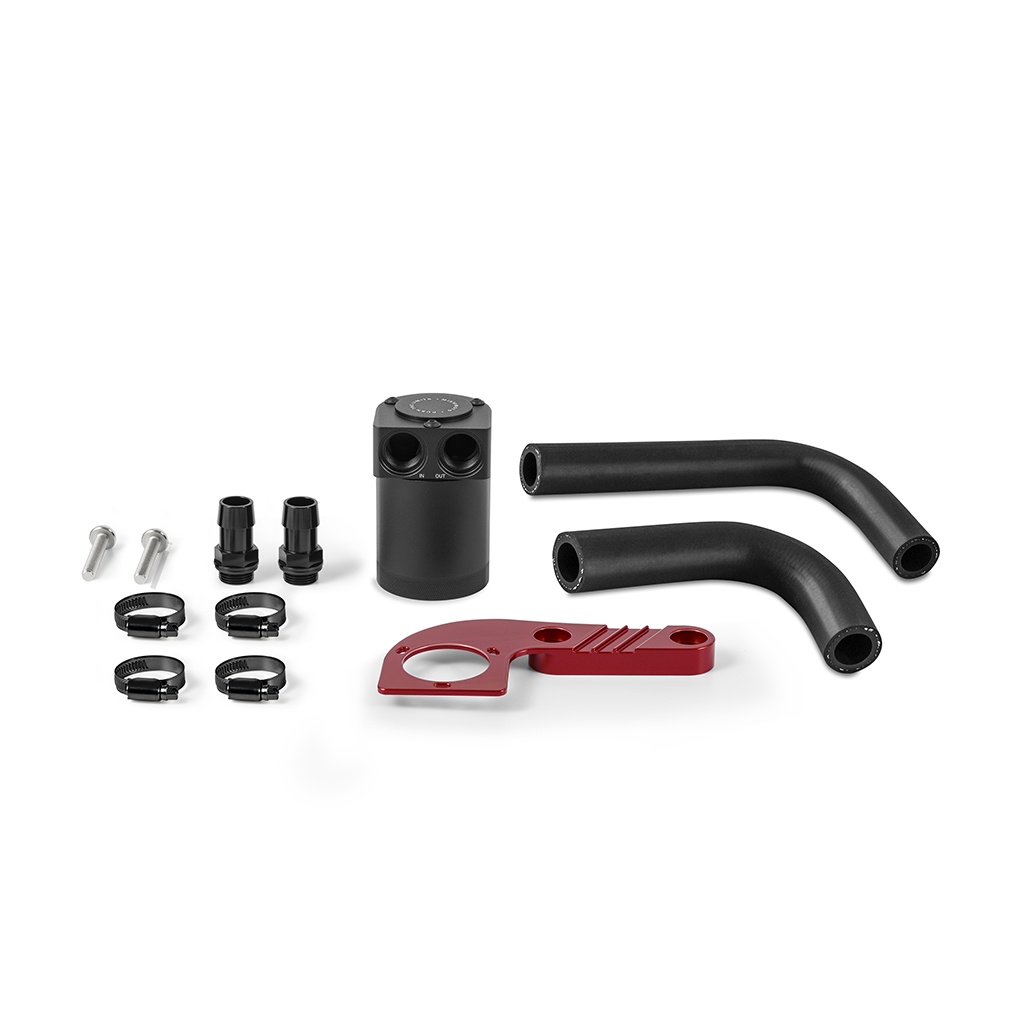

- Kit Includes: (1) Compact Baffled Oil Catch Can, (1) Application-Specific Mounting Bracket, (2) Direct-Fit Hoses, (2) 3/4-in Aluminum Barbed Fittings, (4) Worm Gear Clamps, Mounting Hardware, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles does the Mishimoto MMBCC-F80-15CSO catch can kit fit?
It is a direct fit for the 2015-2018 BMW M3, 2015-2020 BMW M4 (coupe/convertible), 2016 BMW M4 GTS, 2018-2020 BMW M4 CS, and 2019-2020 BMW M2 Competition, all built on the F80/F82/F83/F87 chassis with the S55 engine.
What filter micron rating does this catch can use to separate oil?
It uses a 50-micron bronze filter along with an internal baffle to separate oil particles from crankcase vapors.
Does installation require modifying the engine cover?
No, the kit includes two direct-fit hoses that allow installation with no modification to the engine cover.
What is the catch can made from and how is it finished?
The can is made from 6061-T6 billet aluminum with an anodized finish, and it uses a twist-off design for serviceability.
What color options are available for the mounting bracket?
The bracket is available in classic black or 12 BMW-specific color-matched options, such as Sakhir Orange Metallic.
What is included in the Mishimoto Baffled Oil Catch Can Kit?
The kit includes one Compact Baffled Oil Catch Can, one application-specific mounting bracket, two direct-fit hoses, two 3/4-inch aluminum barbed fittings, four worm gear clamps, mounting hardware, and the Mishimoto Lifetime Warranty.
