Description
The Mishimoto MMBCC-CTR-17PBEBK2 is a direct-fit baffled oil catch can kit engineered specifically for the 2017+ Honda Civic Type R and its turbocharged K20C1 engine. Built to intercept the oil-laden crankcase vapors that plague direct-injected, high-compression engines, this kit pairs a compact 6061-T6 billet aluminum can with an application-specific mounting bracket that bolts to the FK8/FL5 firewall. It’s a purpose-built solution for one of the most demanding hot hatch powerplants on the road today.
Understanding how the components of an automobile engine interact under boost is central to why this kit exists: blow-by gases carrying oil can coat intake valves and intercooler internals, robbing a turbocharged car engine of the clean airflow it needs. By separating oil from crankcase vapor before it recirculates, this catch can protects the parts of a car engine most vulnerable to fouling, helping keep the K20C1’s induction system and other car engine parts cleaner over time. For owners who take automobile combustion efficiency seriously, adding dedicated engine parts like this catch can is a straightforward way to safeguard performance without altering how the car engines respond day to day.
Vehicle Applications
This Mishimoto kit is a direct fit for the left-hand-drive Honda Civic Type R across model years 2017–2021 and 2023–2026, as well as the Honda Civic Type R Limited Edition from 2021. All covered vehicles share the FK8/FL5 chassis and K20C1 engine code that this kit was designed around.
Features
- Direct fit for the left-hand-drive 2017+ Honda Civic Type R

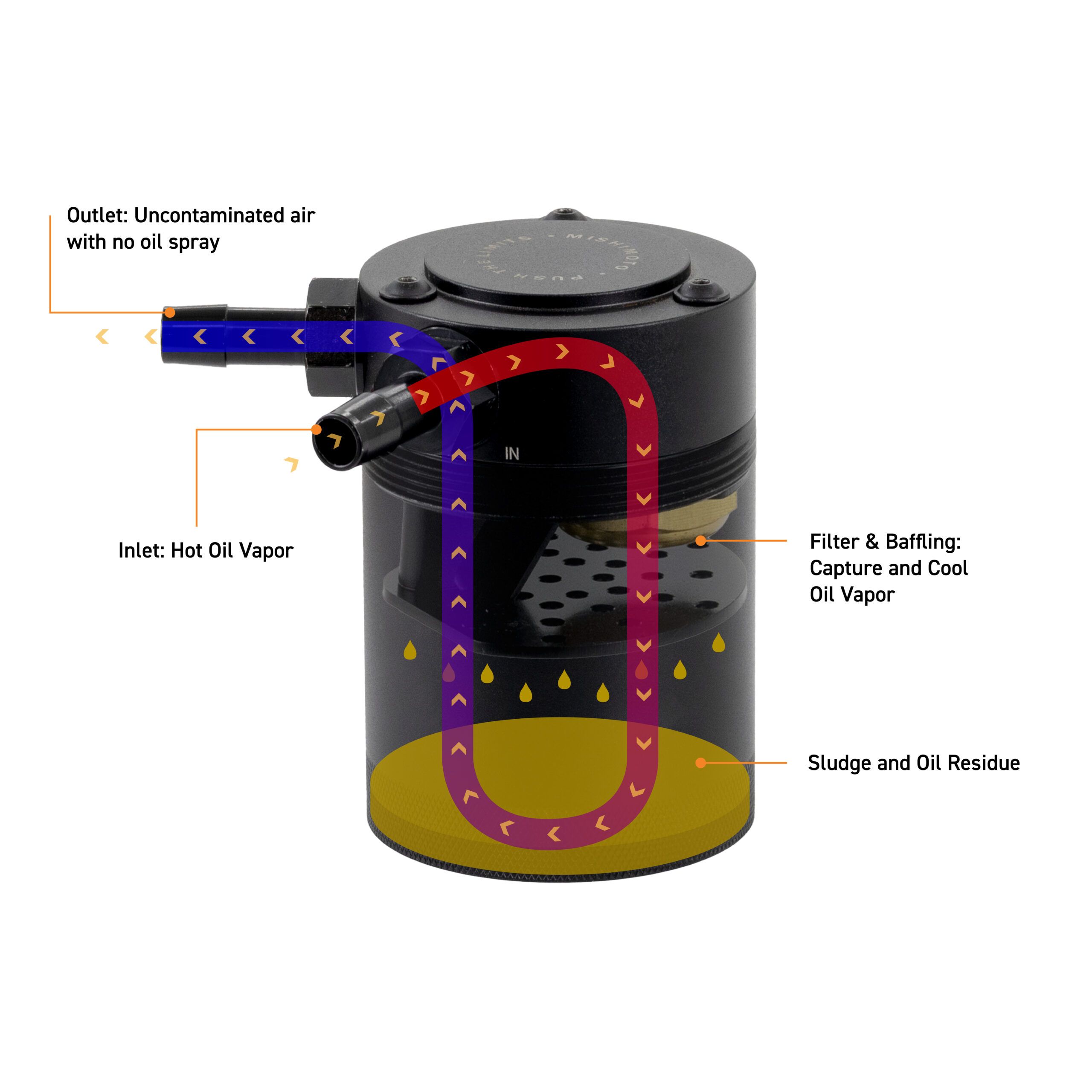

- Single can mounts in line with the PCV system to separate oil from air using a 50-micron bronze filter
- Installs in under 30 minutes

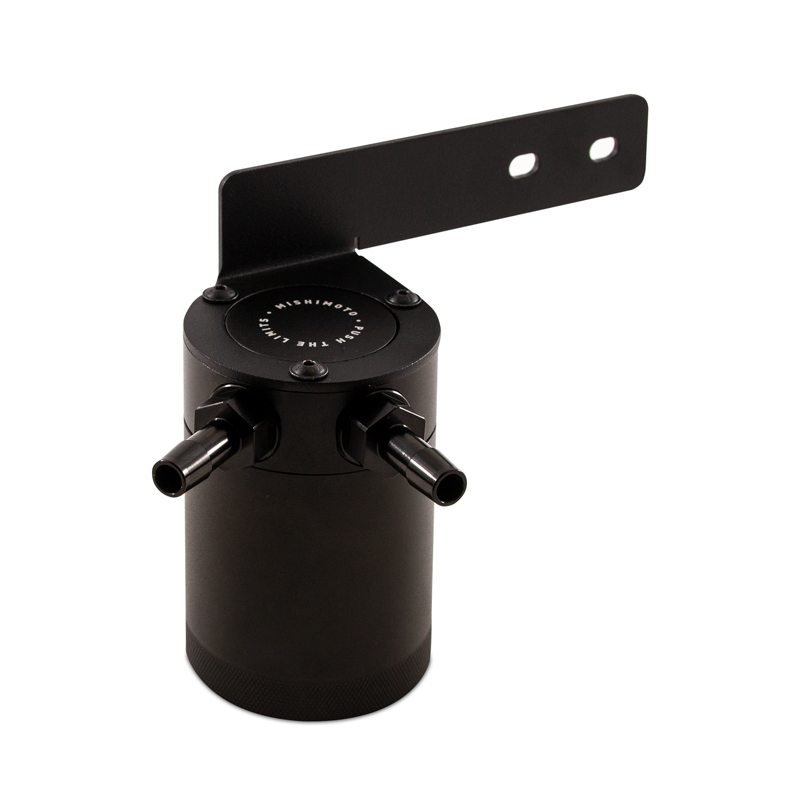

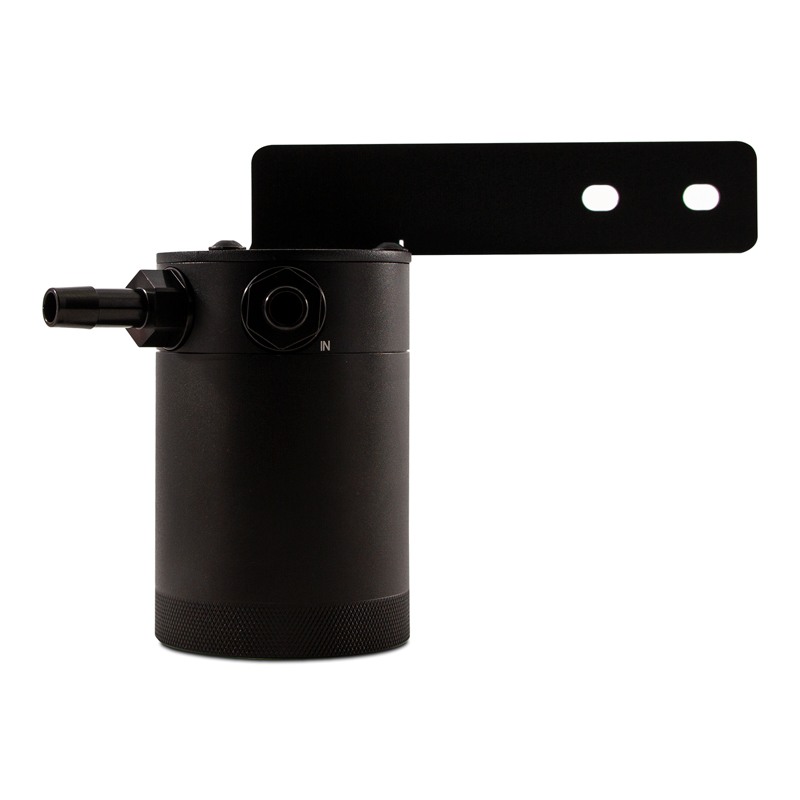

- Robust, application-specific bracket mounts the can in a serviceable location
- Bracket available in Black or Rallye Red
- Catch can has a 2 oz. capacity for longer servicing intervals

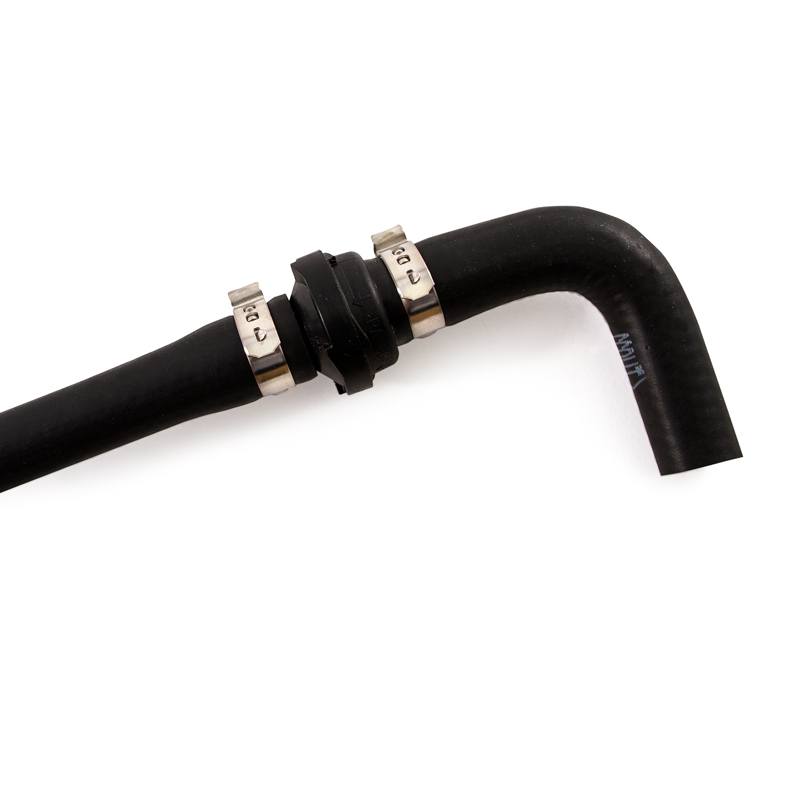

- Integrated check valve prevents leaks by keeping boost pressure from reaching the catch can and crankcase

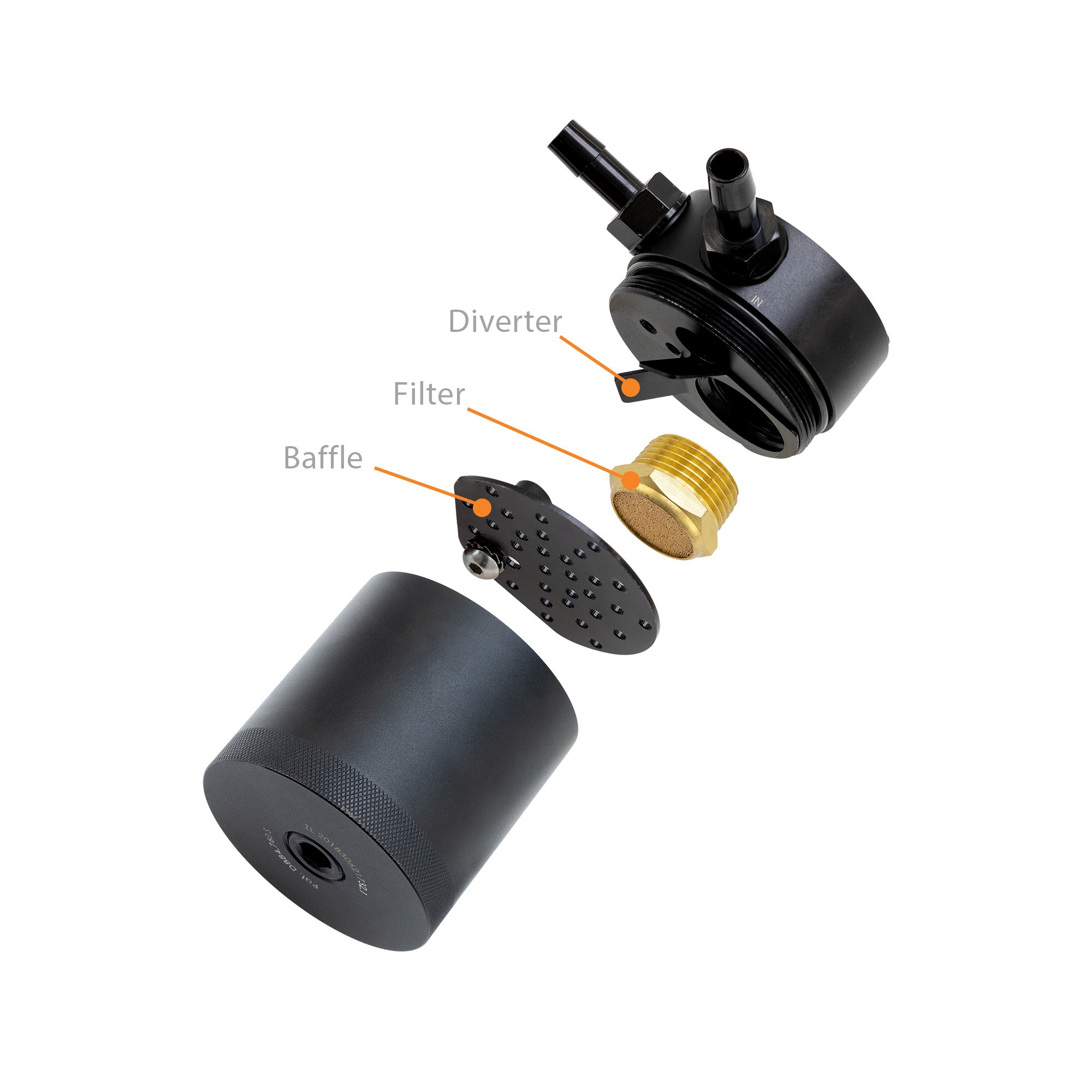

- Billet 6061 aluminum sealed can is fully serviceable
- Internal air diverter increases air turbulence to improve oil separation
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMBCC-CTR-17PBEBK2
- Bracket Color: Black (Rallye Red also available)
- Bracket Finish: Powder-Coat
- Bracket Material: 6061 Aluminum
- Height: 3.7 in.
- Mounting Bracket Included: Yes
- Hose Included: Yes
- Drain Plug Included: Yes
- Interior Baffle: Yes
- Inlet Port Inside Diameter: 0.6 in.
- Outlet Port Inside Diameter: 0.6 in.
- Can Material: 6061-T6 Billet Aluminum
- Can Type: Twist Off
- Can Outside Diameter: 2.5 in.
- Can Finish: Anodized
- Engine Code: K20C1
- Chassis Codes: FK8/FL5

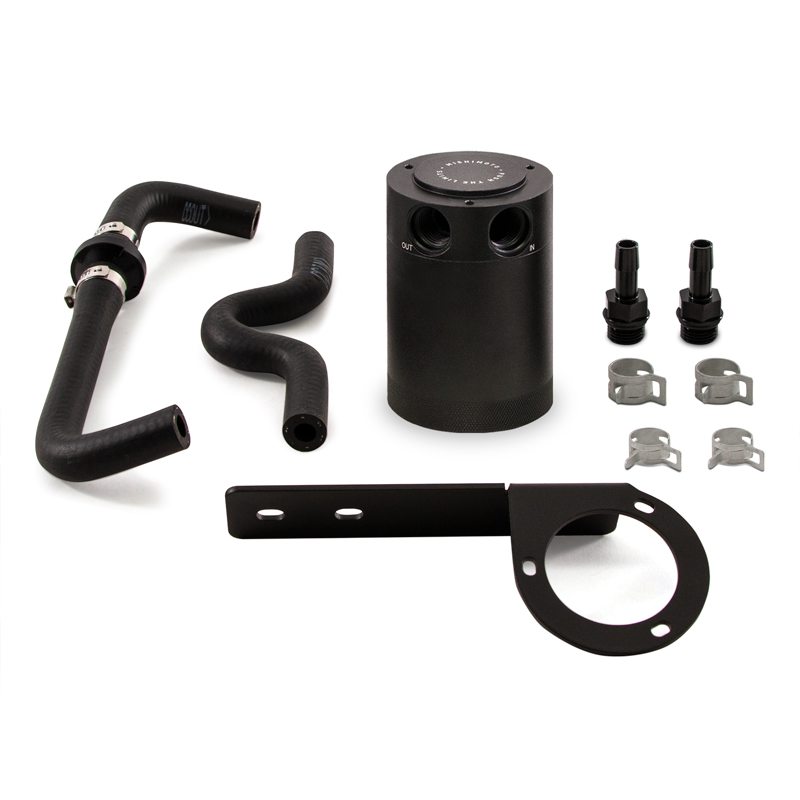

- Kit Includes: (1) Compact Baffled Oil Catch Can, (1) Application Specific Mounting Bracket, (2) Direct-Fit Hoses with Integrated Check Valve, (4) Spring Clamps, (2) 3/8-in Aluminum Barbed Fittings, Mounting Hardware, Mishimoto Lifetime Warranty
Frequently Asked Questions
What vehicles fit the Mishimoto MMBCC-CTR-17PBEBK2 oil catch can kit?
This kit is a direct fit for the left-hand-drive Honda Civic Type R for model years 2017–2021 and 2023–2026, as well as the Honda Civic Type R Limited Edition (2021), which share the FK8/FL5 chassis and K20C1 engine.
What does the kit include?
The kit includes one compact baffled oil catch can, one application-specific mounting bracket, two direct-fit hoses with an integrated check valve, four spring clamps, two 3/8-in aluminum barbed fittings, mounting hardware, and the Mishimoto Lifetime Warranty.
What is the capacity of the oil catch can?
The catch can has a 2 oz. capacity, which is designed for longer servicing intervals.
What colors are available for the mounting bracket?
The mounting bracket is available in Black or Rallye Red.
Does the kit prevent boost pressure from reaching the crankcase?
Yes, an integrated check valve is built into the hoses to prevent leaks by keeping boost pressure from reaching the catch can and crankcase.
Is the oil catch can serviceable?

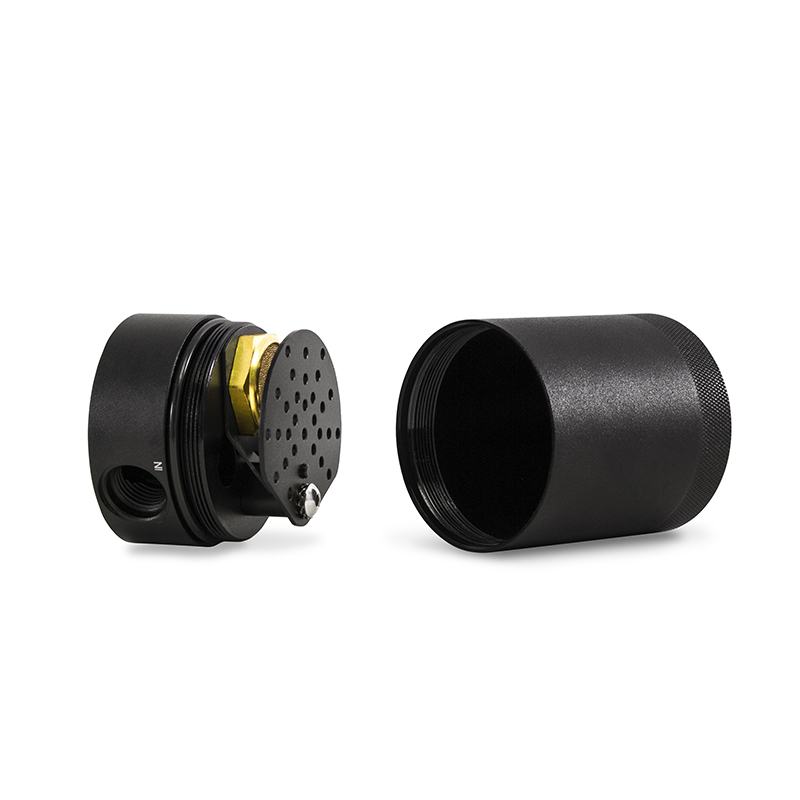

Yes, the billet 6061 aluminum sealed can is fully serviceable and features a twist-off cap with an interior baffle.
