Description

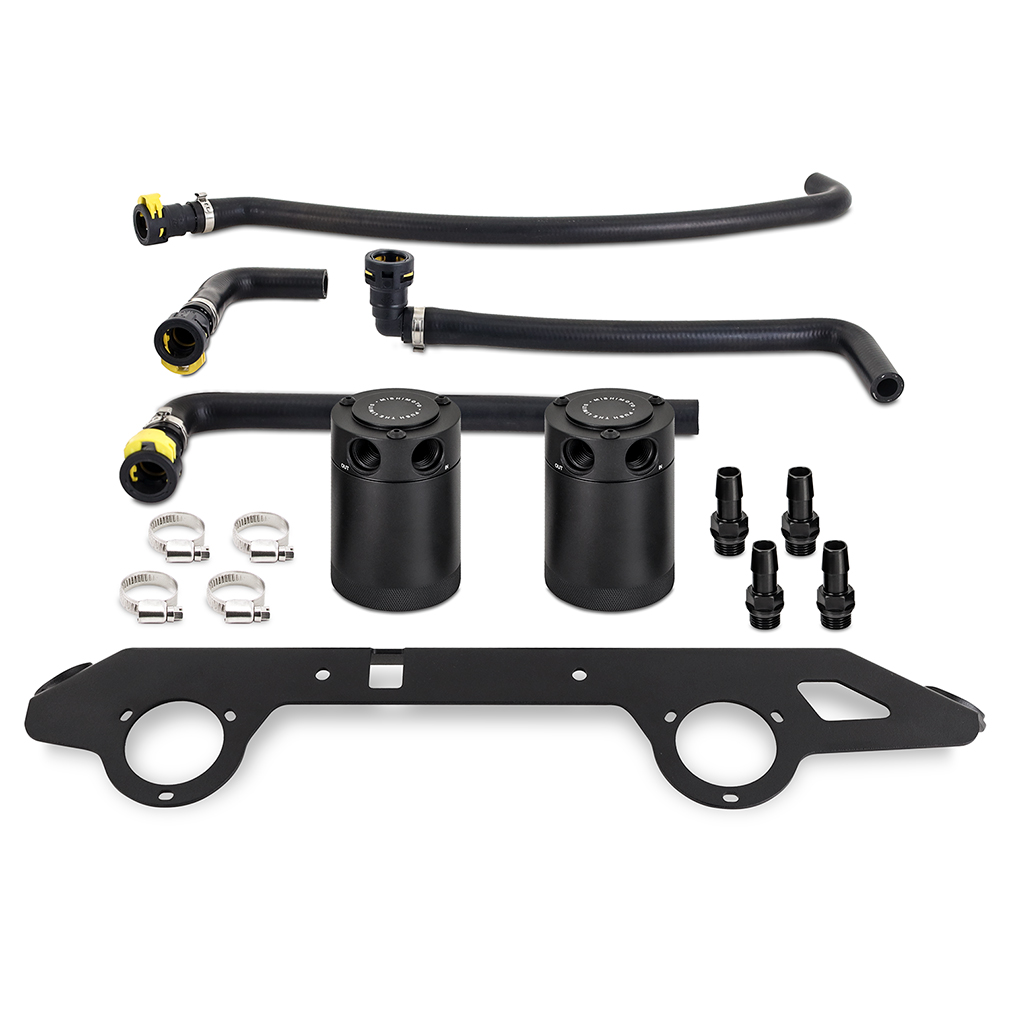

The Mishimoto MMBCC-BR27-23S is a dual baffled oil catch can system engineered specifically for the 2023 and later Ford Bronco 2.7L EcoBoost, and it exists because Ford changed how its ECM monitors crankcase pressure in 2023 — Mishimoto redesigned this catch can from the ground up to meet the updated factory specs. Rather than a generic bolt-on, it is a direct-fit solution built around the actual routing and sensors of the second-generation 2.7L, which uses both port and direct injection.
Blow-by that slips past the piston rings carries oil, fuel, and water vapor back through the intake, where it can coat sensors and the intercooler in sludge, thin engine oil, and even lower the effective octane of the fuel reaching the cylinders — a real concern on a turbocharged engine like the 2.7L EcoBoost. This Mishimoto catch can system intercepts that blow-by from both the PCV and CCV circuits before it ever reaches the intake, using an internal baffle and air turbulators to condense oil, fuel, and water vapor, plus a low-restriction composite filter to trap carbon particles. For anyone researching car engine parts, components of an automobile engine, or how to protect engine internals from blow-by contamination, this system addresses the problem directly at the source rather than masking it downstream.
Vehicle Applications
This catch can system is a direct fit for the Ford Bronco Badlands and Outer Banks from 2023 through 2026, the Ford Bronco Base for 2023, the Big Bend, Black Diamond, Heritage Limited Edition, and Wildtrak trims for 2023–2024, and the Heritage Edition and Stroppe Edition for 2026 — all equipped with the 2.7L EcoBoost V6 (chassis code U725).
Features
- Direct fit for 2023+ Ford Bronco with 2.7L EcoBoost
- Dual can system captures blow-by from both the PCV and CCV system
- Helps prevent fuel dilution and preserves octane rating

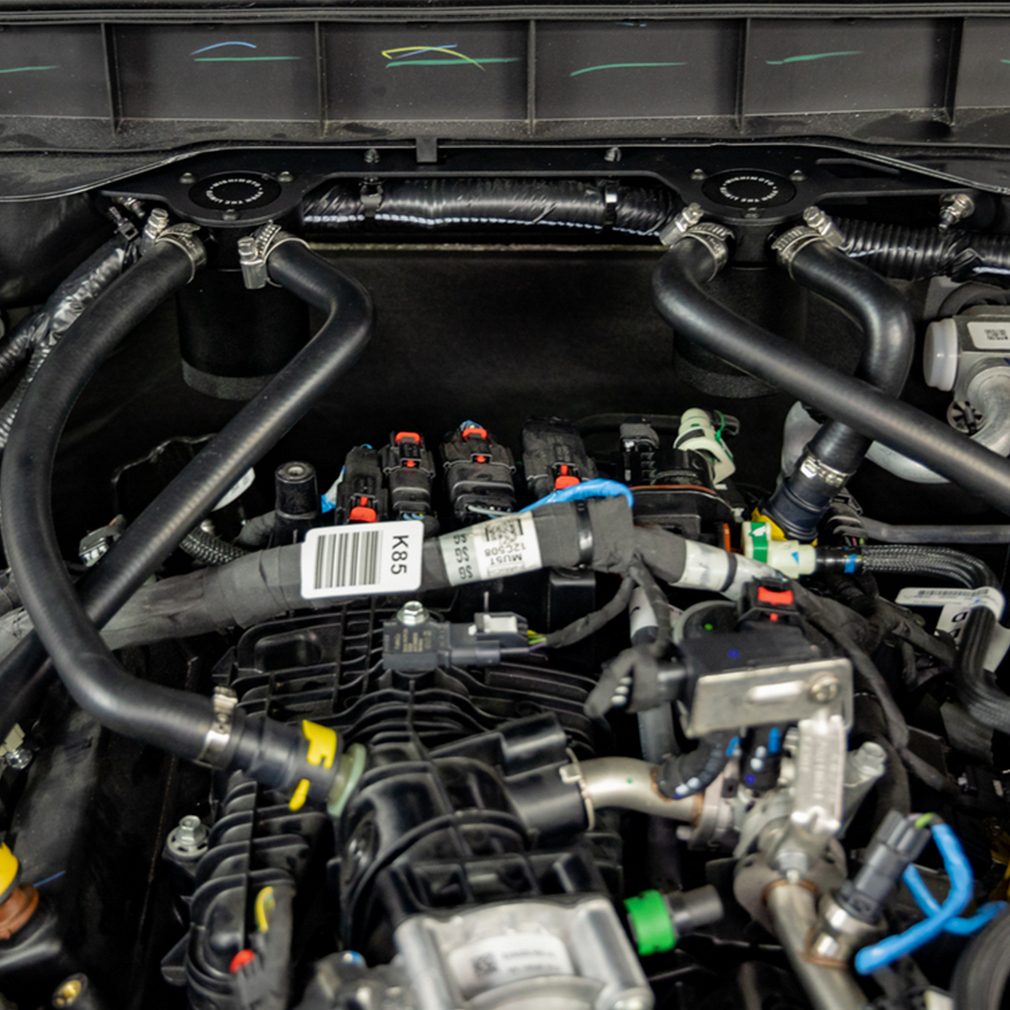

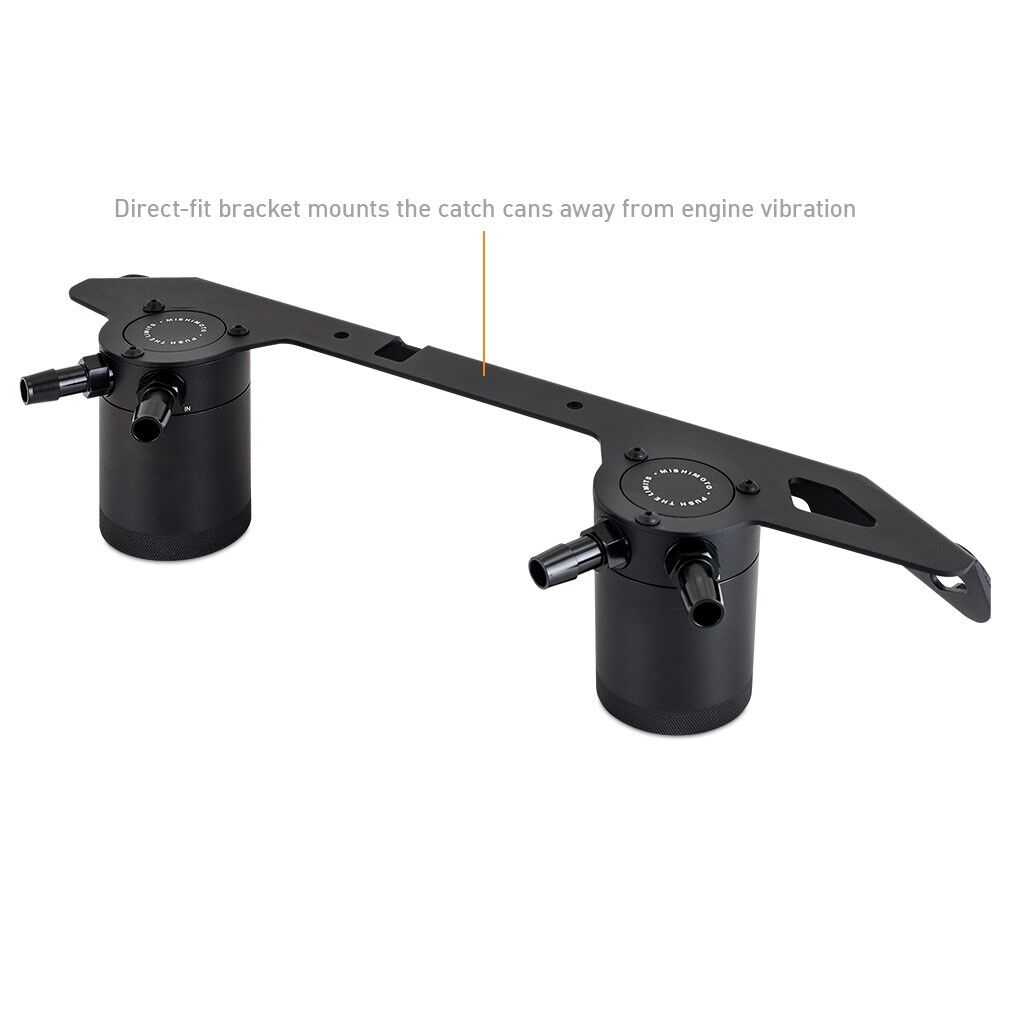

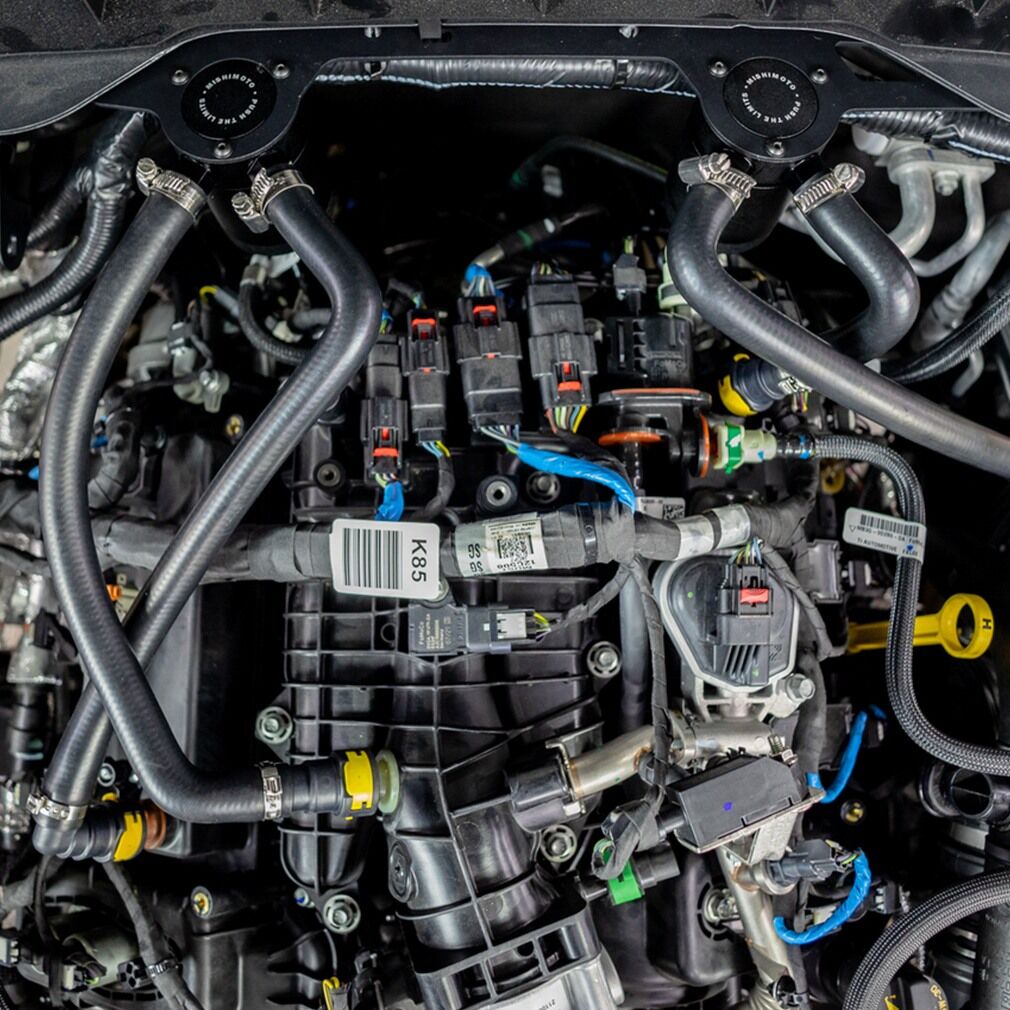

- Direct-fit bracket mounts the catch cans away from engine vibration

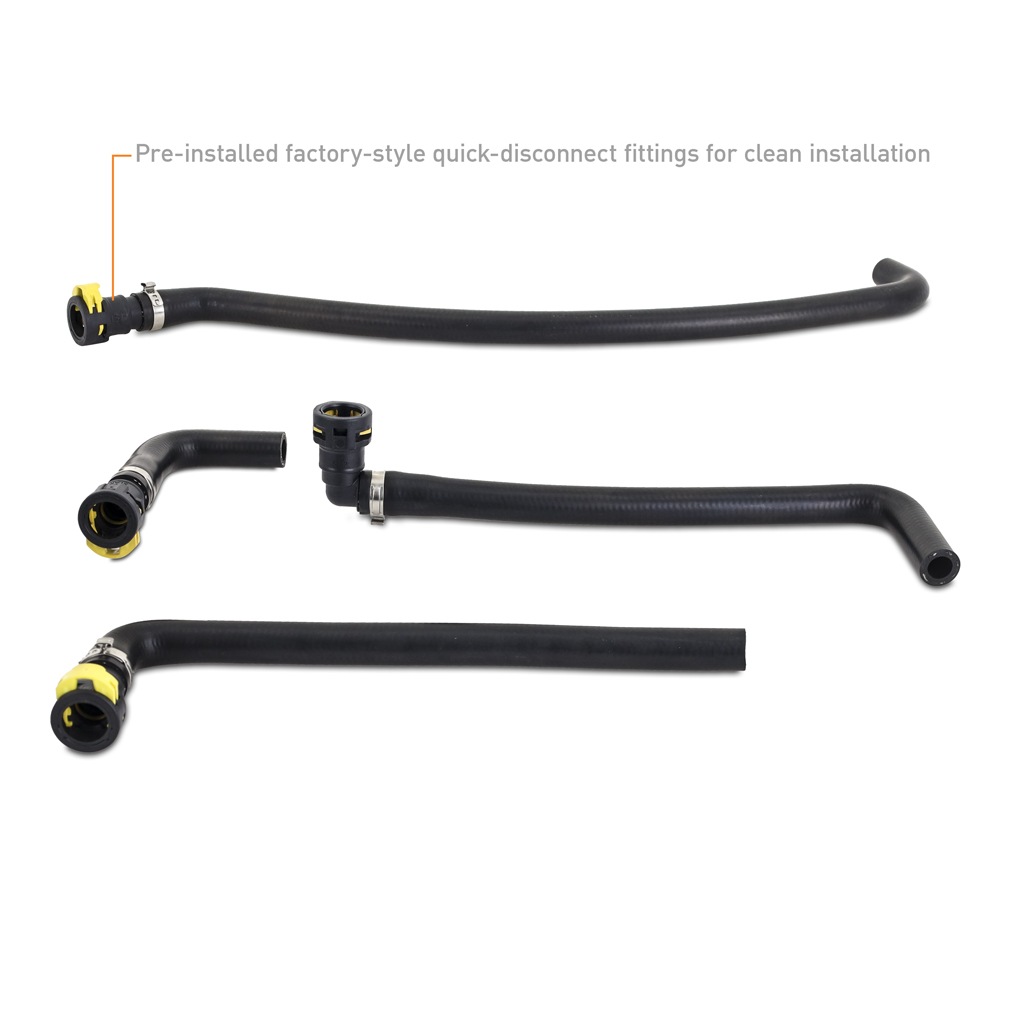

- Includes molded hoses specifically designed for the 2.7L EcoBoost
- Pre-installed factory-style quick-disconnect fittings for clean installation

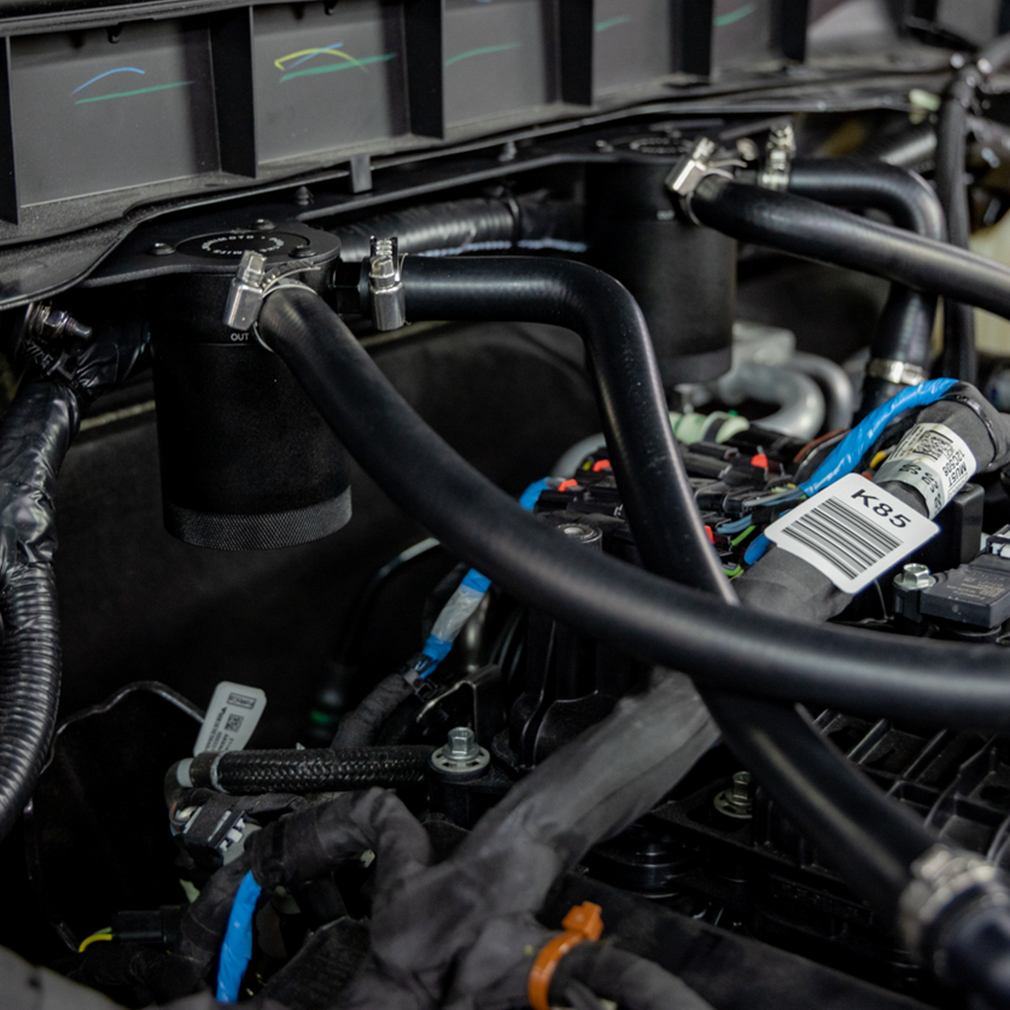

- Sturdy 2.5mm-thick steel bracket withstands rough roads and off-road abuse
- Catch cans capture blow-by, preventing it from fouling the engine oil

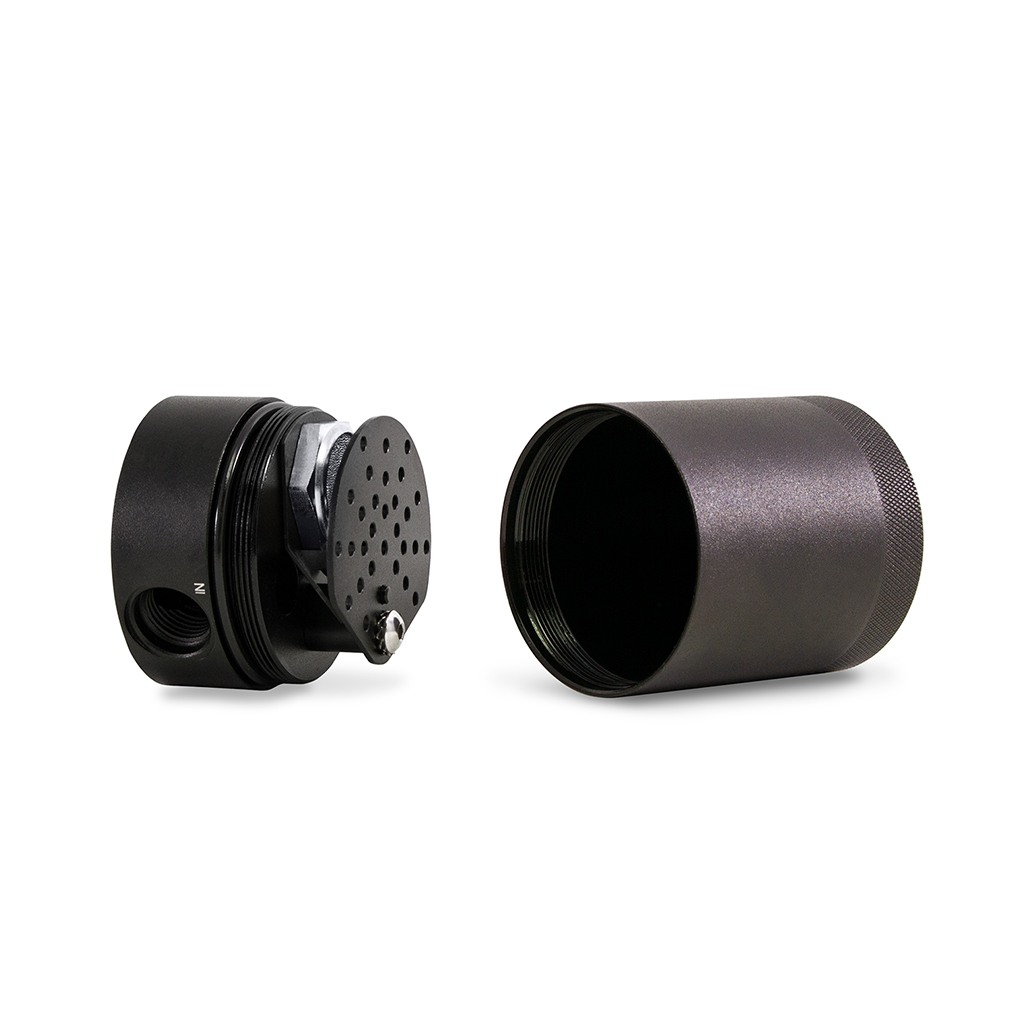

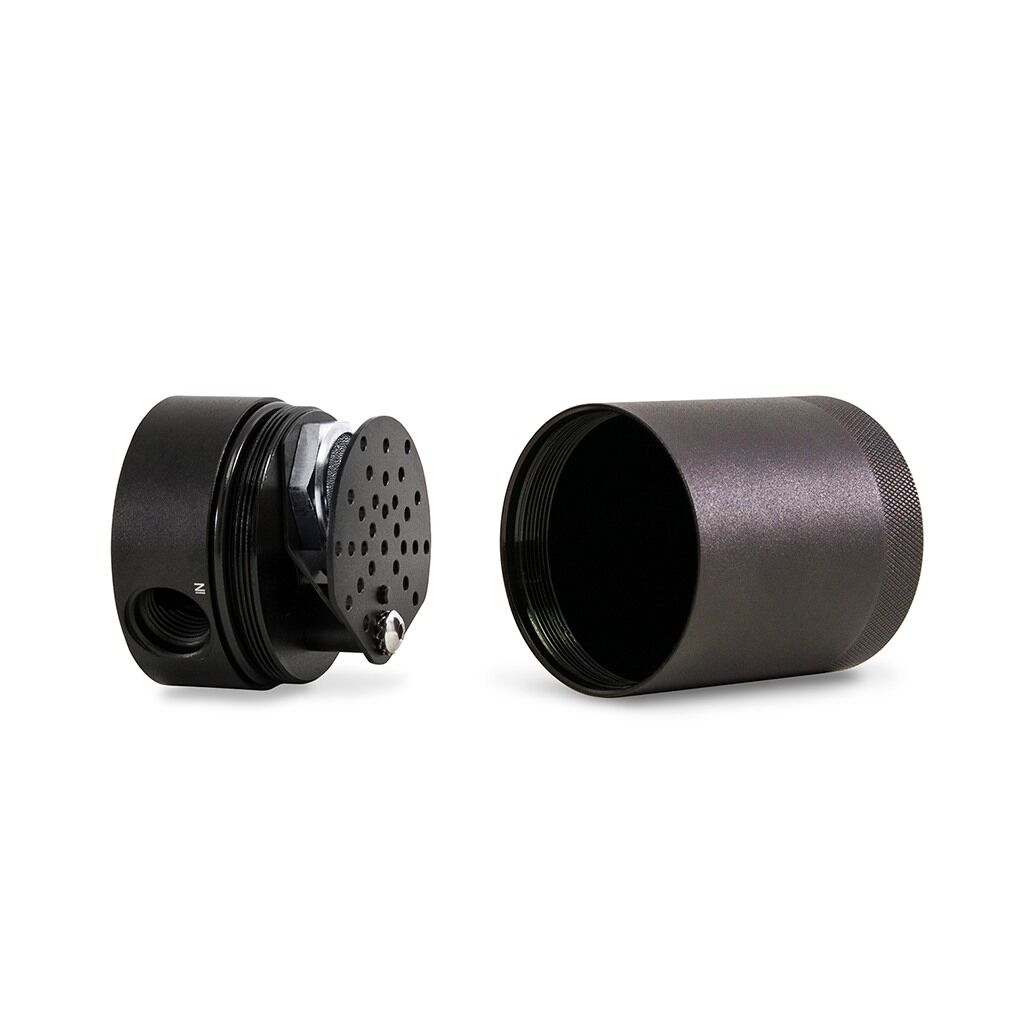

- Internal components can be easily cleaned and reused for a lifetime of service
- Billet 6061 aluminum cans sealed with Viton O-rings
- Patent No. US D884,760
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Can Material: 6061-T6 Billet Aluminum
- Can Type: Twist Off
- Can Finish: Anodized
- Color: Black
- Height: 3.7 in
- Can Outside Diameter: 2.5 in
- Inlet Port Inside Diameter: 0.6 in
- Outlet Port Inside Diameter: 0.6 in
- Mounting Bracket Included: Yes
- Hose Included: Yes
- Drain Plug Included: Yes
- Interior Baffle: Yes
- Chassis Code: U725
- Engine Code: 2.7L EcoBoost
- Applications: Ford Bronco 2.7L V6 2023+
Frequently Asked Questions
Which Ford Bronco models does the Mishimoto MMBCC-BR27-23S fit?
It is a direct fit for the Ford Bronco Badlands and Outer Banks (2023–2026), Base (2023), Big Bend, Black Diamond, Heritage Limited Edition, and Wildtrak (2023–2024), and the Heritage Edition and Stroppe Edition (2026), all with the 2.7L EcoBoost V6 (chassis code U725).
Why was this catch can system redesigned for 2023?
In 2023, Ford’s ECM changed how it monitors crankcase pressure, so Mishimoto redesigned this catch can system to meet the updated factory specs.
What does this catch can system actually capture?
It provides oil/water separation for both the PCV and CCV systems on the Bronco, using an internal baffle and air turbulators to condense oil, fuel, and water vapor from blow-by, along with a low-restriction composite filter that captures carbon particles.
What are the catch cans made from?
The cans are made from 6061-T6 billet aluminum with a twist-off design and an anodized finish, sealed with Viton O-rings.
Does the system include a warranty?
Yes, this catch can system is backed by the Mishimoto Lifetime Warranty.
What if I need to replace the OEM breather hose after installing this system?
The factory breather hose uses tamper-proof fittings that may break upon removal; Mishimoto’s hoses are fully compatible and removable, and if you need to replace your OEM line, the part number is MB3Z-6758-C.
