Description

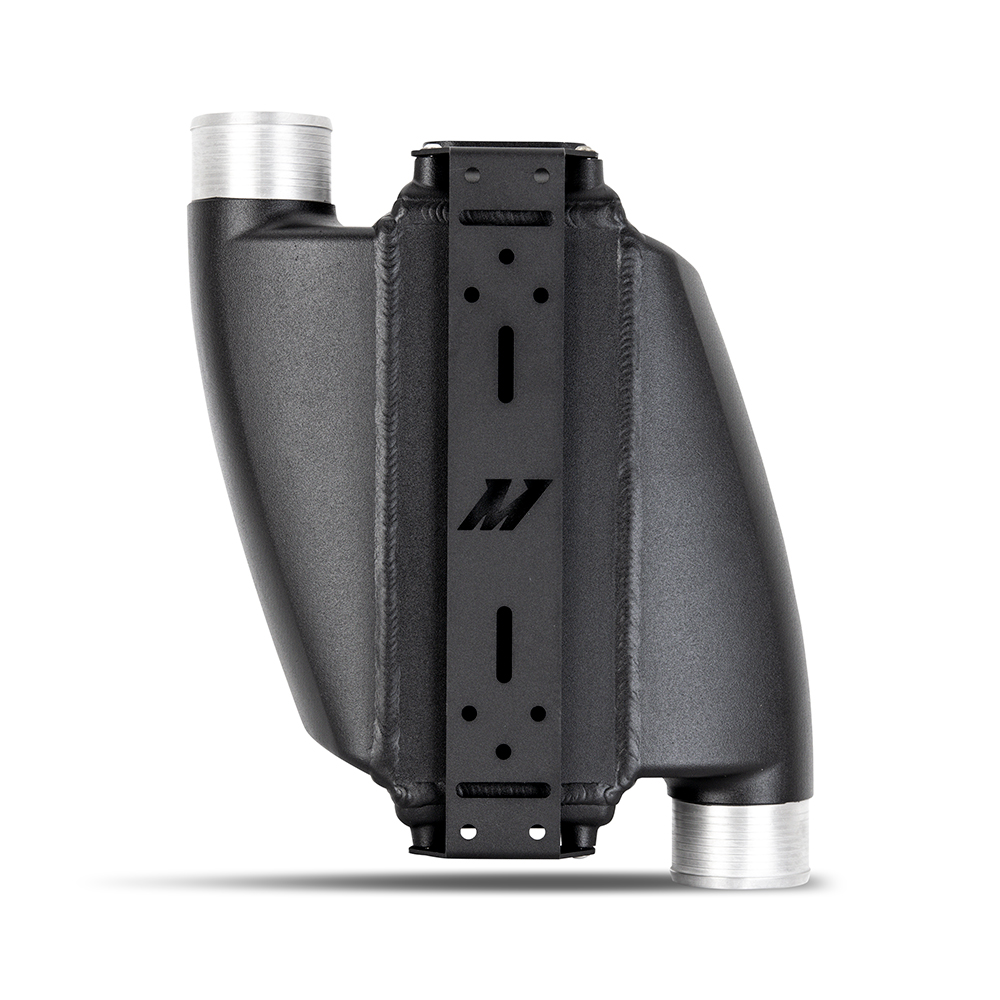

The Mishimoto MMINT-A2W-DPR-2 is a bar-and-plate air-to-water intercooler built for forced induction projects that demand serious heat rejection in a compact footprint. This particular core ships in the 1000HP opposite-side inlet/outlet configuration, giving builders a purpose-engineered unit rated for up to 1000 horsepower and 100 psi of boost pressure. Constructed with cast-aluminum end tanks TIG-welded to an aluminum bar-and-plate core, it delivers the dense, efficient cooling that air-to-water induction systems are known for.
Air-to-water intercooling has grown in popularity because it lets an induction system control intake temperature without stretching long piping runs across an engine bay, and this Mishimoto core is designed to be the heart of that forced induction system. Reducing heat soak and detonation starts with keeping the induction engine fed cool, dense air, and the tightly packed bar-and-plate core here is engineered to do exactly that while staying compact enough for tight custom installations. Whether you’re assembling a full forced induction turbo setup or upgrading an existing performance induction platform, this core gives you a durable, high-boost-capable foundation for your build.
Vehicle Applications
This Mishimoto air-to-water intercooler core is a universal-application component rather than a factory-specific bolt-on part, and it is supplied with a sturdy universal mounting bracket so it can be positioned to suit the layout of a custom forced induction system or engine swap project. No factory make, model, or engine-code application list is specified for this core, so it is intended to be plumbed and mounted according to the requirements of your individual build rather than a predetermined vehicle fitment.
Features
- Highly efficient air-to-water design delivers effective cooling in a compact package
- Bar-and-plate core provides durability and efficient cooling for vehicles up to 1500hp

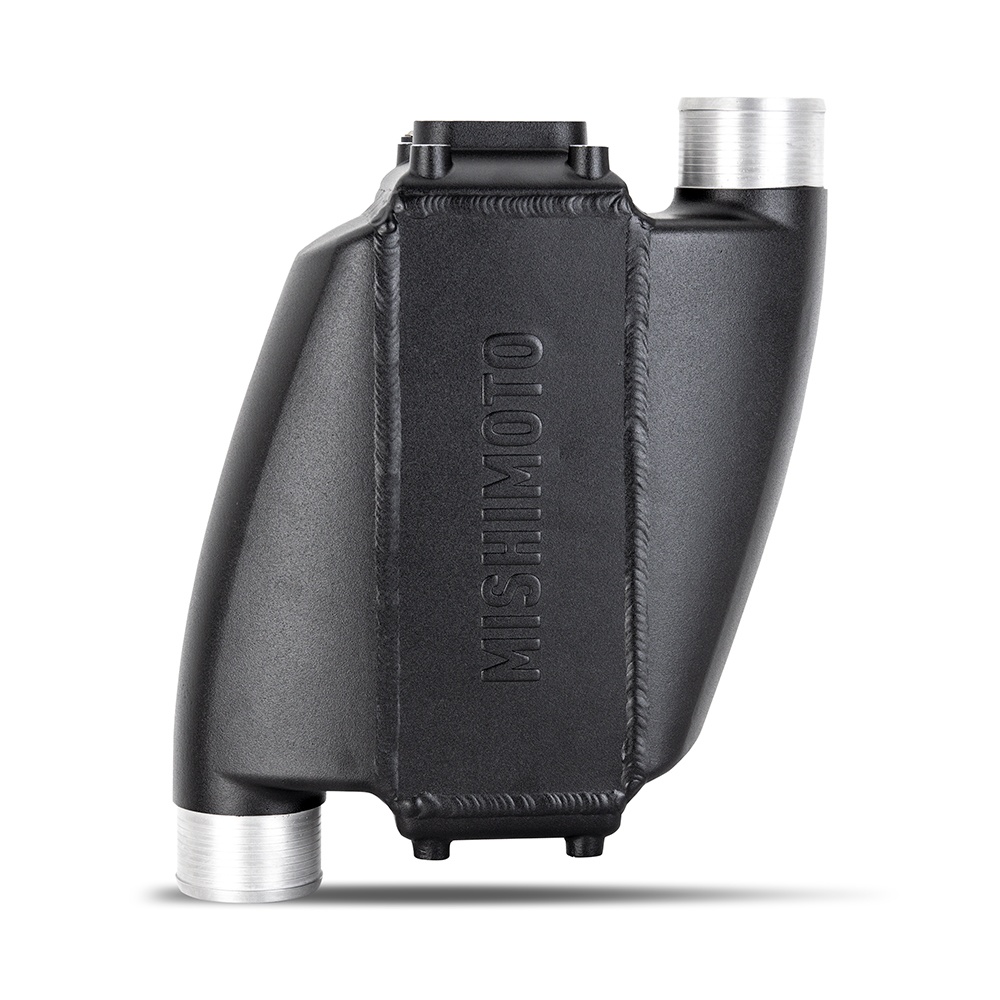

- Cast-aluminum end tanks are custom engineered to yield superb airflow and durability
- Available in multiple core sizes, end tank configurations, and single or dual pass coolant flow
- All-aluminum professionally TIG-welded construction rated to 100psi of boost pressure
- CNC-machined ribbed airflow inlet/outlet produces secure coupler connections
- Sleek, subtle, and durable micro-wrinkle black powder coat finish

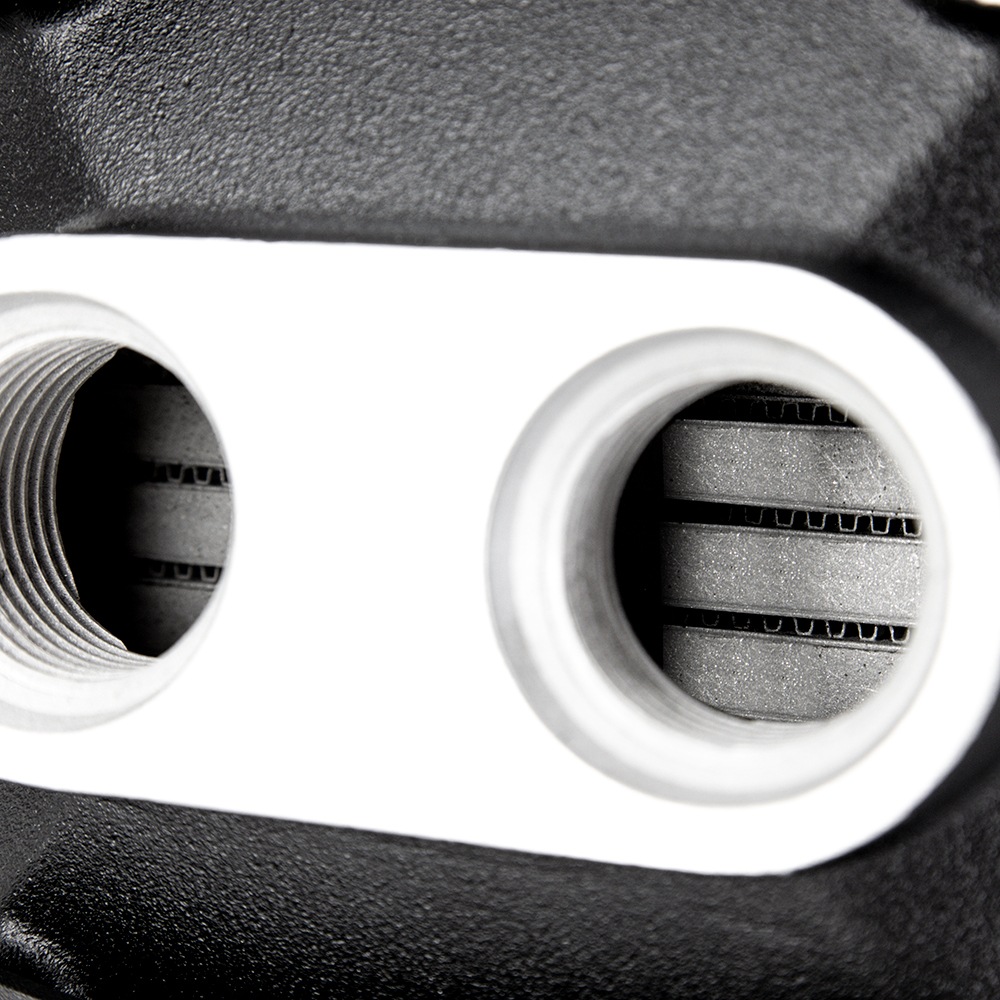

- -12ORB coolant ports provide leak-free line connections

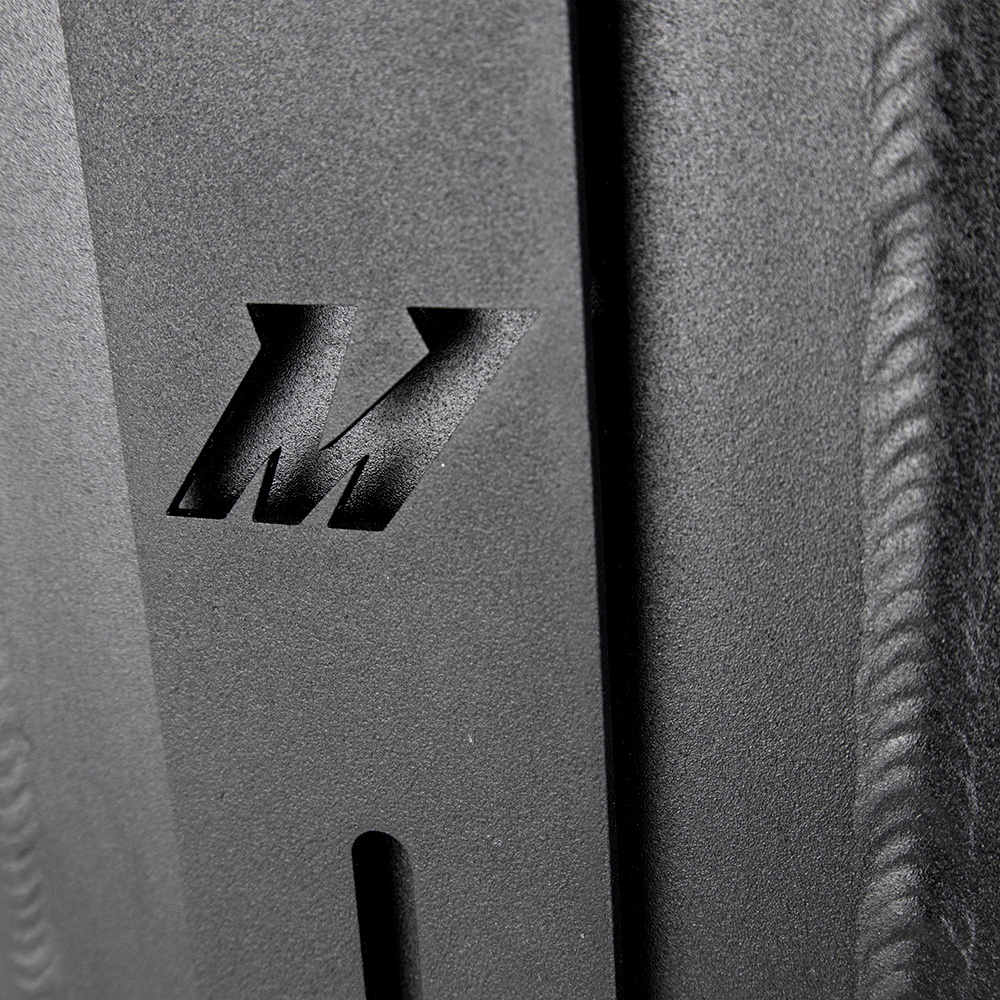

- Includes robust 1/8-in thick steel mounting bracket and hardware
- Abundant coolant line options with Mishimoto’s -12ORB Aluminum Fittings
- Pair with a Mishimoto Air-to-Water Heat Exchanger for the ultimate efficiency in your charge-air cooling setup
- Multiple core sizes to choose from to fit the needs of your project
- Backed by the Mishimoto Lifetime Warranty
Specifications
- Brand: Mishimoto
- Part Number: MMINT-A2W-DPR-2
- Type: Bar-and-Plate
- Core Material: Aluminum
- Inlet Tank Material: Aluminum
- Grade Type: Performance
- Configuration: 1000HP – Opposite Side Inlet/Outlet
- Inlet Fitting Gender: Male
- Outlet Fitting Gender: Male
- Universal or Specific Fit: Specific

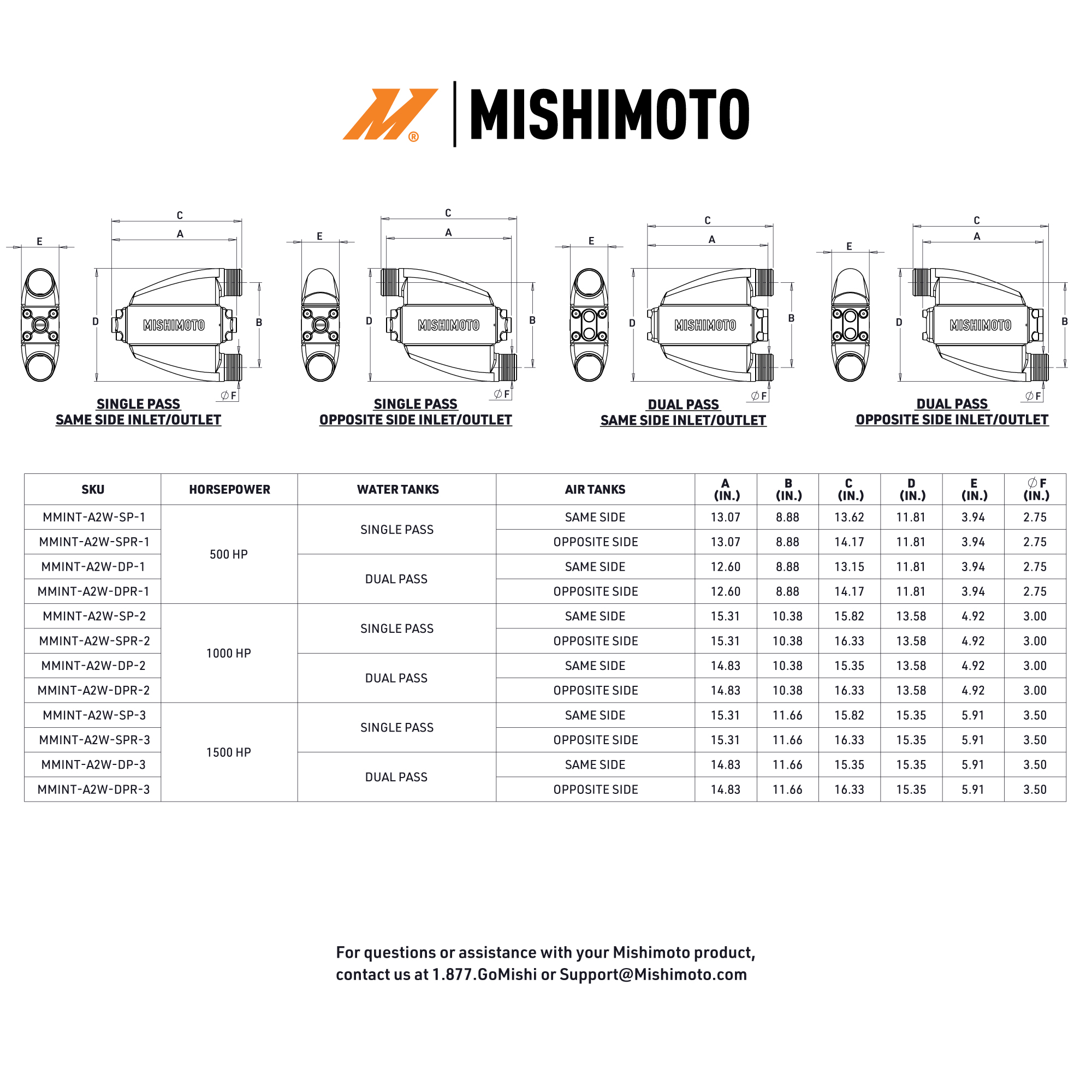

- Overall Length: 14.13 in
- Overall Width: 4.92 in
- Overall Height: 10.75 in
- Core Length: 12 in
- Core Height: 4.92 in
- Core Thickness: 4.92 in
- Maximum Recommended Horsepower: 1000
- Maximum Recommended Boost Pressure: 100 PSI
Frequently Asked Questions
What is the maximum horsepower rating for this Mishimoto air-to-water intercooler?
This MMINT-A2W-DPR-2 configuration is rated for builds producing up to 1000 horsepower.
What boost pressure can this intercooler handle?
It is rated to withstand up to 100 psi of boost pressure thanks to its professionally TIG-welded aluminum construction.
What type of core does this intercooler use?
It uses a bar-and-plate core made from aluminum, paired with cast-aluminum inlet tank material.
Does this intercooler include mounting hardware?
Yes, it includes a robust 1/8-inch thick steel universal mounting bracket and hardware.
What type of coolant ports does this core use?
The core features -12ORB coolant ports designed to provide leak-free line connections, and Mishimoto offers -12ORB Aluminum Fittings for additional coolant line options.
Is this intercooler covered by a warranty?
Yes, it is backed by the Mishimoto Lifetime Warranty.
