Description

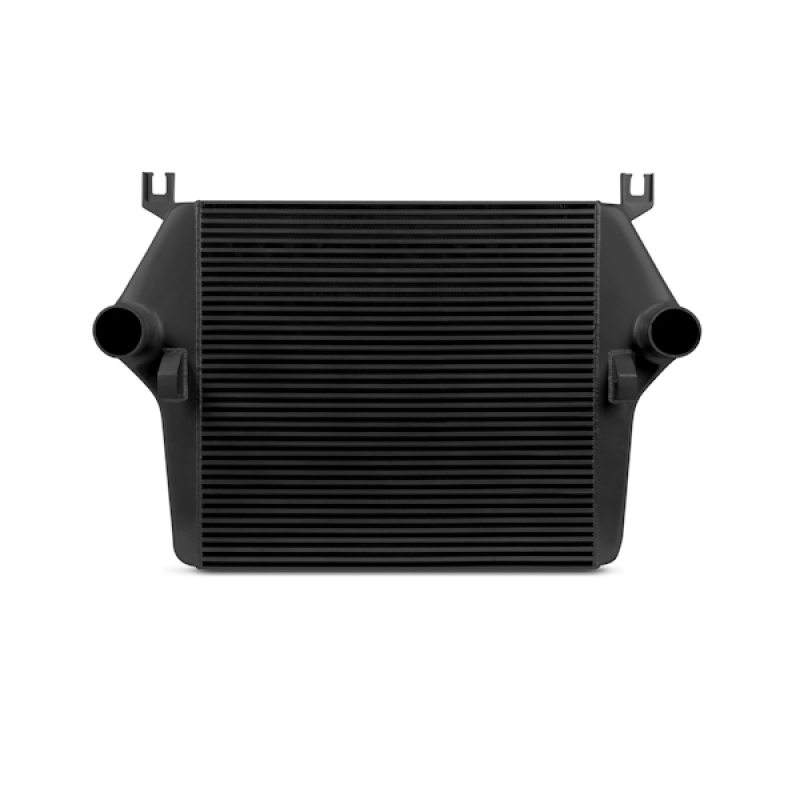

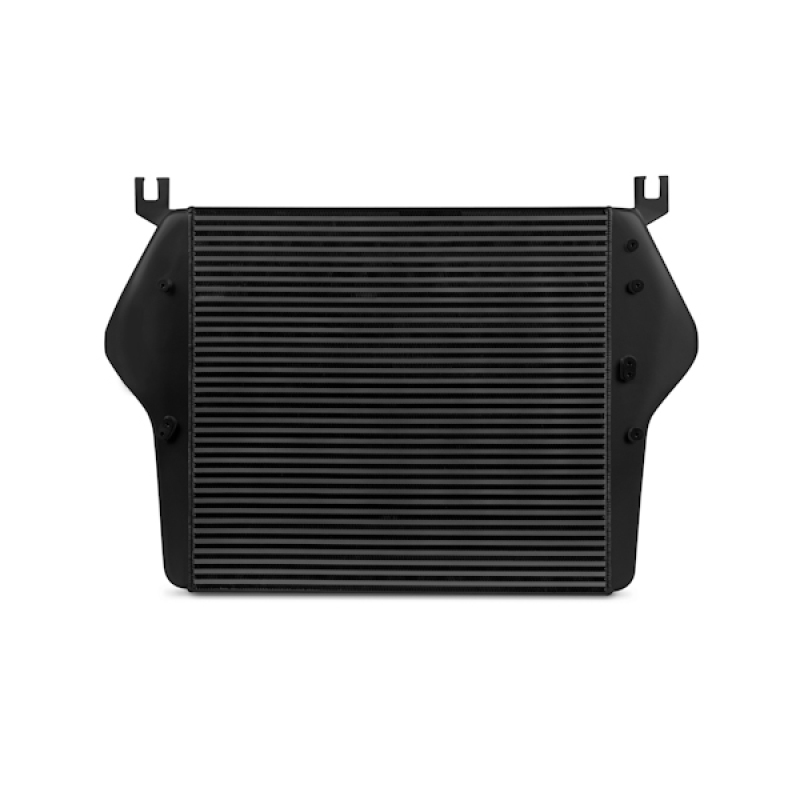

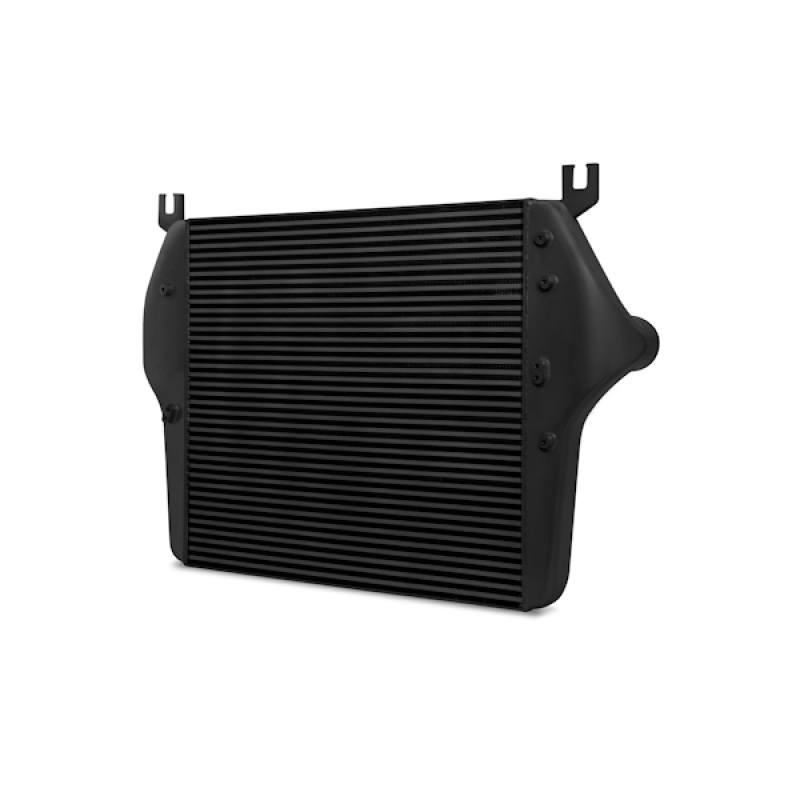

The Mishimoto MMINT-RAM-03BK is a purpose-built, specific-fit intercooler engineered for the Dodge Ram inline-6 diesel lineup, finished in black and constructed around a dense bar-and-plate core with cast aluminum end tanks. Unlike a universal piece, this unit is designed to bolt into place on the trucks it was engineered for, pairing larger-than-stock outlets with a core built to handle real-world boost demands.
As a core piece of your truck’s forced induction system, this Mishimoto intercooler is engineered to decrease intake air temperatures, improve airflow, and reduce pressure loss compared to the factory unit. The increased core volume gives this induction system more capacity to support boost pressure and help lower EGTs, whether your Cummins-powered Ram is running stock or has been modified. Larger outlets over the factory intercooler further support flow through the forced induction path, and Mishimoto backs the design with its DuraCore-equipped silicone boots and constant-tension T-bolt clamps for a durable, leak-resistant induction system connection at every joint.
Vehicle Applications
This intercooler is engineered specifically for Dodge Ram trucks powered by the inline-six diesel: the Ram 2500 and 3500 with the 5.9L engine from 2003-2007 and the 6.7L engine from 2007-2009, as well as the heavier-duty Ram 4500 and Ram 5500 with the 6.7L engine from 2008-2009. Within these platforms, listed compatibility spans a range of trims and configurations, including Ram 2500 Laramie (2003, 2005-2009), Power Wagon (2006-2009), SLT (2003-2009), SLT Big Horn (2008), SLT Daytona (2005), SLT Night Runner Sport (2006), SLT Sport (2006-2008), Sport (2006-2007), ST (2003-2009), SXT (2008-2009), TRX4 (2006-2007), and Crew (2009); Ram 3500 Laramie, SLT, and ST (2003-2009), Sport (2006-2007), SXT (2008-2009), and TRX4 (2007); Ram 4500 Base (2008) and Laramie, SLT, and ST (2008-2009); and Ram 5500 Base (2008) and Laramie, SLT, and ST (2008-2009).
Features
- Direct fit for the 2003-2009 5.9L/6.7L Dodge Cummins applications listed above

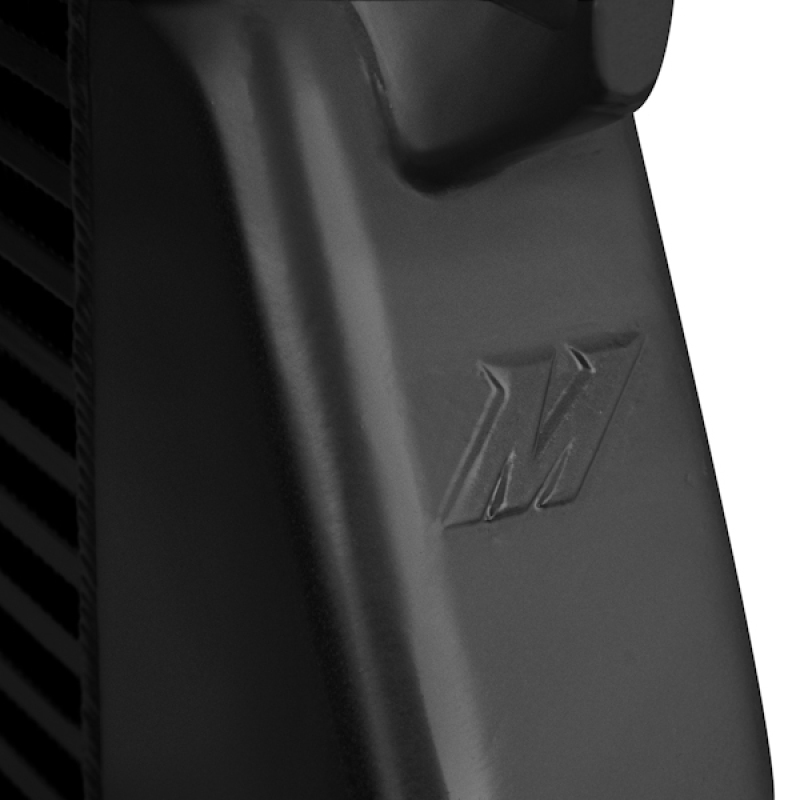

- Bar-and-plate construction with cast aluminum end tanks
- End tanks strategically designed for optimal airflow

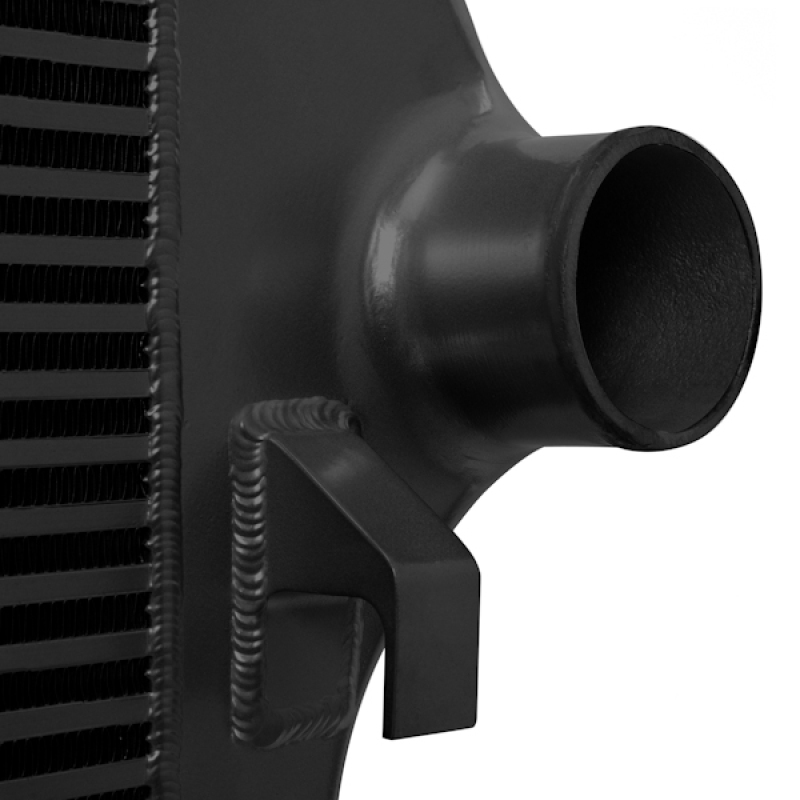

- Larger than factory outlets allow increased flow
- DuraCore technology provides superior resistance to heat, pressure, fuel, and oil
- Mishimoto Constant-Tension T-bolt Clamps for consistent, durable holding power
- Sleek Silver or Stealth Black intercooler options available
- Provides improved airflow and lowers intake air temperatures

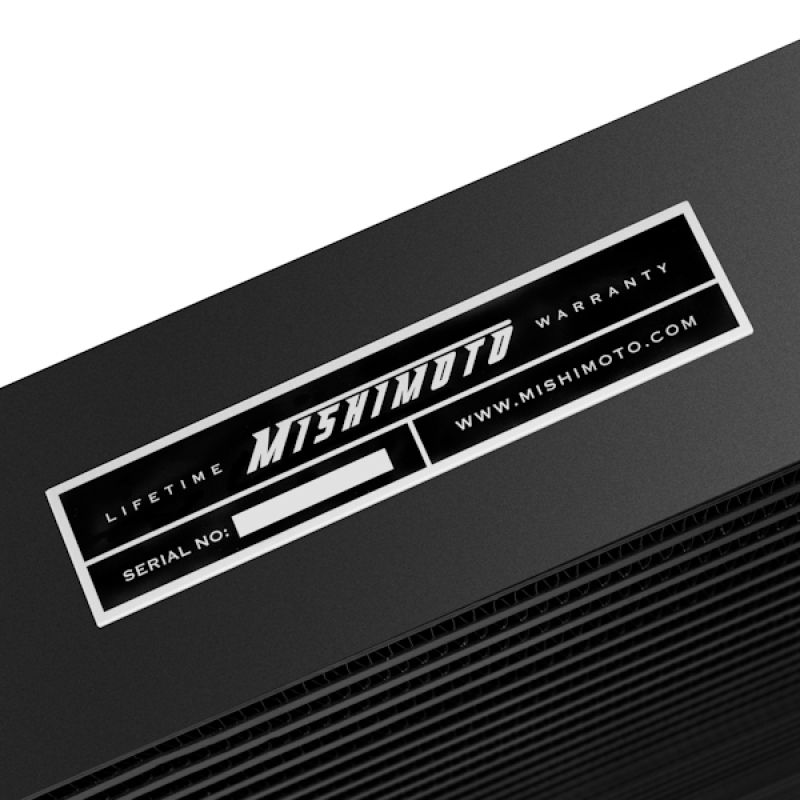

- Backed by the Mishimoto Lifetime Warranty
Specifications
- Type: Bar-and-Plate
- Core Material: Aluminum
- Inlet Tank Material: Aluminum
- Core Color: Black
- Grade Type: Performance
- Universal or Specific Fit: Specific
- Overall Length: 40.3 in
- Overall Width: 6.2 in
- Overall Height: 27.6 in
- Core Length: 27.36 in
- Core Height: 25.57 in
- Inlet Outside Diameter: 3.5 in
- Outlet Outside Diameter: 3.5 in
- Inlet Fitting Gender: Male
- Outlet Fitting Gender: Male

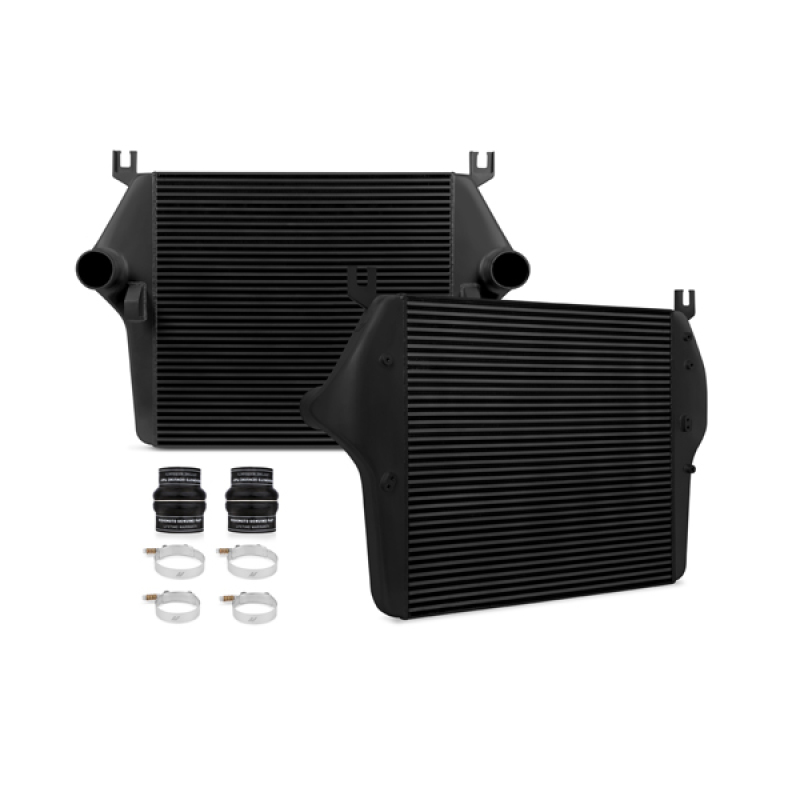

- Includes: (1) Mishimoto Intercooler, (2) Silicone Boots with DuraCore Technology, (4) Constant-Tension T-Bolt Clamps, (4) M6 x 1.0 x 16 Flange Head Bolts, Mishimoto Lifetime Warranty
Frequently Asked Questions
What core construction does the Mishimoto MMINT-RAM-03BK intercooler use?
It uses a dense bar-and-plate core paired with cast aluminum end tanks, both made from aluminum.
What color is this intercooler?
This version (MMINT-RAM-03BK) is finished in black; Mishimoto also offers this intercooler in a silver option.
What is included with the intercooler?
It includes (1) Mishimoto Intercooler, (2) Silicone Boots with DuraCore Technology, (4) Constant-Tension T-Bolt Clamps, and (4) M6 x 1.0 x 16 Flange Head Bolts, along with the Mishimoto Lifetime Warranty.
What is DuraCore technology?
DuraCore is the synthetic material that makes up the innermost layer of Mishimoto’s silicone diesel boots. Compared to normal silicone, it offers superior resistance to heat, pressure, fuel, and oil, which helps prevent leaks and blowouts and extends boot life.
What are the inlet and outlet diameters?
Both the inlet and outlet outside diameters measure 3.5 inches, with male fitting gender on each end.
Which Dodge Ram trucks does this intercooler fit?
It is a specific fit for Dodge Ram 2500 and 3500 trucks with the 5.9L (2003-2007) and 6.7L (2007-2009) inline-6 Cummins engines, as well as Dodge Ram 4500 and 5500 trucks with the 6.7L engine (2008-2009), across the trims and model years listed in the vehicle applications section.
